Square green ITX motherboard with silver CPU socket, two black memory slots, one long expansion slot, four SATA ports

YINGHUA

YINGHUA H610M ITX server motherboard LGA 1700 DDR4

SKU CH-Q6N2-DA8KS

Compact ITX server board with H610 chipset, dual-channel DDR4 up to 64 GB, PCIe 4.0/5.0 x16, M.2 NVMe, four SATA 3.0 ports and triple-display outputs

  • CPU TypeIntel Atom
  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR4 memory up to 64 GB at speeds including 3200 MHz
  • PCIe 4.0 and 5.0 x16 slot plus M.2 2280 NVMe for high-speed expansion
  • Four SATA 3.0 ports and CNVI Wi-Fi socket for flexible storage and connectivity
  • 8-phase power on 6-layer PCB with HDMI 2.0 and DP 1.4 for triple-display output

H610M ITX server motherboard LGA 1700 DDR4

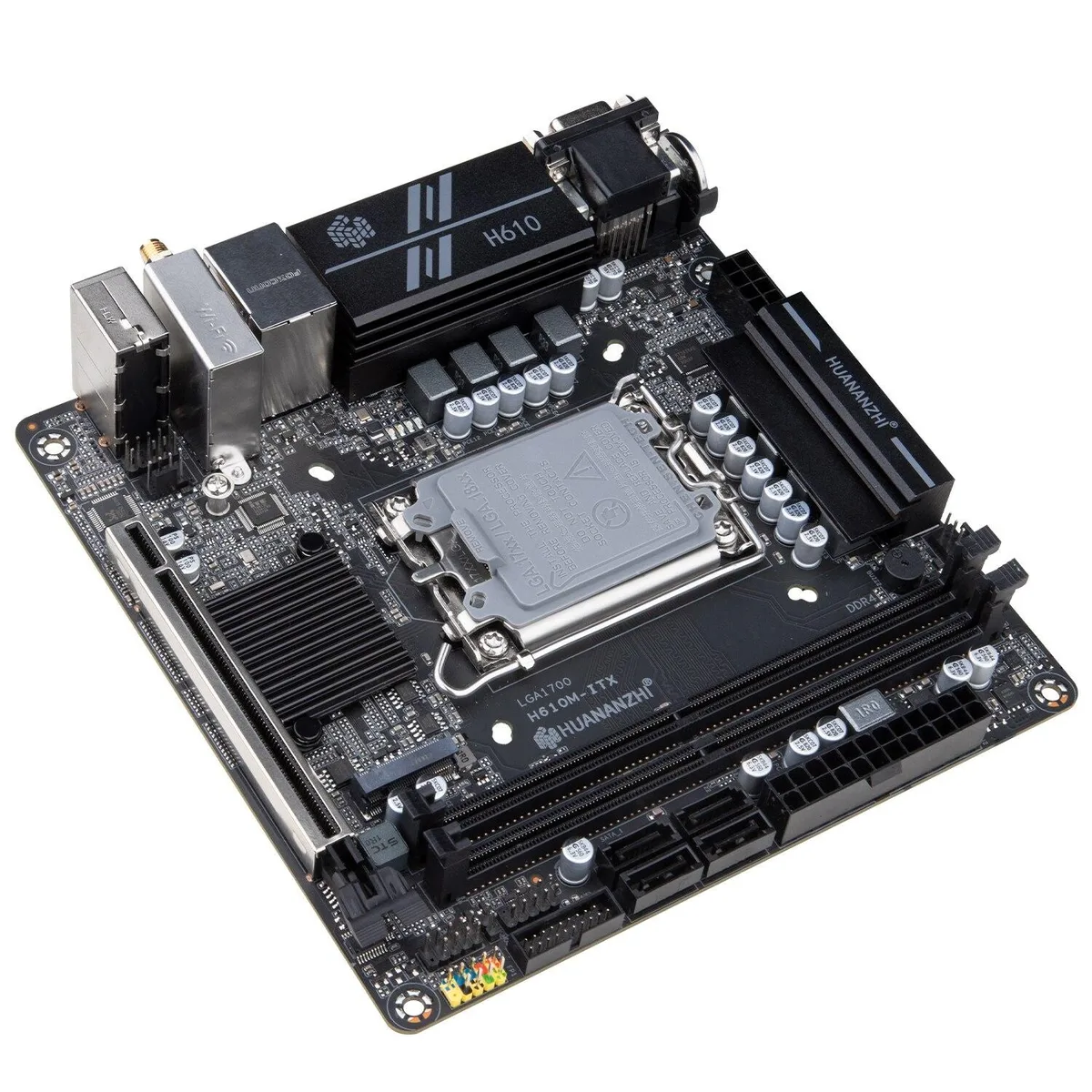

The YINGHUA H610M is an ITX server motherboard built around the Intel H610 chipset for LGA 1700 processors. It fits compact chassis with a 170 by 170 millimetre footprint and a six-layer PCB. An eight-phase power delivery system feeds the CPU socket. Two DDR4 slots support dual-channel memory up to 3200 MHz with a 64 gigabyte ceiling.

Storage and expansion on a compact board

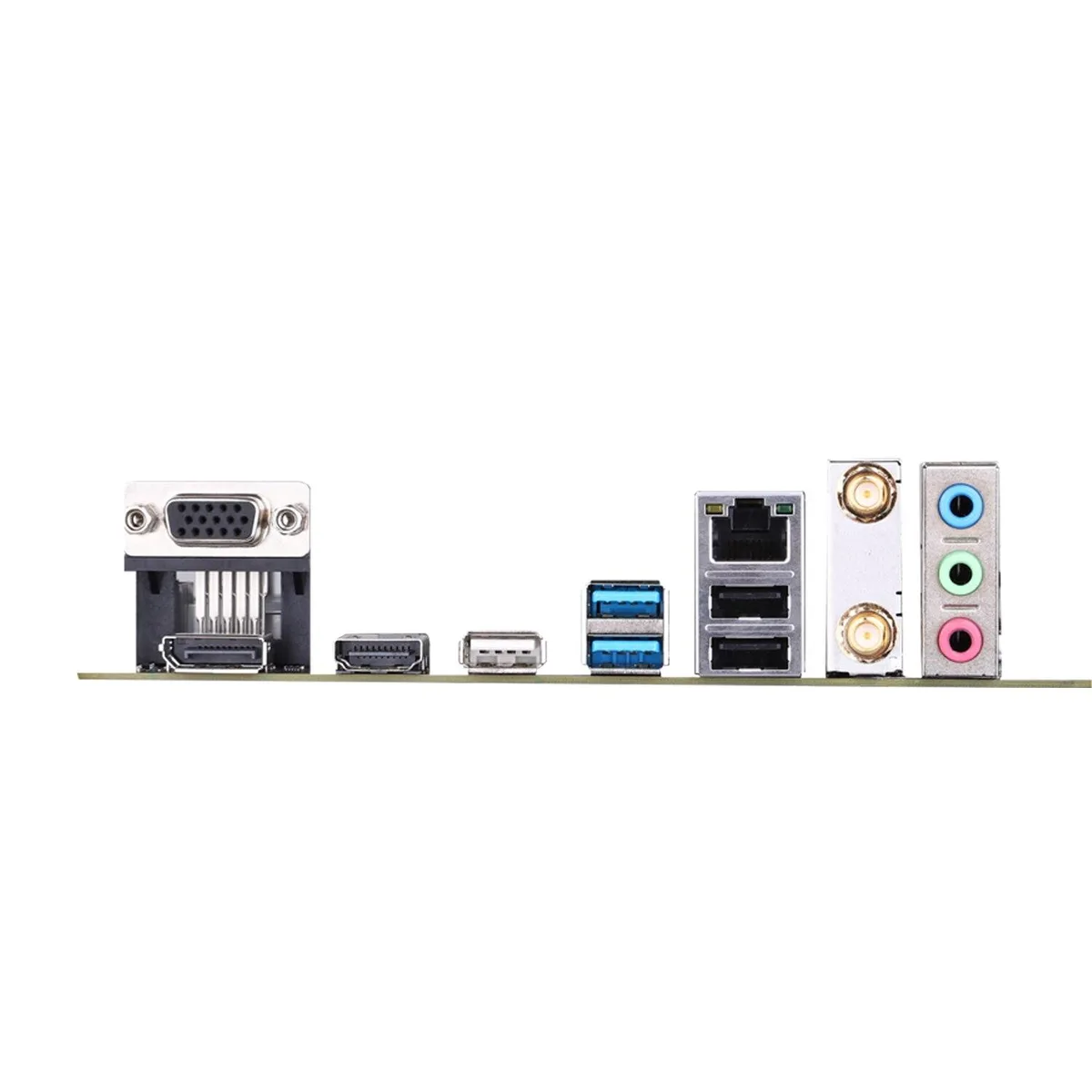

Four SATA 3.0 ports and one M.2 2280 NVME PCIe 3.0 x4 slot handle drives. A single PCI Express 4.0 or 5.0 x16 slot takes a full-length add-in card. Rear video outputs include VGA, HDMI 2.0 and DP 1.4 for three-screen output from the processor graphics. Builders who need more than one x16 slot or additional M.2 sockets should look at larger form factors.

The x16 slot generation decides GPU bandwidth

The expansion slot is specified as PCI Express 4.0 or 5.0 x16, so the electrical generation matches the installed processor. A 12th generation CPU yields 4.0 speeds while a 13th generation CPU can enable 5.0. Verify the exact CPU you plan to use before selecting a graphics card or accelerator that depends on the higher link rate.

Highlights

  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR4 memory up to 64 GB at speeds including 3200 MHz
  • PCIe 4.0 and 5.0 x16 slot plus M.2 2280 NVMe for high-speed expansion
  • Four SATA 3.0 ports and CNVI Wi-Fi socket for flexible storage and connectivity
  • 8-phase power on 6-layer PCB with HDMI 2.0 and DP 1.4 for triple-display output

Specifications

CPU TypeIntel Atom

Questions about this item

How do I install the CPU and what step is often missed?

Seat an LGA 1700 processor, lock the lever, then attach the 8 PIN power connector; the extra CPU power is the step most builders forget.

Which components will need replacement first?

The two DDR4 slots and four SATA 3.0 ports are fixed; only the M.2 2280 NVME drive or a CNVI Wi-Fi module can be swapped later.

What limit appears first under sustained load?

The 8 phase power delivery and two fan headers set the thermal ceiling before the PCIe 4.0 / 5.0 x16 slot or rear I/O become bottlenecks.
