Green server motherboard with six network ports, two memory slots, VGA and HDMI outputs

YINGHUA

YINGHUA M366 B365 LGA1151 2 DDR4 6 2.5G server motherboard

SKU CH-G75R-MDGG8

Industrial server board with six 2.5G Intel I225-V ports, dual DDR4 DIMMs up to 64GB, and LGA1151 support for 6th to 9th generation Intel CPUs

  • CPU TypeIntel Atom
  • Supports up to 64GB DDR4 memory
  • Six 2.5G Intel I225-V network ports
  • Dual display via VGA and HDMI 1.4
  • Two SATA 3.0 and one MSATA slot
  • TPM plus eight GPIO inputs and outputs

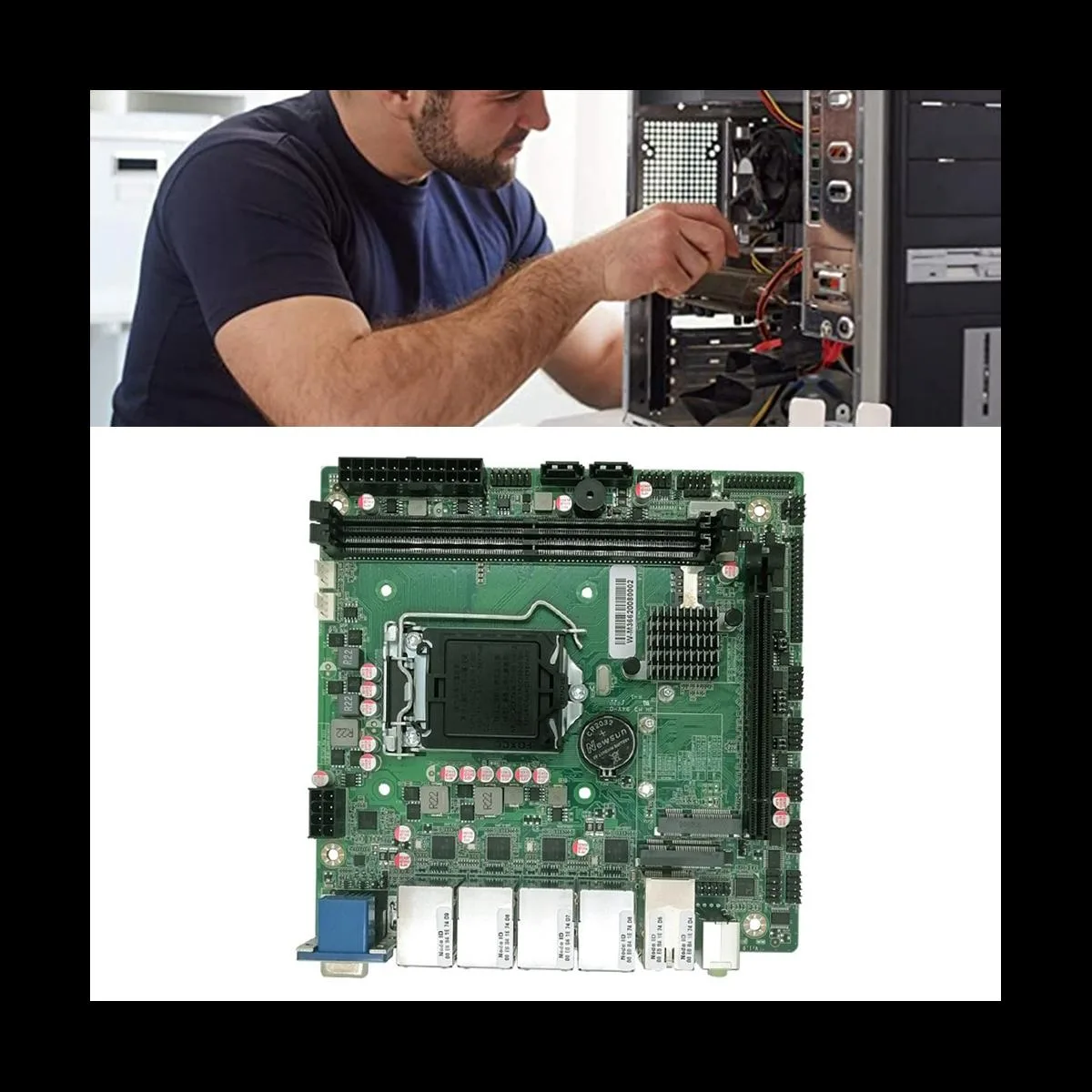

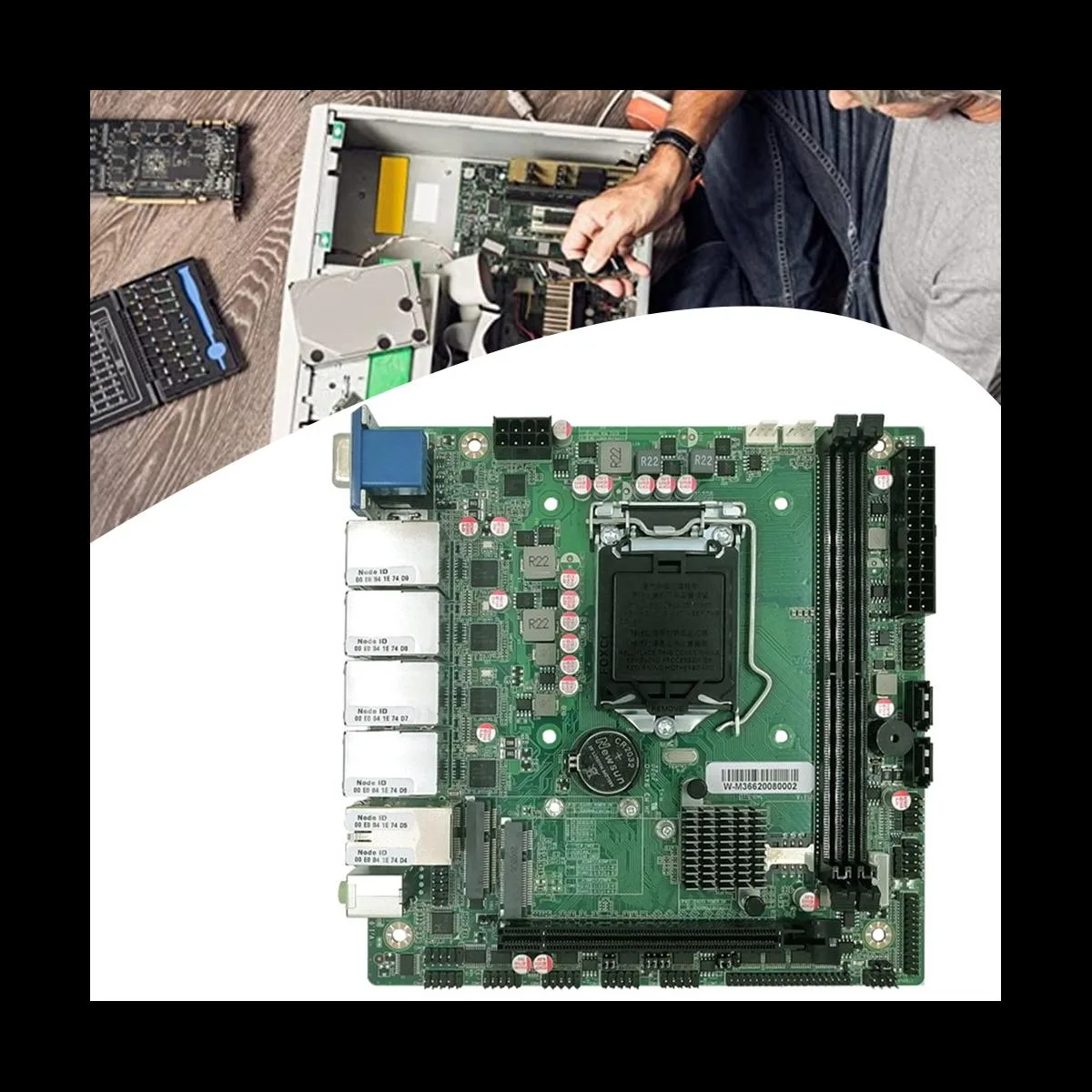

YINGHUA M366 B365 LGA1151 Server Board

The YINGHUA M366 is an industrial control motherboard built around the Intel B365 chipset for LGA1151 socket processors. It targets system integrators assembling compact servers or network appliances that require multiple high-speed Ethernet links and legacy I/O. The board supports Intel 6th to 9th generation Celeron, Pentium and Core i3/i5/i7 CPUs with integrated graphics.

Installation Notes and Common Issues

The board uses a standard 24-pin ATX power connector plus a 4-pin CPU power header; both must be seated firmly before first boot. Two DDR4 DIMM slots accept 2133 to 2666 MHz modules up to 64 GB total; populate the primary slot first for single-stick configurations. Six Intel I225-V 2.5G Ethernet ports share PCIe lanes, so verify BIOS lane allocation if add-in cards are added. The single PCIe x16 slot runs at x4 electrical, limiting bandwidth for high-throughput accelerators.

Deciding Specification — Six 2.5G Ethernet Ports

Six onboard Intel I225-V 2.5G controllers provide up to 2.5 Gbps per port with wake-on-LAN and PXE diskless boot support. This density suits multi-WAN routers, firewall appliances or storage nodes that need several isolated network segments. Buyers who need more than six ports or 10 Gbps connectivity will require a different platform. The two SATA 3.0 ports and one M.2 SATA slot limit internal storage to three drives maximum.

Highlights

  • Supports up to 64GB DDR4 memory
  • Six 2.5G Intel I225-V network ports
  • Dual display via VGA and HDMI 1.4
  • Two SATA 3.0 and one MSATA slot
  • TPM plus eight GPIO inputs and outputs

Specifications

CPU TypeIntel Atom

Questions about this item

How can I verify the motherboard is working correctly after installation?

Power on the board and watch for the AMI BIOS screen on the VGA or HDMI output; then confirm the Realtek ALC897 audio device and all six network adapters appear in the operating system device list.

What comes in the box and what must I source separately?

The motherboard itself is supplied; you must add an LGA1151 processor, up to two DDR4 DIMMs for a maximum of 64 GB, SATA drives, and any Wi-Fi or 4G module for the Mini PCIe slot.

Which memory configuration should I choose for this board?

Install one or two DDR4 DIMMs running at 2133–2666 MHz; the two slots support up to 64 GB total capacity.
