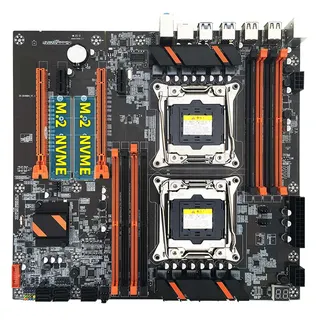

Black rectangular server motherboard with two CPU sockets, eight memory slots, multiple expansion slots and bundled components

YINGHUA

YINGHUA X99 Dual CPU Server Motherboard 2×E5-2630 V3 4 GB DDR4 RECC

SKU CH-R574-06GPD

Dual LGA 2011 board with two E5-2630 V3 CPUs, 4 GB DDR4 RECC, eight memory slots up to 32 GB each, six SATA 3.0 ports and dual PCIe 16x expansion

  • CPU TypeIntel Atom
  • Dual E5-2630 V3 CPUs provide 16 cores for parallel workloads
  • 8 DDR4 slots accept up to 32 GB per module at 2133, 2400 or 2800 MHz
  • 6 SATA 3.0 ports and one M.2 PCIe slot for storage expansion
  • 4 USB 3.0 and 4 USB 2.0 ports connect peripherals
  • Realtek 8106E 100 M and 8111H network controllers handle wired connectivity

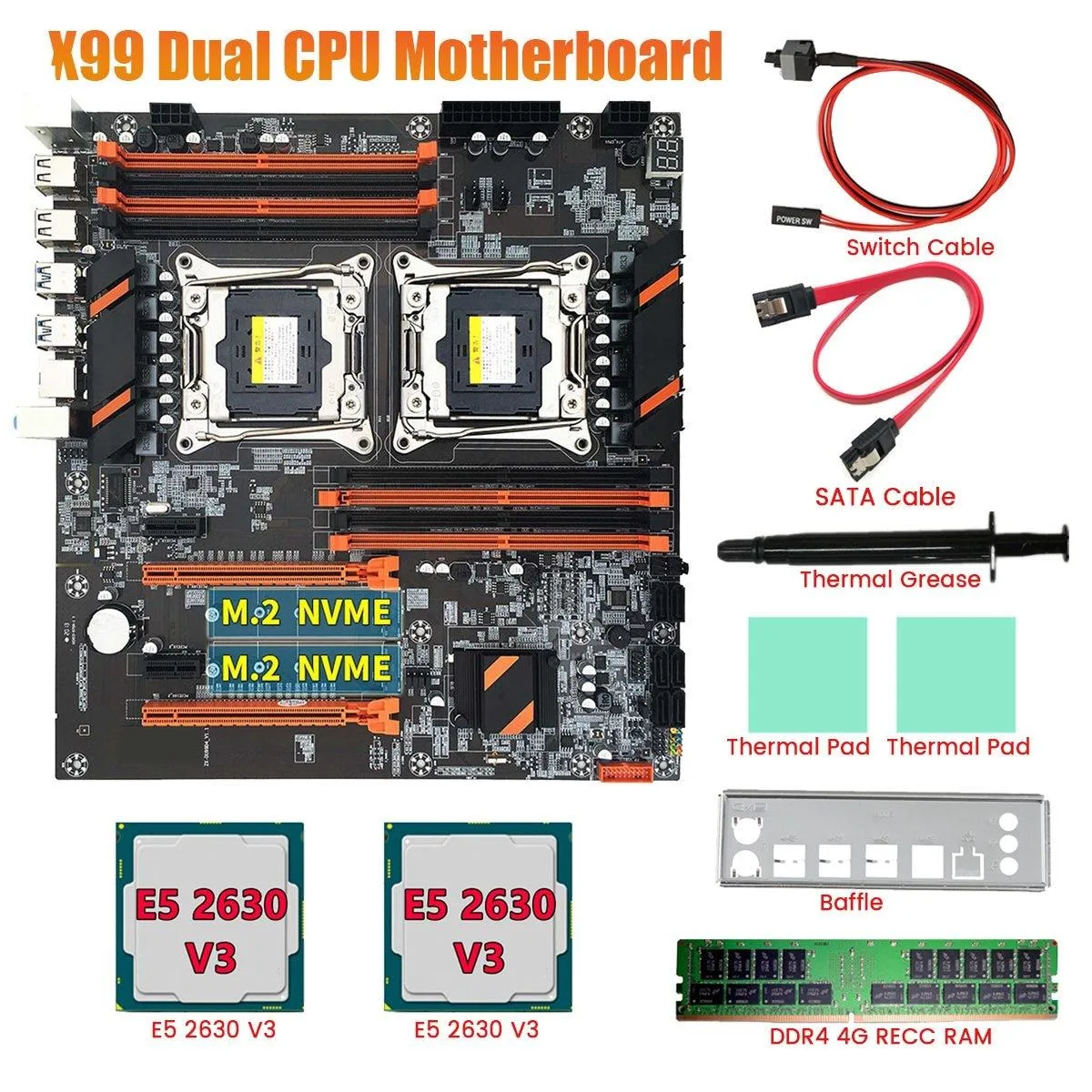

Dual X99 server kit

This kit provides a complete dual-socket server foundation built around the Intel X99 chipset with LGA 2011 sockets. It arrives with two E5-2630 V3 processors, one 4 GB DDR4 RECC memory module, a SATA cable and a baffle. The board measures 290 x 280 mm and includes eight DDR4 slots supporting ordinary or server modules at 2133, 2400 or 2800 MT/s.

Suited for multi-threaded workloads

Builders running virtualisation hosts, render farms or database nodes that benefit from sixteen physical cores and thirty-two threads will find this platform ready to deploy. It is not for buyers who need an integrated graphics output, higher single-thread frequencies or a consumer-form-factor board that fits standard ATX cases. The lack of onboard video means a discrete card is mandatory for initial setup.

Six SATA 3.0 ports plus two M.2 connectors

Storage connectivity centres on six SATA 3.0 interfaces alongside one M.2 slot limited to PCIe signalling and a second M.1 slot accepting both PCIe and SATA drives. Expansion uses two PCIe x16 slots and two additional PCIe interfaces, while networking relies on a Realtek 100 Mbit controller. This I/O mix determines whether the board matches your drive and add-in-card plan.

Highlights

  • Dual E5-2630 V3 CPUs provide 16 cores for parallel workloads
  • 8 DDR4 slots accept up to 32 GB per module at 2133, 2400 or 2800 MHz
  • 6 SATA 3.0 ports and one M.2 PCIe slot for storage expansion
  • 4 USB 3.0 and 4 USB 2.0 ports connect peripherals
  • Realtek 8106E 100 M and 8111H network controllers handle wired connectivity

Specifications

CPU TypeIntel Atom

Questions about this item

Does the board include the two E5-2630 V3 processors and the 4 GB DDR4 RECC module, or must I source them separately?

The package ships with both E5-2630 V3 CPUs and a single 4 GB DDR4 RECC stick already installed, so no extra processors or memory are required to boot.

Can I keep using my existing DDR4 2133 MHz sticks alongside the supplied 4 GB module in the eight DIMM slots?

Yes, the board accepts DDR4 at 2133, 2400 and 2800 MHz across its eight slots, up to 32 GB per module, so your current 2133 MHz sticks will work with the included RAM.

How can I confirm the dual-CPU configuration is active after first power-on?

Enter the BIOS or check the OS task manager; both should show two physical CPUs and 16 logical threads total, matching the dual E5-2630 V3 setup.
