Black rectangular server motherboard with two silver CPU coolers and multiple expansion slots

YINGHUA

YINGHUA X99 Dual CPU Server Motherboard with 2×E5-2620 V3

SKU CH-WC9T-39MM7

Dual-socket X99 board with two E5-2620 V3 CPUs, eight DDR4 slots up to 32 GB each, six SATA 3.0 ports and dual PCIe x16 slots

  • CPU TypeIntel Atom
  • Dual-socket X99 board scales to 16 cores with paired E5-2620 V3 CPUs
  • Eight DDR4 slots accept up to 32 GB each at 2800 MT/s
  • Six SATA 3.0 ports plus two M.2 PCIe interfaces for storage
  • Four USB 3.0 and four USB 2.0 ports for peripherals
  • Integrated Realtek 8111H 100 M LAN for basic connectivity

Dual X99 Server Board

The YINGHUA X99 motherboard arrives with two E5-2620 V3 processors already installed. It targets builders who need a ready-to-run dual-socket platform for virtualisation, rendering or database workloads without sourcing CPUs separately.

LGA 2011 Layout

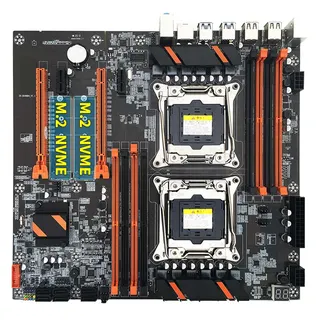

The board uses a black PCB measuring 290MM by 280MM and provides six SATA 3.0 ports plus two M.2 slots, one PCIe-only and one supporting both PCIe and SATA. Four USB 2.0 and four USB 3.0 headers handle peripherals, while dual PCIe 16X slots and two additional PCIe interfaces allow GPU or accelerator expansion. A single Realtek 100M network port supplies basic connectivity.

Bundled Extras

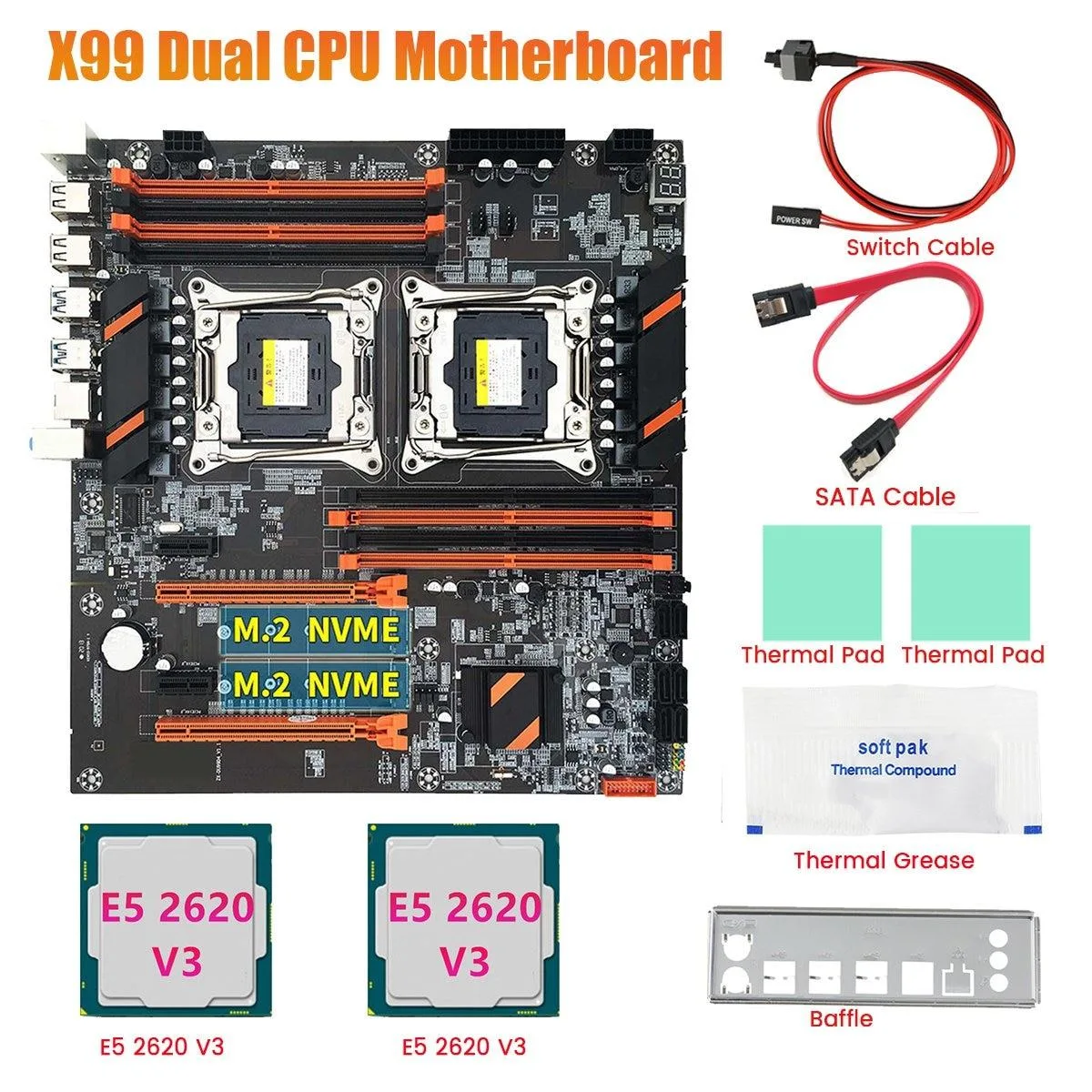

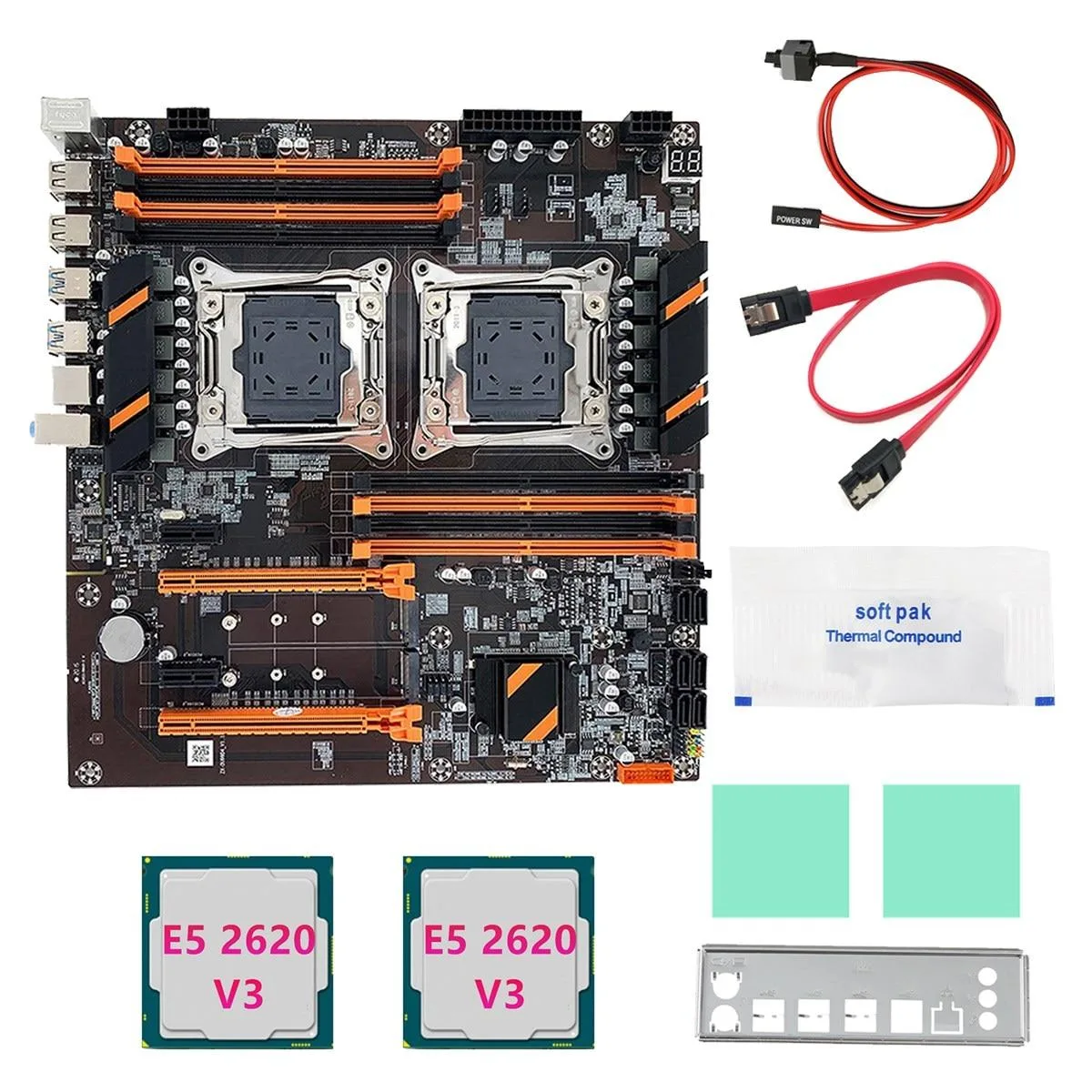

The package includes a SATA cable, a switch cable and a baffle for airflow guidance, all with random colours. Thermal grease is also supplied so the two included CPUs can be mounted immediately. Eight DDR4 slots accept ordinary or server modules up to 32GB each at 2133, 2400 or 2800 speeds, but ECC support is not confirmed.

Highlights

  • Dual-socket X99 board scales to 16 cores with paired E5-2620 V3 CPUs
  • Eight DDR4 slots accept up to 32 GB each at 2800 MT/s
  • Six SATA 3.0 ports plus two M.2 PCIe interfaces for storage
  • Four USB 3.0 and four USB 2.0 ports for peripherals
  • Integrated Realtek 8111H 100 M LAN for basic connectivity

Specifications

CPU TypeIntel Atom

Questions about this item

Does the dual-socket LGA 2011 board run the two E5-2620 V3 CPUs at PCIe 3.0 or 2.0 speeds?

The X99 chipset provides PCIe 3.0 lanes from each E5-2620 V3, so the two x16 slots and two extra PCIe slots operate at 3.0 speeds.

Will the 290 mm × 280 mm E-ATX PCB fit in a standard 4U rackmount chassis?

At 290 mm × 280 mm the board matches the SSI-EEB form factor used by most 4U and full-tower server cases; verify your chassis lists E-ATX or SSI-EEB clearance.

What is the correct order for populating the eight DDR4 slots across both CPUs?

Fill the four slots wired to CPU 1 first (usually the black slots nearest that socket), then the four slots for CPU 2; skipping a channel on either CPU halves memory bandwidth.
