Black rectangular server motherboard with dual LGA2011 sockets, installed CPUs, one RAM stick, multiple expansion slots and SATA ports

YINGHUA

YINGHUA X99 Dual LGA2011 Server Motherboard 2×E5-2620 V3 4GB DDR4 2133

SKU CH-SAXC-A7HMR

Dual LGA 2011 server board with two E5-2620 V3 CPUs and 4 GB DDR4 2133 RAM

  • CPU TypeIntel Atom
  • Dual LGA2011 sockets enable parallel processing with two E5-2620 V3 CPUs included
  • Intel X99 chipset supports DDR4 ECC memory up to 32 GB per module
  • Six SATA 3.0 ports plus two M.2 PCIe slots provide flexible storage expansion
  • Four USB 3.0 and four USB 2.0 ports cover modern and legacy peripherals
  • Two PCIe 16X and two additional PCIe slots allow multiple add-in cards

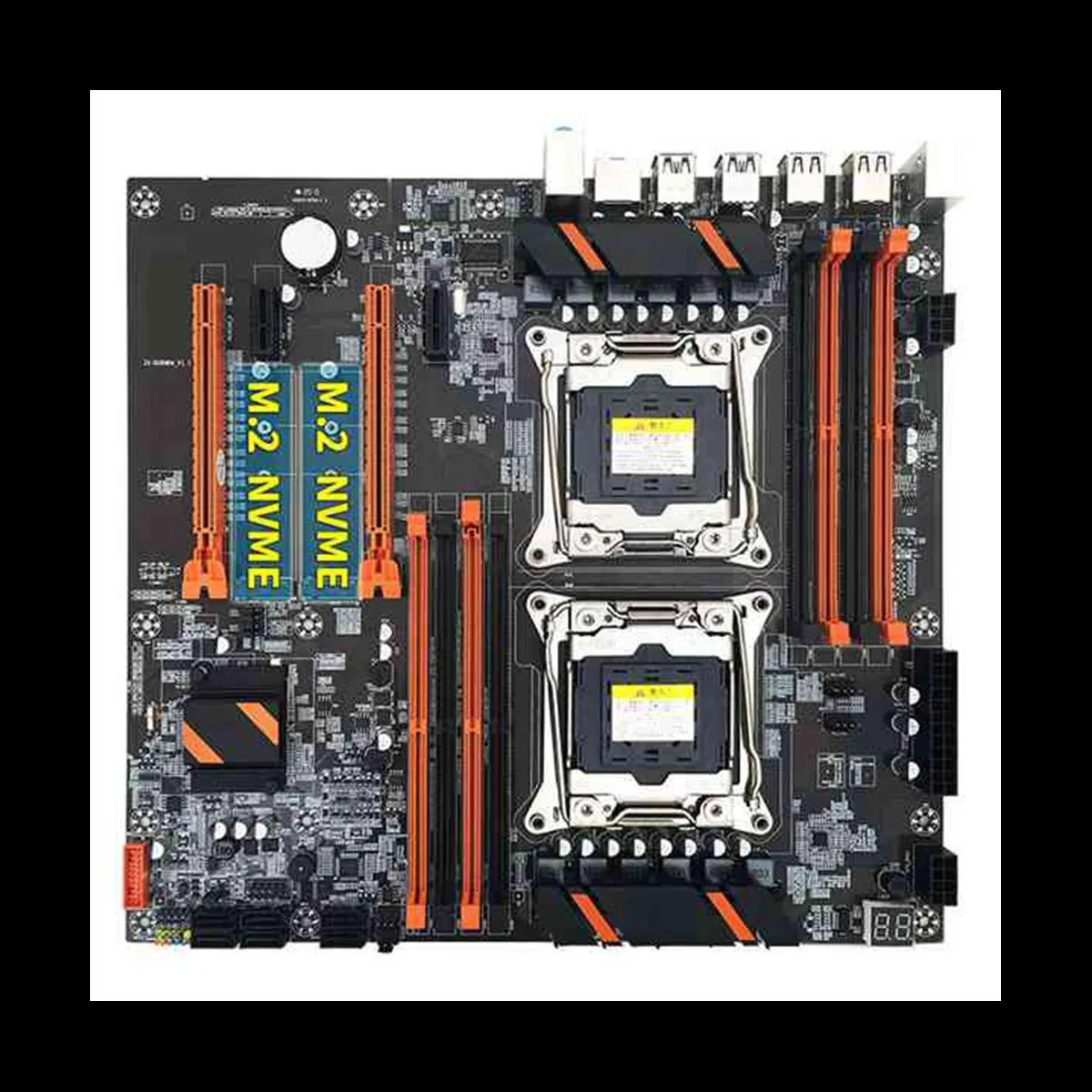

X99 Dual LGA2011 Server Motherboard

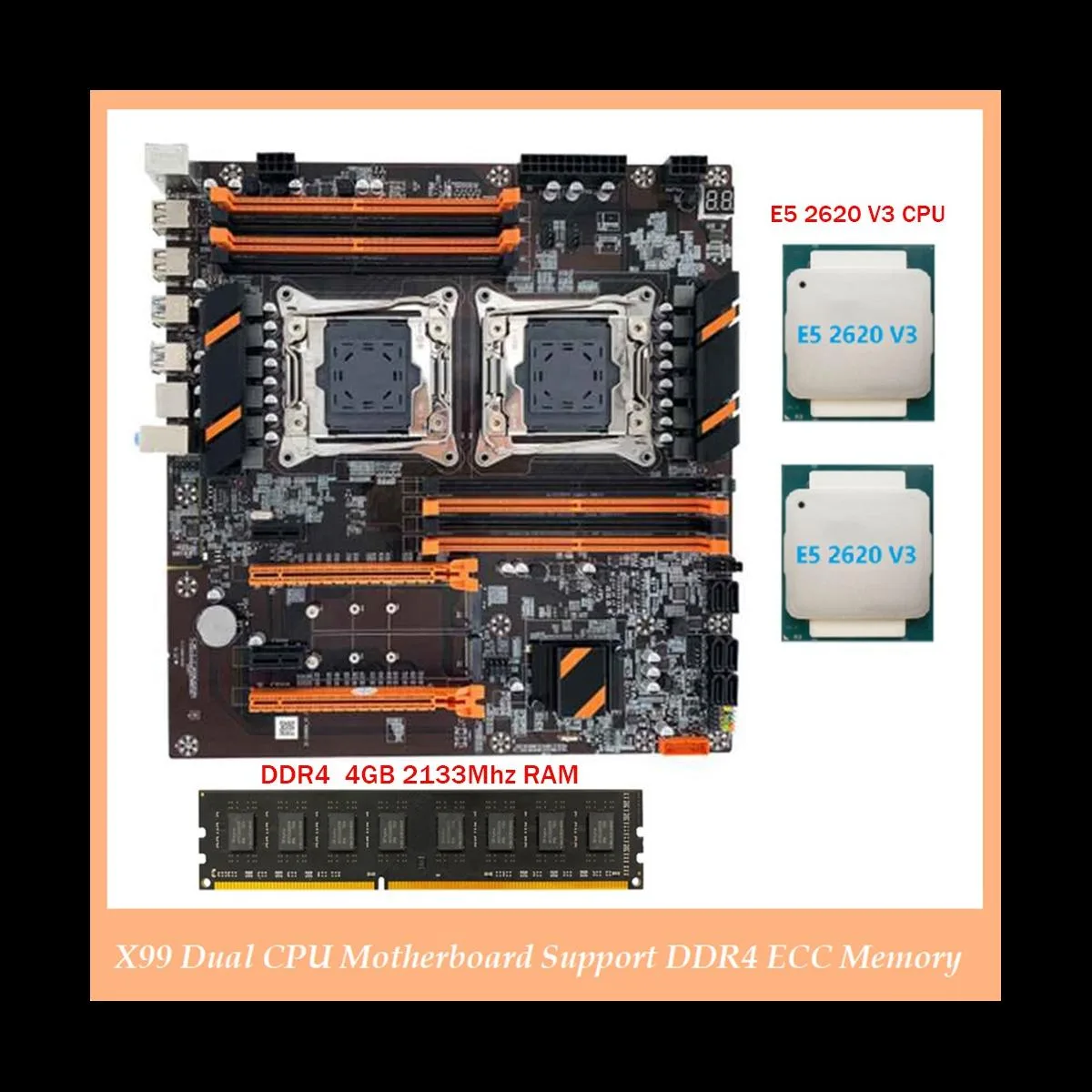

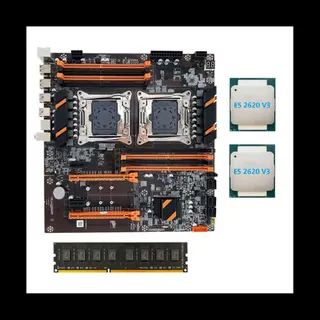

The YINGHUA X99 motherboard arrives populated with two Intel E5-2620 V3 processors and a single 4 GB DDR4 2133 module. It uses the Intel X99 chipset and provides dual LGA 2011 sockets for multi-threaded server workloads.

Eight DDR4 slots and six SATA 3.0 ports

The board accepts up to eight DDR4 ECC or non-ECC modules at 2133, 2400 or 2800 speeds with a maximum of 32 GB per module. Six SATA 3.0 connectors plus two M.2 slots supporting PCIe or SATA give flexibility for drive arrays. Builders needing 10 GbE or integrated RAID should look elsewhere.

Dual CPU configuration decides fit

The defining specification is the paired LGA 2011 sockets pre-fitted with two E5-2620 V3 CPUs, which sets the core count, thread count and power envelope for the entire platform.

Highlights

  • Dual LGA2011 sockets enable parallel processing with two E5-2620 V3 CPUs included
  • Intel X99 chipset supports DDR4 ECC memory up to 32 GB per module
  • Six SATA 3.0 ports plus two M.2 PCIe slots provide flexible storage expansion
  • Four USB 3.0 and four USB 2.0 ports cover modern and legacy peripherals
  • Two PCIe 16X and two additional PCIe slots allow multiple add-in cards

Specifications

CPU TypeIntel Atom

Questions about this item

Does the package include both CPUs and memory, or must I buy them separately?

The box contains the motherboard, two E5-2620 V3 processors and one 4 GB DDR4 2133 module.

Which memory speed should I choose if I want to fill all eight slots later?

The board supports DDR4 at 2133, 2400 and 2800 MT/s; populate all eight slots with matching modules for best stability.

Will the single 4 GB stick run at its rated 2133 speed once installed?

Yes, the included module operates at DDR4 2133 and the board defaults to that frequency on first boot.
