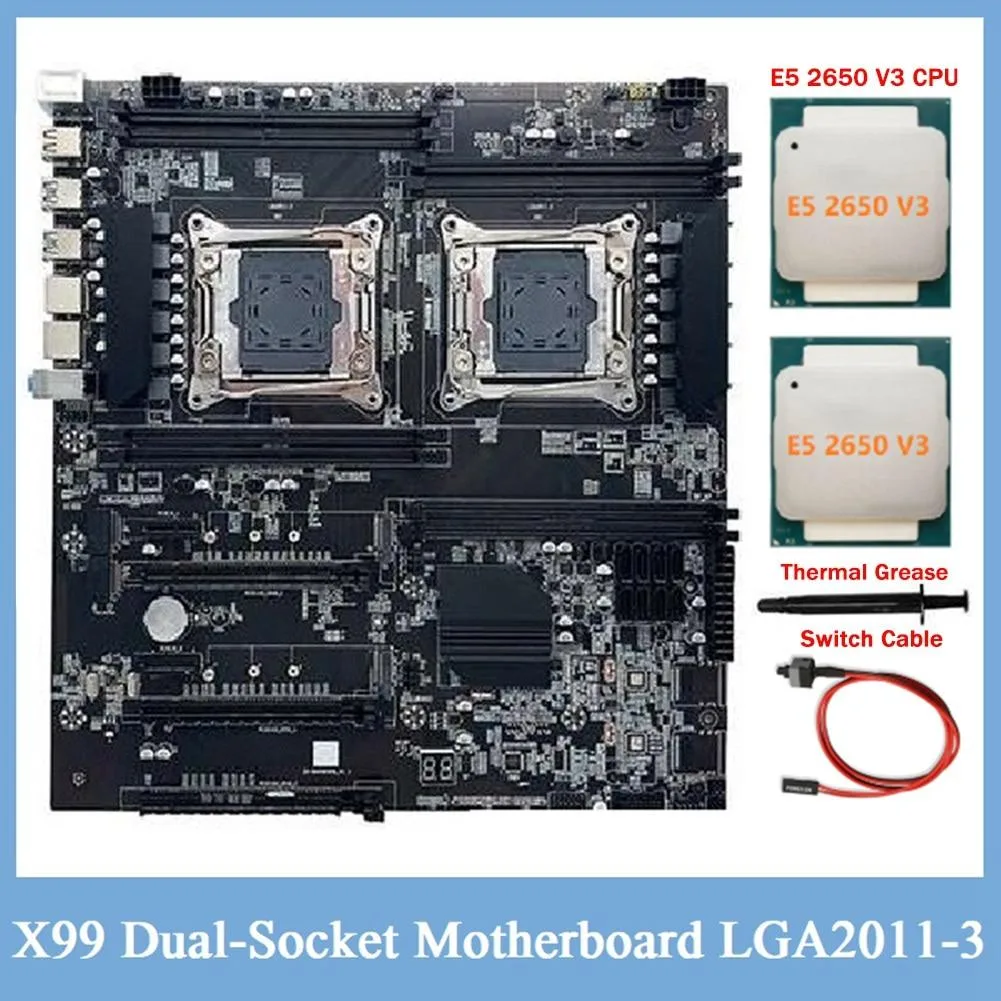

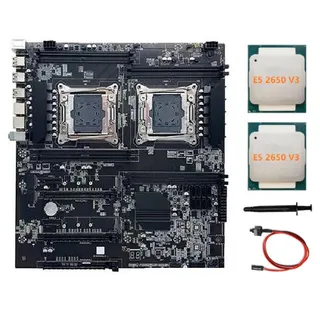

Black E-ATX server motherboard with two CPUs, switch cable and thermal grease

YINGHUA

YINGHUA X99 Dual-Socket LGA2011-3 Server Motherboard with 2×E5 2650 V3 CPU Switch Cable Thermal Grease

SKU CH-FW2W-BC1TD

Dual-socket LGA2011-3 board with two E5 2650 V3 CPUs, eight DDR4 slots for 256 GB, eight SATA 2.0 and two NVMe ports, plus switch cable and thermal grease

  • CPU TypeIntel Atom
  • Dual LGA2011-3 sockets support two E5-2650 V3 CPUs for multi-threaded workloads
  • Eight DDR4 slots run four-channel memory up to 256 GB at 2800 MHz
  • Two M.2 NVME and eight SATA 2.0 ports give flexible storage options
  • Three PCI Express x16 plus two x1 slots provide room for add-in cards
  • Dual 100 Mbps network ports and 12-phase power on 8-layer PCB ensure stable operation

Dual-socket X99 board with paired E5 2650 V3 CPUs

This E-ATX motherboard uses the Intel X99 chipset and provides two LGA2011-3 sockets. Two E5 2650 V3 processors are included along with a switch cable and thermal grease. The board targets builders who need a dual-processor server platform ready to assemble. Eight DDR4 slots support four-channel memory up to 256 GB at 2133, 2400 or 2800 MHz.

Suits dual-CPU server builds

The eight memory slots accept both desktop and ECC modules for high-capacity configurations. Builders who need more than two M.2 NVMe drives or faster than SATA 2.0 for eight drives should look elsewhere. Onboard networking is limited to two 100 Mbps ports. Expansion provides three PCI Express x16 slots and two x1 slots.

12-phase power on 8-layer PCB

The power delivery uses a 12-phase design across an 8-layer board. Two 8-pin and one 24-pin connectors supply the dual-socket layout. Physical dimensions are 33 by 31 cm.

Highlights

  • Dual LGA2011-3 sockets support two E5-2650 V3 CPUs for multi-threaded workloads
  • Eight DDR4 slots run four-channel memory up to 256 GB at 2800 MHz
  • Two M.2 NVME and eight SATA 2.0 ports give flexible storage options
  • Three PCI Express x16 plus two x1 slots provide room for add-in cards
  • Dual 100 Mbps network ports and 12-phase power on 8-layer PCB ensure stable operation

Specifications

CPU TypeIntel Atom

Questions about this item

Does the package include both CPUs and thermal paste, or must I purchase them separately?

The box contains the motherboard, two E5 2650 V3 processors, one switch cable and one tube of thermal grease, so no extra CPU or paste is required.

Should I select DDR4 2133, 2400 or 2800 MHz modules for this board?

All three speeds are supported; choose 2800 MHz modules for the highest rated frequency, or 2133/2400 MHz if cost or availability dictates.

What does the 256 GB maximum memory figure mean when the board is populated?

With eight slots filled by 32 GB modules running in four-channel mode, the system can address up to 256 GB of DDR4 memory.
