Green rectangular server motherboard with eight silver memory slots and multiple expansion slots

YINGHUA

YINGHUA X99 LGA2011-3 server motherboard

SKU CH-G41S-AXAG6

Server motherboard with LGA 2011-3 socket, four-channel DDR3 ECC memory up to 256 GB, NVMe M.2 slot, dual gigabit LAN and six USB 3.0 ports

  • CPU TypeIntel Atom
  • Supports up to 256GB DDR3 ECC REG memory
  • Four-channel memory architecture boosts bandwidth
  • NVME M.2 slot enables fast solid-state storage
  • Dual Realtek RTL8111H Gigabit LAN ports
  • Three PCIe 16X 3.0 slots for expansion cards

YINGHUA X99 LGA2011-3 server motherboard

The YINGHUA X99 motherboard uses the LGA2011-3 socket and supports listed Intel E5 v3 processors including the 2678, 2669, 2649, 2629 and 2696 models. It provides eight DDR3 slots for ECC REG memory up to 256 GB at speeds of 800, 1066, 1333 and 1600 MHz.

Expansion and storage layout

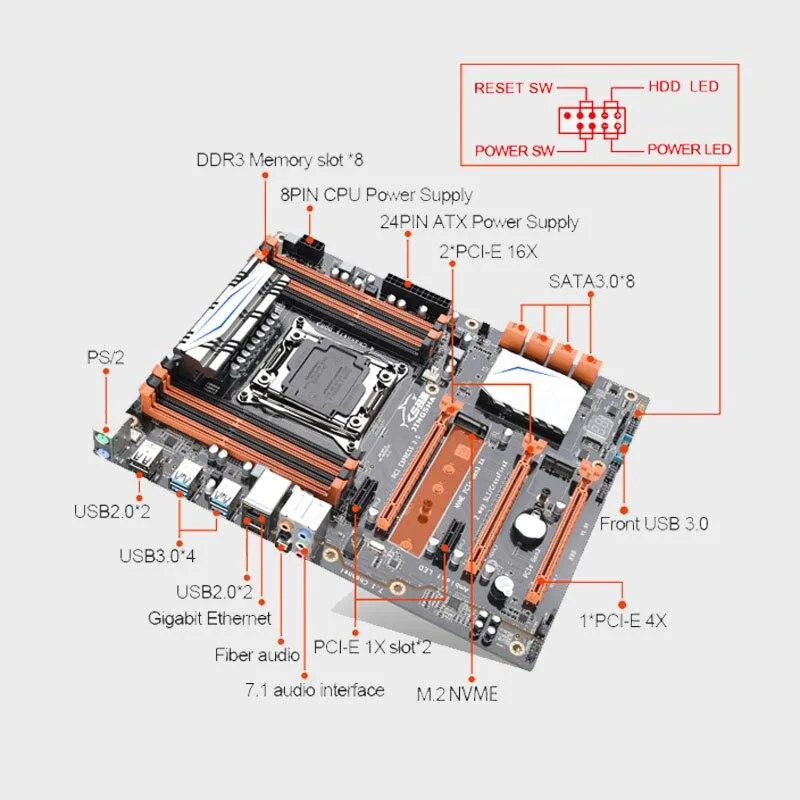

The board offers three PCIe 16X 3.0 slots and two PCIe 1X slots for add-in cards, plus one M.2 PCIe slot for NVME SSDs and eight SATA 3.0 ports for additional drives. Dual Realtek RTL8111H Gigabit LAN ports handle network connectivity.

Power and memory constraints

Power is delivered through a 24-pin ATX and an 8-pin ATX connector, and 1866 MHz DDR3 modules are explicitly not supported. Builders needing higher memory frequencies or different CPU families should consider other platforms.

Highlights

  • Supports up to 256GB DDR3 ECC REG memory
  • Four-channel memory architecture boosts bandwidth
  • NVME M.2 slot enables fast solid-state storage
  • Dual Realtek RTL8111H Gigabit LAN ports
  • Three PCIe 16X 3.0 slots for expansion cards

Specifications

CPU TypeIntel Atom

Questions about this item

Which DDR3 ECC REG speed should I pick to reach the 256 GB limit?

Use DDR3 modules rated at 800, 1066, 1333 or 1600 MHz; 1866 MHz DIMMs are not supported on this board.

What does the 256 GB maximum mean once the board is installed in a server?

The eight DDR3 slots accept ECC REG DIMMs up to a combined 256 GB, giving a large memory pool for virtualisation or database workloads.

Which M.2 standard does the single slot use and what speed ceiling does it impose?

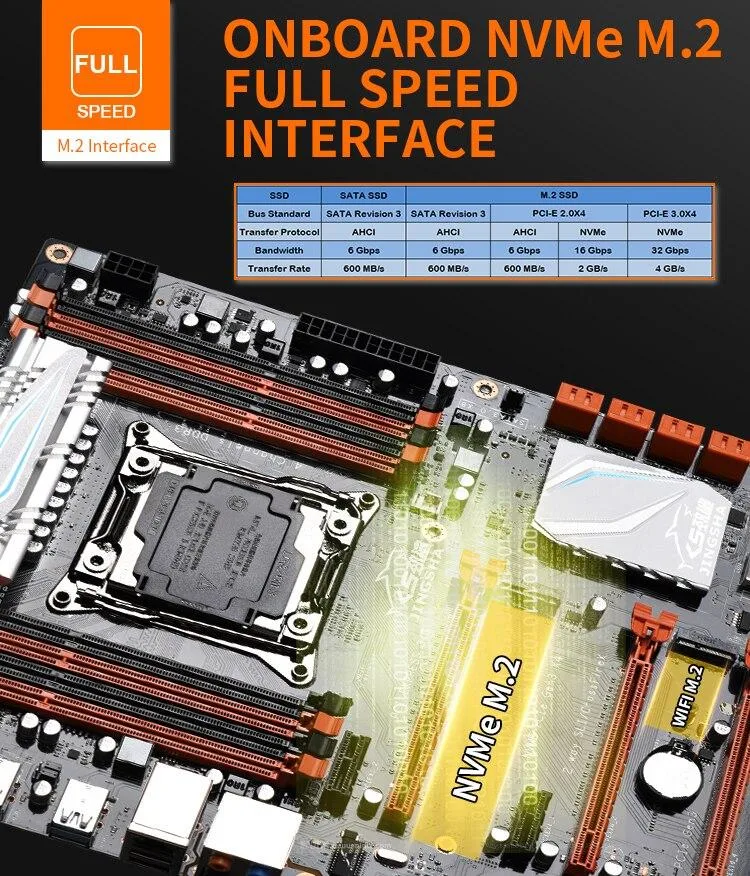

The board provides one NGFF M.2 PCIE slot for NVME SSDs, so the drive runs at PCIe 3.0 x4 speeds.
