Z-EDGE UG30 30" 200Hz 2560x1080 1500R Curved Gaming Monitor
A 30‑inch 21:9 curved VA panel with a 200 Hz refresh rate, 1 ms response time and FreeSync compatibility for fluid ultrawide gaming
- Screen Size30"
- Refresh Rate200Hz
- Resolution2560 x 1080
- Response Time1 ms
- Monitor Pixel Density0.269mm(H) x 0.269mm(V)
- Display Colors16.7 Million
- 30-inch 21:9 ultrawide gives extra horizontal space for immersive gaming
- 200 Hz refresh rate delivers smooth motion in fast-paced titles
- 1 ms response time reduces ghosting for clearer action
- 1500R curvature matches natural field of view for comfortable viewing
- FreeSync compatibility prevents screen tearing without extra hardware
30" 21:9 Curved Gaming Monitor

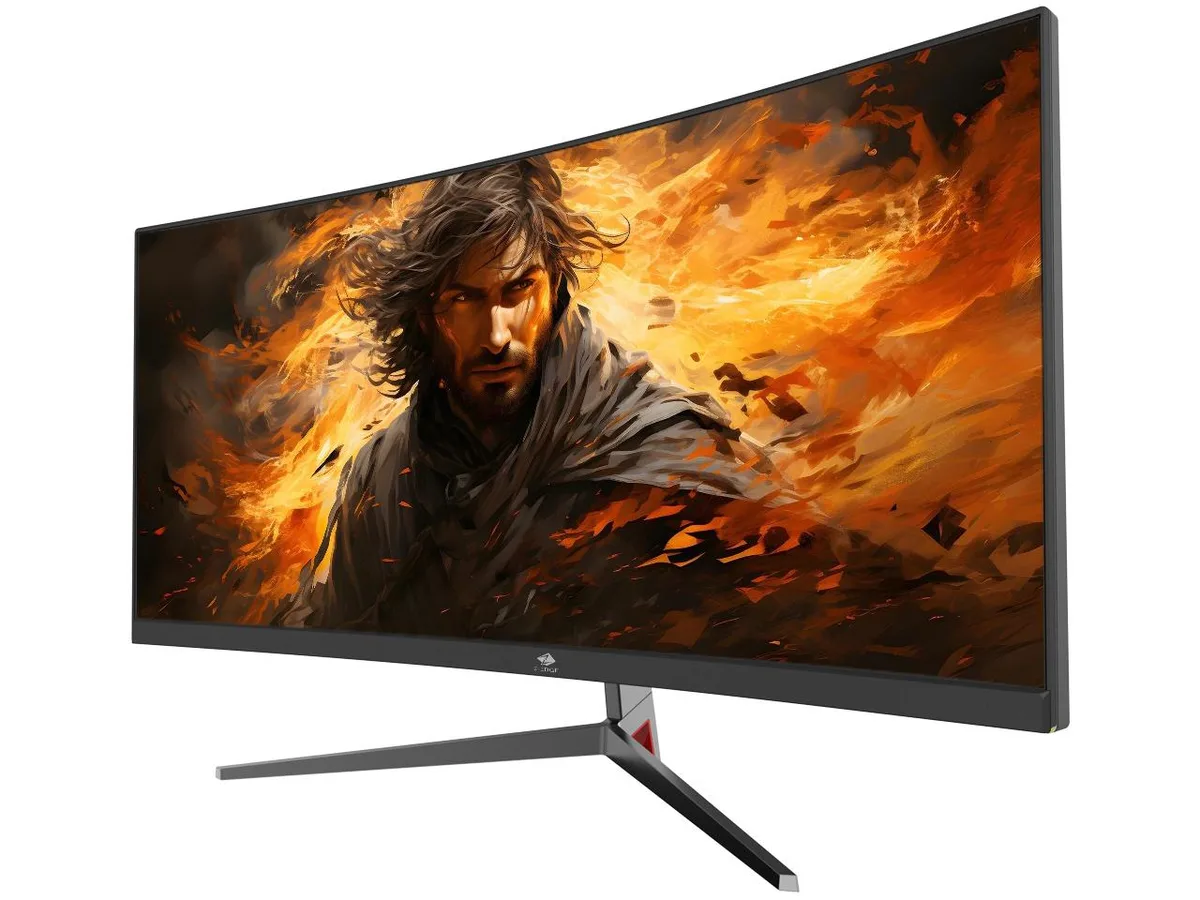

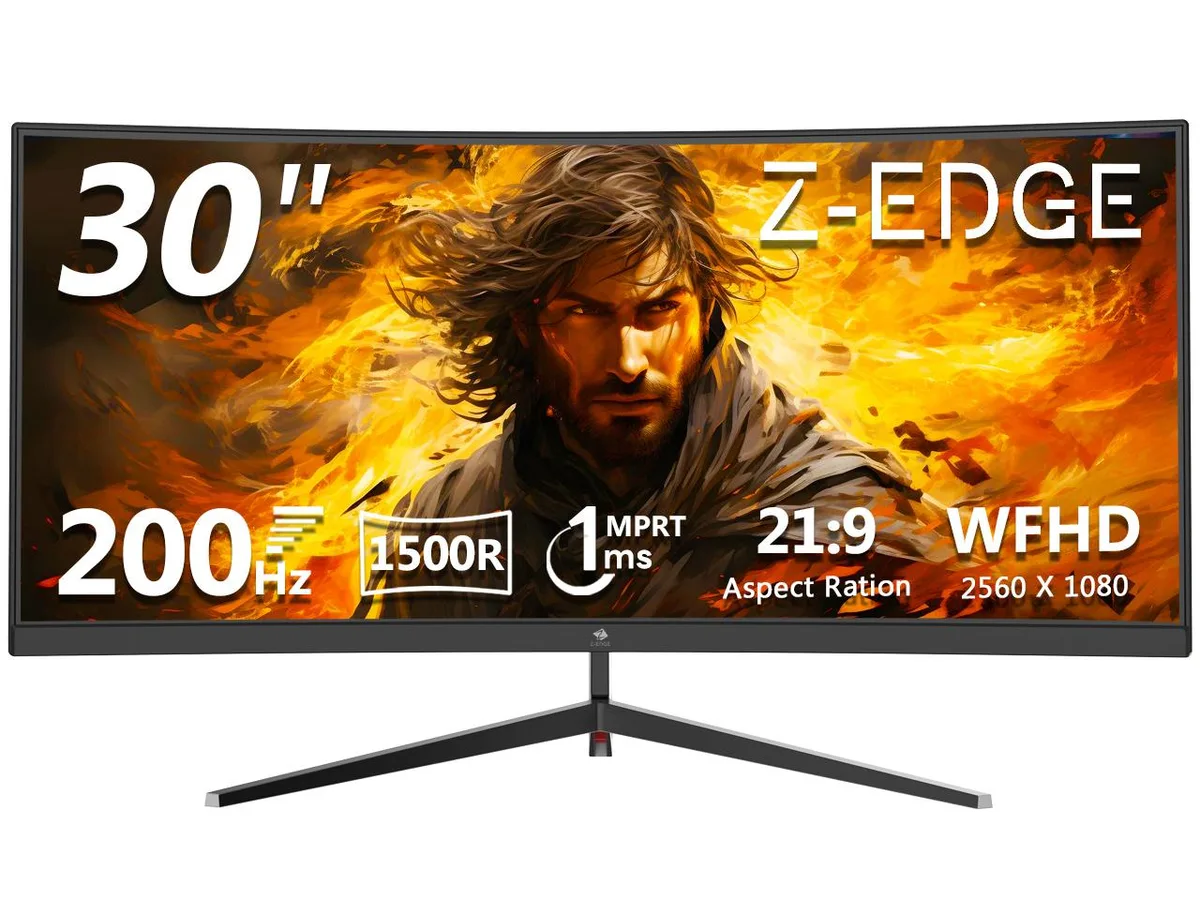

The Z-EDGE UG30 is a 30-inch ultrawide display with a 2560 x 1080 resolution and a 21:9 aspect ratio. Its 1500R curvature wraps the field of view for immersive gaming. A VA panel delivers a 3000:1 contrast ratio and 16.7 million colours. The monitor runs at a 200Hz refresh rate with a 1ms response time and FreeSync compatibility.
Suits single-screen immersive setups
This monitor fits players who want a wide curved panel for racing, simulation or atmospheric titles at high refresh rates. The 21:9 format also helps productivity users who prefer one continuous workspace over dual screens. Buyers who need higher pixel density for sharp text or competitive players targeting 240Hz or 280Hz panels should look at something else.
200Hz refresh rate via DisplayPort
The single spec that decides suitability is the 200Hz maximum refresh rate, reachable over DisplayPort. HDMI connections top out at 165Hz. If the graphics card and cable combination cannot drive 200Hz at 2560 x 1080, the panel will not deliver its advertised motion clarity.
Highlights
- 30-inch 21:9 ultrawide gives extra horizontal space for immersive gaming
- 200 Hz refresh rate delivers smooth motion in fast-paced titles
- 1 ms response time reduces ghosting for clearer action
- 1500R curvature matches natural field of view for comfortable viewing
- FreeSync compatibility prevents screen tearing without extra hardware
Specifications
| Screen Size | 30" |
|---|---|
| Refresh Rate | 200Hz |
| Resolution | 2560 x 1080 |
| Response Time | 1 ms |
| Monitor Pixel Density | 0.269mm(H) x 0.269mm(V) |
| Display Colors | 16.7 Million |
| Panel | VA |
| Aspect Ratio | 21:9 |
| Curved Surface Screen | Curved |
| Widescreen | Yes |
| LED Backlight | Yes |
| Brightness | 300 cd/m2 |
| Contrast Ratio | 3000:1 |
| Glare Screen | Anti-glare |
| Maximum Resolution | 2560 x 1080 |
| Viewing Angle | 178° (H) / 178° (V) |
| Display Type | UWFHD |
| Adaptive Sync Technology | FreeSync Compatible |
| Curvature Radius | 1500R |
| 3D Ready | No |
| 3D Features | No |
| 3D Glasses Included | No |
| Brand | Z Z-Edge |
| Model | UG30 |
| Series | Gamers Line |
| Cabinet Color | Black |
| Part Number | NEUG30 |
| Bezel Design | 3 Sided Ultrathin Frame |
| D-Sub | No |
| DVI | No |
| HDMI | 2 |
| Input Video Compatibility | Analog RGB, Digital |
| Connectors | HDMI, DP |
| Thunderbolt 2 | No |
| Thunderbolt 3 | No |
| Video Ports | 2 x HDMI, 2 x DP |
| Headphone | 3.5mm |
| Stand Adjustments | Tilt |
| Built-in TV Tuner | No |
| Built-in Speakers | No |
| Built-in Webcam | No |
| Regulatory Approvals | FCC, UL, RoHS |
| Frame | Ultra thin Frame |
| VESA Compatibility - Mountable | 75 x 75mm |
| OS Support | Windows 7/8/10/11, Mac OS, Android, Linux |
| Power Supply | 100 - 240 VAC, 50/60Hz |
| Power Consumption | 35W |
| Dimensions | 27.8 x 7.4 x 16.1 inch (with stand); 27.8 x 4.3 x 12.7 inch (without stand). |
| Weight | 11.02 lb (net weight) |
| Package Contents | Monitor Power Adapter Power Cable DP Cable User Manual Warranty Card |
| Consumer Alert | To get 200Hz, please make sure your graphics card is GTX 1060 or above. PS4/PS5/Xbox support 120Hz or 60Hz. |
Questions about this item
Will the 200 Hz refresh rate work over both HDMI and DisplayPort?
The monitor delivers 200 Hz via DisplayPort; HDMI is limited to 165 Hz.
Does the 1500R curve radius suit a typical desk viewing distance?
A 1500R curvature is designed for comfortable immersion at normal arm's-length distances.
Can I connect two PCs and view them side-by-side?
Yes, the monitor provides two HDMI and two DisplayPort inputs with built-in PBP and PIP modes.
