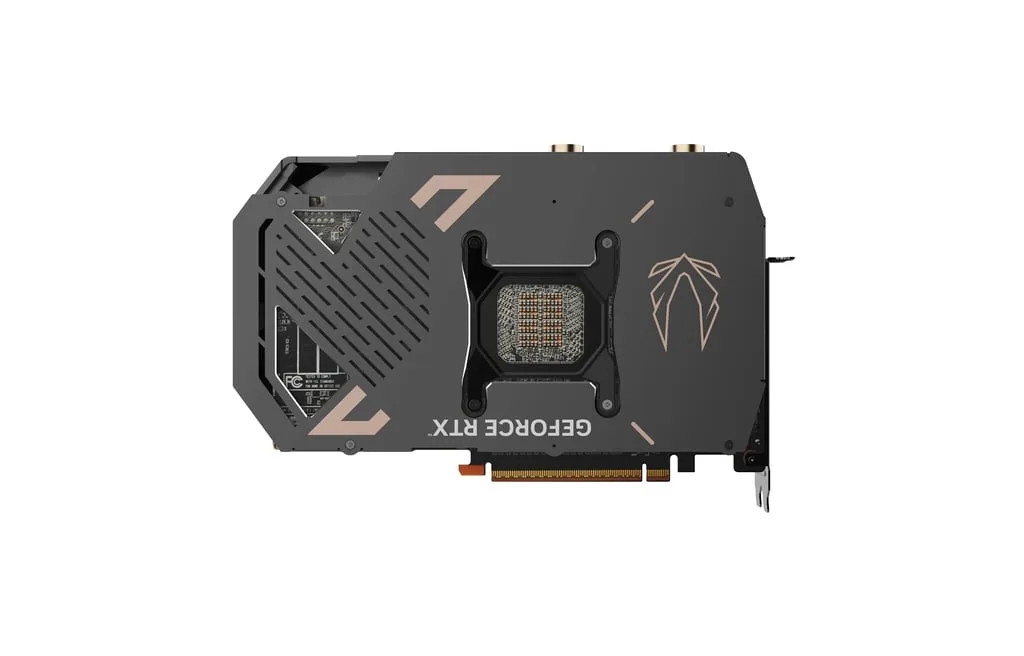

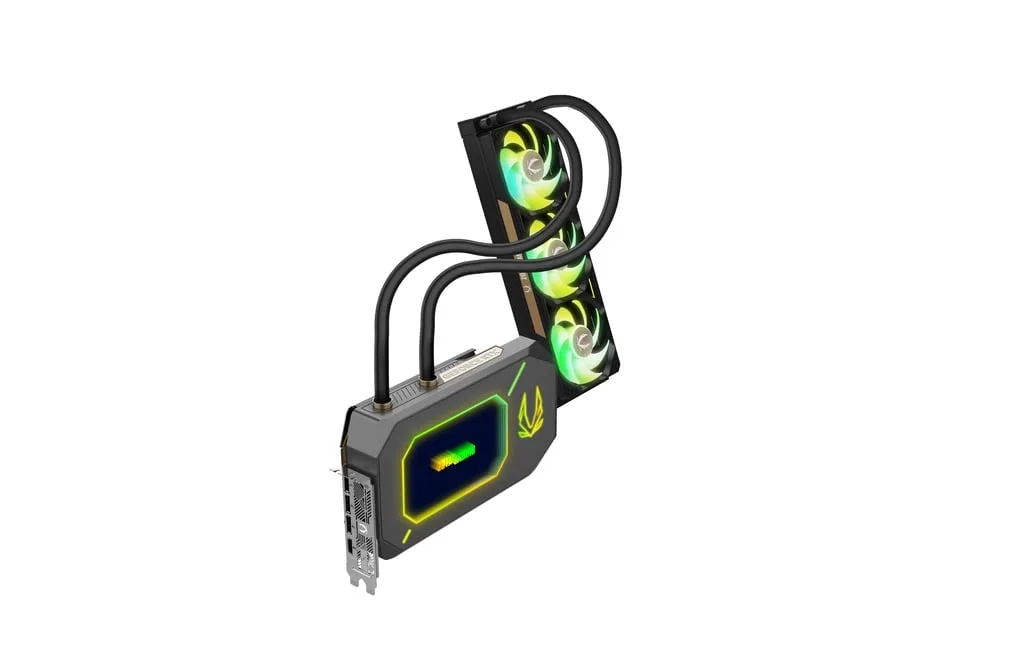

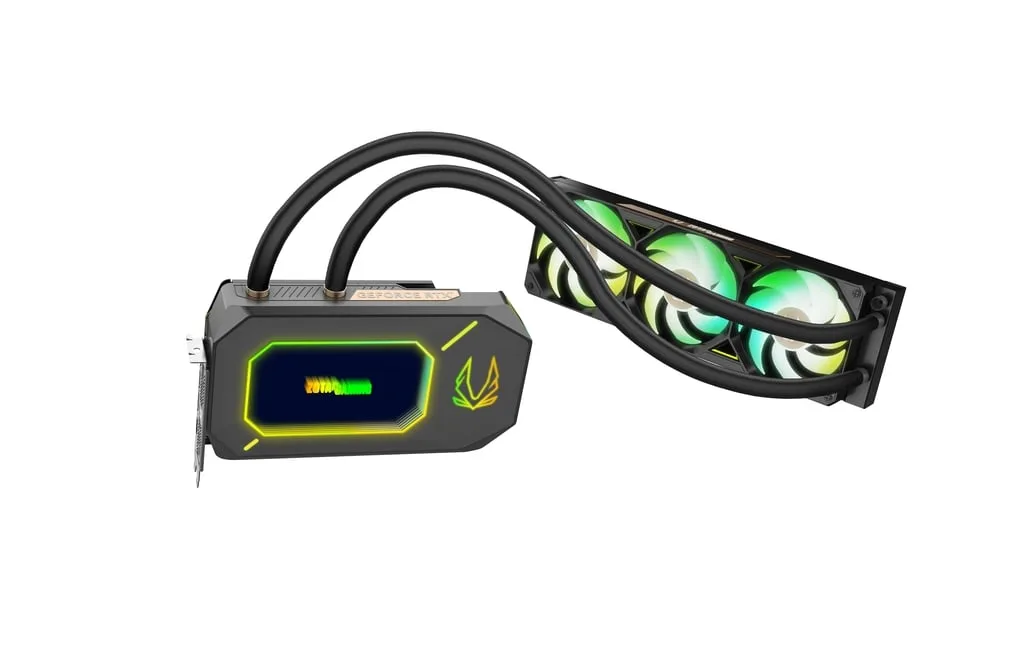

Black liquid-cooled graphics card with integrated radiator and tubing

ZOTAC

ZOTAC ARCTICSTORM AIO GeForce RTX 5090 graphics card ZT-B50900K-30A

SKU CH-E3FQ-J518S MPN ZT-B50900K-30A

Liquid-cooled GeForce RTX 5090 with 32 GB GDDR7, 21760 CUDA cores and a 2437 MHz boost clock

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5090
  • ArchitectureBlackwell
  • Boost Clock2437 MHz
  • 32 GB GDDR7 memory handles massive 4K and AI workloads
  • 21 760 CUDA cores accelerate rendering and compute tasks
  • Boost clock 2 437 MHz delivers high single-thread performance
  • PCI Express 5.0 x16 interface provides maximum bandwidth
  • Integrated liquid cooler keeps the 575 W TDP under control

ZOTAC ARCTICSTORM AIO RTX 5090

The ZOTAC ARCTICSTORM AIO GeForce RTX 5090 is a liquid-cooled graphics card built on the Blackwell architecture. It delivers 21760 CUDA cores and a 2437 MHz boost clock for high-end gaming and professional workloads. The card requires a PCI Express 5.0 x16 slot and a 16-pin power connector.

32GB GDDR7 memory configuration

The 32GB GDDR7 frame buffer on a 512-bit bus suits 4K and 8K content creation, AI development, and maximum-detail gaming. Users who need less VRAM or prefer air cooling should consider smaller models. A 1000W power supply is recommended for the 575W thermal design power.

394 mm radiator clearance requirement

The integrated liquid cooler uses a 394 mm radiator with fans that must fit inside the chassis. Verify case compatibility before purchase. The card supports Windows 10 64-bit version 1809 or later and Windows 11 Pro.

Highlights

  • 32 GB GDDR7 memory handles massive 4K and AI workloads
  • 21 760 CUDA cores accelerate rendering and compute tasks
  • Boost clock 2 437 MHz delivers high single-thread performance
  • PCI Express 5.0 x16 interface provides maximum bandwidth
  • Integrated liquid cooler keeps the 575 W TDP under control

Specifications

BrandZOTAC
SeriesARCTICSTORM AIO
ModelRTX 5090 ARCTICSTORM AIO
Part NumberZT-B50900K-30A
InterfacePCI Express 5.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5090
ArchitectureBlackwell
Boost Clock2437 MHz
CUDA Cores21760
Effective Memory Clock28 Gbps
Memory Size32GB
Memory Interface512-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
AI FeaturesAI Ready
DLSS SupportDLSS 4.0
Ray Tracing SupportHardware Accelerated
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerLiquid Cooler
Operating Systems SupportedWindows 10 64-bit (v1809
November 2018 or later) ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power575W
System RequirementsNeed to hold 394 mm Radiator with fans
Recommended PSU Wattage1000W
Power Connector1 x 16-Pin
HDCP ReadyYes
FeaturesKEY FEATURES
• NVIDIA Blackwell Architecture
• 5th Generation Tensor cores
• 4th Generation RT cores
• NVIDIA DLSS 4
• Game Ready and NVIDIA Studio Drivers
• NVIDIA® GeForce Experience™
• NVIDIA Broadcast, NVIDIA G-SYNC®
• 32GB GDDR7 graphics memory
• Superior Liquid Cooling, up to 30% cooler than
air-cooled variant
• 360mm AIO Liquid Cooler
• Full coverage copper cooling plate
• Large Infinity Mirror Design
• Triple 120mm Fans deliver up to 50% quieter
performance
• Metal backplate
• 4-Zone SPECTRA 2.0 ARGB lighting
• ZOTAC GAMING FireStorm Utility
Form FactorATX
Max GPU Length252 mm
Slot WidthCard:
• Length: 251.6 mm (9.9 in)
• Height: 160.1 mm (6.3 in)
• Width: 2.5 slot (49 mm) (1.9 in)
Tube Length: 520mm (20.47 in)
Radiator (with fans):
• Length: 394 mm (15.5 in)
• Height: 55.7 mm (2.2 in)
• Width: 122.8 mm (4.

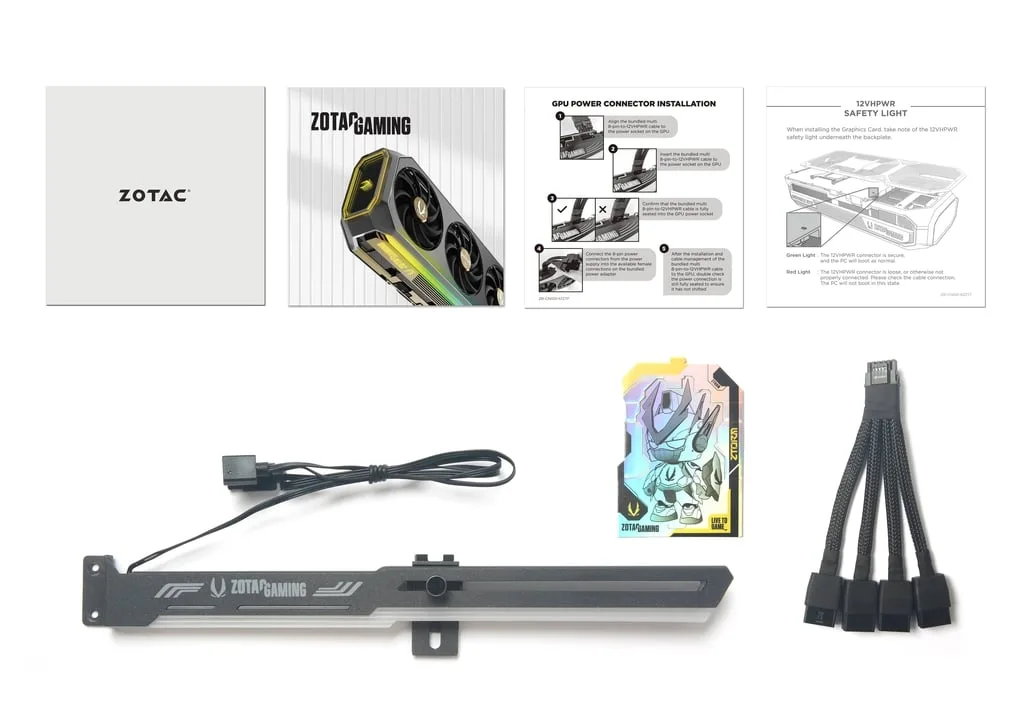

Package ContentsINSIDE THE BOX
• ZOTAC GAMING GeForce RTX
5090 ArcticStorm AIO
• User Manual
• 4 x 8-pin-to-16-pin cable
• ARGB GPU Support Bracket
Shipping weight5.26 kg
Package size559 × 445 × 178 mm

Questions about this item

Will the 394 mm radiator with fans fit in my case?

The card requires a case that can hold a 394 mm radiator with fans; check your chassis specifications for front, top or side mounting clearance before buying.

How do I connect the 16-Pin power connector correctly?

Plug the single 16-Pin connector fully into the card until it clicks; do not use adapters or daisy-chained cables, and ensure your PSU supplies the recommended 1000W.

When should I expect to replace the liquid cooler?

The sealed liquid cooler is maintenance-free for the life of the card; no refill or pump replacement is required under normal operation.
