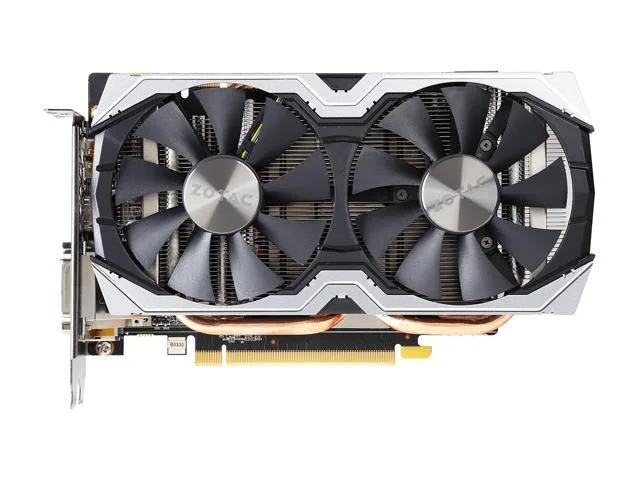

Compact dual-fan graphics card in black finish with silver accents, single HDMI three DisplayPort one DVI output, 8-pin power connector

ZOTAC

ZOTAC GeForce GTX 1070 Mini 8GB GDDR5 graphics card

SKU CH-Y37F-AHBXD

Compact GeForce GTX 1070 with 8 GB GDDR5, 1920 CUDA cores, 1708 MHz boost clock and three DisplayPort 1.4 plus HDMI 2.0b outputs for mini-ITX builds

  • InterfacePCI Express 3.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce GTX 10 Series
  • GPUGeForce GTX 1070
  • Core Clock1518 MHz
  • Boost Clock1708 MHz
  • Pascal architecture powers high frame rates with 1920 CUDA cores
  • 8 GB GDDR5 on a 256-bit bus handles 4K textures at 8000 MHz
  • Compact 1708 MHz boost clock fits mini-ITX builds with a 150 W draw
  • Four simultaneous displays via HDMI 2.0b, three DisplayPort 1.4 and DVI-D
  • VR-ready performance backed by SLI HB bridge support and DirectX 12

Compact Pascal GPU for Mini-ITX

This ZOTAC GeForce GTX 1070 Mini packs the full Pascal architecture into a short card that fits mini-ITX cases. It delivers 8GB of GDDR5 memory on a 256-bit bus with 1920 CUDA cores running at a 1708 MHz boost clock. The card targets gamers and VR enthusiasts who need high performance in a small chassis.

Check Power Slot and PSU Before Ordering

Verify that your power supply provides at least 500 watts and includes an available 8-pin PCI Express connector for the 150-watt board. A PCI Express 3.0 slot is required for full bandwidth. Ensure your case length clearance accommodates the compact design and that your OS is Windows 7 or newer for driver support.

Four Display Outputs Enable Multi-Monitor and VR

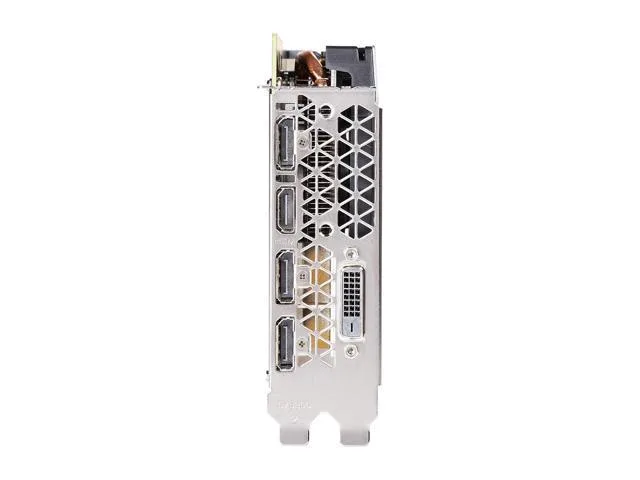

The rear bracket provides one HDMI 2.0b port, three DisplayPort 1.4 connectors and one dual-link DVI-D output for up to four simultaneous displays. This mix lets you drive a VR headset and multiple monitors without adapters. SLI HB Bridge support is included for multi-GPU configurations using a compatible bridge.

Highlights

  • Pascal architecture powers high frame rates with 1920 CUDA cores
  • 8 GB GDDR5 on a 256-bit bus handles 4K textures at 8000 MHz
  • Compact 1708 MHz boost clock fits mini-ITX builds with a 150 W draw
  • Four simultaneous displays via HDMI 2.0b, three DisplayPort 1.4 and DVI-D
  • VR-ready performance backed by SLI HB bridge support and DirectX 12

Specifications

BrandZOTAC
ModelZT-P10700G-10M
InterfacePCI Express 3.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce GTX 10 Series
GPUGeForce GTX 1070
Core Clock1518 MHz
Boost Clock1708 MHz
CUDA Cores1920
Effective Memory Clock8000 MHz
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR5
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
DVI1 x DL-DVI-D
SLI SupportYes, SLI HB Bridge Supported
Virtual Reality ReadyYes
CoolerDouble Fans
Operating Systems SupportedWindows 10 / 8 / 7 ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power150W
System RequirementsRecommended Power Supply: 500WPower Consumption: 150W
Power Connector8-Pin
Dual-Link DVI SupportedYes
HDCP ReadyYes
FeaturesTake on today's most challenging, graphics-intensive games without missing a beat. The GeForce GTX 1070 graphics card delivers the incredible speed and power of NVIDIA Pascal - the most advanced GPU ever created. This is the ultimate gaming platform.The same immense power is now contained in just above 8 inches - perfect for any mini-ITX build. Size and power need no compromise.
Max GPU Length210 mm
Card Dimensions (L x H)8.27" x 4.80"
Slot Width2 Slots
Package ContentsAccessories:Dual 6-pin to 8-pin PCIe adapterDriver DiskUser Manual

Questions about this item

Does the ZT-P10700G-10M include the 8-pin PCIe power cable or must it be sourced from the PSU?

The card draws up to 150 watts through a single 8-pin PCIe connector; the required cable comes from the power supply, not the graphics card box.

Is the 8 GB 256-bit GDDR5 frame buffer the only memory option for this GTX 1070 Mini?

Yes, this model is offered exclusively with 8 GB of GDDR5 on a 256-bit bus; no other capacity or memory type exists for the ZT-P10700G-10M.

What does the 1708 MHz boost clock deliver in a typical mini-ITX build with a 500 watt PSU?

The GPU can reach 1708 MHz when thermal and power headroom allow; a 500 watt supply meets the recommended spec for stable operation.
