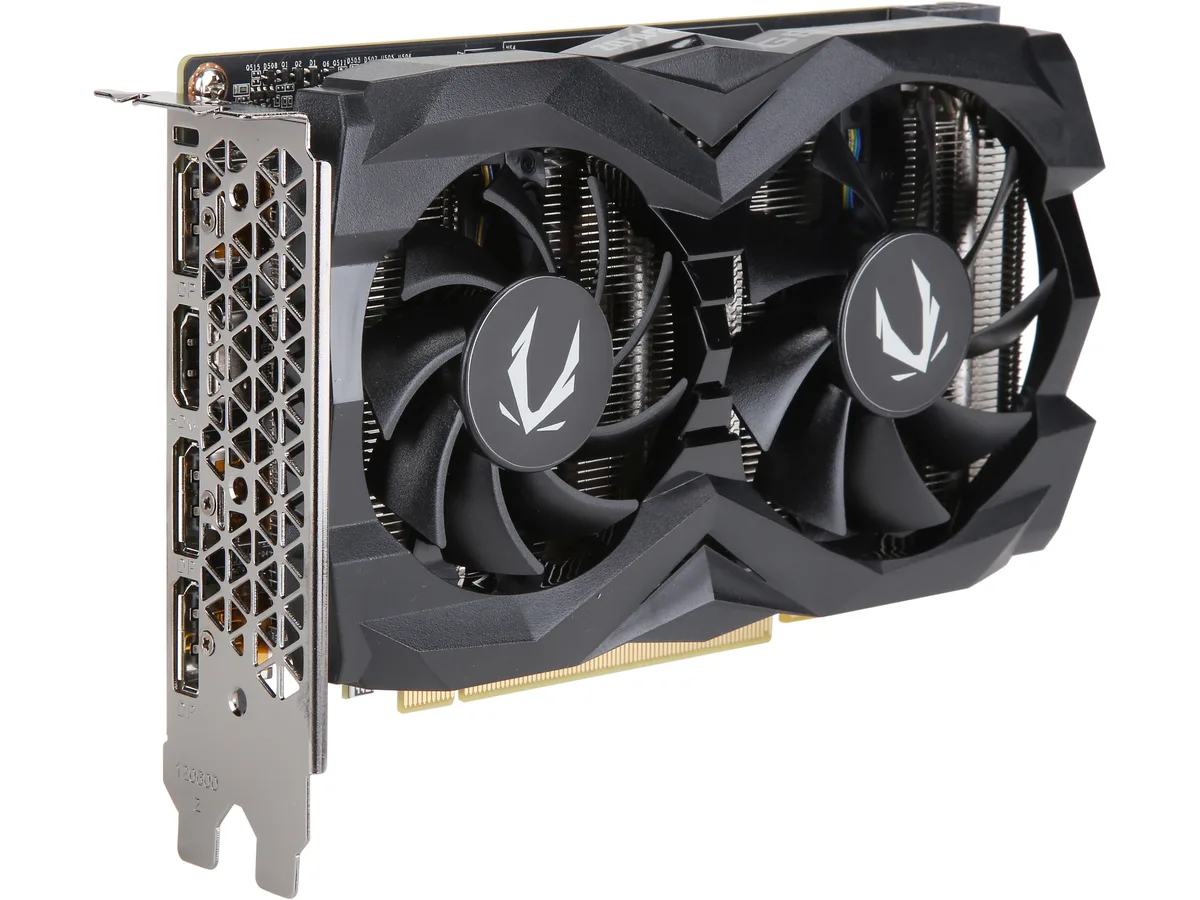

Compact dual-fan graphics card in dark grey finish

ZOTAC

ZOTAC GeForce GTX 1660 6GB GDDR5 graphics card ZT-T16600F-10L

SKU CH-VEBM-X57WT MPN ZT-T16600F-10L

Compact dual-fan card with 1408 CUDA cores and 6GB GDDR5 on a 192-bit bus, boosting to 1785 MHz for 1080p gaming and VR

  • InterfacePCI Express 3.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce GTX 16 Series
  • GPUGeForce GTX 1660
  • Boost Clock1785 MHz
  • CUDA Cores1408
  • 6GB GDDR5 memory and 192-bit bus deliver smooth 1080p gaming performance
  • 1408 CUDA cores at 1785 MHz boost clock provide strong compute power
  • Super compact 173.4mm length fits easily into small form-factor builds

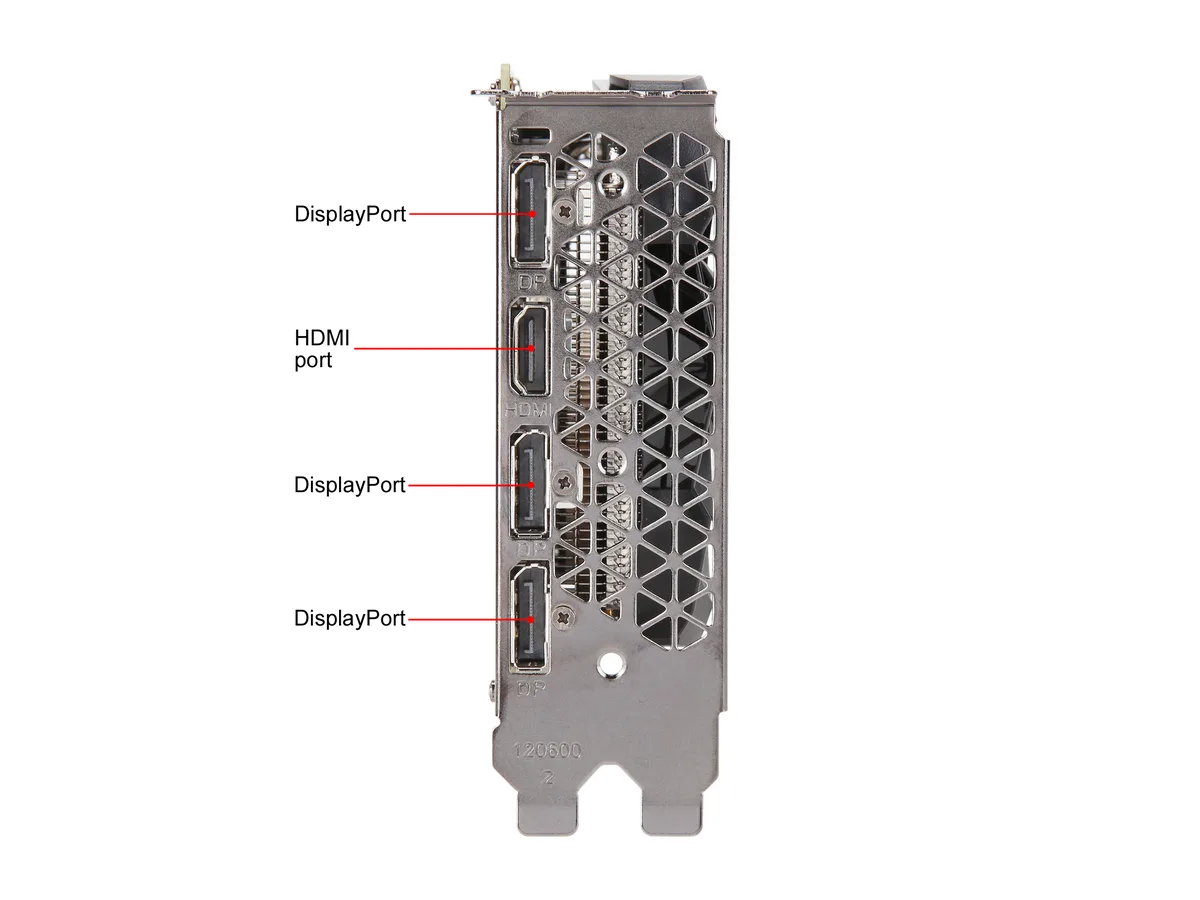

  • Four simultaneous displays via HDMI 2.0b and three DisplayPort 1.4 outputs
  • VR ready with DirectX 12 and OpenGL 4.5 support for immersive experiences

Compact GTX 1660 for 1080p gaming

The ZOTAC GeForce GTX 1660 6GB GDDR5 graphics card fits a 173.4mm dual-slot form factor. It delivers 1408 CUDA cores and a 1785 MHz boost clock through a PCI Express 3.0 interface. The 192-bit memory bus runs at 8.0 Gbps for smooth 1080p performance.

Upgrade from older 3GB cards

Moving from a 3GB board to this 6GB model removes VRAM bottlenecks in modern titles. The Turing architecture brings higher clocks and improved efficiency over previous GTX lines. A 450-watt power supply is recommended for the 120-watt board.

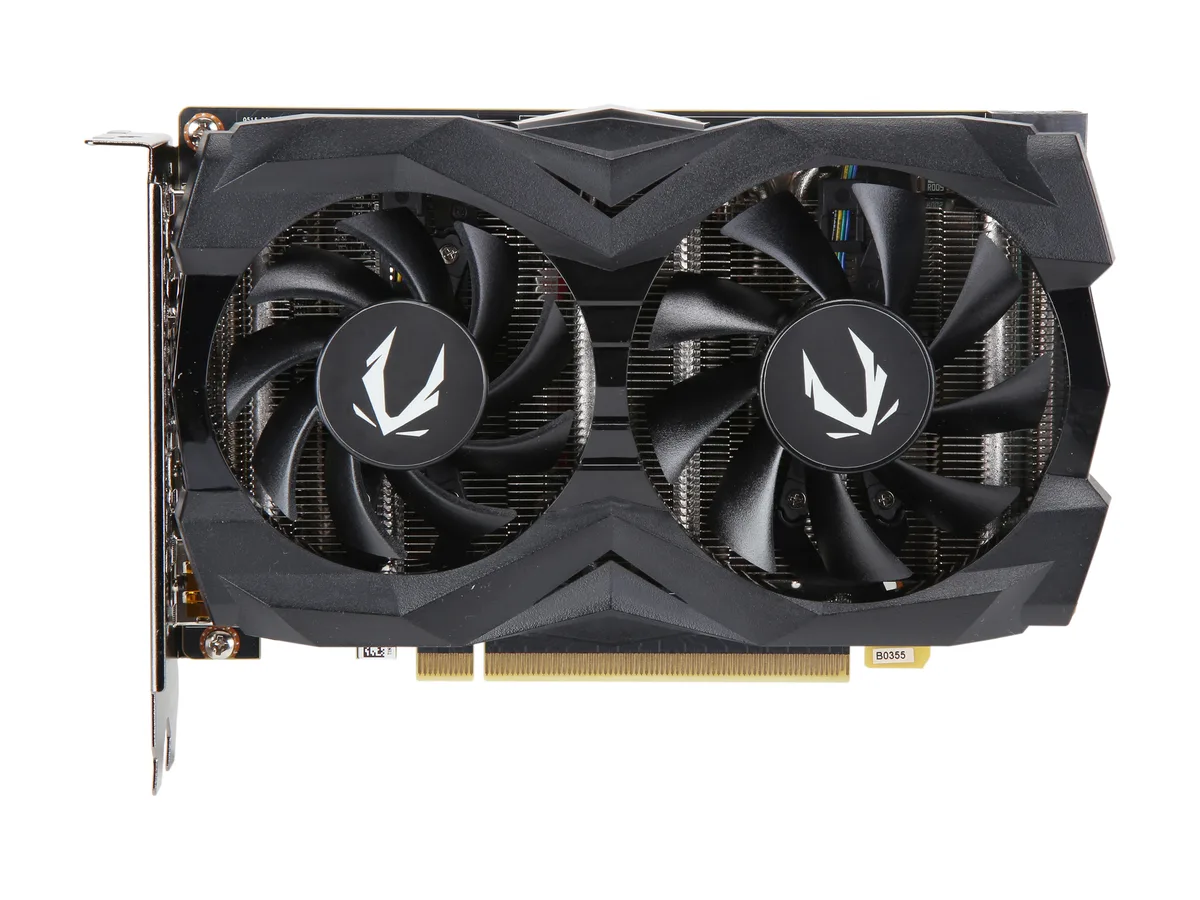

Simple dual-fan installation

The 35.3mm thick card slides into any standard PCIe x16 slot without auxiliary power cables. Dual offset fans exhaust heat toward the rear bracket. Ensure the case clears 173.4mm length and two expansion slots. Driver support covers Windows 10 and 7 64-bit.

Highlights

  • 6GB GDDR5 memory and 192-bit bus deliver smooth 1080p gaming performance
  • 1408 CUDA cores at 1785 MHz boost clock provide strong compute power
  • Super compact 173.4mm length fits easily into small form-factor builds
  • Four simultaneous displays via HDMI 2.0b and three DisplayPort 1.4 outputs
  • VR ready with DirectX 12 and OpenGL 4.5 support for immersive experiences

Specifications

BrandZOTAC
ModelZT-T16600F-10L
InterfacePCI Express 3.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce GTX 16 Series
GPUGeForce GTX 1660
Boost Clock1785 MHz
CUDA Cores1408
Effective Memory Clock8.0 Gbps
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR5
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Operating Systems SupportedWindows 10 / 7 64-bit ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power120W
System RequirementsRecommended Power Supply: 450W
Recommended PSU Wattage450W
Power Connector8-Pin
HDCP ReadyYes
FeaturesSuper Compact
4K and VR Ready
Dual Offset Fans optimized for Static Pressure and Airflow
Max GPU Length173 mm
Card Dimensions (L x H)6.83" x 4.38"
Slot Width2 Slots
Shipping weight0.76 kg
Package size282 × 216 × 58 mm

Questions about this item

What case clearance does the 173.4 mm long dual-slot card need?

The card measures 173.4 mm long, 111.15 mm tall and occupies two slots at 35.3 mm wide, so your chassis must accept a 6.83-inch full-length dual-slot GPU.

Which power connector must be seated for the 120 W board?

Connect a single 8-pin PCIe power cable from a 450 W or larger PSU; the board draws up to 120 W and will not start if the connector is loose or missing.

When should the dual-fan heatsink be cleaned to keep thermals steady?

Use compressed air to clear dust from both offset fans and the fin stack every six to twelve months, or whenever GPU temperatures rise noticeably under load.
