ZOTAC

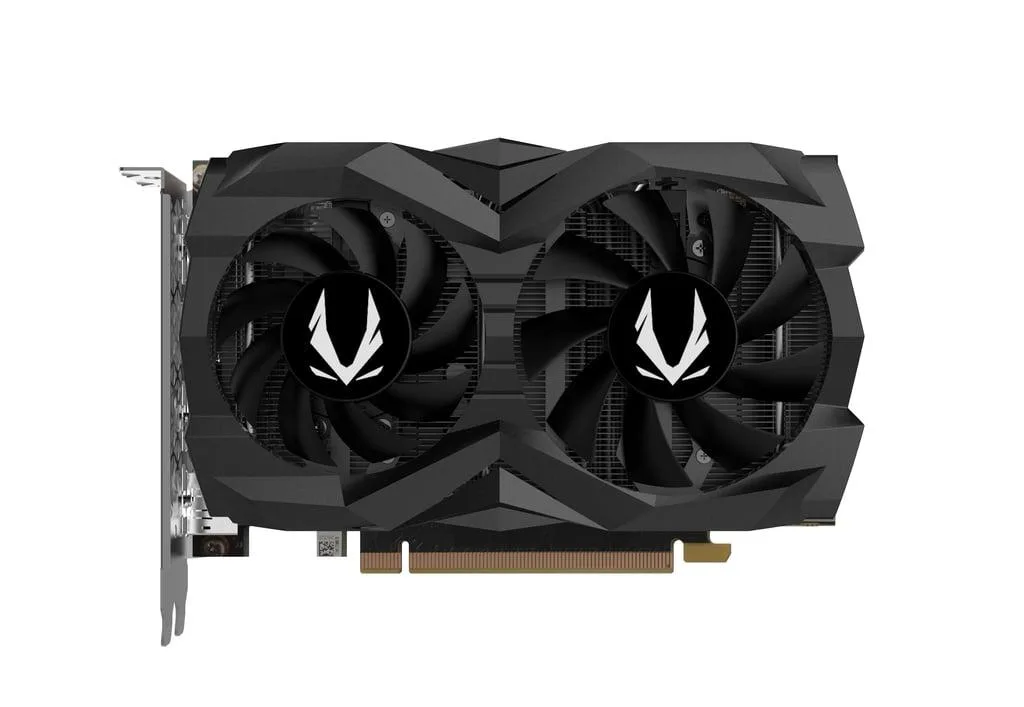

ZOTAC GeForce GTX 1660 6GB Super Compact graphics card
Compact dual-fan graphics card with 6 GB GDDR5 memory, 1408 CUDA cores and a 1785 MHz boost clock for 1080p gaming
- InterfacePCI Express 3.0
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce GTX 16 Series
- GPUGeForce GTX 1660
- Boost Clock1785 MHz
- CUDA Cores1408
- Super-compact 173.4 mm length fits small-form-factor builds
- 1408 CUDA cores accelerate modern games at 1080p
- 6 GB GDDR5 on a 192-bit bus delivers 8.0 Gbps bandwidth
- Dual offset fans cool the 120 W GPU quietly

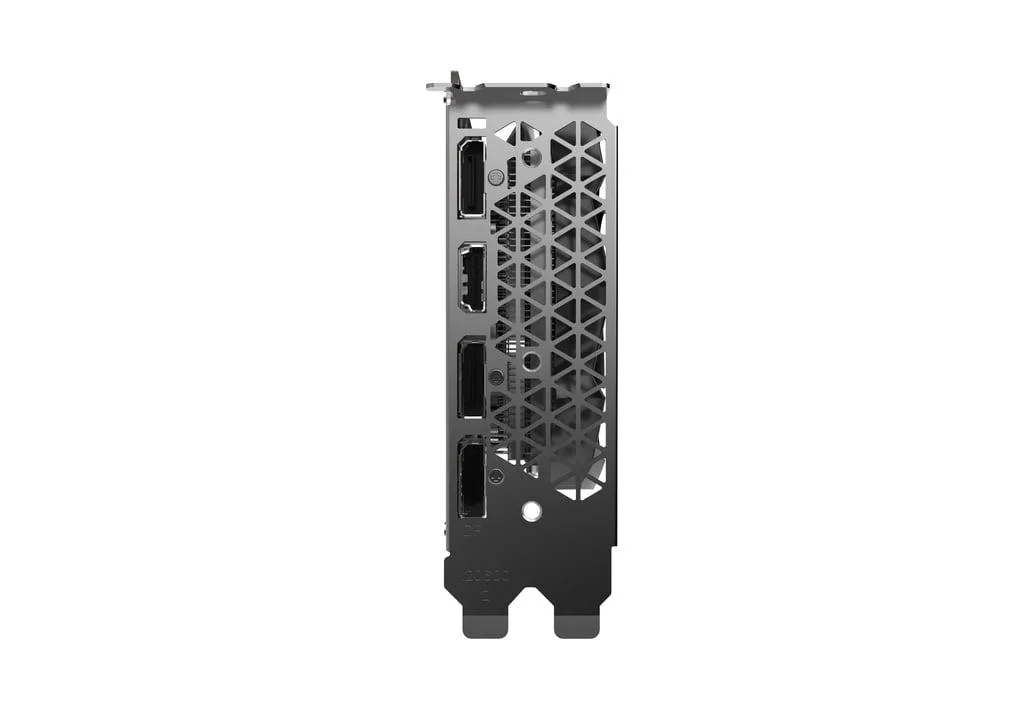

- Four-display support via HDMI 2.0b and three DisplayPort 1.4 outputs
What this card is
The ZOTAC GeForce GTX 1660 Super Compact is a dual-fan graphics card built for small-form-factor PCs. It uses the NVIDIA Turing architecture with 1408 CUDA cores and 6GB of GDDR5 memory on a 192-bit bus. The boost clock reaches 1785 MHz with an 8.0 Gbps effective memory clock. It connects via PCI Express 3.0 and supports four simultaneous displays.
Installing the card
The card measures 173.4 mm long, 111.15 mm high and occupies two slots at 35.3 mm wide. Verify that your case length and CPU-cooler clearance accept these dimensions before ordering. A 450-watt power supply is recommended for the 120-watt maximum power draw. The board requires no auxiliary power connector, so a single PCIe slot supplies all power.
The spec that decides fit
Length is the critical figure: 173.4 mm determines whether the card clears drive cages or front-panel headers in compact chassis. If your case maximum GPU length is lower, the card will not fit regardless of its two-slot width or low power draw.
Highlights
- Super-compact 173.4 mm length fits small-form-factor builds
- 1408 CUDA cores accelerate modern games at 1080p
- 6 GB GDDR5 on a 192-bit bus delivers 8.0 Gbps bandwidth
- Dual offset fans cool the 120 W GPU quietly
- Four-display support via HDMI 2.0b and three DisplayPort 1.4 outputs
Specifications
| Brand | ZOTAC |
|---|---|
| Model | ZT-T16600F-10L |
| Interface | PCI Express 3.0 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce GTX 16 Series |
| GPU | GeForce GTX 1660 |
| Boost Clock | 1785 MHz |
| CUDA Cores | 1408 |
| Effective Memory Clock | 8.0 Gbps |
| Memory Size | 6GB |
| Memory Interface | 192-Bit |
| Memory Type | GDDR5 |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.5 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.0b |
| DisplayPort | 3 x DisplayPort 1.4 |
| SLI Support | No |
| Virtual Reality Ready | Yes |
| Cooler | Double Fans |
| Operating Systems Supported | Windows 10 / 7 64-bit 👉Check gaming pc with Windows 11 Pro |
| Thermal Design Power | 120W |
| System Requirements | Recommended Power Supply: 450W |
| Recommended PSU Wattage | 450W |
| Power Connector | 8-Pin |
| HDCP Ready | Yes |
| Features | Super Compact 4K and VR Ready Dual Offset Fans optimized for Static Pressure and Airflow |
| Max GPU Length | 173 mm |
| Card Dimensions (L x H) | 6.83" x 4.38" |
| Slot Width | 2 Slots |
| Package Contents | ZOTAC GAMING GeForce GTX 1660 graphics card User Manual |
Questions about this item
How do I confirm the boost clock is hitting 1785 MHz after installation?
Run a monitoring tool such as GPU-Z or the NVIDIA overlay while a game or benchmark loads the GPU; the reported boost clock should reach 1785 MHz under full load.
What comes in the box and what must I supply myself?
The box contains the ZOTAC GeForce GTX 1660 6GB card and a user manual; you must provide a PCIe 3.0 slot, a 450 W or larger power supply, and any required display cables.
This card only has one version — how do I know it fits my build?
The single model ZT-T16600F-10L measures 173.4 mm long, 111.15 mm tall and occupies two slots (35.3 mm wide); verify your case clearance and motherboard spacing against those dimensions.
