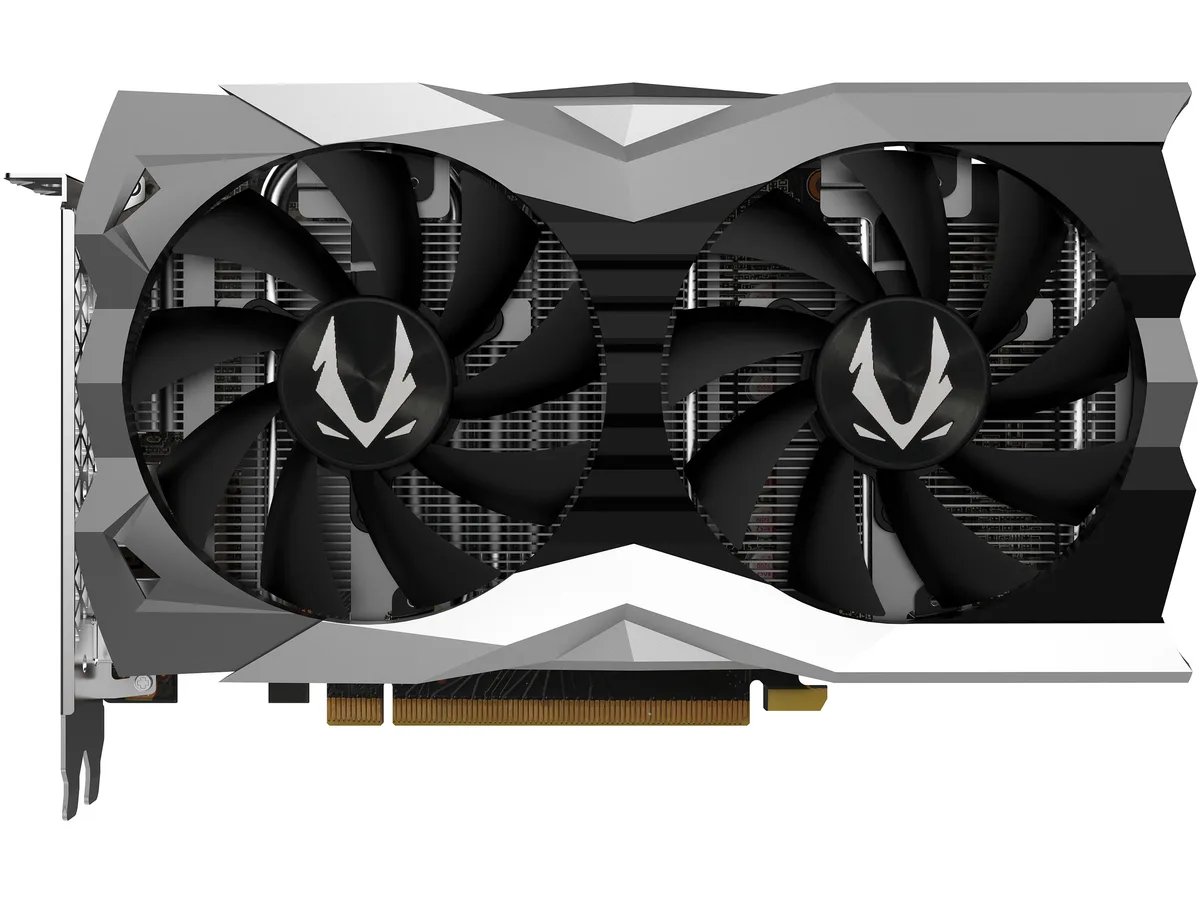

Compact black graphics card with dual fans and a short 8.3-inch length

ZOTAC

ZOTAC GeForce RTX 2060 SUPER MINI 8GB ZT-T20610E-10M graphics card

SKU CH-VVHB-CKHRV MPN ZT-T20610E-10M

Compact 8.3-inch dual-fan card delivers 2176 CUDA cores, 8 GB GDDR6 on a 256-bit bus and 1650 MHz boost for 4K-ready gaming

  • InterfacePCI Express 3.0
  • Chipset ManufacturerNVIDIA
  • GPUGeForce RTX 2060 SUPER
  • Boost Clock1650 MHz
  • CUDA Cores2176
  • Effective Memory Clock14 Gbps
  • Compact 8.3-inch dual-slot design fits small-form-factor builds
  • 8 GB 256-bit GDDR6 at 14 Gbps feeds high-resolution textures
  • 2176 CUDA cores with 1650 MHz boost clock accelerate modern workloads
  • Turing Tensor cores enable DLSS upscaling for smoother frame rates

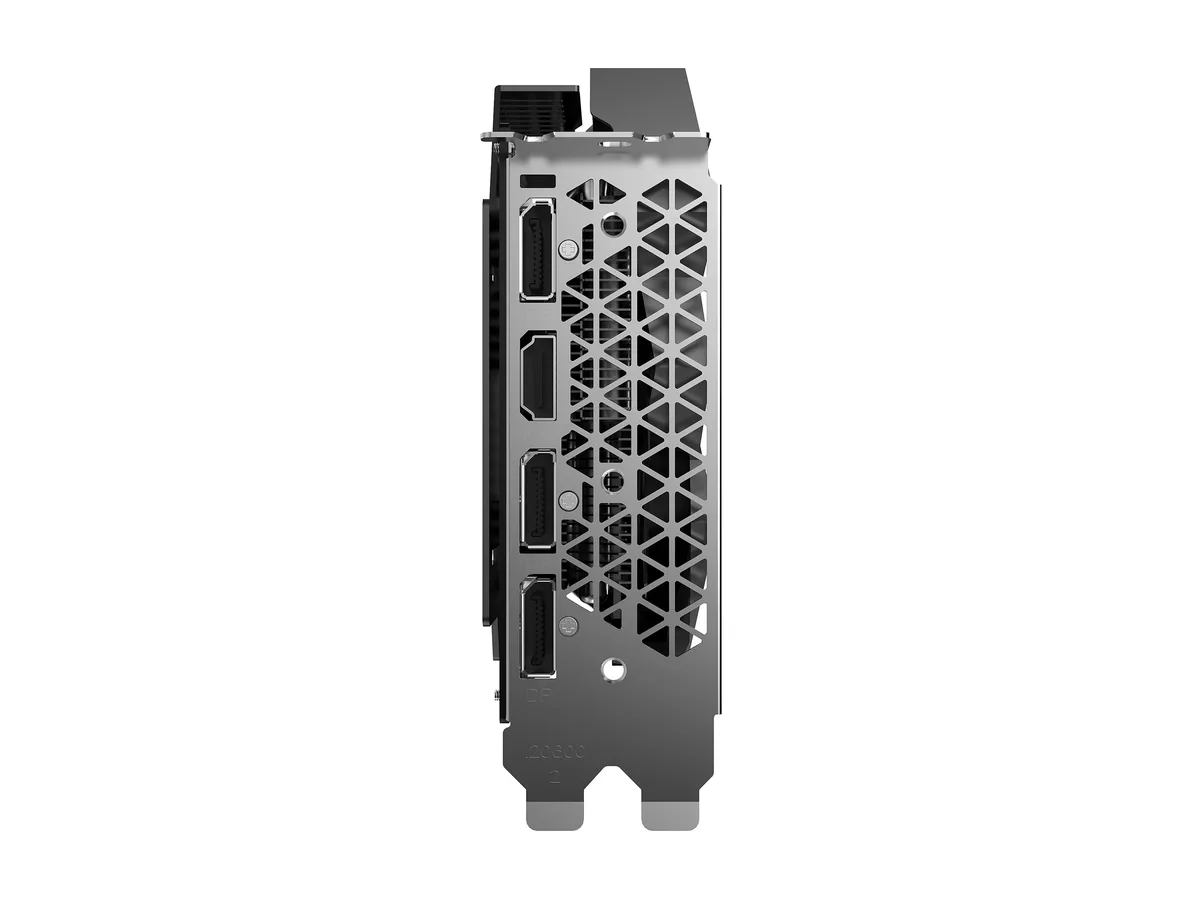

  • Four display outputs — three DisplayPort 1.4 and one HDMI 2.0b — drive multi-monitor setups

Compact RTX 2060 SUPER for small builds

The ZOTAC GeForce RTX 2060 SUPER MINI fits an 8.3-inch length and dual-slot width. It delivers 2176 CUDA cores, 8GB GDDR6 memory on a 256-bit bus, and a 1650 MHz boost clock. The card supports four monitors through three DisplayPort 1.4 and one HDMI 2.0b outputs. It targets PC and Linux gamers who need RTX performance in compact cases.

Upgrade from older mid-range GPUs

This card replaces earlier 6GB models by doubling VRAM to 8GB and widening the bus to 256-bit. The jump is worthwhile when games exceed 6GB at 1440p or when you need Tensor and RTX cores for DLSS. The 14 Gbps memory speed and PCIe 3.0 interface keep data moving without platform changes.

Simple dual-fan installation

The plug-in card drops into any PCIe 3.0 x16 slot and needs only standard case airflow for its double-fan cooler. No extra power adapters beyond the typical 8-pin are required. The main issue is verifying 8.3-inch clearance in tight chassis and confirming the dual-slot bracket aligns with rear I/O cutouts.

Highlights

  • Compact 8.3-inch dual-slot design fits small-form-factor builds
  • 8 GB 256-bit GDDR6 at 14 Gbps feeds high-resolution textures
  • 2176 CUDA cores with 1650 MHz boost clock accelerate modern workloads
  • Turing Tensor cores enable DLSS upscaling for smoother frame rates
  • Four display outputs — three DisplayPort 1.4 and one HDMI 2.0b — drive multi-monitor setups

Specifications

BrandZOTAC
ModelZT-T20610E-10M
InterfacePCI Express 3.0
Chipset ManufacturerNVIDIA
GPUGeForce RTX 2060 SUPER
Boost Clock1650 MHz
CUDA Cores2176
Effective Memory Clock14 Gbps
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
ColorBlack
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Operating Systems SupportedWindows 10 / 7 64-bit, Linux 64-bit ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power175W
System RequirementsRecommended Power Supply: 550W
Recommended PSU Wattage550W
Power Connector8-Pin
HDCP ReadyYes
FeaturesGDDR6 memory
Super Compact
IceStorm 2.0 Cooling
Metal Wraparound Backplate
OC Scanner
Max GPU Length210 mm

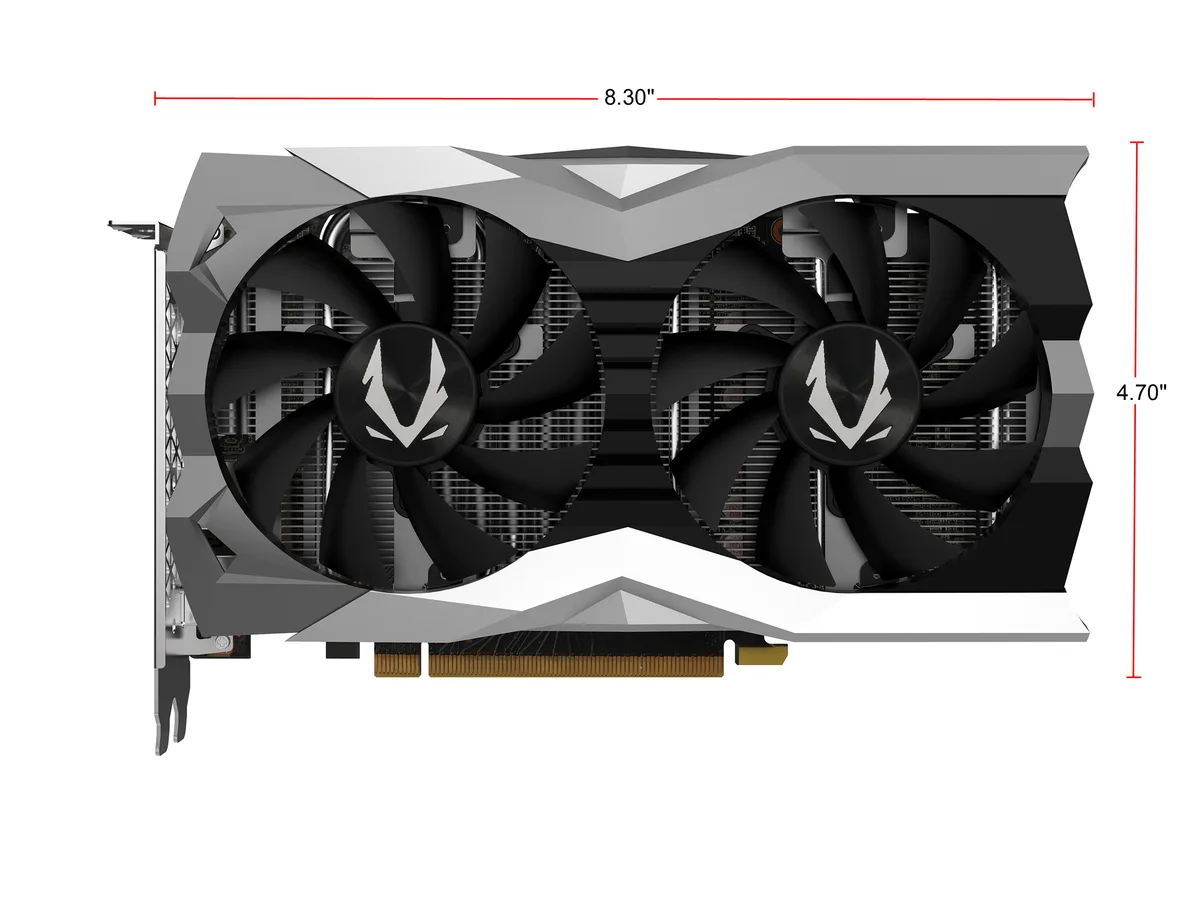

Card Dimensions (L x H)8.30" x 4.70"
Slot Width2 Slots
Shipping weight1.09 kg
Package size300 × 218 × 86 mm

Questions about this item

How much case length does the 8.3-inch card need?

The card measures 8.3 inches long, 4.7 inches wide and 1.6 inches high, so your case must clear at least that length and a dual-slot opening.

Which power connector does the PCI Express 3.0 card require and where do people forget to plug it in?

A single 8-pin PCIe power connector sits at the rear edge; the common mistake is leaving it unseated after routing cables behind the motherboard tray.

When should the dual-fan cooler be cleaned or the thermal paste renewed?

Clean the two fans with compressed air every six to twelve months; replace the thermal paste only if GPU temperatures rise noticeably under load.
