ZOTAC GeForce RTX 2070 AMP Extreme Core 8GB GDDR6 graphics card ZT-T20700C-10P

RTX 2070 AMP Extreme Core

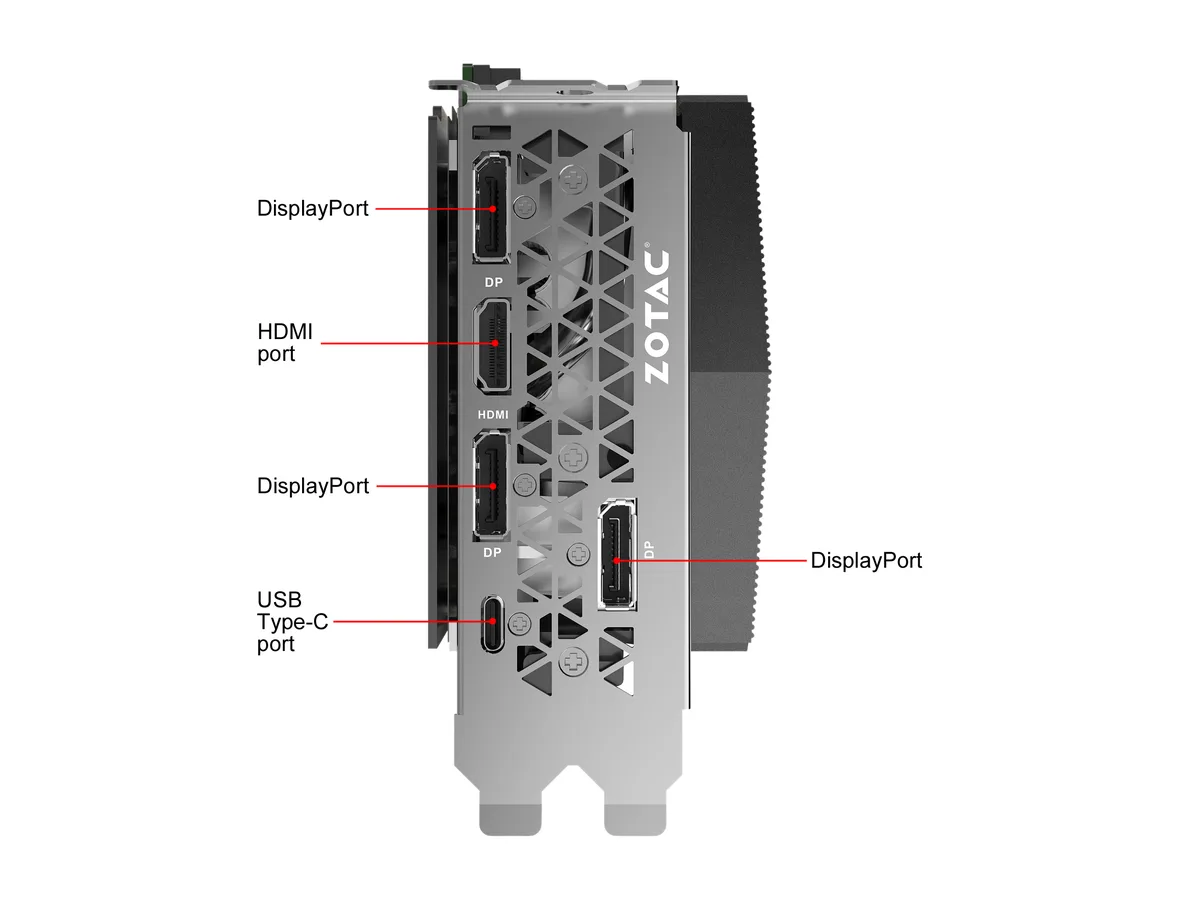

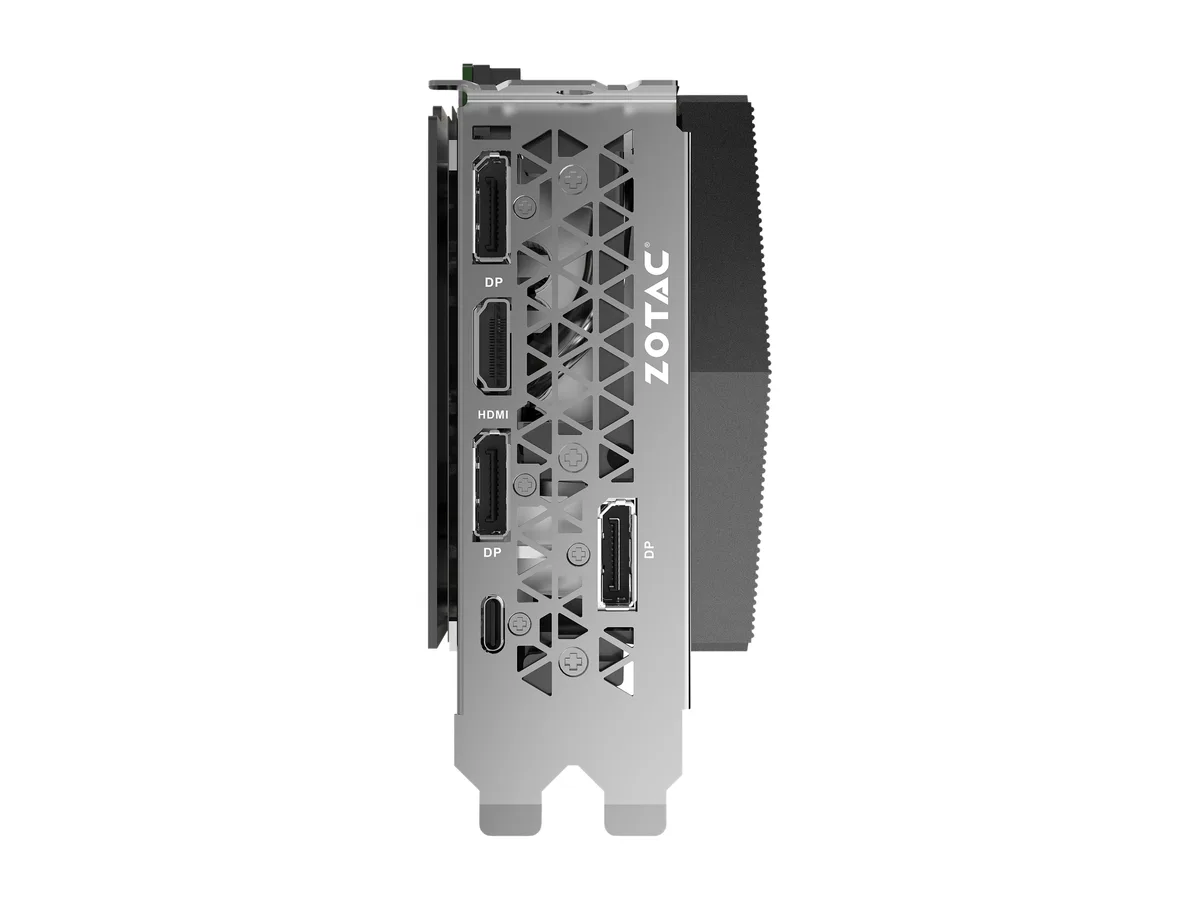

The ZOTAC GeForce RTX 2070 AMP Extreme Core is a graphics card built on the NVIDIA Turing architecture. It provides 2304 CUDA cores and 8GB of GDDR6 memory across a 256-bit bus. The card connects via PCI Express 3.0 and supports up to four displays using HDMI 2.0b, three DisplayPort 1.4 outputs and a USB Type-C port. It targets users who need high frame rates at 1440p or entry-level 4K gaming.

Boost clock 1815 MHz sustained load

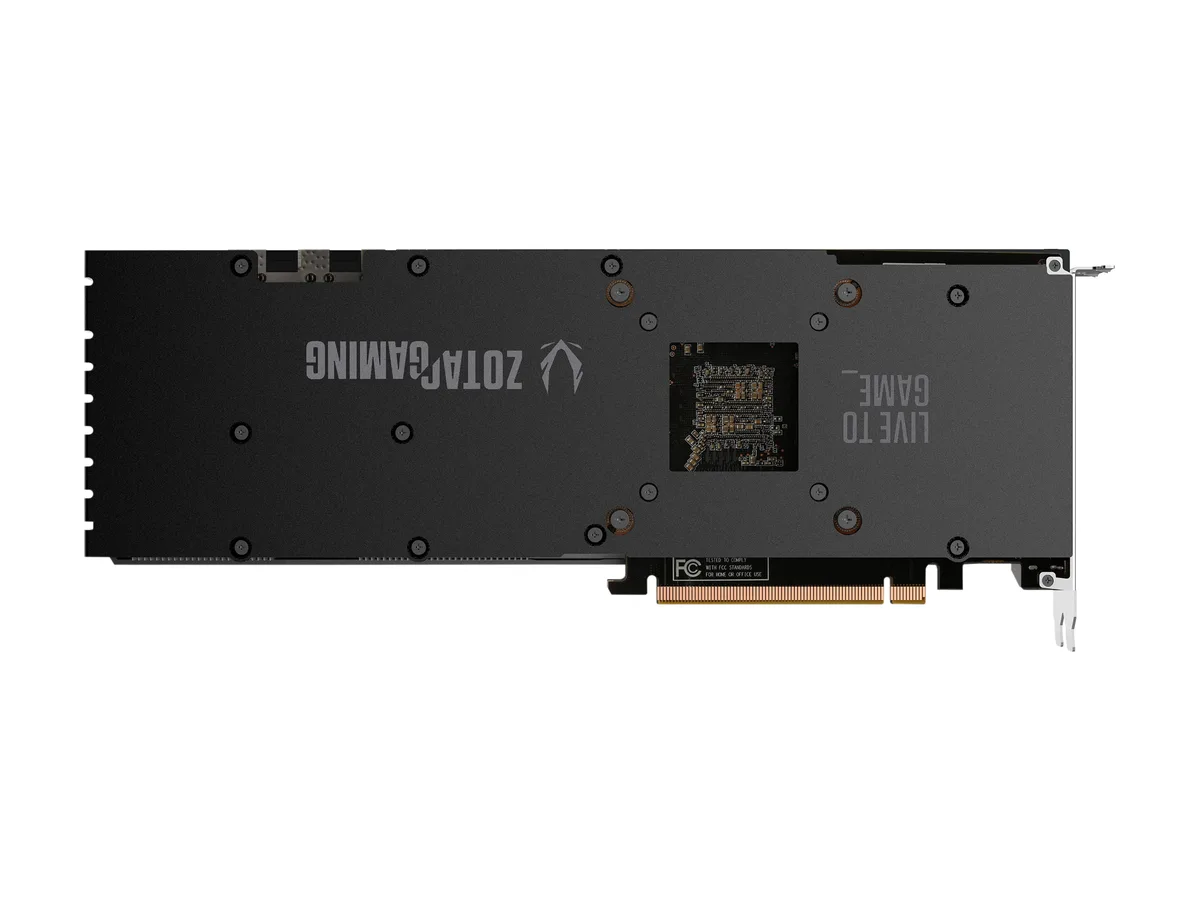

The GPU boost clock reaches 1815 MHz and the effective memory clock runs at 14.4 Gbps. The IceStorm 2.0 cooler uses active fan control to maintain these frequencies during extended sessions. The triple-slot form factor allows a large heatsink to absorb heat over time so clock speeds remain stable rather than throttling after a short burst. The metal wraparound backplate adds structural rigidity and helps spread heat across the PCB.

Triple slot thermals noise power

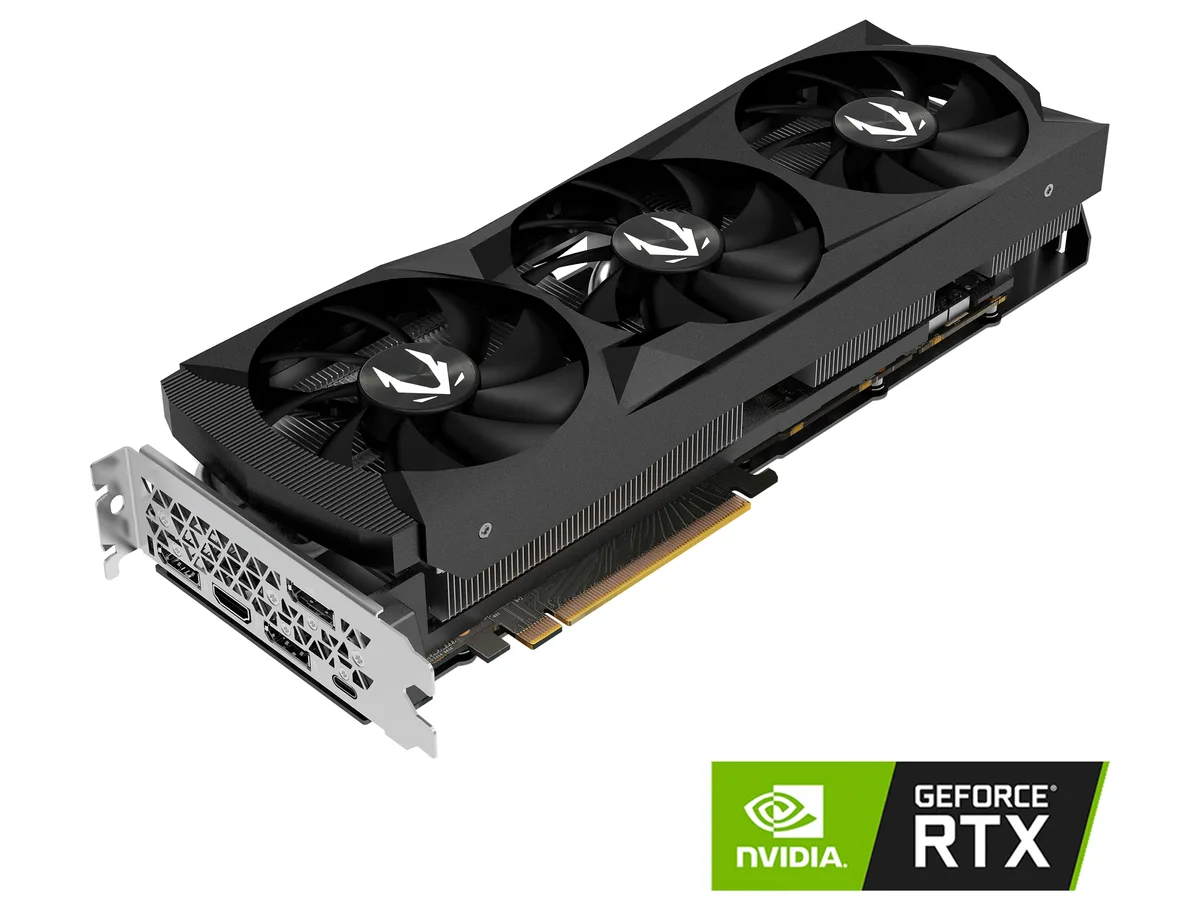

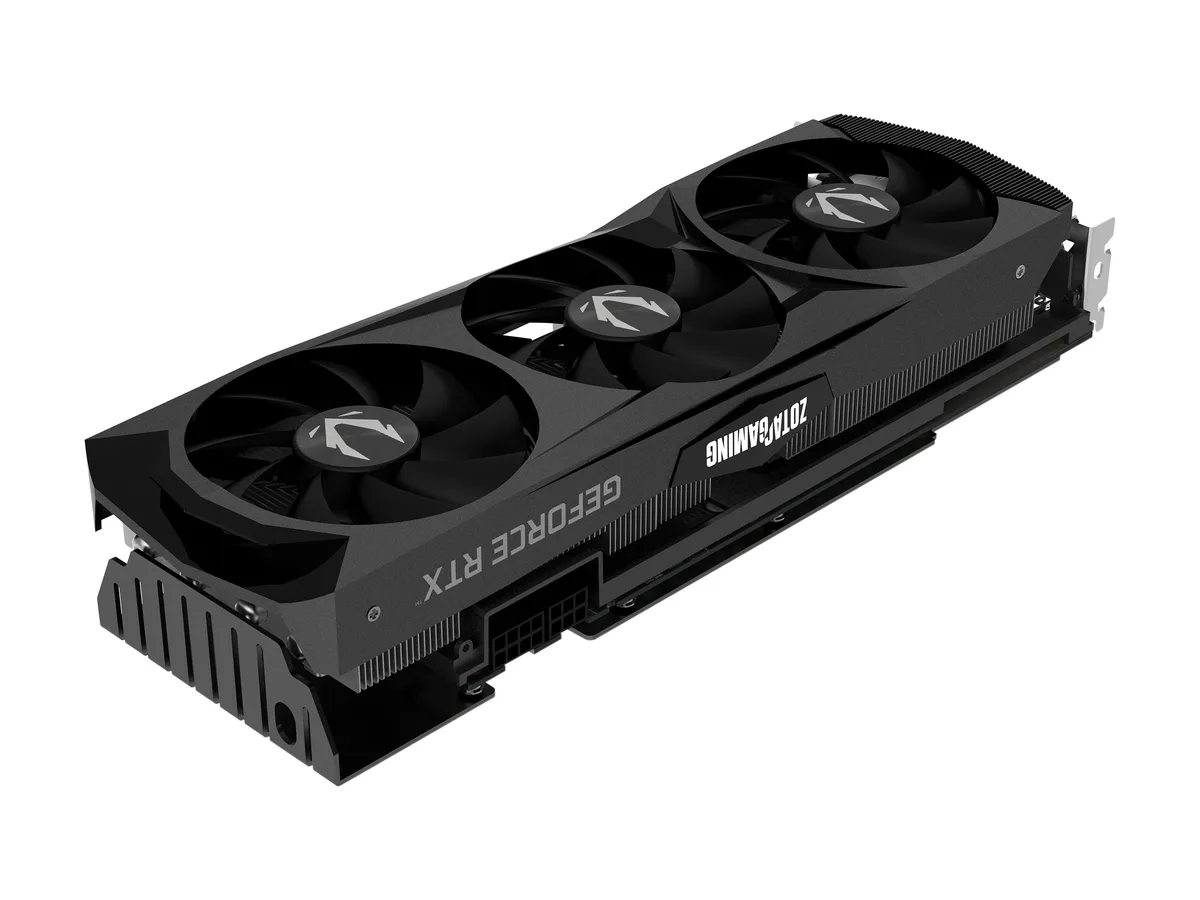

The card occupies three expansion slots and measures 12.1 inches in length, 4.4 inches in width and 2.2 inches in height. Under normal gaming loads the fan curve keeps noise at a moderate level while the heatsink manages the thermal output of the 2070 GPU. Power is supplied through dual 8-pin connectors with adapters included for 6-pin and 4-pin PSU cables. The Spectra RGB lighting can be adjusted or disabled without affecting thermal performance.
