ZOTAC

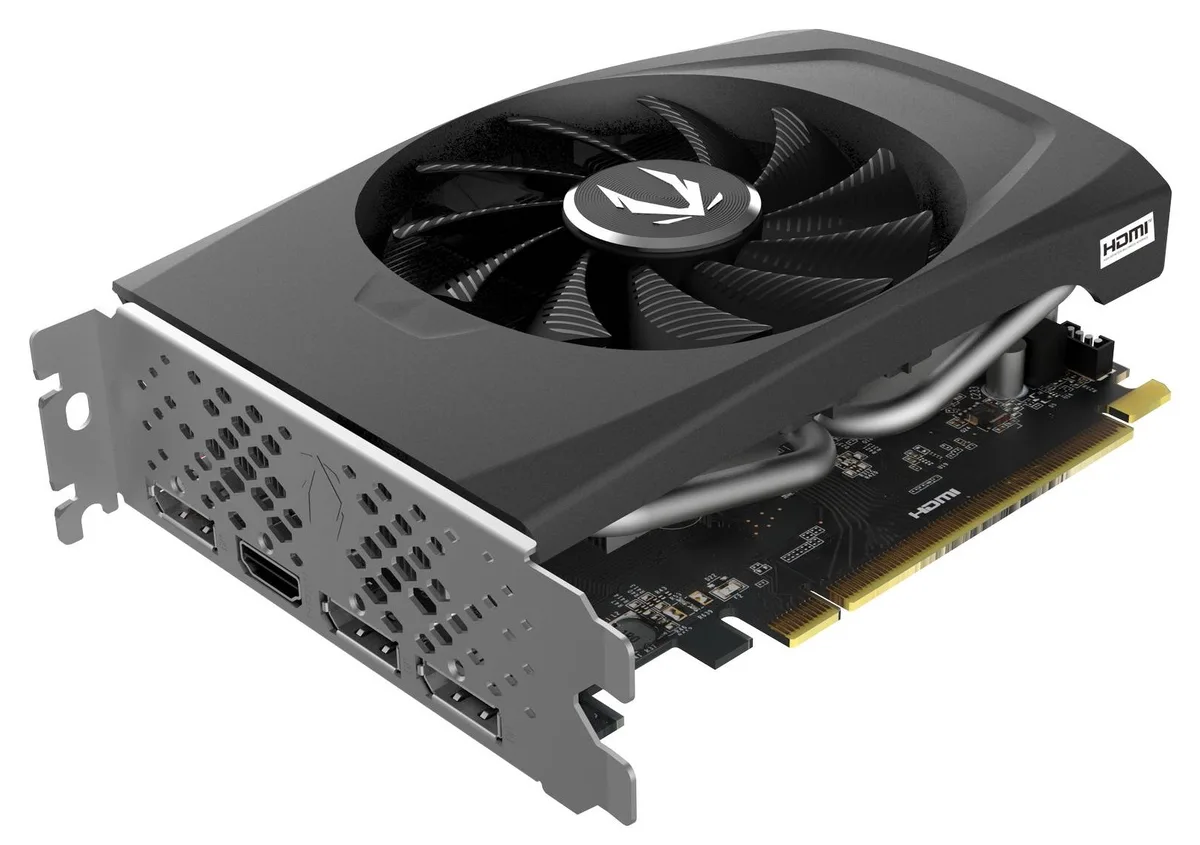

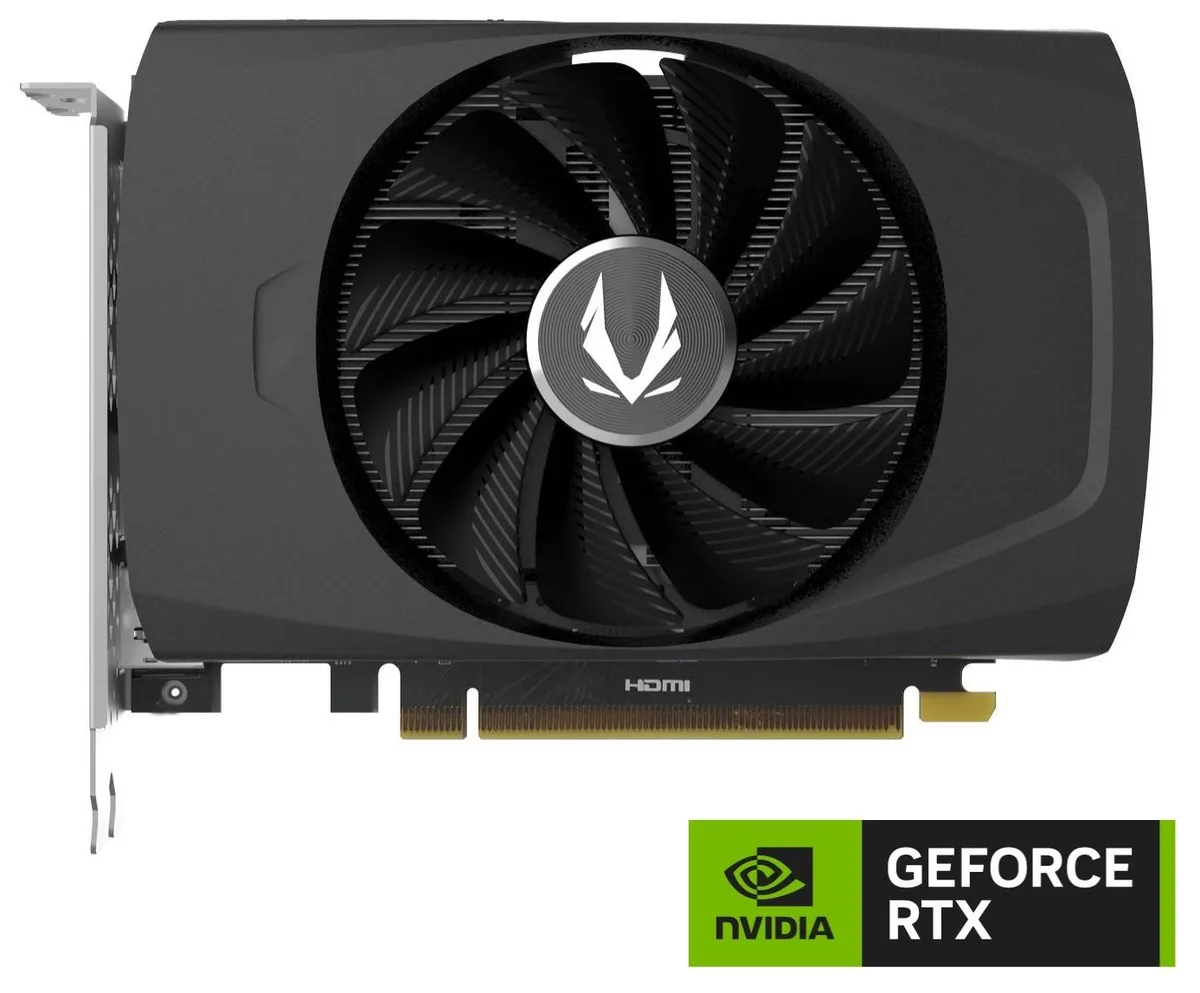

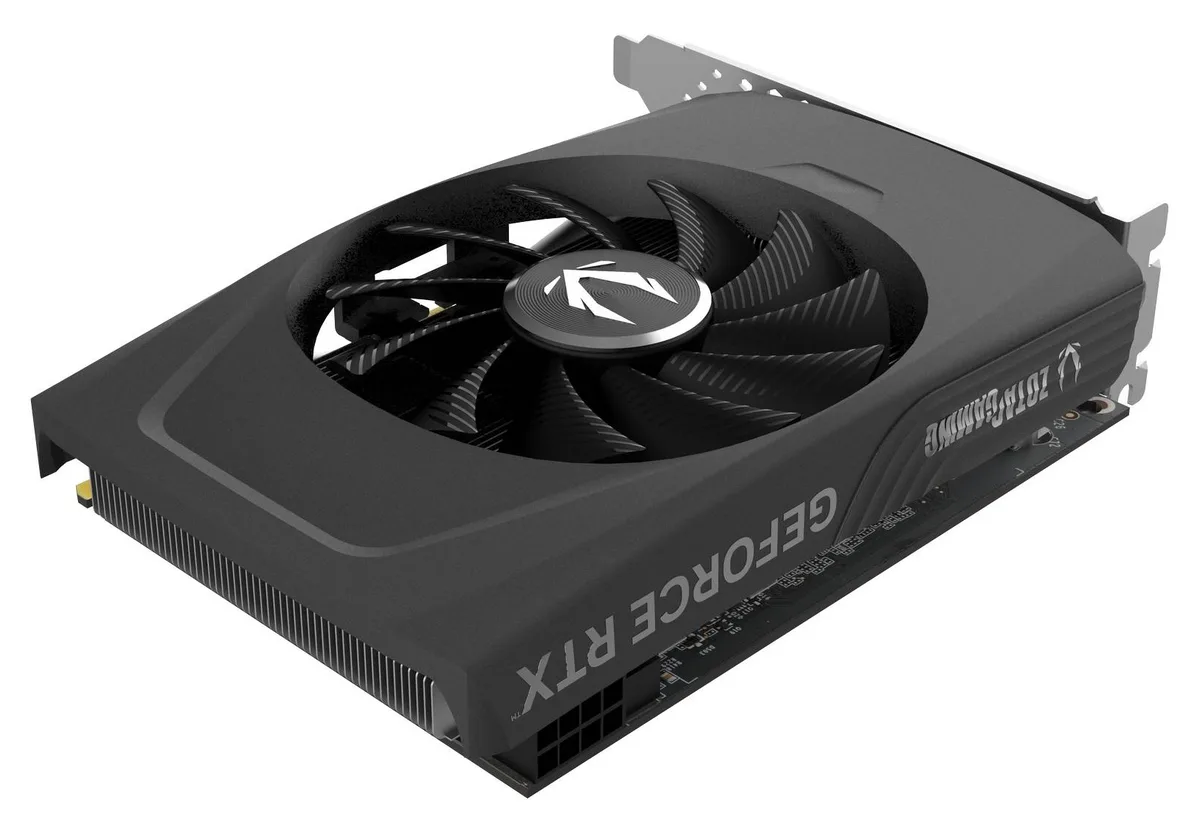

ZOTAC GeForce RTX 4060 8GB Solo graphics card ZT-D40600G-10L
A compact RTX 4060 with 8GB GDDR6 memory, 3072 CUDA cores, a 2460 MHz boost clock and a single 90 mm fan in a 163 mm dual-slot design
- InterfacePCI Express 4.0 x8
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 40 Series
- GPUGeForce RTX 4060
- Boost Clock2460 MHz
- CUDA Cores3072
- DLSS 3 boosts frame rates with AI upscaling
- 8GB GDDR6 memory at 17 Gbps feeds the GPU
- Single 90 mm fan keeps the 115 W card cool

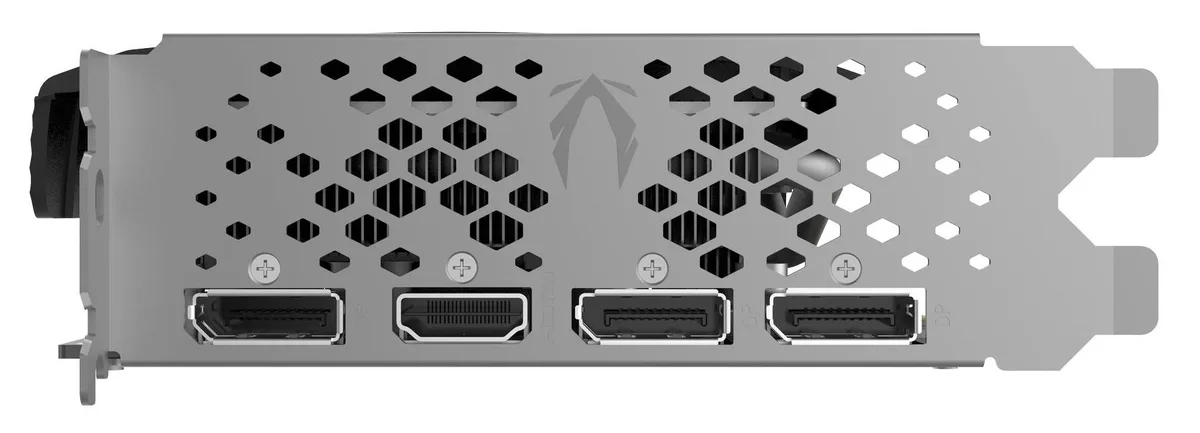

- Four display outputs drive 8K or multi-monitor setups
- Compact 163 mm length fits small-form-factor builds
ZOTAC GeForce RTX 4060 8GB Solo
The ZOTAC GeForce RTX 4060 8GB Solo is a compact graphics card built on the NVIDIA Ada Lovelace architecture. It features 3072 CUDA cores, 8GB of GDDR6 memory on a 128-bit bus, and a boost clock of 2460 MHz. The card uses a PCI Express 4.0 x8 interface and fits in two slots with a length of 163 mm. It is suited for 1080p gaming and multi-monitor productivity setups.
Upgrading to 8GB GDDR6 on a 128-bit bus
This card replaces older GPUs limited to 6GB or less of video memory and narrower memory interfaces. The jump is worth it when current titles exceed the frame buffer of a previous card at 1080p or when DLSS 3 frame generation can raise effective frame rates in supported games. A 500W power supply and a single 8-pin connector are required for stable operation.
Sustained load behaviour with 115W TDP
Under continuous load the 115W thermal design power is managed by a single 90mm fan in a super compact shroud. The dual-slot form factor exhausts heat into the case rather than through a backplate vent. Clock speeds hold near the 2460 MHz boost while the fan curve balances airflow against acoustic output during extended gaming or render sessions.
Highlights
- DLSS 3 boosts frame rates with AI upscaling
- 8GB GDDR6 memory at 17 Gbps feeds the GPU
- Single 90 mm fan keeps the 115 W card cool
- Four display outputs drive 8K or multi-monitor setups
- Compact 163 mm length fits small-form-factor builds
Specifications
| Brand | ZOTAC |
|---|---|
| Series | Solo |
| Model | ZT-D40600G-10L |
| Interface | PCI Express 4.0 x8 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 40 Series |
| GPU | GeForce RTX 4060 |
| Boost Clock | 2460 MHz |
| CUDA Cores | 3072 |
| Effective Memory Clock | 17000 MHz |
| Memory Size | 8GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1a |
| DisplayPort | 3 x DisplayPort 1.4a |
| Max Resolution | 7680 x 4320 |
| Virtual Reality Ready | Yes |
| Cooler | Single Fan |
| Thermal Design Power | 115W |
| Recommended PSU Wattage | 500W |
| Power Connector | 8-Pin |
| HDCP Ready | Yes |
| Form Factor | ATX |
| Max GPU Length | 163 mm |
| Slot Width | 2 Slots |
| Shipping weight | 0.68 kg |
| Package size | 287 × 216 × 61 mm |
Questions about this item
Will the 163 mm length and 2-slot width fit in my compact case?
The card measures 163 mm long and occupies 2 slots, so verify your case clearance and motherboard spacing before purchase.
Does the single 8-pin connector work with my 500W power supply?
The board draws 115 W and needs one 8-pin PCIe connector; a quality 500 W unit with that cable is sufficient.
How often should I clean the 90 mm fan to keep temperatures steady?
Use compressed air every few months to clear dust from the single 90 mm fan and heatsink fins.
