ZOTAC GeForce RTX 5060 Low Profile graphics card, compact dual-slot design with black shroud, single fan, metal backplate, one HDMI

ZOTAC

ZOTAC GeForce RTX 5060 Low Profile graphics card ZT-B50600L-10A

SKU CH-F0TW-SR033 MPN ZT-B50600L-10A

Low-profile GeForce RTX 5060 with 8 GB GDDR7, 2497 MHz clocks, 3840 stream processors and PCIe 5.0 x8 for small-form-factor builds

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Low Profile
  • Core Clock2497 MHz
  • Boost Clock2497 MHz
  • Low-profile design fits compact builds
  • GDDR7 memory delivers 28 Gbps bandwidth
  • PCI Express 5.0 x8 interface enables high-speed data transfer
  • Triple-display support via HDMI 2.1b and dual DisplayPort 2.1b
  • 3840 stream processors accelerate AI workloads with AI TOPS

Compact RTX 5060 for small-form-factor builds

The ZOTAC GeForce RTX 5060 Low Profile fits slim enclosures with a single-slot bracket while delivering NVIDIA GeForce RTX 50 Series performance. It targets users upgrading compact workstations or living-room PCs that cannot accept full-height cards.

Air-cooled design with modern display outputs

An air cooler handles the 145W thermal design power inside tight chassis. Connectivity includes 1 x HDMI 2.1b and 2 x DisplayPort 2.1b for up to three 7680 x 4320 displays. The PCI Express 5.0 x8 interface and single 8-pin power connector simplify installation in space-constrained motherboards.

Steps up from older low-profile GPUs

Replacing legacy low-profile cards adds 3840 stream processors, 8GB GDDR7 memory on a 128-bit bus at 28000 MHz, and DirectX 12 Ultimate support. The jump is worthwhile when current hardware cannot drive modern titles at 1080p or when AI TOPS workloads need the new architecture.

Highlights

  • Low-profile design fits compact builds
  • GDDR7 memory delivers 28 Gbps bandwidth
  • PCI Express 5.0 x8 interface enables high-speed data transfer
  • Triple-display support via HDMI 2.1b and dual DisplayPort 2.1b
  • 3840 stream processors accelerate AI workloads with AI TOPS

Specifications

BrandZOTAC
SeriesGaming
ModelZT-B50600L-10A
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Low Profile
Core Clock2497 MHz
Boost Clock2497 MHz
Stream Processors3840
Effective Memory Clock28000 MHz (28 Gbps)
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support3
HDMI1 x HDMI 2.1b
DisplayPort2 x DisplayPort 2.1b
AI FeaturesAI TOPS
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerAir Cooler
Operating Systems SupportedWindows 11/Windows 10 64-bit ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power145W
Recommended PSU Wattage550W
Power Connector1 x 8-Pin
Dual-Link DVI SupportedNo
HDCP ReadyYes
FeaturesLow Profile Design, PCI Express 5.0 Support, Triple Display Support, DirectX 12 Ultimate Support, HDMI 2.1b Support, DisplayPort 2.1b Support, Air Cooled
Form FactorLow Profile
Max GPU Length183 mm

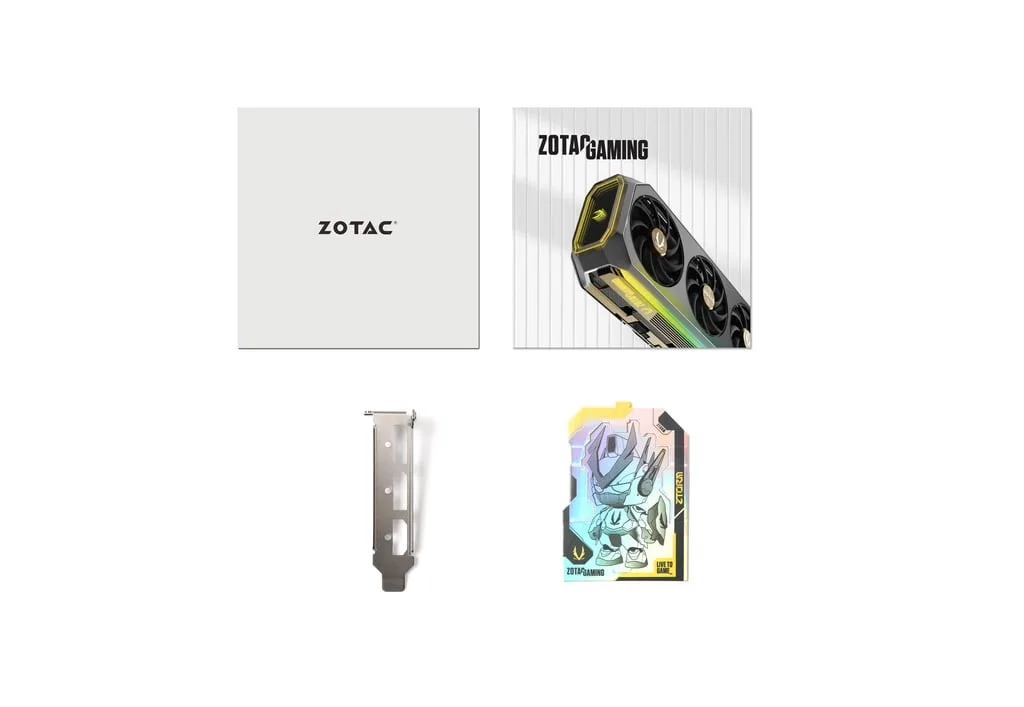

Low Profile Bracket IncludedYes
Slot Width2 Slots
Shipping weight0.64 kg
Package size286 × 217 × 57 mm

Questions about this item

What bandwidth does the PCI Express 5.0 x8 interface provide for this card?

The PCI Express 5.0 x8 interface delivers up to 128 GB/s of bandwidth, which caps the maximum data rate between the GPU and the system.

What physical space and power connector does the low profile design require?

The card uses a low profile bracket and a single 8-pin power connector, so the case must accommodate a half-height slot and the PSU must supply that connector.

How is the driver installed, and what step is often missed?

Install the latest NVIDIA driver for Windows 10 or 11 64-bit, then enable the GPU in Device Manager; the step often missed is restarting the PC before the driver takes full effect.
