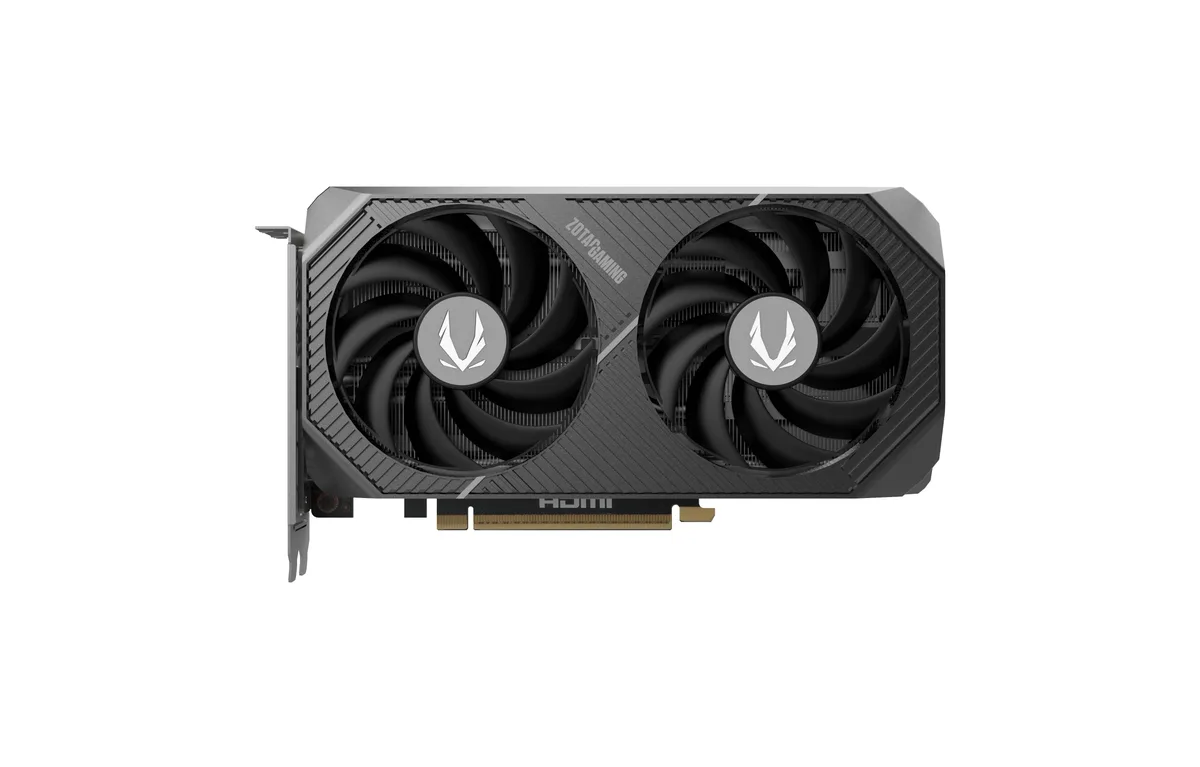

Black graphics card with two cooling fans visible

ZOTAC

ZOTAC GeForce RTX 5060 Ti 16GB Twin Edge OC ZT-B50620H-10M graphics card

SKU CH-GRK1-5QD6T MPN ZT-B50620H-10M

GeForce RTX 5060 Ti with 16GB GDDR7 on a 128-bit bus, 4608 CUDA cores, 2602 MHz boost clock, PCI Express 5.0 x8, HDMI 2.1b and three DisplayPort 2.1b outputs

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • ArchitectureBlackwell
  • Boost Clock2602 MHz
  • 16GB GDDR7 memory drives high-resolution texture performance
  • 2602 MHz boost clock accelerates frame rates in demanding titles
  • 4608 CUDA cores deliver parallel compute power for gaming and creative workloads
  • PCIe 5.0 x8 interface doubles bandwidth headroom versus previous standards

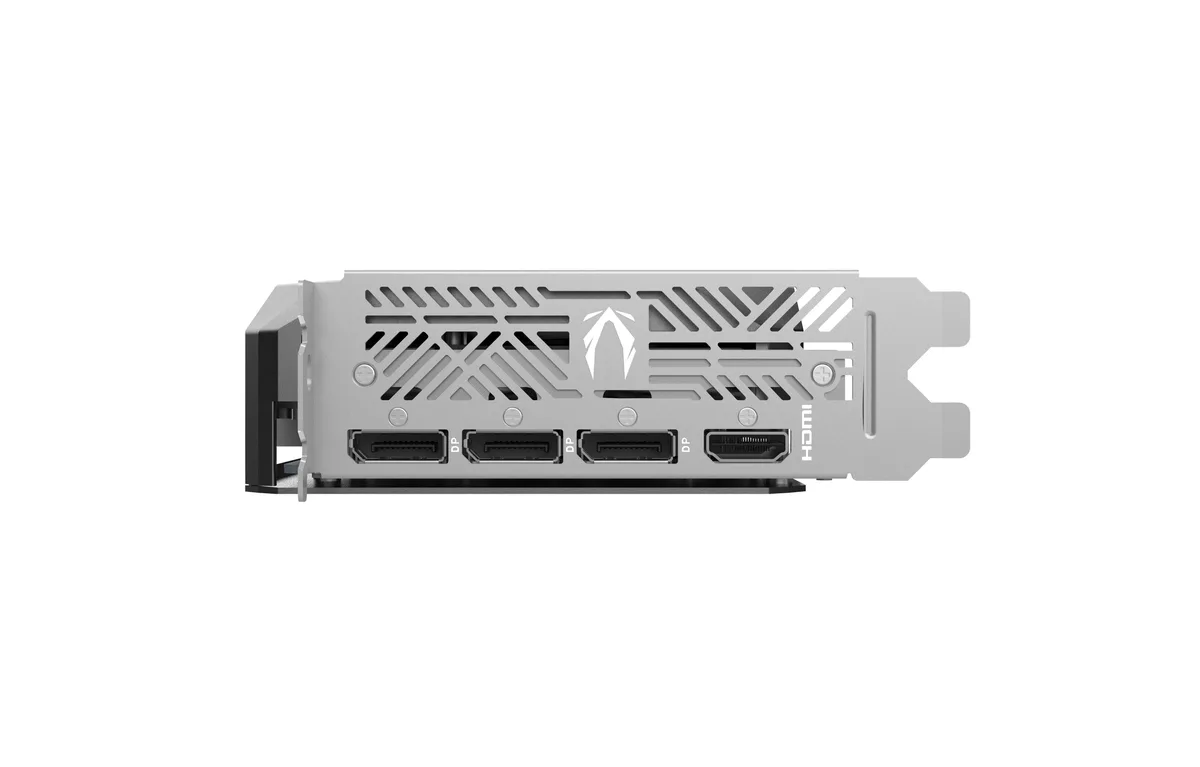

  • HDMI 2.1b and triple DisplayPort 2.1b connect up to four 4K high-refresh displays

ZOTAC GeForce RTX 5060 Ti 16GB Twin Edge OC

This graphics card targets gamers and creators who need 16GB of GDDR7 memory on a compact dual-fan design. It fits a standard PCI Express 5.0 x8 slot and draws up to 180W through a single 8-Pin connector. The Blackwell architecture supports DirectX 12 Ultimate and OpenGL 4.6 for modern titles.

PCI Express 5.0 x8 interface constraint

The card operates on an x8 link rather than the full x16 width, so platform bandwidth depends on the host chipset and CPU generation. On newer platforms the 5.0 signalling rate compensates for the reduced lane count. Builders should verify motherboard slot wiring before purchase.

Sustained load thermal behaviour

The 180W thermal design power is managed by a double-fan cooler that maintains the 2602 MHz boost clock during extended sessions. A 650W power supply is recommended to keep voltage stable under continuous compute or gaming workloads. Fan speed ramps gradually to balance noise and temperature.

Highlights

  • 16GB GDDR7 memory drives high-resolution texture performance
  • 2602 MHz boost clock accelerates frame rates in demanding titles
  • 4608 CUDA cores deliver parallel compute power for gaming and creative workloads
  • PCIe 5.0 x8 interface doubles bandwidth headroom versus previous standards
  • HDMI 2.1b and triple DisplayPort 2.1b connect up to four 4K high-refresh displays

Specifications

BrandZOTAC
SeriesTwin Edge OC
ModelZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge OC
Part NumberZT-B50620H-10M
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
ArchitectureBlackwell
Boost Clock2602 MHz
CUDA Cores4608
Effective Memory Clock28 Gbps
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Operating Systems SupportedWindows 11 / Windows 10 64-bit (v1809
November 2018 or later) ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power180W
Recommended PSU Wattage650W
Power Connector8-Pin
HDCP ReadyYes
FeaturesKEY FEATURES
• NVIDIA Blackwell Architecture
• 5th Generation Tensor cores
• 4th Generation RT cores
• NVIDIA DLSS 4
• Game Ready and NVIDIA Studio Drivers
• NVIDIA® GeForce Experience™
• NVIDIA Broadcast, NVIDIA G-SYNC®
• 16GB GDDR7 graphics memory
• IceStorm 2.0 advanced cooling
• FREEZE fan stop
• Dual 90mm BladeLink Fans
• Metal backplate
• ZOTAC GAMING FireStorm Utility
• Side Retention Mount for secure transport
• SFF-Ready compact footprint
Form FactorATX
Max GPU Length221 mm
Card Dimensions (L x H)Product:
• Length: 220.5 mm (8.7 in)
• Height: 120.25 mm (4.7 in)
• Width: 2 slot (41.6 mm) (1.6 in)
Slot Width2 Slots
Shipping weight1.09 kg
Package size286 × 218 × 83 mm

Questions about this item

How does the 2602 MHz boost clock behave once the card is installed in a system?

The 2602 MHz boost clock is the maximum frequency the GPU can reach under load; actual sustained speeds depend on temperature, power headroom and the workload you are running.

What does the PCI Express 5.0 x8 interface mean for bandwidth in practice?

The x8 link provides half the lane count of a full x16 slot, so peak bandwidth is limited to eight lanes of PCIe 5.0; performance impact varies by application and resolution.

What power connector and PSU wattage does this Twin Edge OC model require?

It needs a single 8‑pin power connector and a power supply rated for at least 650 W to meet the 180 W board power specification.
