ZOTAC
ZOTAC GeForce RTX 5060 Twin Edge OC 8GB graphics card ZT-B50600H-10M
Compact dual-slot GPU with 8 GB GDDR7 memory, 3840 CUDA cores and a 2527 MHz boost clock
- InterfacePCI Express 5.0 x8
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 50 Series
- GPUGeForce RTX 5060
- Core Clock2527 MHz
- CUDA Cores3840
- DLSS 4 boosts frame rates on the NVIDIA Blackwell architecture
- 8 GB GDDR7 memory at 28 Gbps feeds the 3840 CUDA cores
- Compact 221 mm length fits small-form-factor builds
- IceStorm 2.0 cooling uses dual 90 mm BladeLink fans and composite heatpipes

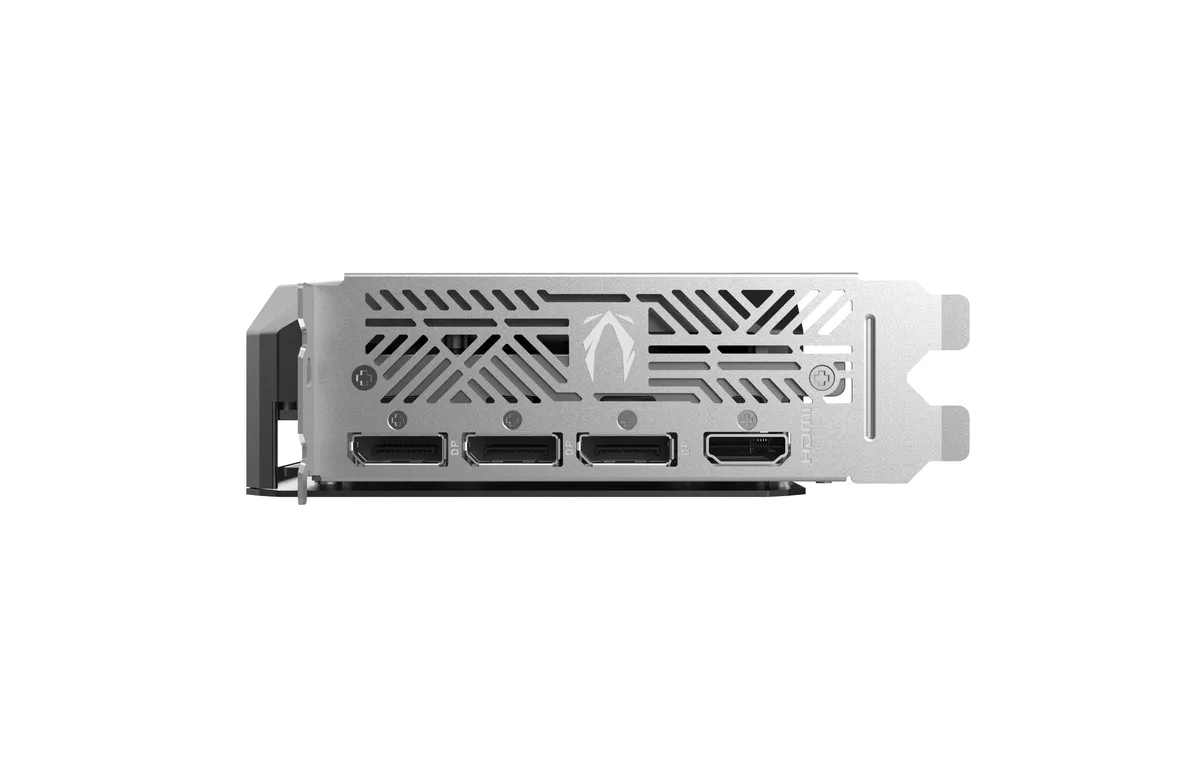

- PCIe 5.0 x8 interface plus HDMI 2.1b and triple DisplayPort 2.1b drive four displays
Compact SFF-ready RTX 5060
This ZOTAC GeForce RTX 5060 Twin Edge OC is a compact graphics card built for small-form-factor PCs. It fits a 2-slot, 221 mm profile and draws power from a single 8-pin connector with a 550 W PSU recommendation. The design targets gamers and creators who need modern features in tight cases.
Suits 1080p and 1440p builds not 4K high-refresh
The 8 GB GDDR7 frame buffer on a 128-bit interface suits 1080p and 1440p gaming with DLSS 4 upscaling and ray tracing. Content creators gain hardware AV1 encode and decode plus four-display output via three DisplayPort 2.1b and one HDMI 2.1b. Users chasing native 4K high-refresh or large VRAM workloads should consider wider-bus cards.
128-bit 8 GB GDDR7 decides fit
The single specification that decides fit is the 128-bit memory interface paired with 8 GB of GDDR7 at 28 Gbps. This combination sets the bandwidth ceiling and capacity limit for texture-heavy scenes and compute tasks. If your workflow demands more VRAM or a wider bus, this card will bottleneck; otherwise it delivers current-gen features in a compact package.
Highlights
- DLSS 4 boosts frame rates on the NVIDIA Blackwell architecture
- 8 GB GDDR7 memory at 28 Gbps feeds the 3840 CUDA cores
- Compact 221 mm length fits small-form-factor builds
- IceStorm 2.0 cooling uses dual 90 mm BladeLink fans and composite heatpipes
- PCIe 5.0 x8 interface plus HDMI 2.1b and triple DisplayPort 2.1b drive four displays
Specifications
| Brand | ZOTAC |
|---|---|
| Model | GAMING GeForce RTX 5060 Twin Edge OC |
| Interface | PCI Express 5.0 x8 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 50 Series |
| GPU | GeForce RTX 5060 |
| Core Clock | 2527 MHz |
| CUDA Cores | 3840 |
| Effective Memory Clock | 28000 MHz (28 Gbps) |
| Memory Size | 8GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR7 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1b |
| Color | Gray |
| Virtual Reality Ready | Yes |
| Cooler | Aircooled with Heatsink + Composite Heatpipes + Fans |
| Recommended PSU Wattage | 550W |
| Power Connector | 8-Pin |
| Features | Small Form Factor Ready |
| Max GPU Length | 221 mm |
| Card Dimensions (L x H) | 8.7" x 4.7" |
| Slot Width | 2 Slots |
| Shipping weight | 1.13 kg |
| Package size | 284 × 216 × 84 mm |
Questions about this item
What bandwidth does the PCI Express 5.0 x8 interface actually deliver for this card?
The PCI Express 5.0 x8 interface provides up to 128 GB/s of bidirectional bandwidth for the RTX 5060 Twin Edge OC.
What case clearance is required for the 221 mm length and 2-slot width?
The card measures 221 mm long and occupies 2 slots, so the case must support at least that length and two rear expansion slots.
How do I connect the 8-pin PCIe power connector without bending the cable?
Route the 8-pin PCIe power cable from the PSU straight to the card's top-edge connector, avoiding sharp bends that strain the terminal.
