ZOTAC GeForce RTX 5070 Ti 16GB XGAMING OC graphics card with triple-fan cooler and dark finish

ZOTAC

ZOTAC GeForce RTX 5070 Ti 16GB XGAMING OC graphics card

SKU CH-XP68-TSS71

GeForce RTX 5070 Ti GPU with 16GB GDDR7 on a 256-bit bus, 8960 CUDA cores at 2482 MHz, PCIe 5.0 x16, triple-fan cooling in a 2.5-slot design

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5070 Ti
  • ArchitectureBlackwell
  • Core Clock2482 MHz
  • NVIDIA Blackwell architecture powers 8960 CUDA cores for advanced AI and ray-tracing performance
  • 16GB GDDR7 memory on a 256-bit bus delivers 28 Gbps bandwidth for high-resolution textures
  • Boost clock reaches 2482 MHz for responsive 4K and 8K gaming
  • Triple-fan Ring Blade cooling keeps the 2.5-slot card stable under 285W load
  • PCI Express 5.0 x16 with DisplayPort 2.1b and HDMI 2.1b supports quad-display up to 4K 480Hz or 8K 165Hz

RTX 5070 Ti 16GB for high-refresh gaming

The ZOTAC XGAMING OC card pairs a Blackwell GPU with 8960 CUDA cores and 16GB of GDDR7 memory on a 256-bit bus. Core clock reaches 2482 MHz while the memory runs at 28 Gbps. A PCI Express 5.0 x16 interface feeds the GPU without bottleneck. The board draws 285W and needs a 750W supply through a single 12V-2x6 connector.

Sustained load on the triple-fan cooler

Three ring-blade fans move air across a 2.5-slot heatsink to keep temperatures stable during long sessions. The 285W power limit is maintained without aggressive throttling. GDDR7 memory stays cool thanks to direct contact pads. Fan curves ramp gradually, so noise rises only when the workload demands it.

Build details and daily connectivity

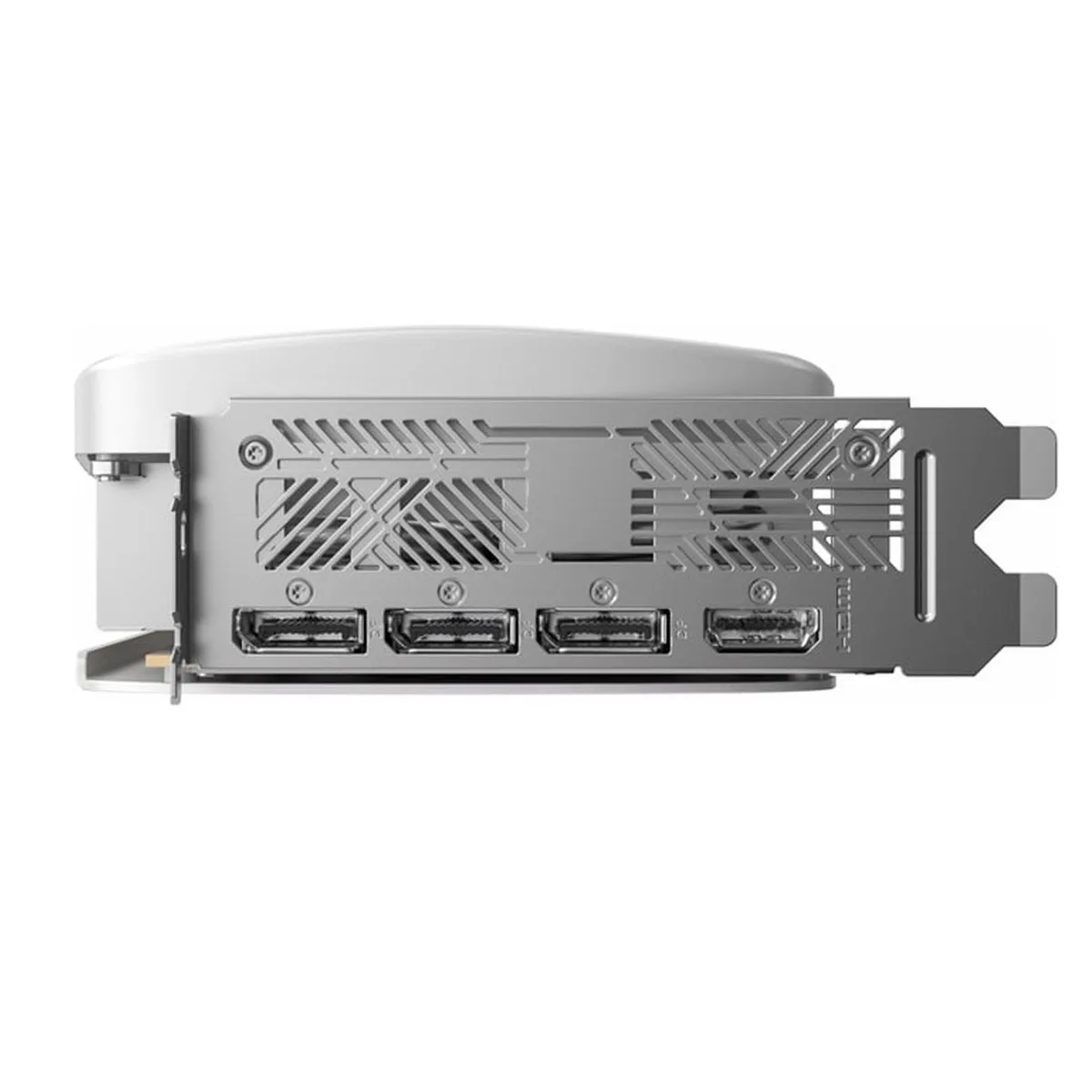

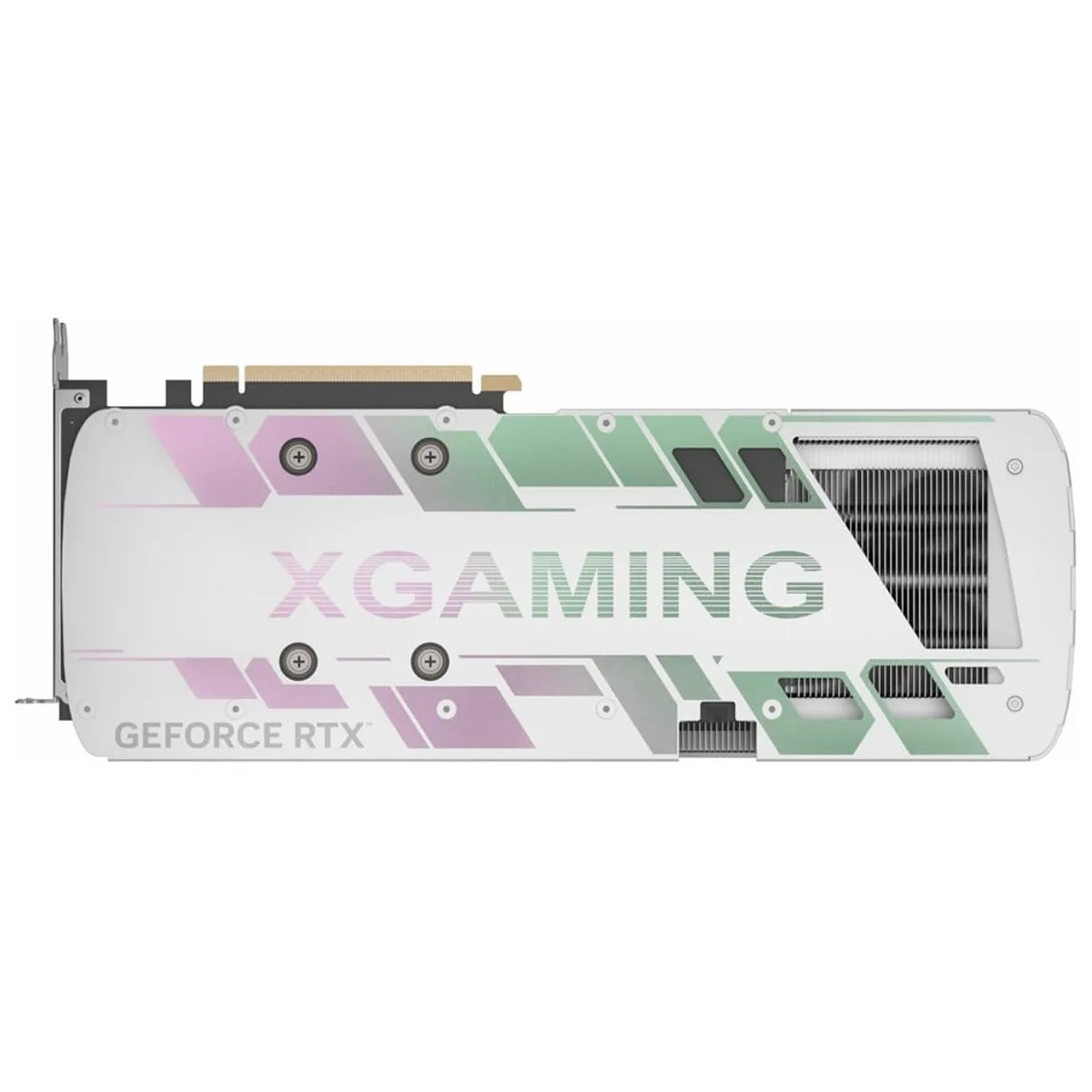

The metal backplate stiffens the 320mm x 125mm x 53mm PCB and protects components during transport. Outputs include three DisplayPort 2.1b ports with UHBR20 for 4K 480Hz or 8K 165Hz DSC, plus one HDMI 2.1b port for 4K 120Hz HDR or 8K 60Hz HDR. Two bundled 8-pin to 16-pin cables ease power-supply compatibility.

Highlights

  • NVIDIA Blackwell architecture powers 8960 CUDA cores for advanced AI and ray-tracing performance
  • 16GB GDDR7 memory on a 256-bit bus delivers 28 Gbps bandwidth for high-resolution textures
  • Boost clock reaches 2482 MHz for responsive 4K and 8K gaming
  • Triple-fan Ring Blade cooling keeps the 2.5-slot card stable under 285W load
  • PCI Express 5.0 x16 with DisplayPort 2.1b and HDMI 2.1b supports quad-display up to 4K 480Hz or 8K 165Hz

Specifications

BrandZOTAC
SeriesXGAMING OC
ModelRTX 5070 Ti 16GB XGAMING OC
Part NumberRTX 5070 Ti 16GB XGAMING OC
InterfacePCI Express 5.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5070 Ti
ArchitectureBlackwell
Core Clock2482 MHz
CUDA Cores8960
Effective Memory Clock28 Gbps
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
CoolerTriple Fans
Thermal Design Power285W
Recommended PSU Wattage750W
Power Connector1 x 16-Pin
HDCP ReadyYes
FeaturesKEY FEATURES
• NVIDIA Blackwell Architecture
• 5th Generation Tensor cores
• 4th Generation RT cores
• NVIDIA DLSS 4
• Game Ready and NVIDIA Studio Drivers
• NVIDIA® GeForce Experience™
• NVIDIA Broadcast, NVIDIA G-SYNC
Form FactorATX
Max GPU Length320 mm
Card Dimensions (L x H)13.07 x 5.41 x 2.74 Inch
Slot Width2.5 Slots
Package ContentsINSIDE THE BOX
• ZOTAC GEFORCE RTX 5070 Ti 16GB XGAMING OC
• User Manual
• 3 x 8-pin-to-16-pin cable
• SPECTRA LINK cable
• GPU Support Stand

Questions about this item

How loud or hot does the 285W RTX 5070 Ti run during long sessions?

The card draws 285W and uses a triple-fan Ring Blade cooler in a 2.5-slot design to move that heat out of the case.

What power supply and cables do I need before installing this RTX 5070 Ti?

A 750W PSU with a native 12V-2x6 16-pin connector, or the included dual 8-pin to 16-pin adapter, is required.

Will the PCI Express 5.0 x16 RTX 5070 Ti work in my older PCIe 4.0 motherboard?

Yes, the interface is backward compatible and will run at PCIe 4.0 speeds on a 4.0 motherboard.
