ZOTAC GeForce RTX 5080 SOLID OC White Edition ZT-B50800Q-10A graphics card
Drives 4K gaming with a 2640 MHz boost clock, 10752 CUDA cores and 16 GB of 30 Gbps GDDR7 memory on a 256-bit bus
- InterfacePCI Express 5.0 x16
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 50 Series
- GPUGeForce RTX 5080
- ArchitectureBlackwell
- Boost Clock2640 MHz
- 16 GB GDDR7 memory at 30 Gbps for high-resolution textures
- 10752 CUDA cores and 2640 MHz boost clock for demanding workloads
- PCI Express 5.0 x16 interface doubles host bandwidth
- Triple-fan cooler handles 360 W thermal design power

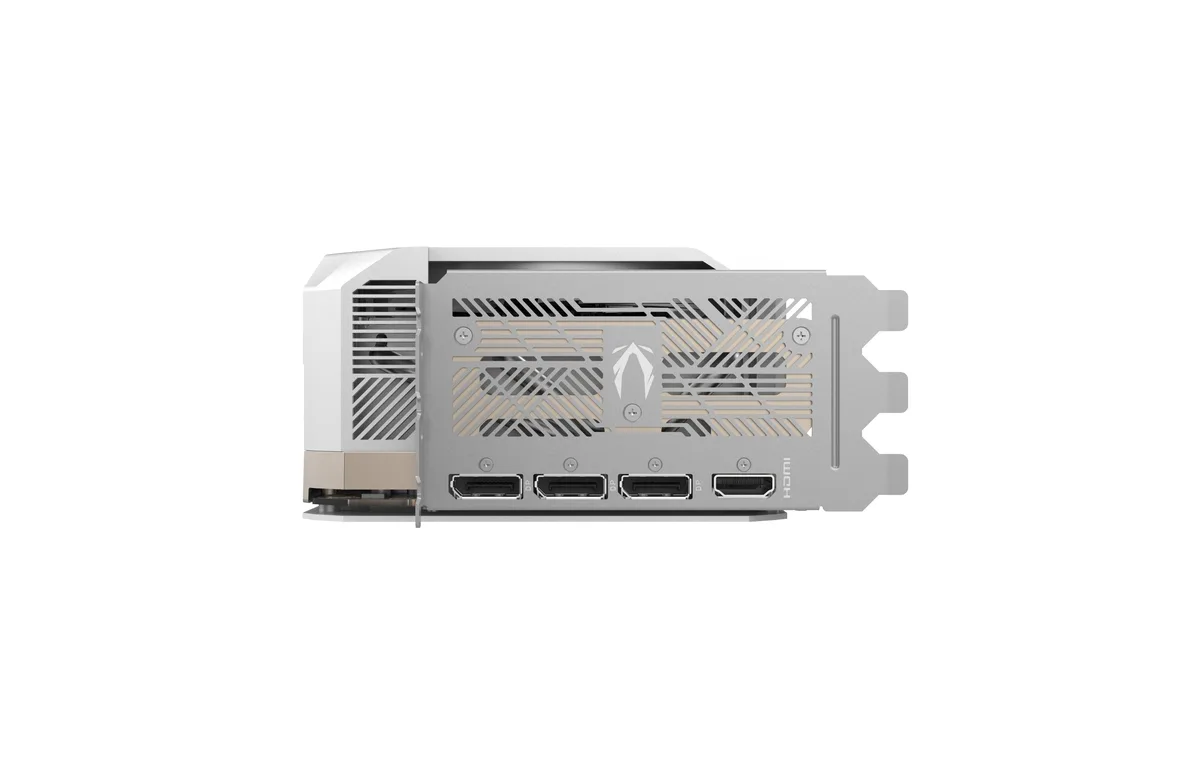

- HDMI 2.1b plus three DisplayPort 2.1b drive four 8K displays
RTX 5080 16GB GDDR7 graphics card
The ZOTAC SOLID OC White Edition is a GeForce RTX 5080 built on NVIDIA Blackwell architecture. It delivers 10752 CUDA cores with a 2640 MHz boost clock and 16GB of 256-bit GDDR7 memory running at 30 Gbps. The card connects via PCI Express 5.0 x16 and includes one HDMI 2.1b plus three DisplayPort 2.1b outputs for up to four displays.
4K gamers and creators needing 16GB VRAM
This model suits 4K gaming and content creation workloads that benefit from 16GB GDDR7 memory and DLSS 4 support. Builders who require SLI or CrossFireX multi-GPU scaling should look elsewhere because neither technology is supported. The 360W thermal design power also demands an 850W power supply and a single 16-pin connector.
360W TDP and 16-pin power requirement
The decisive specification is the 360W thermal design power paired with a single 16-pin power connector. Your power supply must provide at least 850W and the correct cable to run this card reliably.
Highlights
- 16 GB GDDR7 memory at 30 Gbps for high-resolution textures
- 10752 CUDA cores and 2640 MHz boost clock for demanding workloads
- PCI Express 5.0 x16 interface doubles host bandwidth
- Triple-fan cooler handles 360 W thermal design power
- HDMI 2.1b plus three DisplayPort 2.1b drive four 8K displays
Specifications
| Brand | ZOTAC |
|---|---|
| Series | SOLID OC White Edition |
| Model | ZOTAC GAMING GeForce SOLID OC White Edition |
| Part Number | ZT-B50800Q-10A |
| Interface | PCI Express 5.0 x16 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 50 Series |
| GPU | GeForce RTX 5080 |
| Architecture | Blackwell |
| Boost Clock | 2640 MHz |
| CUDA Cores | 10752 |
| Effective Memory Clock | 30 Gbps |
| Memory Size | 16GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR7 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1b |
| Color | White |
| Max Resolution | 7680 x 4320 |
| CrossFireX Support | No |
| SLI Support | No |
| Virtual Reality Ready | No |
| Cooler | Triple Fans |
| Thermal Design Power | 360W |
| Recommended PSU Wattage | 850W |
| Power Connector | 1 x 16-Pin |
| HDCP Ready | Yes |
| Features | KEY FEATURES • NVIDIA Blackwell Architecture • 5th Generation Tensor cores • 4th Generation RT cores • NVIDIA DLSS 4 • Game Ready and NVIDIA Studio Drivers • NVIDIA® GeForce Experience™ • NVIDIA Broadcast, NVIDIA G-SYNC® |
| Form Factor | ATX |
| Max GPU Length | 330 mm |
| Card Dimensions (L x H) | Product: • Length: 329.7 mm (13 in) • Height: 137.8 mm (5.43 in) • Width: 3.5 slot (67.8 mm) (2.67 in) |
| Slot Width | 3.5 Slots |
| Package Contents | INSIDE THE BOX • ZOTAC GAMING GeForce RTX 5080 SOLID OC White Edition • User Manual • 3 x 8-pin-to-16-pin cable • SPECTRA LINK cable • GPU Support Stand |
| Shipping weight | 3.04 kg |
| Package size | 425 × 292 × 102 mm |
Questions about this item
What case clearance and PSU wattage does the triple-fan RTX 5080 need?
The card needs a case that fits a triple-fan design and an 850 W power supply to meet the 360 W TDP.
How do I install the 16-pin power connector on this PCIe 5.0 card?
Plug the single 16-pin connector fully until it clicks; the step people miss is seating it completely so all pins make contact.
When should I replace the thermal paste on the 10752-core GPU?
Re-paste every two to three years or if temperatures rise under load, using a quality non-conductive compound.
