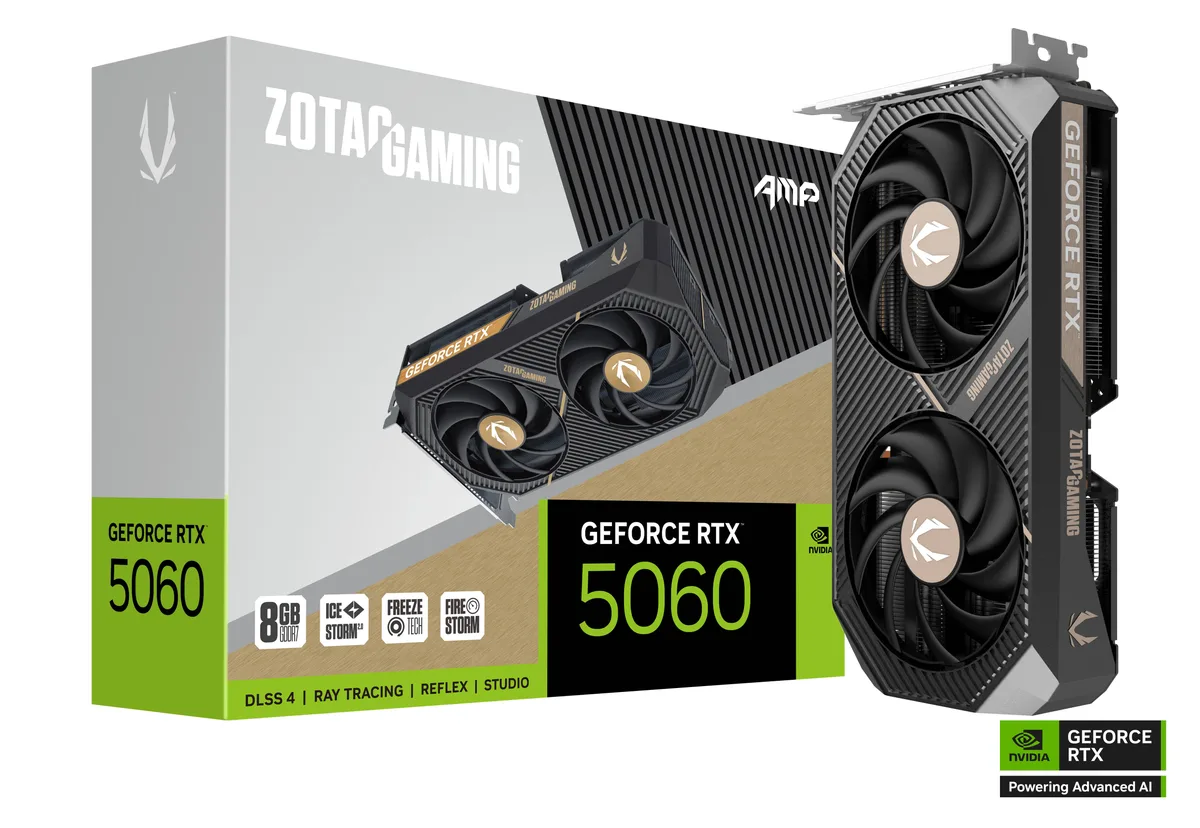

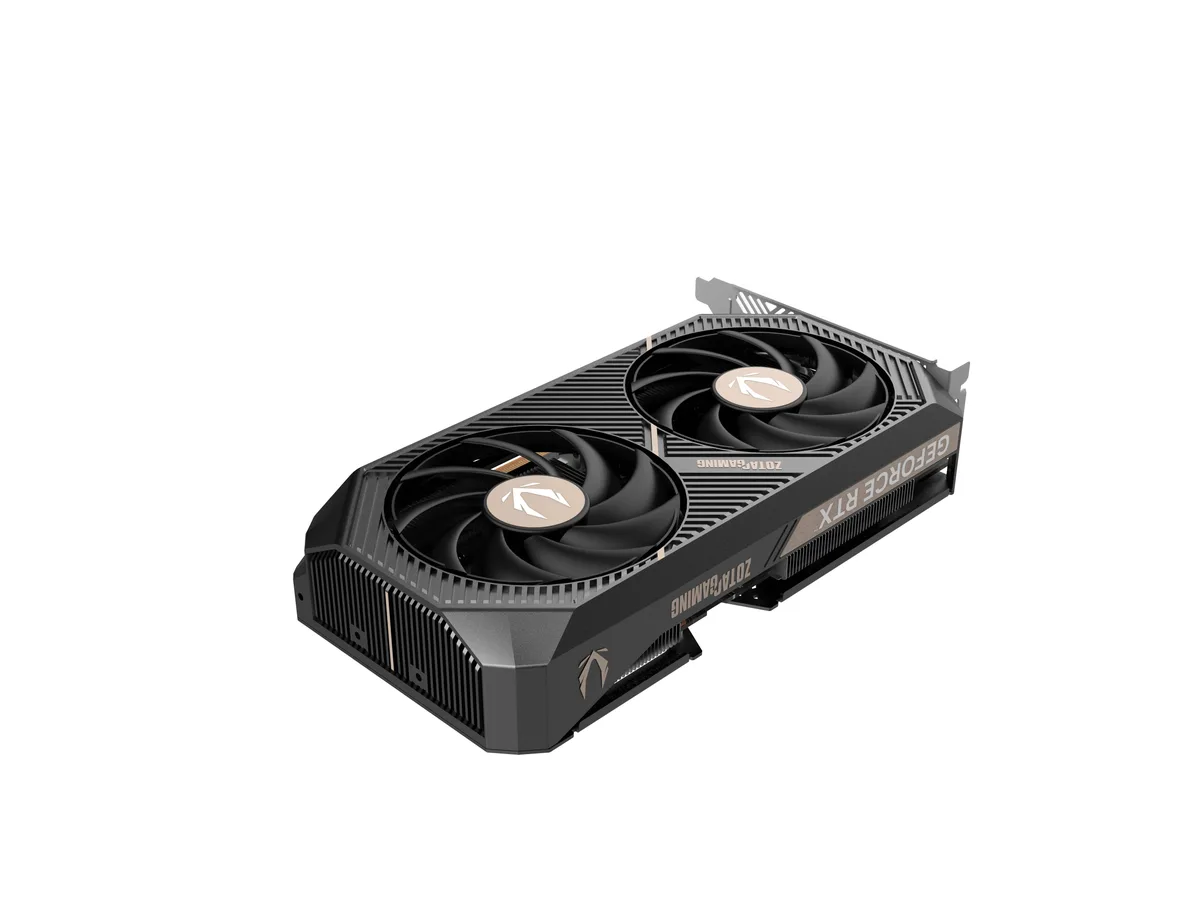

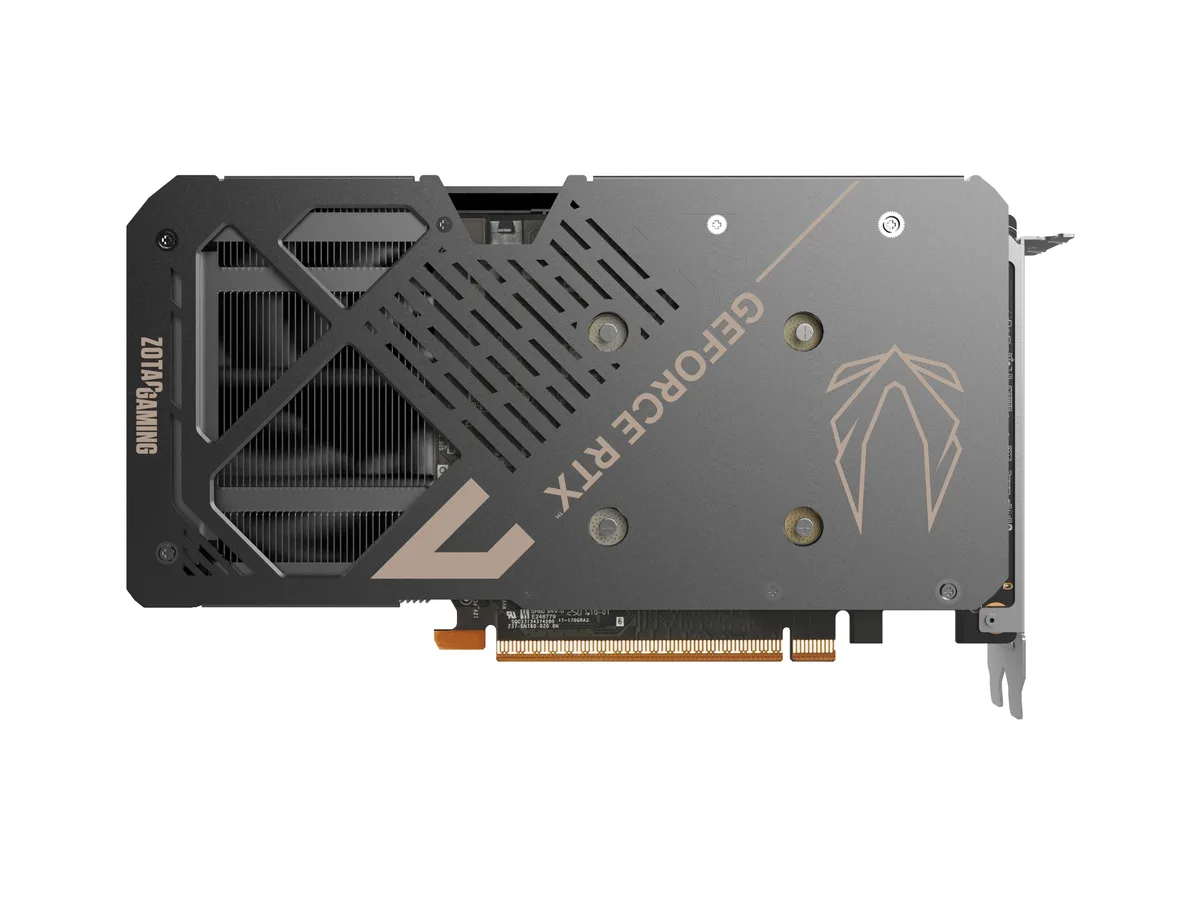

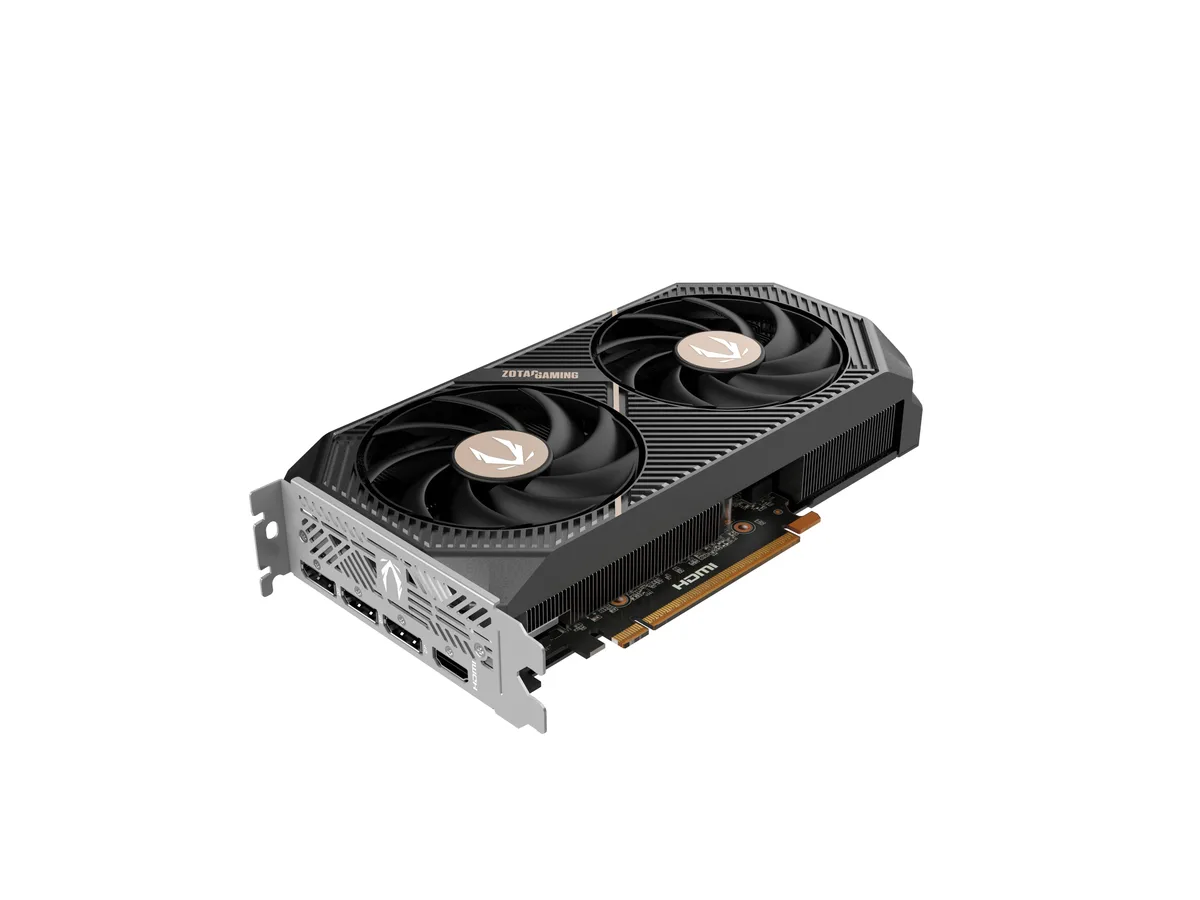

ZOTAC RTX 5060 AMP graphics card in grey with dual fans

ZOTAC

ZOTAC RTX 5060 AMP ZT-B50600F2-10A graphics card

SKU CH-5H73-S2KRM MPN ZT-B50600F2-10A

GeForce RTX 5060 graphics card with 8GB GDDR7 memory, 3840 CUDA cores and a 2550 MHz boost clock

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060
  • ArchitectureBlackwell
  • Boost Clock2550 MHz
  • 8GB GDDR7 memory at 28 Gbps feeds high-resolution textures fast
  • 3840 CUDA cores and 2550 MHz boost clock accelerate modern workloads
  • PCI Express 5.0 x8 interface doubles host bandwidth headroom
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive four 8K displays
  • 155 W TDP with single 8-pin power keeps system build simple

ZOTAC RTX 5060 AMP Overview

The ZOTAC RTX 5060 AMP is a graphics card built on the NVIDIA Blackwell architecture for gamers and creators targeting high frame rates at 1440p resolution. It delivers 3840 CUDA cores and a boost clock of 2550 MHz. The board carries 8GB of GDDR7 memory across a 128-bit interface running at 28 Gbps. A PCI Express 5.0 x8 connection links the GPU to the platform.

Sustained Load Behaviour

The GPU operates within a 155W thermal design power envelope and draws auxiliary power through a single 8-pin connector. A 600W power supply is recommended for stable operation under continuous load. The dual-fan cooler is engineered to maintain the 2550 MHz boost frequency during extended gaming or rendering sessions without thermal throttling. Driver support covers Windows 10 64-bit from version 1809 and Windows 11.

Connectivity and Mounting

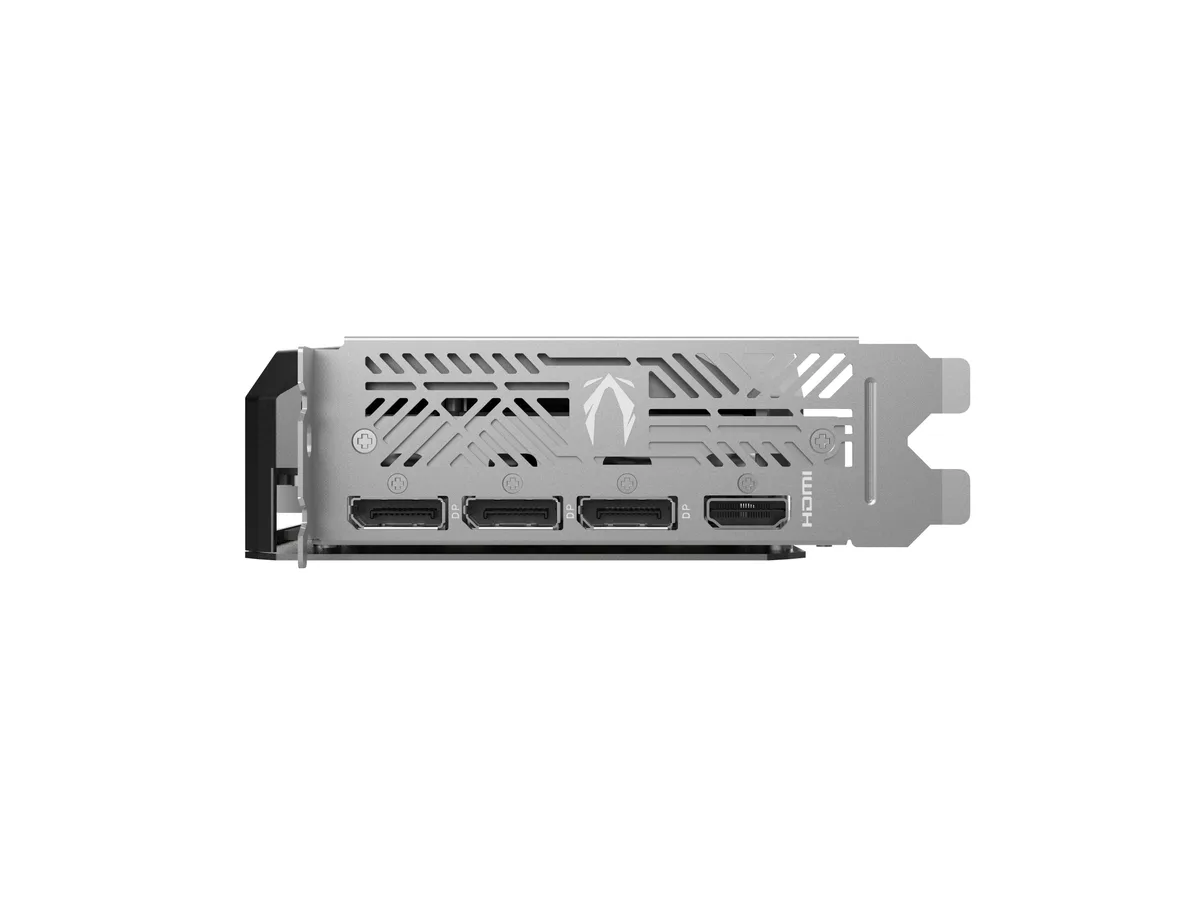

Display outputs comprise one HDMI 2.1b port and three DisplayPort 2.1b connectors, enabling up to four simultaneous monitors at a maximum digital resolution of 7680 x 4320. The card supports HDCP and is certified Virtual Reality Ready. It does not support SLI or CrossFireX multi-GPU configurations. The grey finish suits neutral build aesthetics.

Highlights

  • 8GB GDDR7 memory at 28 Gbps feeds high-resolution textures fast
  • 3840 CUDA cores and 2550 MHz boost clock accelerate modern workloads
  • PCI Express 5.0 x8 interface doubles host bandwidth headroom
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive four 8K displays
  • 155 W TDP with single 8-pin power keeps system build simple

Specifications

BrandZOTAC
SeriesAMP
ModelRTX 5060 AMP
Part NumberZT-B50600F2-10A
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060
ArchitectureBlackwell
Boost Clock2550 MHz
CUDA Cores3840
Effective Memory Clock28 Gbps
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorGray
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Operating Systems SupportedWindows 11 / Windows 10 64-bit (v1809
November 2018 or later) ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power155W
Recommended PSU Wattage600W
Power Connector8-Pin
HDCP ReadyYes
FeaturesKEY FEATURES
NVIDIA Blackwell Architecture
5th Generation Tensor cores
4th Generation RT cores
NVIDIA DLSS 4
Game Ready and NVIDIA Studio Drivers
NVIDIA GeForce Experience
NVIDIA Broadcast, NVIDIA G-SYNC
8GB GDDR7 graphics memory
Dual 90mm Blade Link Fans
ZOTAC GAMING Fire Storm Utility
SFF-Ready compact footprint
Form FactorATX
Max GPU Length165 mm
Card Dimensions (L x H)Product:
• Length: 220.5 mm (8.7 in)
• Height: 120.25 mm (4.7 in)
• Width: 2 slot (41.6 mm) (1.6 in)
Slot Width2 Slots
Package ContentsNSIDE THE BOX
• ZOTAC GAMING GeForce RTX
5060 AMP
• User Manual
Shipping weight1.13 kg
Package size279 × 216 × 89 mm

Questions about this item

How much heat does the RTX 5060 AMP produce at its 155W TDP?

The card has a Thermal Design Power of 155W and uses a double-fan cooler to move that heat out of the case.

What power supply and connector does the ZT-B50600F2-10A need?

A 600W PSU with an available 8-Pin PCIe power connector is recommended for this model.

Will the PCI Express 5.0 x8 interface run at full speed on my older PCIe 4.0 motherboard?

The card is backward compatible and will operate at PCIe 4.0 x8 speeds on a 4.0 board.
