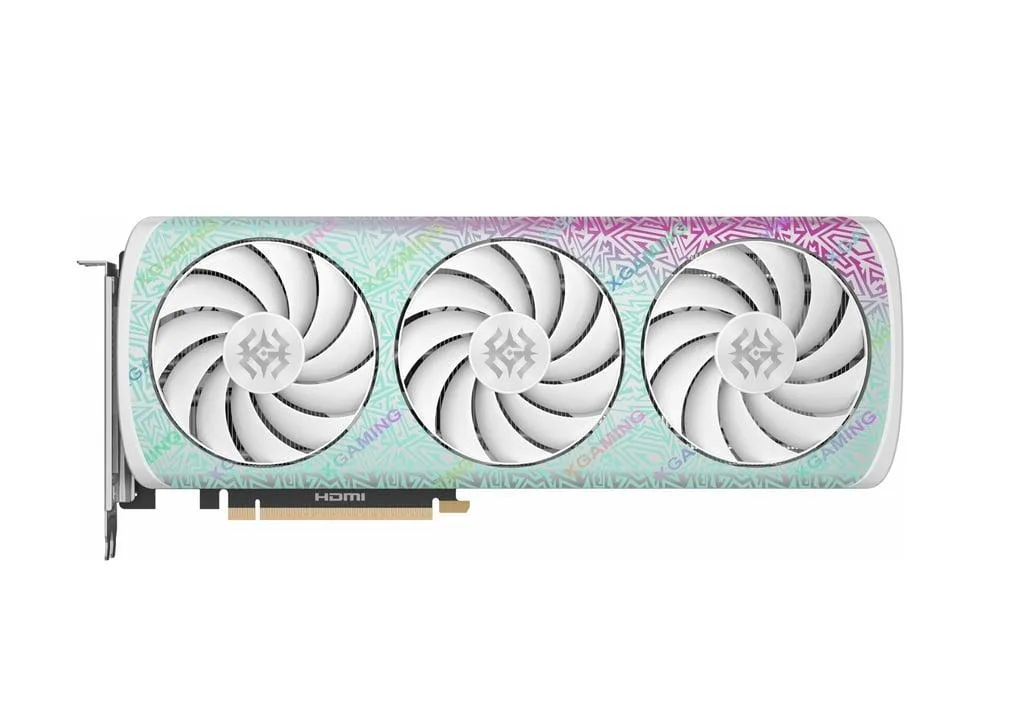

ZOTAC RTX 5060 Ti XGAMING graphics card with triple-fan cooler and metal backplate

ZOTAC

ZOTAC RTX 5060 Ti 8GB XGAMING graphics card

SKU CH-D49H-K922B

GeForce RTX 5060 Ti graphics card with 8GB GDDR7 memory on a 128-bit bus, 4608 CUDA cores, boost clock 2632 MHz, triple-fan cooling, PCIe 5.0 x8, 180W power draw

  • Chipset ManufacturerNVIDIA
  • ArchitectureBlackwell
  • HDMI1 x HDMI
  • DisplayPort3 x DisplayPort 2.1b
  • Max Resolution7680 x 4320
  • Card Dimensions (L x H)320mm x125mm x45mm
  • 8GB GDDR7 memory on a 128-bit bus for high bandwidth
  • 4608 CUDA cores and 2632 MHz boost clock deliver strong compute
  • PCIe 5.0 x8 interface enables fast data transfer
  • Triple-fan Ice Mirror copper-base cooler keeps temperatures low
  • Quad-display support via three DisplayPort 2.1b and one HDMI 2.1b

ZOTAC RTX 5060 Ti 8GB XGAMING graphics card

The ZOTAC RTX 5060 Ti 8GB XGAMING graphics card uses the NVIDIA Blackwell architecture with 4608 CUDA cores and 8GB of 128-bit GDDR7 memory. It connects via PCI Express 5.0 x8 and outputs to 1 x HDMI 2.1b and 3 x DisplayPort 2.1b for quad-display support up to 7680 x 4320 resolution. The card occupies 2.5 slots and measures 320mm x 125mm x 45mm. Recommended power supply is 600W with a single PCI-E 8P connector.

Thermals noise and power draw

The Ice Mirror Copper Base Ring Blade triple-fan cooler manages the 180W power consumption in typical gaming scenarios. Boost clock reaches 2632 MHz while memory runs at 28 Gbps. The dual-slot-plus form factor fits standard ATX cases without special clearance requirements. Power delivery through one 8-pin connector keeps cable routing simple for 600W PSU builds.

Sustained load behaviour

Under continuous load the 2.5-slot cooler maintains stable clocks across extended sessions without thermal throttling. The 128-bit GDDR7 interface sustains 28 Gbps bandwidth for memory-heavy workloads at 4K 480Hz or 8K 165Hz with DSC. DLSS 4.0 and DirectX 12 Ultimate support remain active during prolonged rendering or compute tasks. Windows 10 64-bit 1809 or Windows 11 provides the software baseline.

Highlights

  • 8GB GDDR7 memory on a 128-bit bus for high bandwidth
  • 4608 CUDA cores and 2632 MHz boost clock deliver strong compute
  • PCIe 5.0 x8 interface enables fast data transfer
  • Triple-fan Ice Mirror copper-base cooler keeps temperatures low
  • Quad-display support via three DisplayPort 2.1b and one HDMI 2.1b

Specifications

Chipset ManufacturerNVIDIA
ArchitectureBlackwell
HDMI1 x HDMI
DisplayPort3 x DisplayPort 2.1b
Max Resolution7680 x 4320
Card Dimensions (L x H)320mm x125mm x45mm
Slot Width2.5 Slots

Questions about this item

How do I install the ZOTAC RTX 5060 Ti 8GB XGAMING and which step is often missed?

Insert the card into a PCI Express 5.0 x8 slot, connect the PCI-E 8P power connector, and secure the 2.5-slot bracket; the step often missed is verifying the case fits the 320mm length and 45mm height before mounting.

What maintenance or replacement will the ZOTAC RTX 5060 Ti 8GB XGAMING need later?

The triple-fan Ice Mirror cooler needs periodic dust removal from the copper base and ring blades; thermal paste may need replacement after several years if temperatures rise under 180W load.

What limit appears first on the ZOTAC RTX 5060 Ti 8GB XGAMING during sustained use?

The 128-bit GDDR7 memory bus at 28 Gbps saturates before the 4608 CUDA cores at 2632 MHz, capping 4K 480Hz or 8K 165Hz output over DisplayPort 2.1b UHBR20.
