Zyvpee

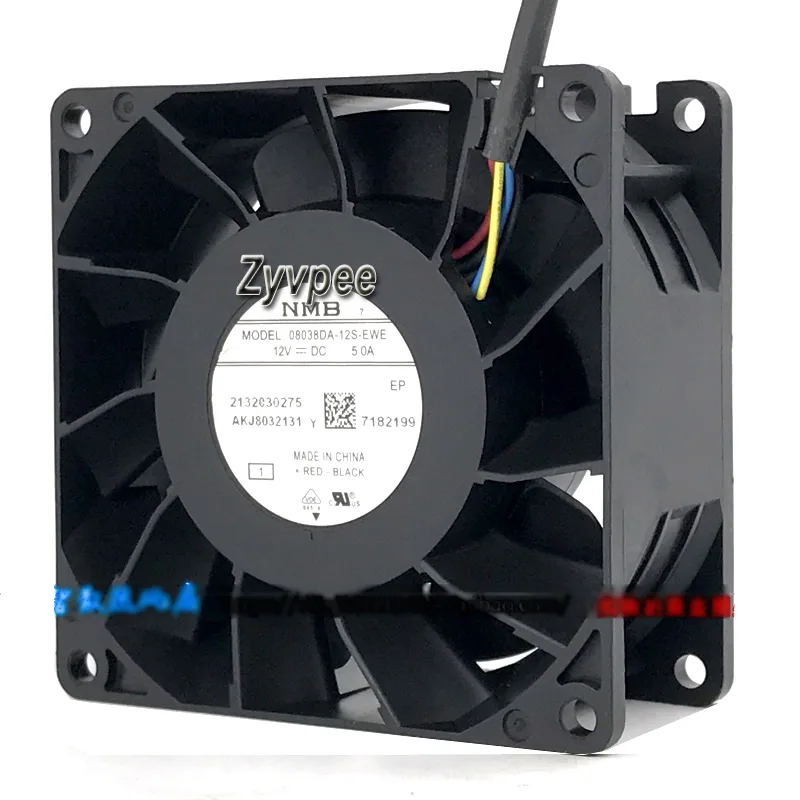

Zyvpee 08038DA-12S-EWE 80x38mm 12V 5.0A 4-wire ball bearing case fan
A 12 V 80 × 38 mm dual-ball-bearing case fan spinning above 7000 RPM for over 80 CFM airflow at over 50 dBA
- TypeCase Fan
- Bearing Type2 Ball
- RPM>7000 RPM
- Air Flow>80 CFM
- Noise Level> 50 dBA
- Power Connector4 Wires
- 80×38 mm footprint fits tight builds
- Dual ball bearings extend operating life
- 12 V 5.0 A input drives high airflow
- Four-wire PWM enables precise speed control
- 7000 RPM delivers over 80 CFM cooling
80 mm 12 V high-speed case fan
The Zyvpee 08038DA-12S-EWE is an 80 by 38 millimetre DC fan that runs on 12 volts and draws 5.0 amps through a four-wire connector. Dual ball bearings support a rotational speed above 7 000 RPM, delivering more than 80 CFM of airflow at a noise level above 50 dBA. The black, non-LED frame fits standard 80 mm mounting holes in server or workstation chassis.
Builders who need maximum airflow in a thin 80 mm
This fan suits dense enclosures where static pressure and sustained RPM matter more than acoustic comfort. It is not for silent PC builds, noise-sensitive workspaces, or systems that rely on PWM speed control below the rated minimum. Buyers who want lower decibel levels or variable-speed operation should look at something else.
Four-wire connector with ball-bearing construction
The 4-wire interface provides tachometer feedback and PWM control while the 2-ball bearing design targets long life at high rotational speeds. This combination determines whether the fan matches the motherboard header and reliability expectations of the target system.
Highlights
- 80×38 mm footprint fits tight builds
- Dual ball bearings extend operating life
- 12 V 5.0 A input drives high airflow
- Four-wire PWM enables precise speed control
- 7000 RPM delivers over 80 CFM cooling
Specifications
| Series | 08038DA-12S-EWE |
|---|---|
| Model | 08038DA-12S-EWE |
| Type | Case Fan |
| Bearing Type | 2 Ball |
| RPM | >7000 RPM |
| Air Flow | >80 CFM |
| Noise Level | > 50 dBA |
| Power Connector | 4 Wires |
| Color | Black |
| LED | Non-LED |
| Features | DC square Cooler |
| Dimensions | 80*80*38mm |
Questions about this item
How does the >7000 RPM speed translate to actual airflow inside a case?
The fan moves more than 80 CFM at that speed, delivering strong directed cooling for tight spaces.
What does the 4-wire connector control on this 12V 5.0A unit?
It provides PWM speed control and tachometer feedback so the motherboard can regulate fan speed precisely.
Will the 80x38mm frame fit standard 80 mm mounting holes?
Yes, the 80 mm square frame matches standard 80 mm hole spacing; the 38 mm thickness needs clearance behind the mount.
