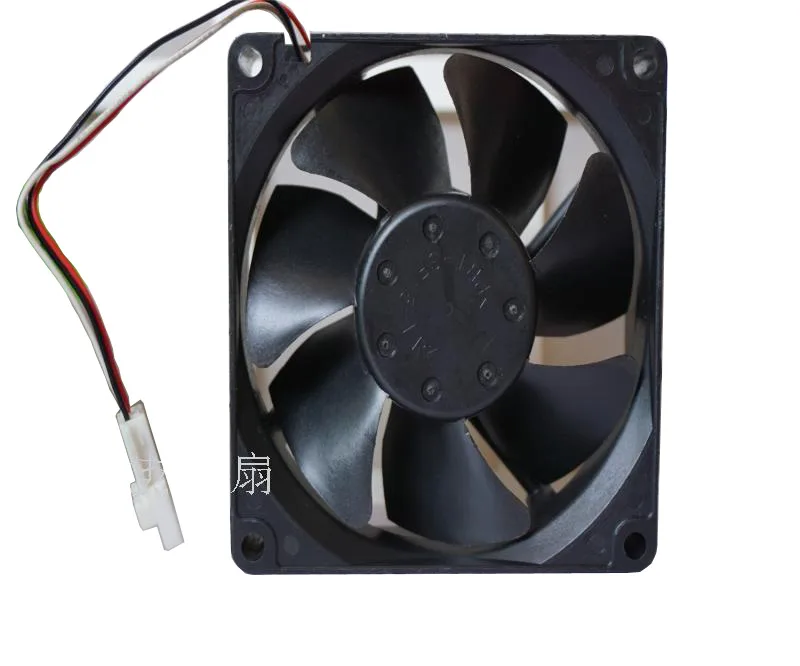

Black 80mm square case fan with 3-pin connector

Zyvpee

Zyvpee 3110KL-04W-B19 80x25mm 12V 0.13A 3-pin case fan

SKU CH-8TDG-8ZX72

An 80 mm case fan with dual ball bearings delivers 30 to 35 CFM at 2500 to 2999 RPM while running at 30 to 35 dBA

  • TypeCase Fan
  • CompatibilityCase
  • Bearing Type2 Ball
  • RPM2500-2999 RPM
  • Air Flow30-35 CFM
  • Noise Level30 - 35 dBA
  • Dual ball bearings for long service life
  • 30 CFM airflow cools compact enclosures
  • 30 dBA keeps background noise low
  • 12 V 0.13 A fits standard headers
  • 80×25 mm frame suits tight case slots

Compact 80 mm case fan for tight builds

The Zyvpee 3110KL-04W-B19 fits 80 mm mounting points in small-form-factor cases or TV enclosures. It runs on 12 V DC at 0.13 A through a standard three-pin connector. The 25 mm thickness keeps clearance low for cramped layouts.

Three-pin DC control limits speed precision

Voltage regulation on a three-pin header cannot match the fine steps of four-pin PWM. Minimum RPM stays near 2500 so the fan rarely idles silently. Motherboards without voltage offset options may leave the motor running faster than needed.

30 to 35 CFM suits light cooling loads

At 2500 to 2999 RPM the airflow handles modest component heat in media players or office PCs. Noise sits at 30 to 35 dBA, audible in quiet rooms. Dual-ball bearings extend life but the output falls short for modern CPU or GPU thermal loads.

Highlights

  • Dual ball bearings for long service life
  • 30 CFM airflow cools compact enclosures
  • 30 dBA keeps background noise low
  • 12 V 0.13 A fits standard headers
  • 80×25 mm frame suits tight case slots

Specifications

Series3110KL-04W-B19
Model3110KL-04W-B19
TypeCase Fan
CompatibilityCase
Bearing Type2 Ball
RPM2500-2999 RPM
Air Flow30-35 CFM
Noise Level30 - 35 dBA
Power Connector3 Pin
ColorBlack
LEDNon-LED
FeaturesDC square Cooler
Dimensions80*80*25mm

Questions about this item

Should I choose this 80 mm model or a larger size?

This fan measures 80 mm square and 25 mm thick, so it fits standard 80 mm mounting holes. Larger fans need different hole spacing and will not line up.

What does 30–35 CFM mean for my case temperatures?

At 2500–2999 RPM the fan moves 30–35 CFM, enough for modest airflow through a tight TV chassis or small PC case.

What does the 3-pin connector limit for speed control?

The 3-pin DC connector allows voltage-based speed adjustment but lacks the fourth PWM wire for precise motherboard pulse-width control.
