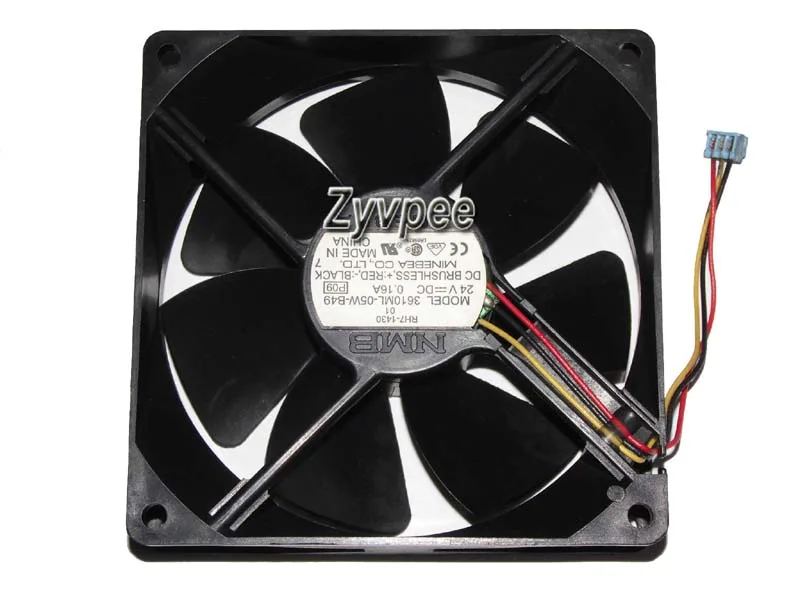

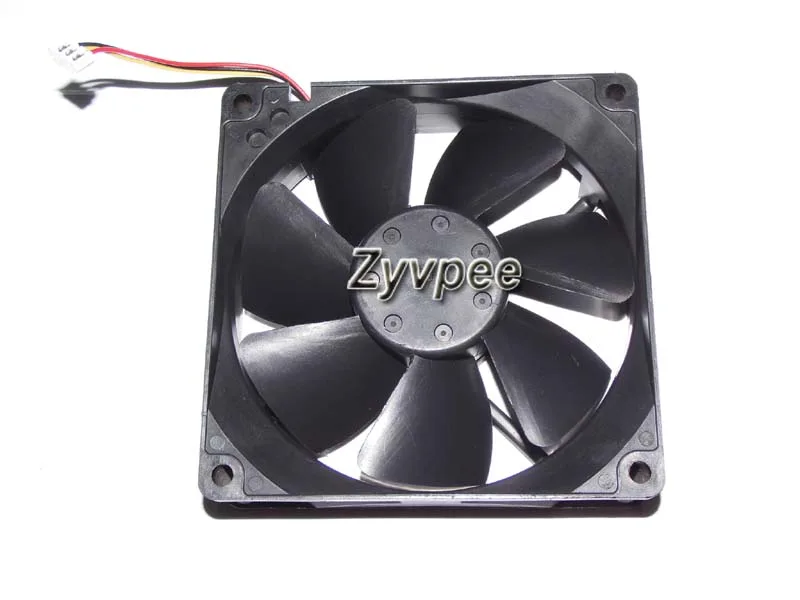

Black 90 by 25 millimetre square case fan with three pin connector

Zyvpee

Zyvpee 3610ML-05W-B49 90x25mm 24V 0.16A 3-Pin Ball Bearing Case Fan

SKU CH-1H0V-S789B

A 90 mm square case fan with ball bearing and 3-pin 24 V power for CPU cooling

  • TypeCase Fan
  • Bearing TypeBall
  • Power Connector3 Pin
  • ColorBlack
  • LEDNon-LED
  • FeaturesCPU Cooling
  • 24 V 0.16 A for efficient low-power cooling
  • 90 × 25 mm square frame fits standard 92 mm mounts
  • Ball bearing for long-life continuous operation
  • Three-pin connector enables motherboard speed monitoring
  • Non-LED black finish keeps builds clean and professional

90 mm ball-bearing case fan

The Zyvpee 3610ML-05W-B49 is a 90 by 25 mm case fan built for 24 V DC systems. It uses a ball bearing for durable operation and connects through a standard three-pin power header. The black, non-LED frame suits industrial or server chassis where simple airflow is required.

24 V 0.16 A three-pin power requirement

This unit draws 0.16 A at 24 V and terminates in a three-wire, three-pin connector. The voltage and current rating are the single specification that determines compatibility; the fan will only function correctly on a 24 V DC supply with a matching three-pin header.

Cooling capacity for compact inverter enclosures

Designed as a DC square cooler for inverter or converter modules, the fan moves air through tight 90 mm mounting spaces. It handles steady airflow needs in small-form-factor cases but reaches its limit when higher static pressure or greater volumetric flow is demanded by larger heat loads.

Highlights

  • 24 V 0.16 A for efficient low-power cooling
  • 90 × 25 mm square frame fits standard 92 mm mounts
  • Ball bearing for long-life continuous operation
  • Three-pin connector enables motherboard speed monitoring
  • Non-LED black finish keeps builds clean and professional

Specifications

BrandZyvpee
Series3610ML-05W-B49 L05
Model3610ML-05W-B49
TypeCase Fan
Bearing TypeBall
Power Connector3 Pin
ColorBlack
LEDNon-LED
FeaturesCPU Cooling
Dimensions90*25MM

Questions about this item

How much power does the 24 V 0.16 A rating draw in practice?

At the rated voltage it draws 0.16 A, so the fan header must be able to supply 24 V at that current continuously.

What does the 3-pin connector limit for speed control?

The three-pin plug provides power, ground and a tachometer signal; it does not carry PWM, so speed can only be adjusted by varying the supply voltage.

Will the 90 mm square frame with 25 mm thickness fit my chassis fan mounts?

The fan measures 90 mm by 90 mm and is 25 mm thick, so it matches standard 92 mm mounting holes used on many inverter and industrial enclosures.
