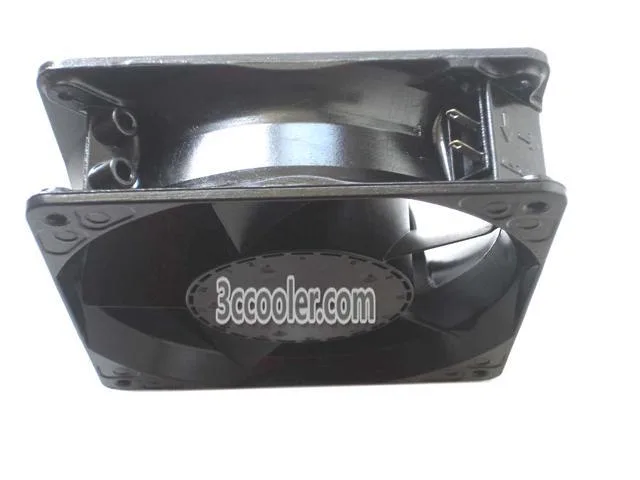

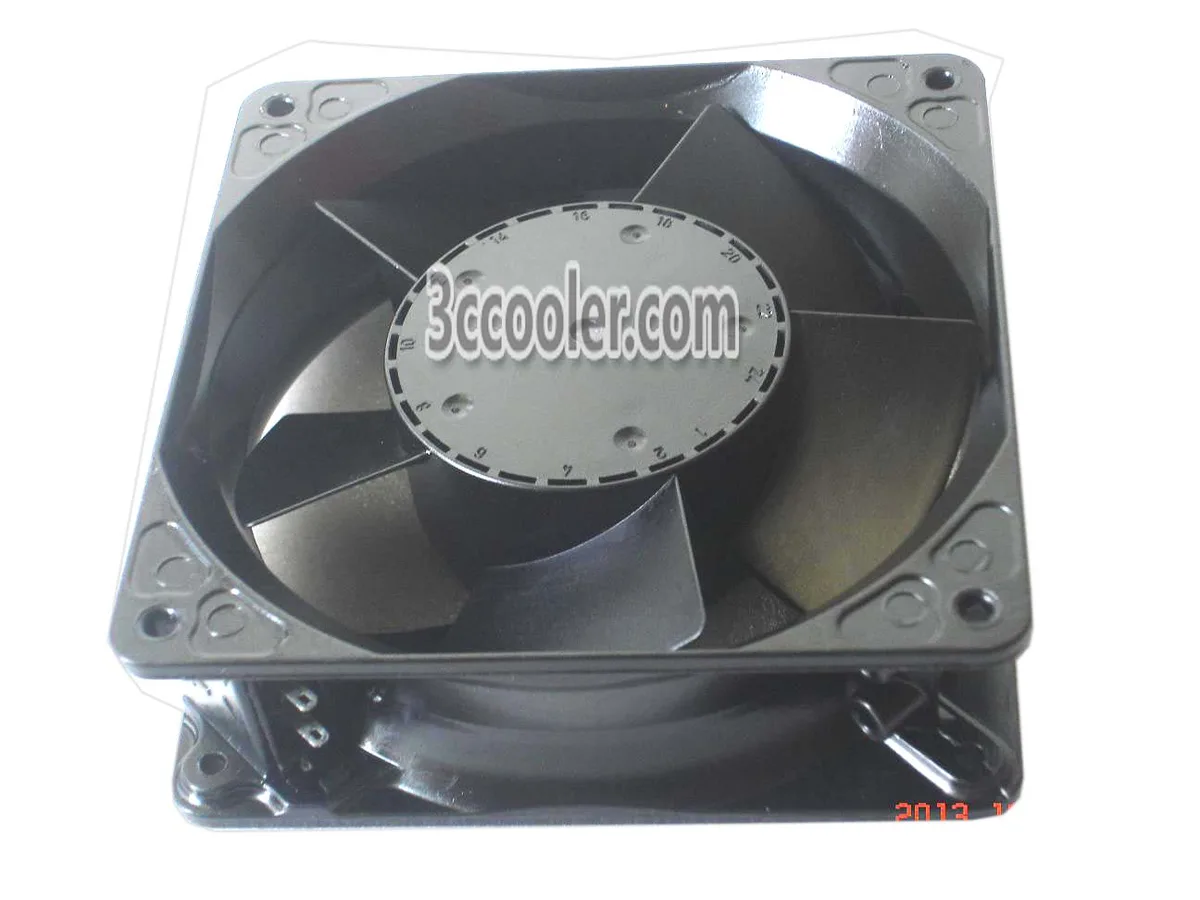

Black 120mm square frame 38mm thick two-pin axial fan

Zyvpee

Zyvpee 4184NXH 120mm 38mm 24V 2 Pin case fan

SKU CH-R1F5-2D59M

24 V DC axial fan with dual ball bearings, 120 mm by 38 mm frame, 11 W rated power, two-pin connector

  • TypeCase Fan
  • CompatibilityCase
  • Bearing Type2 Ball
  • Power Connector2 Pin
  • ColorBlack
  • LEDNon-LED
  • Dual ball bearings extend operating life
  • 24 V DC motor draws 458 mA at 11 W
  • 120 mm square frame fits standard 120 mm mounts
  • 38 mm thickness suits high-static-pressure server and UPS cooling
  • 2-pin power connector for simple DC voltage control

Zyvpee 4184NXH 120mm Server Fan

The Zyvpee 4184NXH is a 120mm square axial fan built for server and UPS chassis. It runs on 24V DC and draws 458mA for 11W of power. Dual ball bearings support continuous operation in demanding environments. The 2-pin connector supplies power without speed reporting.

Suited For High-Airflow Server Builds

This fan suits integrators populating 12038 mounting holes in rackmount or inverter equipment. The 38mm thickness demands a matching bay depth. Buyers needing PWM control or a 3-pin tachometer signal should look elsewhere. Systems limited to 12V rails cannot drive this unit directly.

Critical Voltage And Connector Check

Confirm the target device provides a 24V DC header with a 2-pin socket before ordering. The 11W draw and 458mA current rating must fall within the header's rated capacity. Mismatched voltage or connector type will prevent the fan from functioning.

Highlights

  • Dual ball bearings extend operating life
  • 24 V DC motor draws 458 mA at 11 W
  • 120 mm square frame fits standard 120 mm mounts
  • 38 mm thickness suits high-static-pressure server and UPS cooling
  • 2-pin power connector for simple DC voltage control

Specifications

Series4184NXH
Model4184 NXH
TypeCase Fan
CompatibilityCase
Bearing Type2 Ball
Power Connector2 Pin
ColorBlack
LEDNon-LED
FeaturesDC Axial fan
Dimensions120mm*120mm*38mm

Questions about this item

How can I confirm the 4184NXH 120mm fan is running correctly after installation?

The fan should spin steadily when 24V power is applied to the 2-pin connector; listen for smooth operation from the 2-ball bearing and verify airflow through the 38mm-thick frame.

What comes with the Zyvpee 4184NXH and what must I source separately?

The package includes the 120mm x 120mm x 38mm case fan with a 2-pin power lead; mounting screws, fan filters or a 24V power supply are not included.

Which version of the 4184NXH should I choose for a 24V server or UPS chassis?

Select the 24V 458mA 11W 2-pin model (listed as 12038 4184 NXH) — it matches 24V inverter, UPS and server cooler applications.
