Black 120mm square AC axial fan 38mm thick two-pin connector

Zyvpee

Zyvpee 4715MS-23T-B5A AC230V 15/14W 2 Pin 120mm case fan

SKU CH-K4VK-Q0A1A

120 mm AC axial case fan with dual ball bearings, 230 V supply and 15/14 W power draw

  • TypeCase Fan
  • CompatibilityCase
  • Bearing Type2 Ball
  • Power Connector2 Pin
  • ColorBlack
  • LEDNon-LED
  • AC axial fan runs directly on 230 V mains power
  • Dual ball bearings extend operating life
  • 120 mm square frame fits standard case mounts
  • 38 mm thickness allows high-static-pressure airflow
  • Two-pin connector simplifies installation

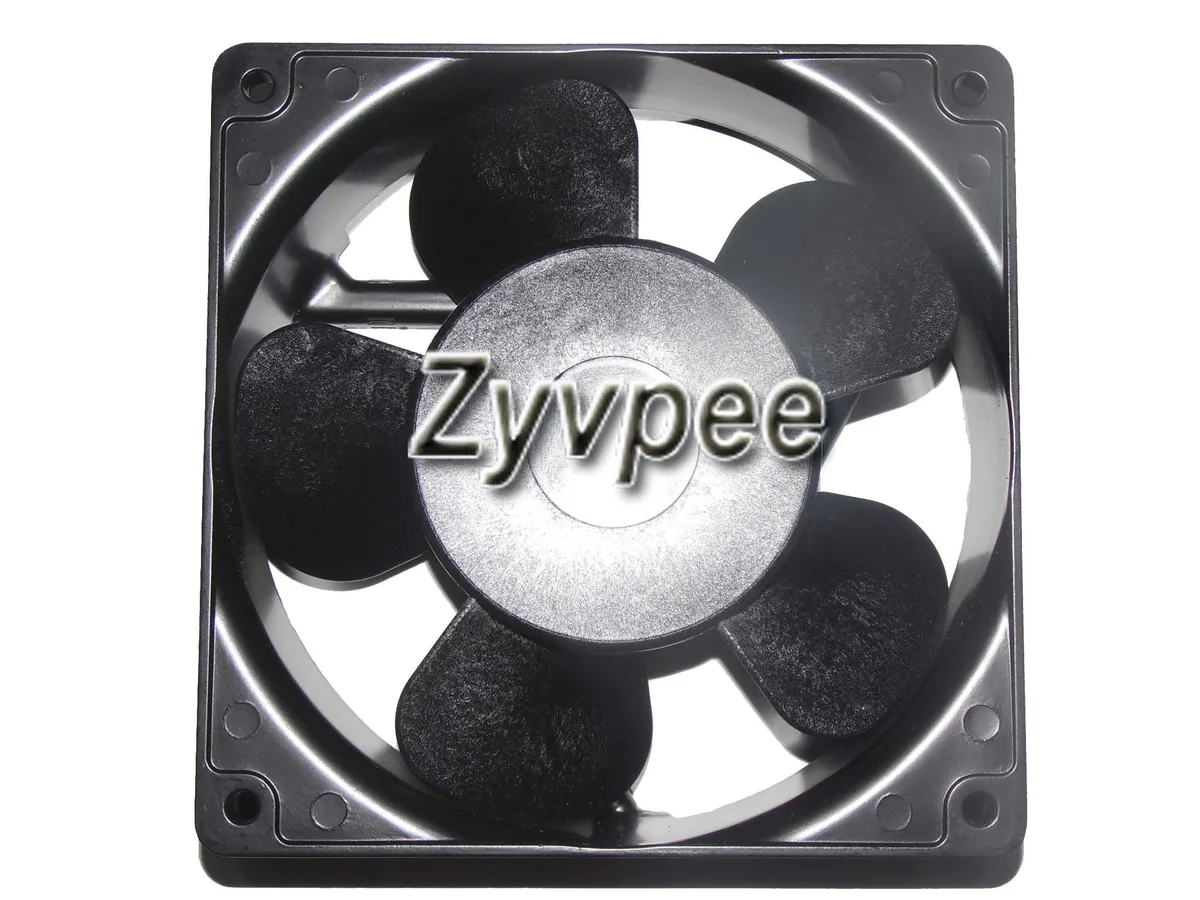

Zyvpee 4715MS-23T-B5A AC axial fan

This 120 mm case fan operates directly from 230 V AC mains power and uses a two-pin connector. It is built with a 2 Ball bearing for durable rotation inside server chassis or industrial enclosures. The black frame measures 120 mm by 120 mm by 38 mm and carries no LED lighting.

Suited for mains-powered cooling slots

Installers who need a fan that plugs straight into AC power without a separate DC supply will find this unit matches that requirement. Builders working with standard motherboard 3-pin or 4-pin headers cannot use this fan because the connector and voltage are different. It is not for low-voltage PWM control loops.

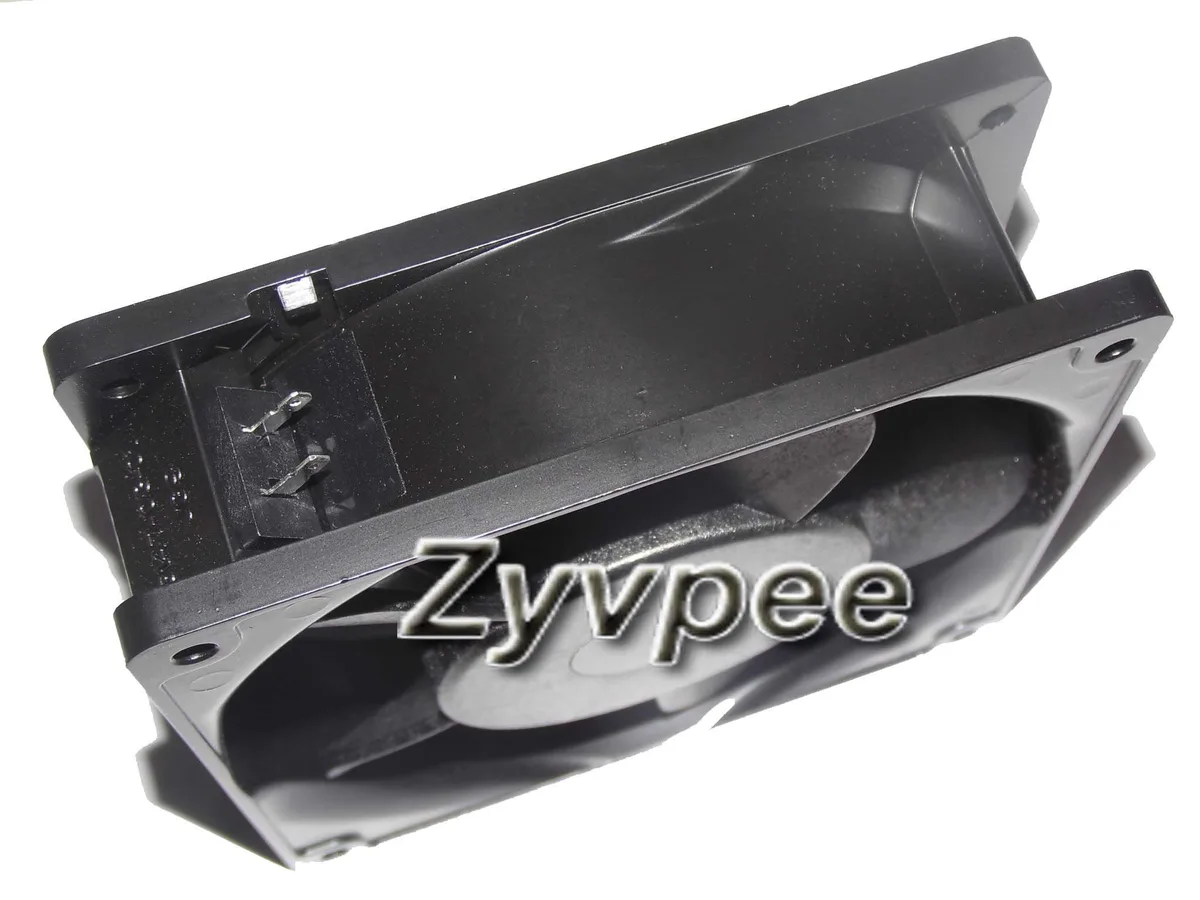

230 V AC input with two-pin connector

The defining specification is the 230 V AC rating combined with a two-pin power lead, which decides whether the fan fits the target equipment. Power draw is listed as 15 W and 14 W for the two operating conditions. The 38 mm thickness must also clear the mounting space.

Highlights

  • AC axial fan runs directly on 230 V mains power
  • Dual ball bearings extend operating life
  • 120 mm square frame fits standard case mounts
  • 38 mm thickness allows high-static-pressure airflow
  • Two-pin connector simplifies installation

Specifications

Series4715MS-23T-B5A
Model4715MS-23T-B5A
TypeCase Fan
CompatibilityCase
Bearing Type2 Ball
Power Connector2 Pin
ColorBlack
LEDNon-LED
FeaturesAC Axial Fan
Dimensions120mm*120mm*38mm

Questions about this item

How much power does the 15/14 W rating represent when the fan is running on 230 V AC?

The fan consumes 15 watts on one AC frequency and 14 watts on the other, both at 230 V AC.

What does the 2-pin connector allow me to control on this AC axial fan?

The two pins carry live and neutral only, so the fan runs at full speed whenever mains power is applied.

Will the 120 mm by 38 mm frame fit a standard 120 mm case mounting?

Yes, the 120 mm square frame with 38 mm thickness matches the common 120 mm mounting pattern used in PC cases.
