Black 200mm AC axial fan with four wires, ball bearing, IP44 rating

Zyvpee

Zyvpee A2E200-AH38-01 200mm 230V AC axial fan

SKU CH-JMR1-2ZP4W

200 mm AC axial fan delivers 80 CFM at 2500-2999 RPM with IP44 protection and four-wire connection

  • TypeCase Fan
  • Fan Size200mm
  • Bearing TypeBall
  • RPM2500-2999 RPM
  • Air Flow>80 CFM
  • Noise Level> 50 dBA
  • 200 mm diameter fits standard industrial cut-outs
  • 230 V AC 50/60 Hz runs directly from mains supply
  • Ball bearing withstands continuous 2500–2999 RPM operation
  • IP44 rating protects against splashing water and dust
  • Four-wire connection enables speed monitoring and control

Industrial AC axial fan for 230 V equipment

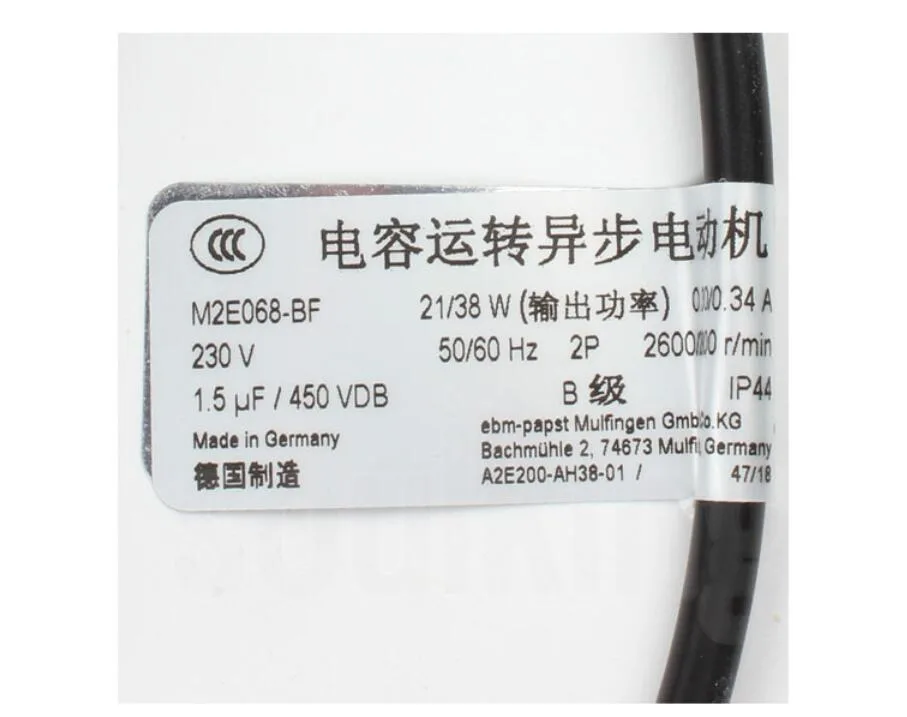

This 200 mm AC axial fan runs on 230 V mains at 50/60 Hz and draws 0.3/0.34 A. It is built for industrial enclosures, HVAC cabinets and similar equipment that need forced-air cooling from a standard single-phase supply. The four-wire lead allows straightforward connection to existing AC control circuits. Buyers who need a DC-powered or PWM-controlled fan cannot use this unit.

Fixed-speed operation on 50/60 Hz mains

The motor runs at 2500-2999 RPM directly from line frequency with no speed-control interface. Airflow exceeds 80 CFM while noise sits above 50 dBA, so the fan is suited to plant rooms or server aisles where acoustic limits are relaxed. IP44 ingress protection and Class B insulation cover typical indoor industrial environments, but the design offers no variable-speed or thermal-speed regulation. Installers who require software fan curves or low-noise profiles must choose a different product.

200 mm frame with ball-bearing motor

The 200 mm square frame houses a ball-bearing rotor rated for continuous duty at the stated voltage and frequency. Four wires exit the housing for line, neutral, ground and an auxiliary function such as a tacho or alarm signal. No mounting-hole pattern, depth dimension or weight figure is supplied, so mechanical fit must be verified against the equipment cutout before purchase.

Highlights

  • 200 mm diameter fits standard industrial cut-outs
  • 230 V AC 50/60 Hz runs directly from mains supply
  • Ball bearing withstands continuous 2500–2999 RPM operation
  • IP44 rating protects against splashing water and dust
  • Four-wire connection enables speed monitoring and control

Specifications

SeriesA2E200-AH38-01
ModelA2E200-AH38-01
TypeCase Fan
Fan Size200mm
Bearing TypeBall
RPM2500-2999 RPM
Air Flow>80 CFM
Noise Level> 50 dBA
Power Connector4 Wires
ColorBlack
LEDNon-LED
FeaturesAC Axial Fan
Dimensions200mm

Questions about this item

Should I pick the 0.3 A or the 0.34 A version for my 230 V supply?

The fan draws 0.3 A at 50 Hz and 0.34 A at 60 Hz, so the same unit works on either frequency without a separate version to choose.

What does the 80 CFM airflow figure mean once the fan is installed in a case?

It indicates the fan can move more than 80 cubic feet of air per minute at free delivery, giving strong cooling for a 200 mm mounting point.

How does the 4-wire AC connection affect speed control and safety rating?

The four wires provide mains power plus a speed signal, while the IP44 rating protects against splashing water and solid objects over 1 mm.
