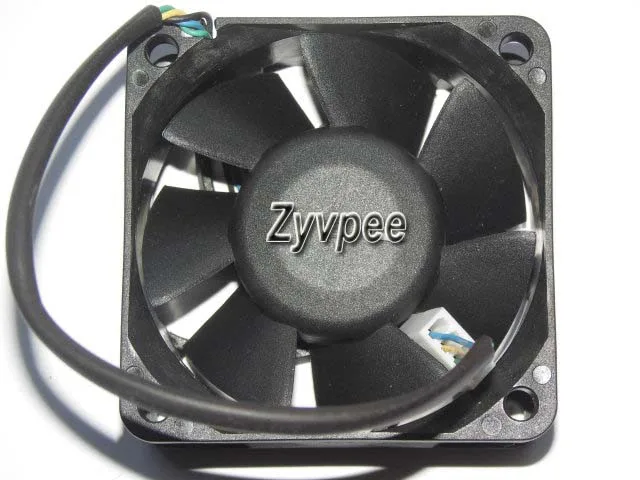

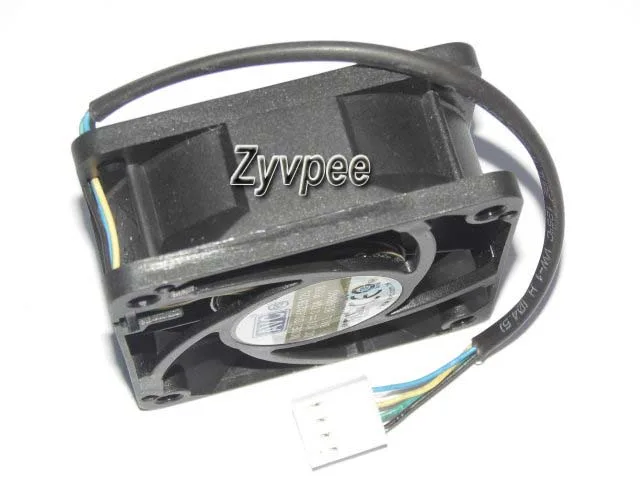

Black 60 by 25 millimetre PWM case fan with four-pin connector

Zyvpee

Zyvpee DS06025B12U P058 60×25mm 5200RPM 4-pin PWM case fan

SKU CH-V5V3-P4TH9

A 60×25 mm PWM case fan with dual-ball bearings spinning at 5200 RPM on a 4-pin connector

  • TypeCase Fan
  • CompatibilityCase
  • Bearing Type2 Ball
  • RPM5000-5499 RPM
  • Power Connector4 Pin
  • ColorBlack
  • PWM control enables precise speed adjustment
  • 2-ball bearing rated for continuous server duty
  • 5200 RPM delivers strong airflow in tight spaces
  • 60×25 mm form factor fits compact chassis
  • 4-pin connector integrates with standard motherboard headers

Compact 60 mm PWM fan for server chassis

The Zyvpee DS06025B12U P058 is a 60 mm by 25 mm case fan built for tight server enclosures. It runs on a 12 V supply drawing 0.70 A and connects through a standard 4-pin PWM header. The black, non-LED frame keeps the focus on airflow rather than lighting.

Dual-ball bearing sustains 5200 RPM under load

Dual-ball bearing construction lets the impeller hold speeds between 5000 and 5499 RPM continuously without the wear seen in sleeve designs. PWM control adjusts the 5200 RPM target to match thermal demand while the DC square cooler layout directs air across dense component stacks.

Verify 60 mm mount spacing and 4-pin header

Check that your chassis offers 60 mm mounting holes and 25 mm depth clearance for the frame. Confirm the motherboard or fan controller provides a 4-pin PWM header for automatic speed regulation. Ensure the 12 V rail can supply 0.70 A per fan if multiple units are installed.

Highlights

  • PWM control enables precise speed adjustment
  • 2-ball bearing rated for continuous server duty
  • 5200 RPM delivers strong airflow in tight spaces
  • 60×25 mm form factor fits compact chassis
  • 4-pin connector integrates with standard motherboard headers

Specifications

SeriesDS06025B12U
ModelDS06025B12U
TypeCase Fan
CompatibilityCase
Bearing Type2 Ball
RPM5000-5499 RPM
Power Connector4 Pin
ColorBlack
LEDNon-LED
FeaturesDC square Cooler
Dimensions60*60*25mm

Questions about this item

How loud does the 5200 RPM fan run when it is spinning at full speed all day?

The DS06025B12U spins at 5200 RPM with a 2-ball bearing; at that speed it produces an audible airflow noise typical of a 60 mm server fan running continuously.

What connector must my motherboard or fan controller provide for the 4-pin PWM plug?

A standard 4-pin PWM header supplies the 12 V, 0.70 A power and the PWM control signal the fan requires.

Will the 60×25 mm frame fit the mounting holes on my older chassis?

The fan measures 60×60×25 mm, matching the standard 60 mm square mounting pattern used on many legacy cases and server brackets.
