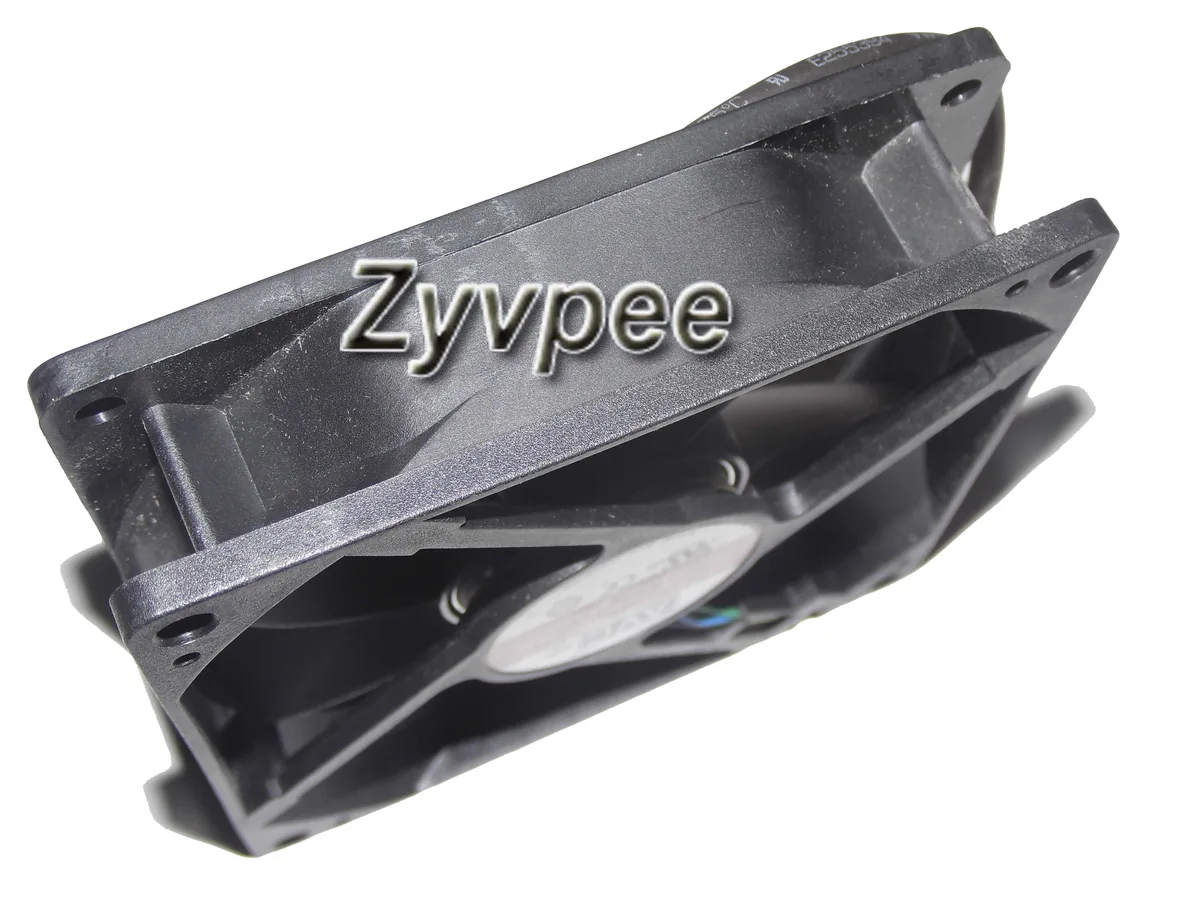

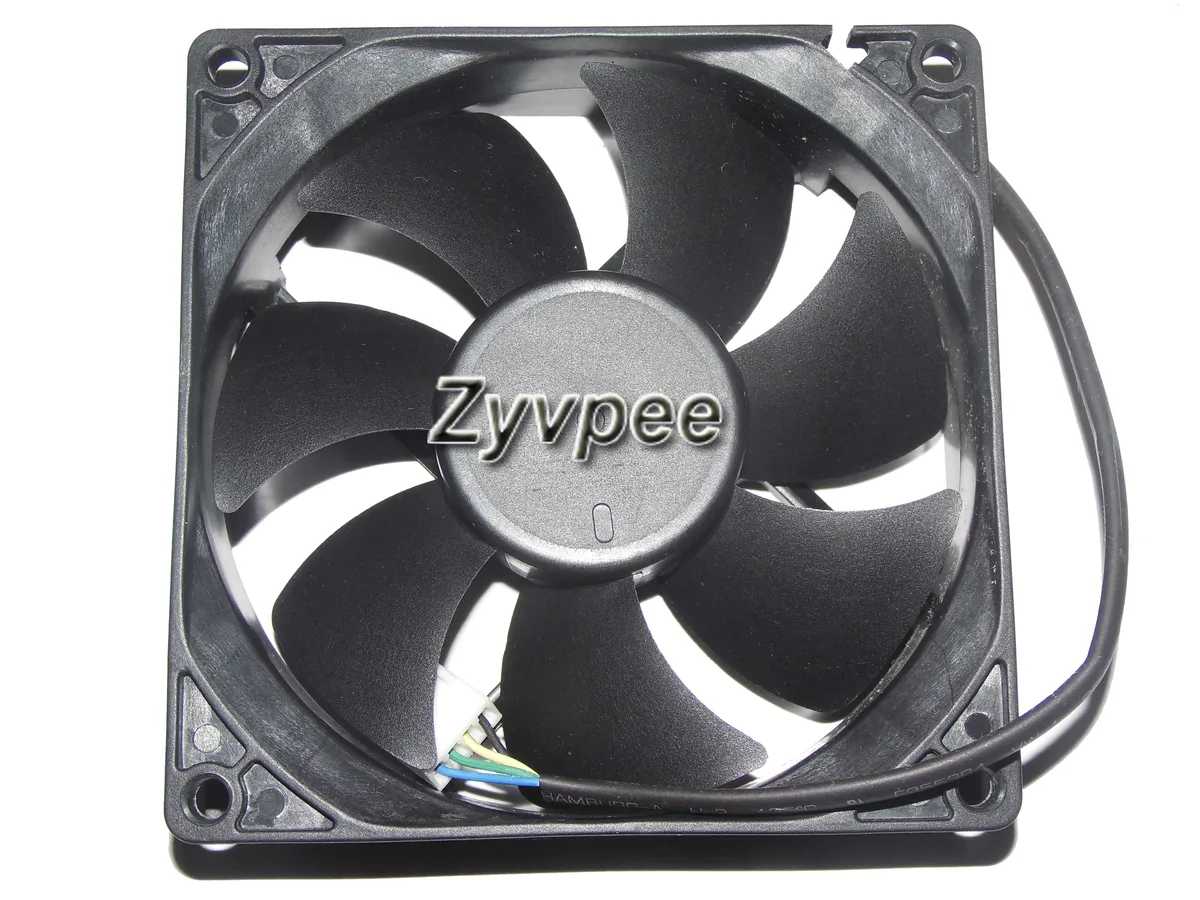

Black 90 by 25 millimetre PWM case fan with four pin connector

Zyvpee

Zyvpee DS09225R12H PFAF 90x25mm 12V 0.41A PWM case fan

SKU CH-DDP1-ZN214

90×25 mm 12 V PWM fan with hydraulic bearing spins at 3000-3499 RPM for CPU cooler airflow

  • TypeCase Fan
  • CompatibilityCPU Cooler
  • Bearing TypeHydraulic
  • RPM3000-3499 RPM
  • Power Connector4 Pin
  • ColorBlack
  • PWM control enables precise speed adjustment via 4-pin connector
  • Hydraulic bearing provides quiet operation at 3000-3499 RPM
  • 90x90x25mm dimensions fit standard 9cm mounting points
  • 12V 0.41A power draw suits typical motherboard headers
  • Non-LED black design keeps builds clean and distraction-free

90 mm PWM fan for CPU coolers

The Zyvpee DS09225R12H PFAF is a 90 mm square frame case fan built for CPU cooler mounting. It runs on 12 V power through a standard four-pin PWM connector so motherboard speed control works directly. The hydraulic bearing keeps noise low during continuous operation. The all-black, non-LED design suits builds that avoid lighting.

Installation uses four mounting holes

Four corner holes accept standard 90 mm screws or rubber grommets for vibration isolation. The 25 mm thickness fits most tower coolers and tight chassis bays without fouling memory slots or VRM heatsinks. PWM control requires a four-pin header; a three-pin header will run the fan at full speed only. The 0.41 A draw is modest but verify header current limits if daisy-chaining multiple units.

3000 to 3499 RPM range for focused airflow

At the lower end the fan moves enough air for modest thermal loads while staying quiet. Near the top of the range it delivers stronger static pressure for dense fin stacks but audible noise rises accordingly. The 90 mm diameter limits total airflow versus larger fans so it suits targeted component cooling rather than high-volume case ventilation. Builders needing higher CFM should consider larger frame sizes.

Highlights

  • PWM control enables precise speed adjustment via 4-pin connector
  • Hydraulic bearing provides quiet operation at 3000-3499 RPM
  • 90x90x25mm dimensions fit standard 9cm mounting points
  • 12V 0.41A power draw suits typical motherboard headers
  • Non-LED black design keeps builds clean and distraction-free

Specifications

SeriesDS09225R12H PFAF
ModelDS09225R12H PFAF
TypeCase Fan
CompatibilityCPU Cooler
Bearing TypeHydraulic
RPM3000-3499 RPM
Power Connector4 Pin
ColorBlack
LEDNon-LED
FeaturesDC axial fan
Dimensions90*90*25mm

Questions about this item

How do I verify the DS09225R12H PFAF is running correctly after installation?

Connect the 4-pin PWM connector to the motherboard header, then use BIOS or monitoring software to confirm the fan spins within the 3000-3499 RPM range and responds to temperature-based speed curves.

What comes with the DS09225R12H PFAF and what must I supply?

The box contains the 90x90x25mm hydraulic-bearing fan with a pre-attached 4-wire PWM cable; you only need a free 4-pin motherboard header or a compatible fan controller to power it.

Which version of this 90mm fan should I choose for a CPU cooler?

The DS09225R12H PFAF is the single 12 V, 0.41 A, 4-pin PWM model in black with no LED, designed specifically for CPU cooler mounting.
