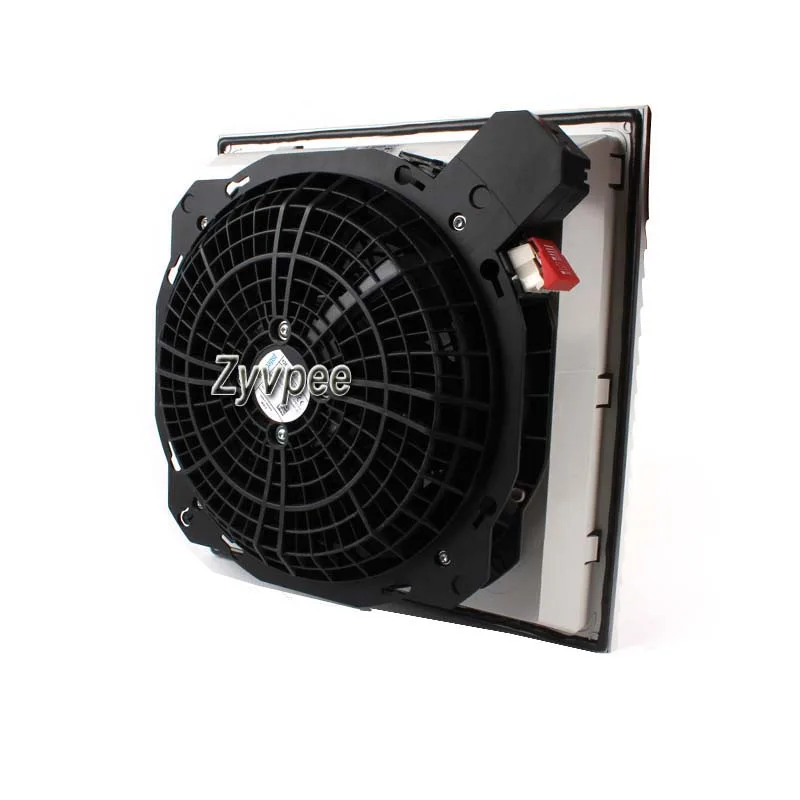

Black 220mm AC axial cabinet fan with metal frame and blade guard

Zyvpee

Zyvpee K2E200-AH20-05 220mm 230V AC Axial Fan

SKU CH-1DX8-VBZH4

A 220 mm AC axial fan runs at 230 V, 50/60 Hz, delivering 2700/3050 rpm with dual ball bearings for cabinet cooling

  • TypeAC axial fan
  • Fan Size220mm
  • Bearing Type2 Ball
  • Power ConnectorContact us
  • ColorBlack
  • LEDNon-LED
  • 230V AC operation suits industrial cabinet cooling
  • Dual-ball bearings extend service life in continuous duty
  • 220mm impeller delivers 2700/3050 RPM airflow
  • 70/87W draw at 50/60Hz keeps energy use low
  • 5µF 400VDB capacitor ensures reliable start-up

Industrial AC Axial Fan

The Zyvpee K2E200-AH20-05 is a 220 mm AC axial fan built for industrial cooling applications. It operates on 230 V mains supply at 50/60 Hz and uses a dual ball-bearing design for continuous-duty reliability. The unit suits cabinet and enclosure ventilation where a compact frame is required. Buyers needing DC voltage or PWM speed control should look elsewhere.

Thermals Noise and Power Draw

At 50 Hz the fan draws 0.37 A and 70 W while turning at 2700 min⁻¹; at 60 Hz it draws 0.39 A and 87 W at 3050 min⁻¹. A 1.5 µF 400 VDB run capacitor is specified for proper motor operation. The AC motor produces audible tonal noise typical of line-frequency axial fans. Installers requiring near-silent airflow should consider alternative technologies.

Bundled Accessories and Software

The manufacturer highlights reference the ebmpapst M2E068-CF SK3243.100 cabinet fan assembly, indicating the motor and impeller are matched to that housing. No mounting brackets, guards, speed controllers or configuration software are mentioned in the supplied data. System integrators must source wiring, protection and airflow management components separately.

Highlights

  • 230V AC operation suits industrial cabinet cooling
  • Dual-ball bearings extend service life in continuous duty
  • 220mm impeller delivers 2700/3050 RPM airflow
  • 70/87W draw at 50/60Hz keeps energy use low
  • 5µF 400VDB capacitor ensures reliable start-up

Specifications

SeriesK2E200-AH20-05
ModelK2E200-AH20-05
TypeAC axial fan
Fan Size220mm
Bearing Type2 Ball
Power ConnectorContact us
ColorBlack
LEDNon-LED
FeaturesAC Axial Fan

Questions about this item

How is the 220 mm AC axial fan mounted and wired, and what step do installers often miss?

Secure the 220 mm frame with four corner screws, then connect the two supply leads to 230 V mains and the 1.5 µF 400 VDB capacitor; the step often missed is wiring the capacitor in series with the auxiliary winding before powering the fan.

Which components will need replacement during the life of the K2E200-AH20-05?

The dual ball bearings are the primary wear item; expect to replace the bearing assembly after extended continuous operation at 2700/3050 min⁻¹.

What thermal or electrical limit appears first when the cabinet fan runs continuously at 70/87 W?

The motor winding insulation reaches its temperature class limit before the 0.37/0.39 A current rating is exceeded during sustained 50/60 Hz operation.
