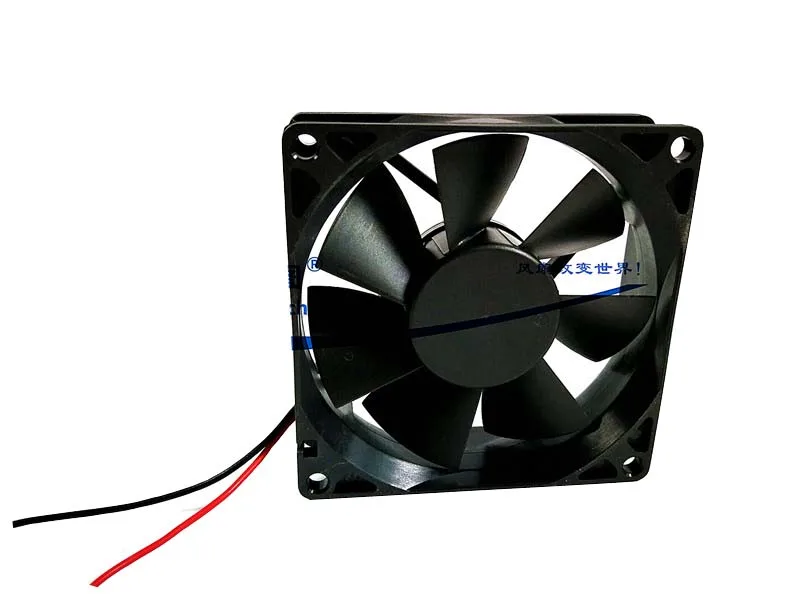

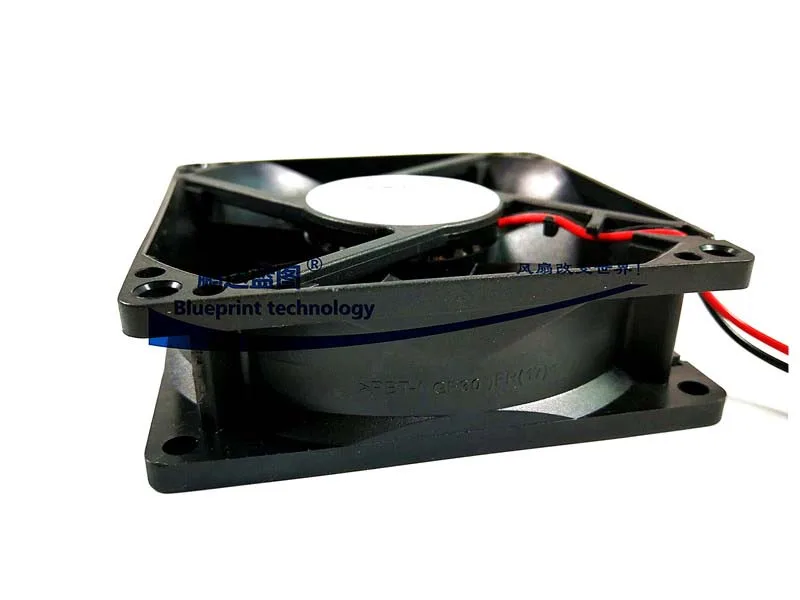

Black 80 by 25 mm square case fan with two wires

Zyvpee

Zyvpee MA8025E12D FSR 80×25 mm 12 V 0.30 A sleeve bearing case fan

SKU CH-QH26-FD0P6

An 80 mm sleeve-bearing case fan running at 3000–3499 RPM on 12 V with a two-wire connection

  • TypeCase Fan
  • CompatibilityCase
  • Bearing TypeSleeve bearing
  • RPM3000-3499 RPM
  • Power Connector2 wires
  • ColorBlack
  • 12 V 0.30 A power draw keeps energy use low
  • 80 mm square frame fits standard 8025 mounting holes
  • 25 mm thickness matches common case fan slots
  • 3000–3499 RPM range delivers strong airflow for cooling
  • Sleeve bearing design runs quietly at operating speed

Zyvpee MA8025E12D FSR 80×25 mm case fan

This 80 mm square case fan runs on 12 V DC and draws 0.30 A through a two-wire power connector. It uses a sleeve bearing and spins between 3000 and 3499 RPM. The black frame measures 80×80×25 mm and has no LED lighting. It is built for standard case ventilation in desktop computers.

Two-wire sleeve bearing installation notes

The fan connects directly to a 12 V two-pin header or a Molex adapter with no PWM control. Polarity must be observed on the two wires to avoid damage. Sleeve bearings are quiet at first but may develop noise or reduced lifespan if mounted horizontally or in high-temperature environments. Ensure the 25 mm thickness clears adjacent components and cable routing.

Check clearance and voltage before ordering

Verify that your case has an 80 mm mounting grid with at least 25 mm depth for the frame. Confirm the motherboard or controller supplies a 12 V two-pin header; this fan will not work on 5 V or PWM-only headers without an adapter. Buyers who need variable speed control, ball bearings or LED illumination should consider other models.

Highlights

  • 12 V 0.30 A power draw keeps energy use low
  • 80 mm square frame fits standard 8025 mounting holes
  • 25 mm thickness matches common case fan slots
  • 3000–3499 RPM range delivers strong airflow for cooling
  • Sleeve bearing design runs quietly at operating speed

Specifications

SeriesMA8025E12D
ModelMA8025E12D
TypeCase Fan
CompatibilityCase
Bearing TypeSleeve bearing
RPM3000-3499 RPM
Power Connector2 wires
ColorBlack
LEDNon-LED
FeaturesDC square Cooler
Dimensions80*80*25mm

Questions about this item

How can I confirm the MA8025E12D FSR fan is running at the correct speed after installation?

Check the system BIOS or fan-control software; the fan should report between 3000 and 3499 RPM when powered from a 12 V header.

What comes with the Zyvpee MA8025E12D FSR and what must I supply separately?

The package contains the 80×25 mm sleeve-bearing fan with a two-wire lead; you must provide a 12 V power header or adapter and mounting screws.

Which version of the MA8025E12D FSR should I choose for a standard 80 mm case mount?

This single model measures 80×80×25 mm, runs on 12 V at 0.30 A, and fits any standard 80 mm mounting pattern.
