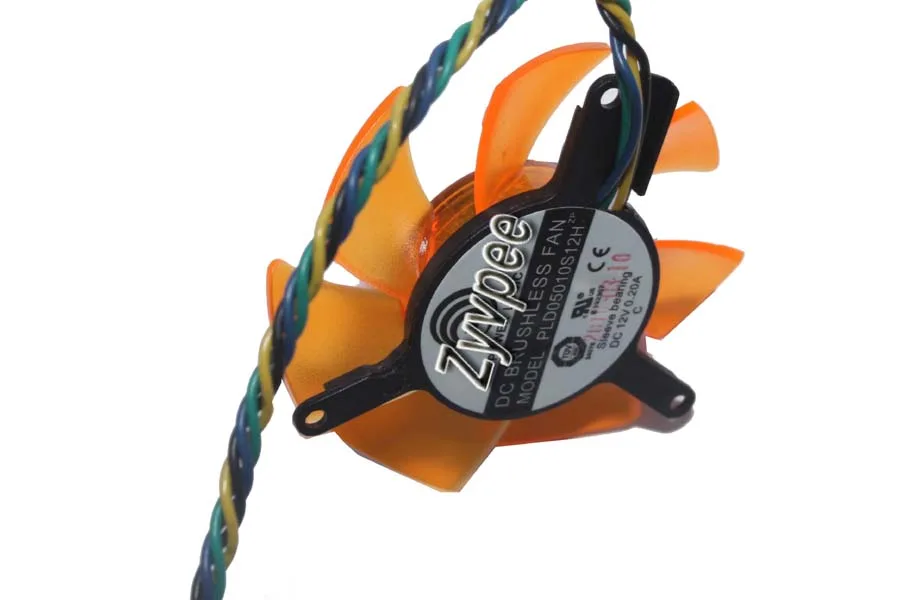

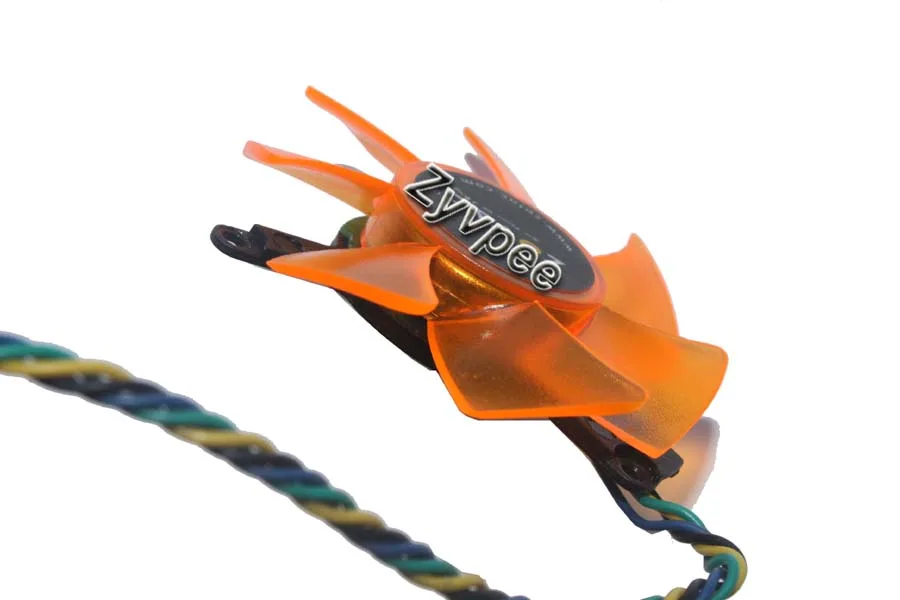

Orange frameless 47mm VGA cooling fan with four-pin connector

Zyvpee

Zyvpee PLD05010S12H 12V 0.2A 4-Pin Frameless VGA Fan Orange 47mm

SKU CH-8026-AY96A

A 47 mm frameless graphics-card fan running at up to 1600 RPM with a 4-pin PWM connector, 12 V .2 A draw and sleeve bearing for ZOTAC 8500GT, 8600GT, 9400GT, 9500GT and GT210 models

  • TypeCPU Cooler Fan
  • Bearing TypeSleeve Bearing
  • RPM<1600 RPM
  • Power Connector4 Pin
  • ColorOrange
  • LEDNon-LED
  • 12 V .2 A four-pin power for reliable GPU cooling
  • Frameless 47 mm design fits tight ZOTAC card clearances
  • Sub-1600 RPM sleeve bearing runs quietly under load
  • Direct replacement for 8500GT 8600GT 9400GT 9500GT GT210 models
  • Orange non-LED blades give visible airflow without light spill

Direct replacement for select ZOTAC cards

This frameless VGA cooler targets owners of ZOTAC 8500GT, 8600GT, 9400GT, 9500GT and GT210 graphics cards needing a 47mm fan. It matches the original mounting pattern and four-wire connector for a straight swap without adapter cables. The orange frame distinguishes it visually while maintaining the same electrical interface.

Four-pin PWM control limited to 1600 RPM

The 12V 0.2A motor spins below 1600 RPM, so airflow is modest and suited to low-profile heatsinks on older GPUs. Sleeve-bearing operation means noise increases as lubricant ages, and the speed ceiling prevents use on modern high-TDP cards. The 4-pin header reports tachometer data but cannot overcome the mechanical RPM limit.

Frameless design demands careful handling

Without a protective shroud, the blades are exposed to finger contact and cable snagging during installation. The 47mm diameter fits tight clearance zones around voltage regulators, yet the lack of mounting screws in the package means reusing original fasteners is essential. Builders expecting RGB lighting or rubber anti-vibration pads will find neither included.

Highlights

  • 12 V .2 A four-pin power for reliable GPU cooling
  • Frameless 47 mm design fits tight ZOTAC card clearances
  • Sub-1600 RPM sleeve bearing runs quietly under load
  • Direct replacement for 8500GT 8600GT 9400GT 9500GT GT210 models
  • Orange non-LED blades give visible airflow without light spill

Specifications

BrandZyvpee
SeriesPLD05010S12H
ModelPLD05010S12H
TypeCPU Cooler Fan
Bearing TypeSleeve Bearing
RPM<1600 RPM
Power Connector4 Pin
ColorOrange
LEDNon-LED
FeaturesVGA Cooling
DimensionsDIM: 47MM

Questions about this item

Does the 47 mm frameless design fit the ZOTAC models listed?

The fan is built for ZOTAC 8500GT, 8600GT, 9400GT, 9500GT and GT210 cards; its 47 mm frameless housing matches the original cooler mounting on those boards.

What does the <1600 RPM rating mean for cooling a legacy GPU?

At up to 1600 RPM the sleeve-bearing fan moves enough air for the thermal load of those older ZOTAC GPUs while keeping noise low in a typical case.

How does the 4-pin PWM connector control the fan on a vintage graphics card?

The 4-pin header carries 12 V, 0.2 A and a PWM signal so the GPU can vary speed automatically instead of running at a fixed voltage.
