Zyvpee

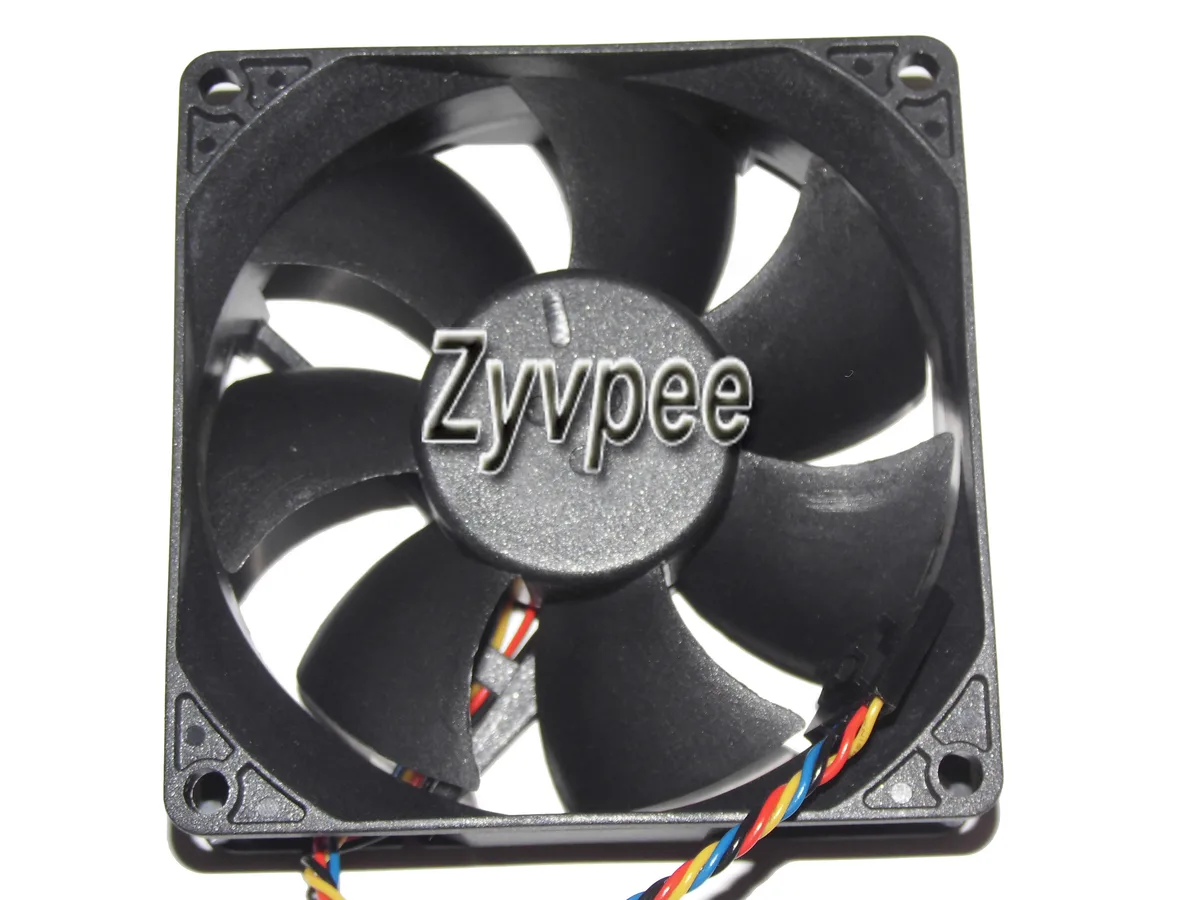

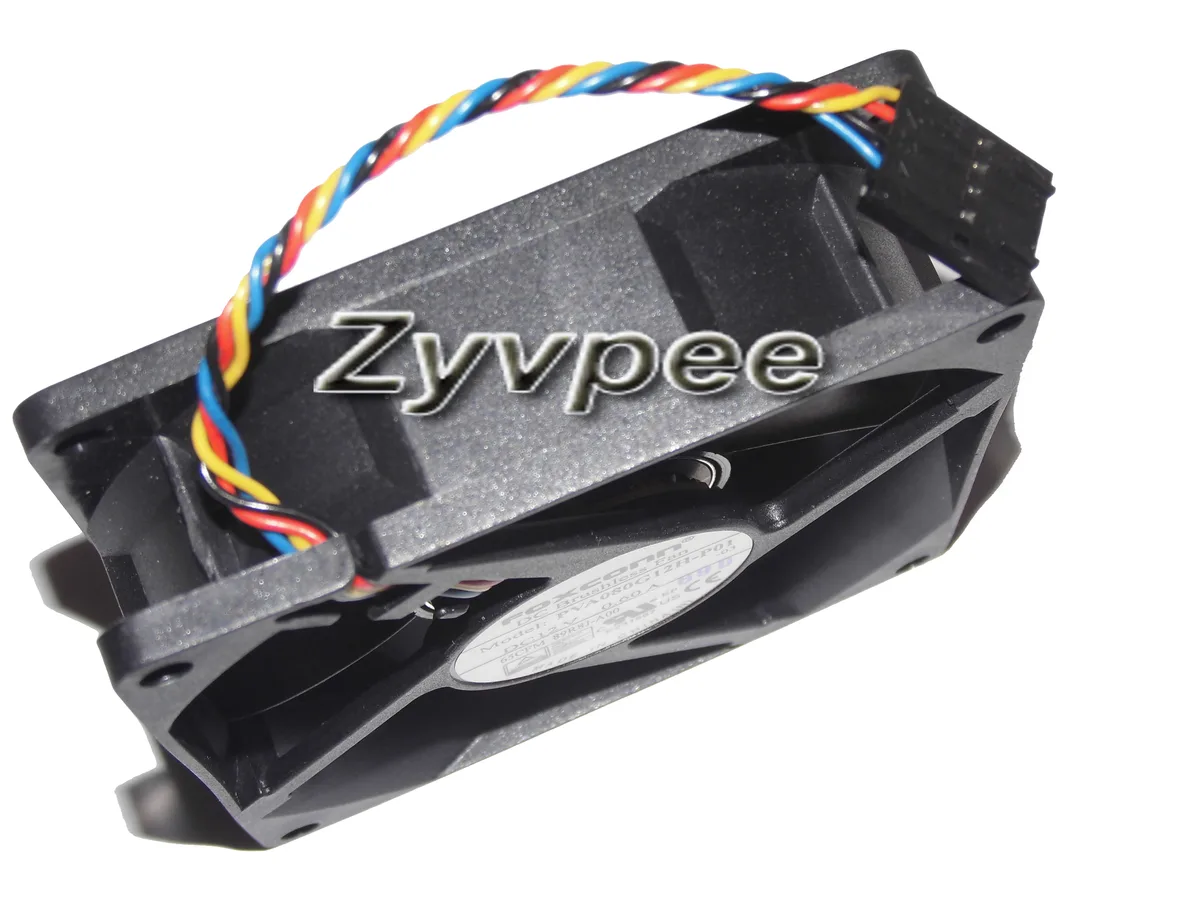

Zyvpee PVA080G12H 80*25mm 12V 0.6A 4-Pin PWM Case Fan
80 mm PWM case fan with 25 mm thickness, 12 V 0.6 A power draw and 4-pin connector for CPU cooler use
- TypeCase Fan
- CompatibilityCPU Cooler
- Power Connector4 Wires
- ColorBlack
- LEDNon-LED
- FeaturesDC square Cooler
- PWM control enables precise speed adjustment
- 12 V 0.6 A rating delivers reliable airflow
- 80×80×25 mm frame fits standard 80 mm mounts
- Four-pin connector supports motherboard fan headers
- Non-LED black design suits minimalist builds
Compact 80 mm PWM fan for CPU coolers
The Zyvpee PVA080G12H is an 80*25 mm case fan designed to mount on compatible CPU coolers. It runs on a 12 V supply drawing 0.6 A and connects through a standard 4-pin PWM header. The black, non-LED frame keeps the build discreet.
Sustained airflow with PWM control
Under continuous load the 4-wire PWM interface adjusts speed automatically to match thermal demand. This maintains steady airflow across the heatsink without the acoustic spikes of fixed-voltage designs. The DC square cooler construction supports reliable operation during extended sessions.
4-pin PWM header requirement
The fan requires a motherboard or controller that provides a 4-pin PWM signal for speed regulation. A 3-pin header will not deliver the control signal this model expects. Verify the header type before purchase.
Highlights
- PWM control enables precise speed adjustment
- 12 V 0.6 A rating delivers reliable airflow
- 80×80×25 mm frame fits standard 80 mm mounts
- Four-pin connector supports motherboard fan headers
- Non-LED black design suits minimalist builds
Specifications
| Series | PVA080G12H |
|---|---|
| Model | PVA080G12H |
| Type | Case Fan |
| Compatibility | CPU Cooler |
| Power Connector | 4 Wires |
| Color | Black |
| LED | Non-LED |
| Features | DC square Cooler |
| Dimensions | 80*80*25mm |
Questions about this item
How much heat does the 12 V 0.6 A PWM fan add to the case when it runs continuously?
At the rated 12 V and 0.6 A the motor draws its specified power, which is dissipated as heat inside the chassis during all-day operation.
What motherboard header is required for the 4-wire PWM connector on this 80 mm fan?
A standard 4-pin PWM fan header on the motherboard or fan controller is needed to supply 12 V and the PWM signal.
Will the 80×25 mm frame with 4-pin PWM control fit the mounting holes on my existing CPU cooler?
The fan uses the common 80 mm square mounting pattern, so it matches coolers designed for 8025-size fans with four screw holes.
