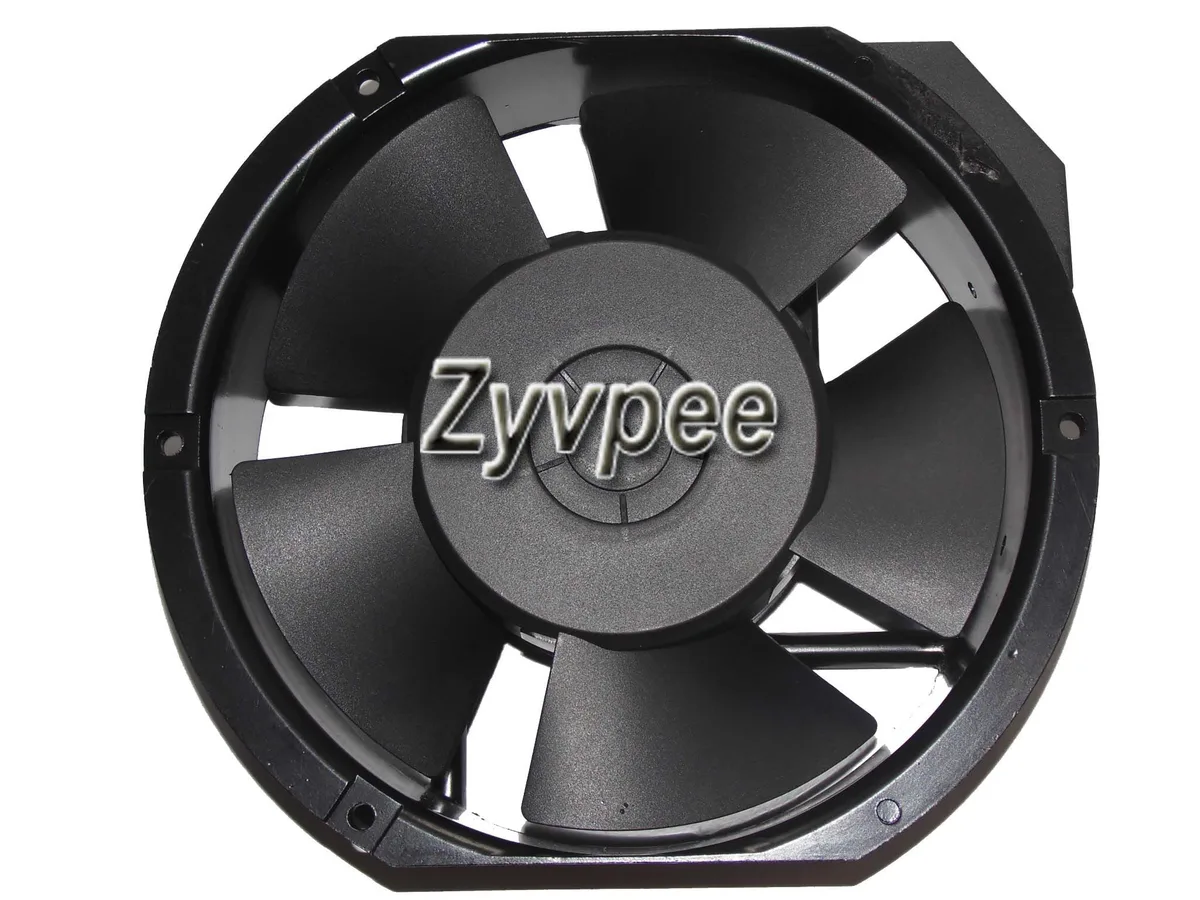

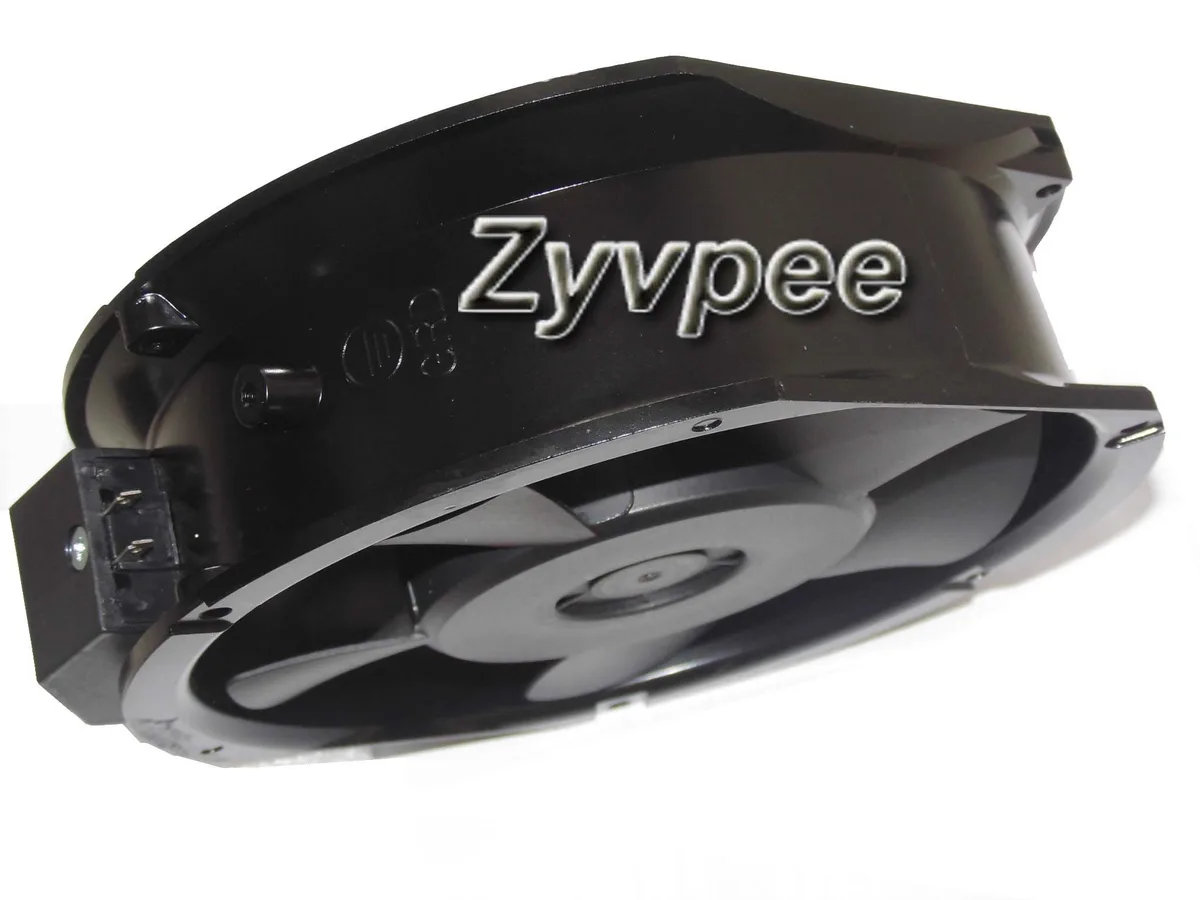

Black 170mm AC axial case fan with 2‑ball bearing, no LED, 2‑pin power connector

Zyvpee

Zyvpee SJ1725HA2 170mm 2 Ball AC Axial Case Fan

SKU CH-AN2G-2NB4E

A 170 mm AC axial case fan with dual ball bearings delivering 190 CFM at 2700 RPM on 220-240 V power

  • TypeCase Fan
  • CompatibilityCase
  • Fan Size170mm
  • Bearing Type2 Ball
  • Power Connector2 Pin
  • ColorBlack
  • High airflow with 190 CFM at 2700 RPM
  • Durable dual ball bearing for long service life
  • Direct 220–240 V AC power — no adapter needed
  • Large 170 mm frame moves more air per revolution
  • Compact 172 × 150 × 51 mm fits standard case mounts

170 mm AC axial case fan

The Zyvpee SJ1725HA2 is a 170 mm AC axial fan designed for case ventilation. It runs directly from 220 V to 240 V mains supply at 50 Hz or 60 Hz. The two-pin connector simplifies wiring in compatible enclosures. Builders needing high airflow without a DC power source will find it suitable.

Thermals noise and power

At 2700 RPM the fan moves 190 CFM of air through the chassis. The 2 ball bearing construction supports continuous operation at this speed. Current draw is rated at 0.28 A across the 220 V to 240 V range. No LED lighting is fitted, keeping the unit visually unobtrusive.

Mains voltage requirement

This fan requires a 220 V to 240 V AC supply and cannot be powered from a standard motherboard header or DC power supply. Buyers without access to mains wiring inside the case cannot use this model.

Highlights

  • High airflow with 190 CFM at 2700 RPM
  • Durable dual ball bearing for long service life
  • Direct 220–240 V AC power — no adapter needed
  • Large 170 mm frame moves more air per revolution
  • Compact 172 × 150 × 51 mm fits standard case mounts

Specifications

SeriesSJ1725HA2
ModelSJ1725HA2
TypeCase Fan
CompatibilityCase
Fan Size170mm
Bearing Type2 Ball
Power Connector2 Pin
ColorBlack
LEDNon-LED
FeaturesAC Axial Fan
Dimensions172*55mm

Questions about this item

How do I mount the 170mm fan using the 172mm hole spacing?

Align the four mounting holes on the 172mm centres with your case fan grill, insert screws through the frame into the case, and tighten evenly so the 51mm deep body sits flush without stressing the 2-pin lead.

What maintenance does the 2-ball bearing need over time?

The dual ball bearing is sealed and requires no lubrication; if noise or vibration appears after extended running at 2700 RPM, replace the entire fan unit.

At what temperature does the AC motor hit its thermal limit during continuous operation?

The motor is rated for 220-240V 50/60Hz input at 0.28A; sustained operation within this voltage range keeps the windings within their design temperature envelope.
