Black 280mm AC axial fan with metal frame and blades

Zyvpee

Zyvpee W2E250-HJ52-06 280mm 230Vac IP44 AC Axial Fan

SKU CH-7BPC-3KRVW

280 mm AC axial fan delivering over 80 CFM at 2500–2999 RPM with IP44 protection

  • TypeCase Fan
  • Compatibilityac axial fan
  • Bearing Type2 Ball
  • RPM2500-2999 RPM
  • Air Flow>80 CFM
  • Noise Level> 50 dBA
  • Delivers strong airflow above 80 CFM for effective cooling
  • Dual ball bearing design ensures long operational life
  • IP44 rating protects against splashing water and solid particles
  • Runs on 230 V AC at 50/60 Hz for standard mains compatibility
  • Operates between 2500 and 2999 RPM for consistent performance

Zyvpee 280 mm AC Axial Fan

The Zyvpee W2E250-HJ52-06 is a 280 mm AC axial fan designed for industrial cooling applications. It operates on 230 Vac at 50/60 Hz and draws 0.6/0.88 A with a class B motor. The unit carries an IP44 rating for protection against solid objects and water splashes.

Replacing Worn Industrial Axial Fans

This fan serves as a direct replacement for failed or ageing axial units in HVAC and industrial equipment. The upgrade is worthwhile when the original fan can no longer deliver the required airflow or when bearing noise exceeds acceptable limits. Its 2-ball bearing construction supports continuous operation at 2500-2999 RPM.

Integrating Into Ventilation Builds

The fan fits into standard 280 mm mounting cut-outs and requires a 230 Vac supply capable of 0.6/0.88 A. It provides over 80 CFM of airflow while producing more than 50 dBA of noise. The IP44 enclosure allows installation in damp or dusty environments without additional shielding.

Highlights

  • Delivers strong airflow above 80 CFM for effective cooling
  • Dual ball bearing design ensures long operational life
  • IP44 rating protects against splashing water and solid particles
  • Runs on 230 V AC at 50/60 Hz for standard mains compatibility
  • Operates between 2500 and 2999 RPM for consistent performance

Specifications

SeriesW2E250-HJ52-06
ModelW2E250-HJ52-06
TypeCase Fan
Compatibilityac axial fan
Bearing Type2 Ball
RPM2500-2999 RPM
Air Flow>80 CFM
Noise Level> 50 dBA
ColorBlack
LEDNon-LED
FeaturesAC Axial Fan

Questions about this item

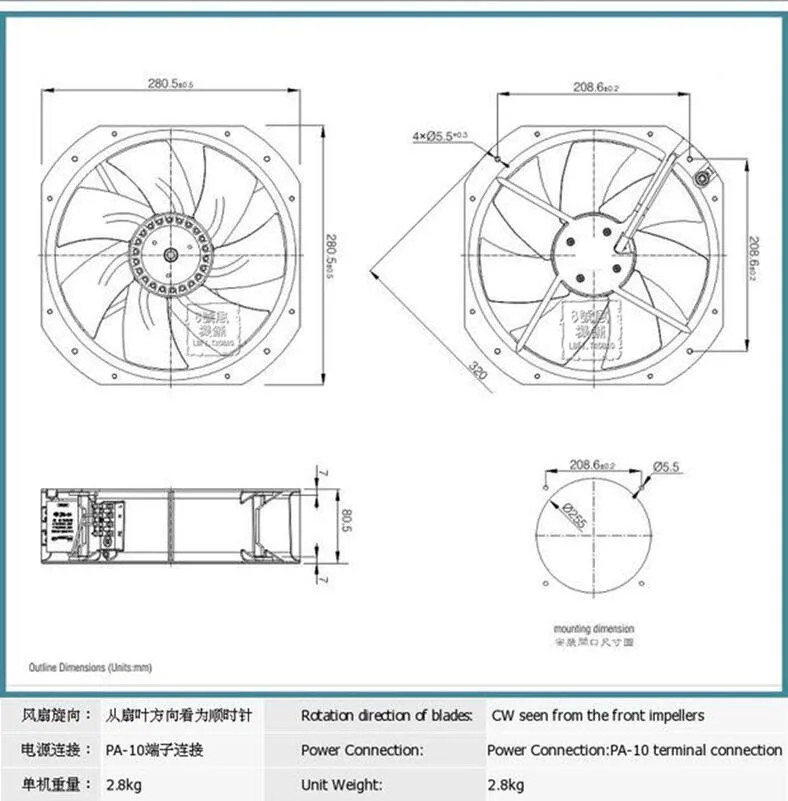

What cut-out diameter fits the 280 mm frame of this W2E250-HJ52-06 axial fan?

The fan housing measures 280 mm across, so a matching circular cut-out of that diameter is required for panel mounting.

How do I wire the 230 Vac 0.6/0.88 A supply to this AC axial fan?

Connect live and neutral to the two supply leads; the motor runs on single-phase 230 Vac at 50/60 Hz with no separate ground wire needed.

When should I expect to replace the 2-ball bearings in this industrial cooling fan?

The dual ball-bearing design is rated for continuous operation; plan inspection after several years of 2500-2999 RPM service and replace if noise exceeds 50 dBA.
