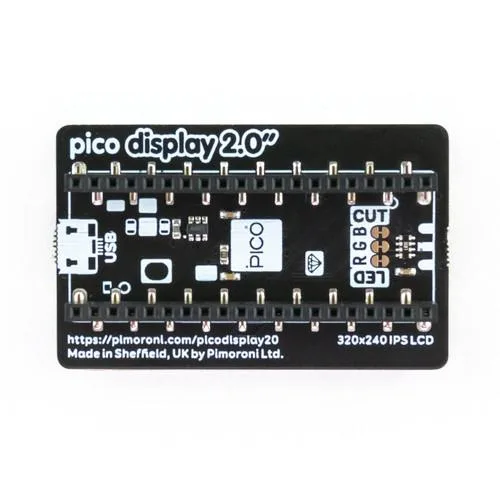

Small rectangular board with 2.0 inch IPS screen, four buttons, RGB LED, female headers

Pimoroni

Pimoroni Pico Display Pack 2.0 320x240 IPS LCD development board

SKU CH-F241-NNFZN

A 320×240 IPS LCD with four tactile buttons and an RGB LED that attaches directly to Raspberry Pi Pico without soldering

  • 18-bit colour depth for 65K vivid colours
  • 320x240 IPS LCD at 220 PPI sharp detail
  • Four tactile buttons for direct human input
  • On-board RGB LED for status or notifications
  • Pre-soldered headers attach to Pico with no soldering

Pico Display Pack 2.0

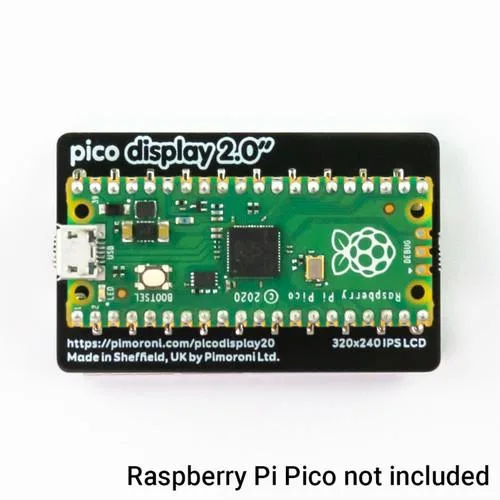

This 2.0 inch IPS LCD adds a 320x240 pixel colour screen to a Raspberry Pi Pico or Pico W. It ships fully assembled with pre-soldered female headers and includes four tactile buttons plus an RGB LED. No soldering is needed if the Pico already has header pins fitted. The 18-bit panel delivers 65K colours at roughly 220 PPI for sharp text and graphics.

Suitable for makers building compact GUIs

Developers who need a ready-to-use display with integrated controls for Pico-based projects will find this pack convenient. It is not suited for builds that require a larger viewing area, higher resolution, or a different interface such as HDMI or eDP. Buyers wanting touch input or an on-board microcontroller should look elsewhere.

320x240 IPS panel with pre-soldered headers

The 320 by 240 pixel IPS panel and factory-fitted female headers decide fit. They match the Pico pinout directly, so the board stacks without wiring. Confirm your Pico has male headers installed before purchase.

Najważniejsze cechy

  • 18-bit colour depth for 65K vivid colours
  • 320x240 IPS LCD at 220 PPI sharp detail
  • Four tactile buttons for direct human input
  • On-board RGB LED for status or notifications
  • Pre-soldered headers attach to Pico with no soldering

Specyfikacja

Na razie brak opublikowanej specyfikacji tego produktu.

Pytania dotyczące tego produktu

Does the 2.0-inch 320x240 IPS display generate noticeable heat or draw significant power when running continuously?

The small IPS panel and on-board RGB LED draw very little current, so heat and power consumption remain minimal during all-day operation.

What must I already own to use this pack, and does it require any soldering?

You need a Raspberry Pi Pico or Pico W with header pins fitted; the pack ships with pre-soldered female headers so no soldering is required.

Will the four tactile buttons and RGB LED still be accessible if I stack another HAT on top of my Pico?

The buttons and LED sit on the display board itself, so they remain usable unless a second add-on physically covers the front face.
