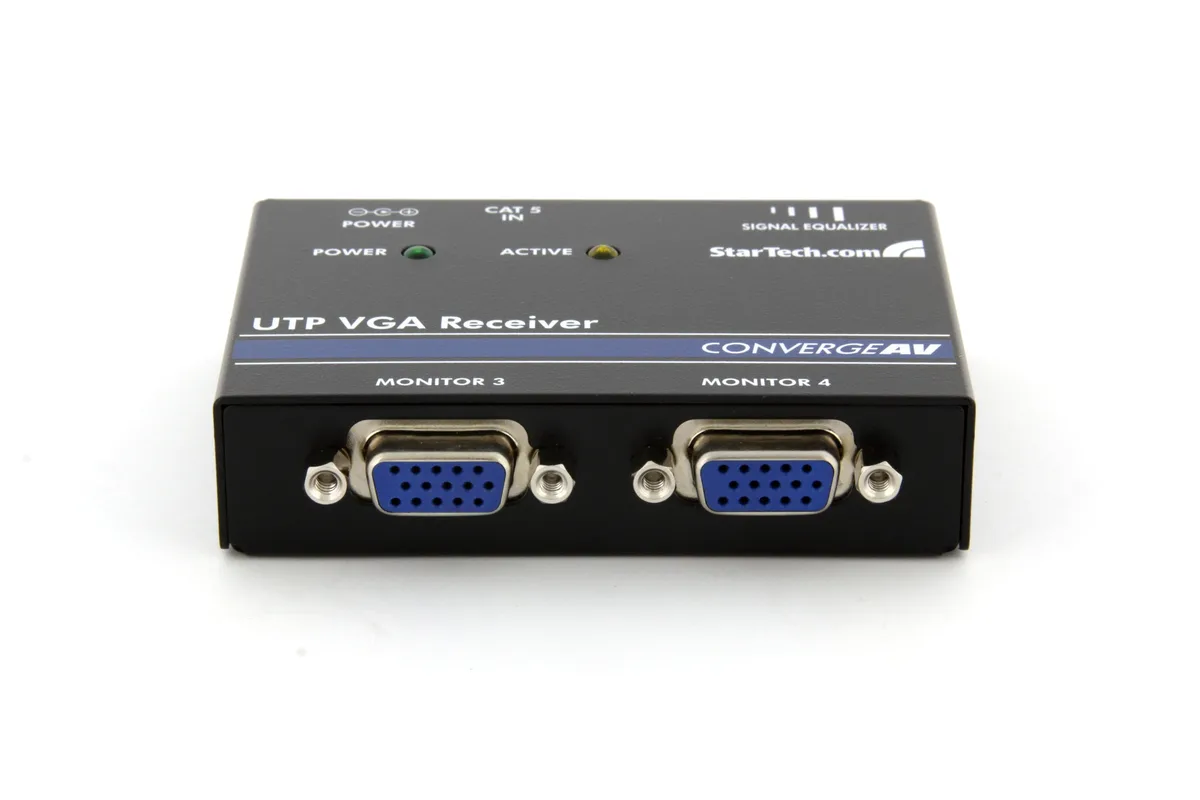

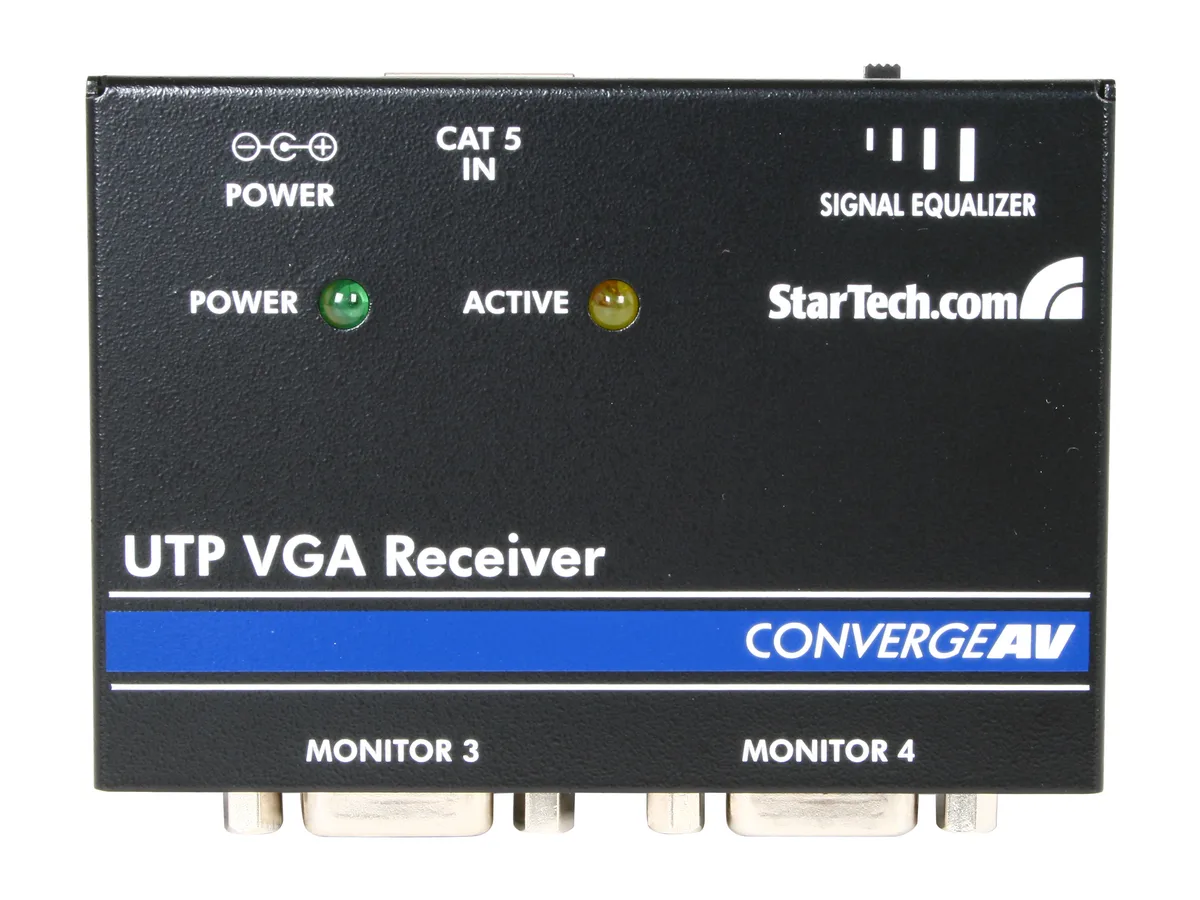

Small black aluminium box with VGA and RJ45 ports

STARTECH

STARTECH ST121R VGA over Cat5 remote receiver 150 m

SKU CH-WFAY-1JC22 MPN ST121R

Receives a VGA signal over Cat5 cable up to 150 m with resolutions up to 1024x768, includes power adapter and mounting brackets

  • Extender & Repeater TypeNon Wall Plate Extender
  • Distance150 m / 500 ft.
  • Resolution Support1600x1200 @ 150ft(50m) 1280x1024 @ 300ft(100m) 1024x768 @ 50

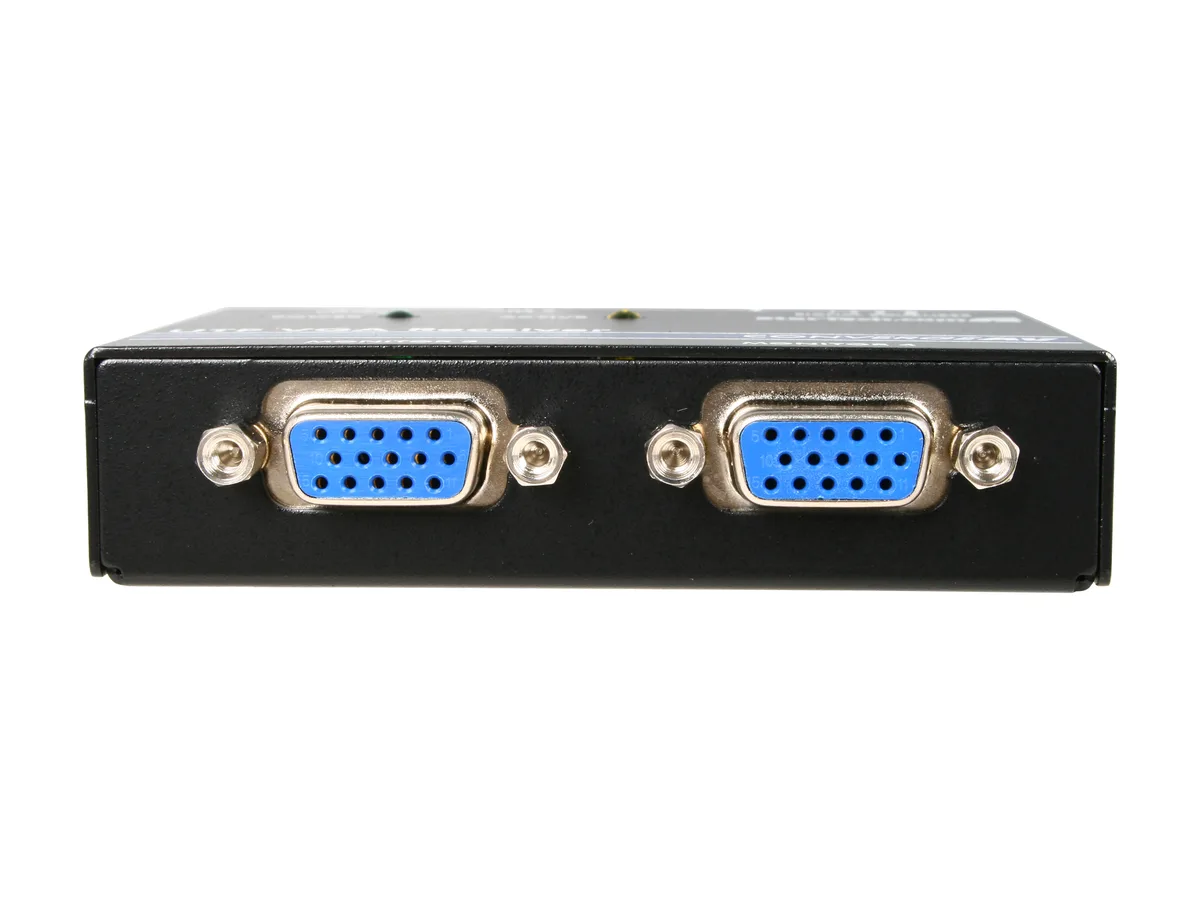

  • VGA2 - VGA (15 pin; High Density D-Sub) Female

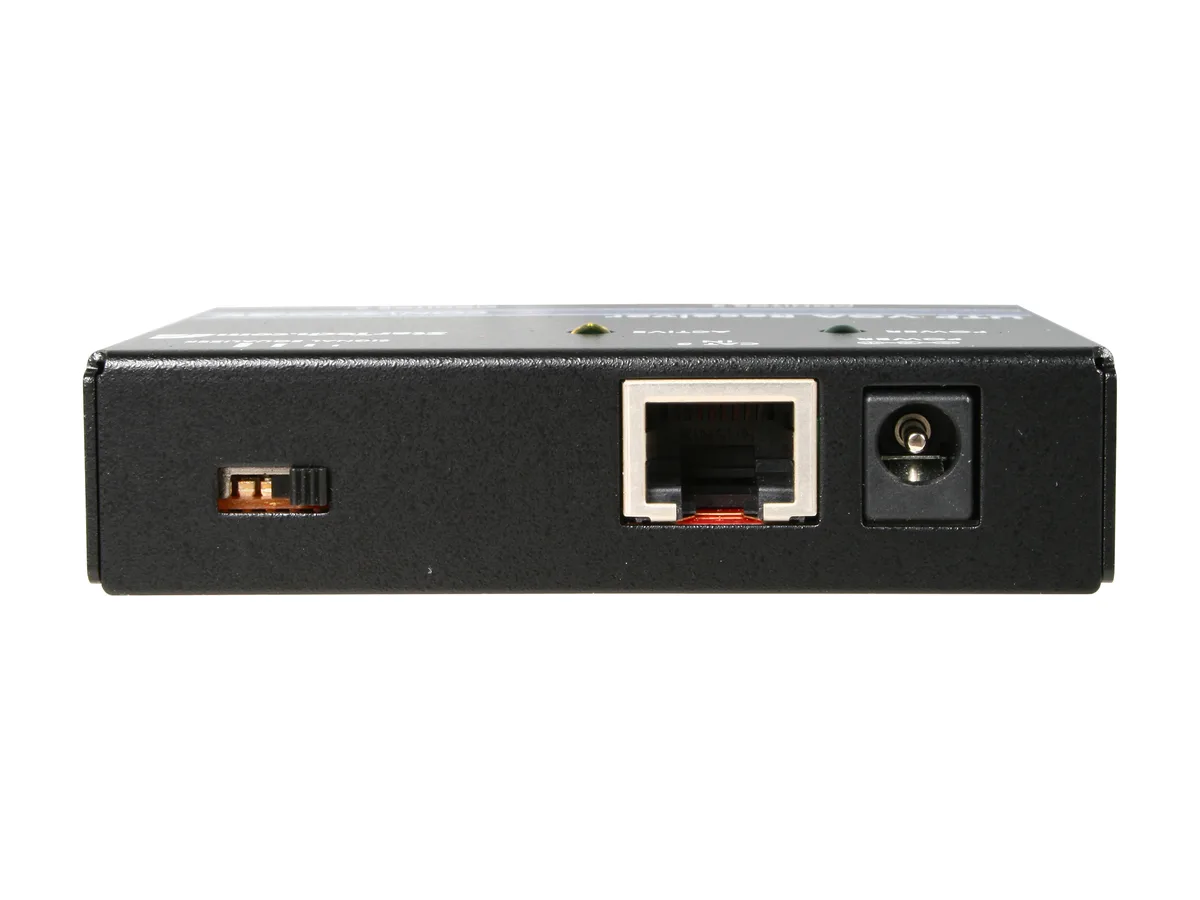

  • Other Connector1 - RJ-45 Female
  • Power SupplyPower Adapter Included: Yes Input Voltage; 115 AC Output Vol
  • Extends VGA signals up to 150 m over Cat5 cable
  • Supports 1600x1200 resolution at 50 m cable distance
  • Driver-free hardware design needs no software installation
  • Includes mounting brackets for flexible placement options
  • Works with ST1212T, ST1214T and ST1218T transmitters

VGA Over Cat5 Receiver For 150 m Runs

The StarTech ST121R receives a VGA signal sent over standard Cat5 twisted-pair cable at distances up to 150 m. It is built for installers who need to place displays far from the source in classrooms, lobbies or server rooms. No drivers or software are required, so deployment is a simple hardware connection.

Included Mounting Brackets And Power Adapter

The box supplies a 9 V DC power adapter and metal brackets for surface mounting the aluminum enclosure. These items let technicians secure the receiver near the display and power it from a local mains outlet without sourcing extra parts. The unit draws 0.6 A from the supplied adapter.

Resolution Drops As Cable Length Increases

At 50 m the extender supports 1600x1200, at 100 m it supports 1280x1024, and at the full 150 m it supports 1024x768. Buyers who need higher resolutions at the maximum distance cannot meet that requirement with this standard. Daisy-chaining and audio transmission are also not supported.

Najważniejsze cechy

  • Extends VGA signals up to 150 m over Cat5 cable
  • Supports 1600x1200 resolution at 50 m cable distance
  • Driver-free hardware design needs no software installation
  • Includes mounting brackets for flexible placement options
  • Works with ST1212T, ST1214T and ST1218T transmitters

Specyfikacja

BrandStarTech.com
ModelST121R
Extender & Repeater TypeNon Wall Plate Extender
Distance150 m / 500 ft.
Resolution Support1600x1200 @ 150ft(50m)
1280x1024 @ 300ft(100m)
1024x768 @ 500ft(150m)
VGA2 - VGA (15 pin; High Density D-Sub) Female
Other Connector1 - RJ-45 Female
Power SupplyPower Adapter Included: Yes
Input Voltage; 115 AC
Output Voltage: 9 DC
Output Current: 0.6A
Center Tip Polarity; Positive
Plug Type: M
SpecificationCabling: Cat 5 UTP or better
Audio: No
Daisy-Chain: No
Maximum Cable Length: 500 ft [152.4 m]
Color: Black
Enclosure Type: Aluminum
FeatureExtends video cables by up to 500 ft. (150m)
Pure hardware design, no software or drivers required
Included mounting brackets
Uses standard Category 5 straight-wired, twisted-pair, network patch cable for economical and reliable data transmission
Dimensions3.3"L x 2.6"W x 0.8"H
Weight171g

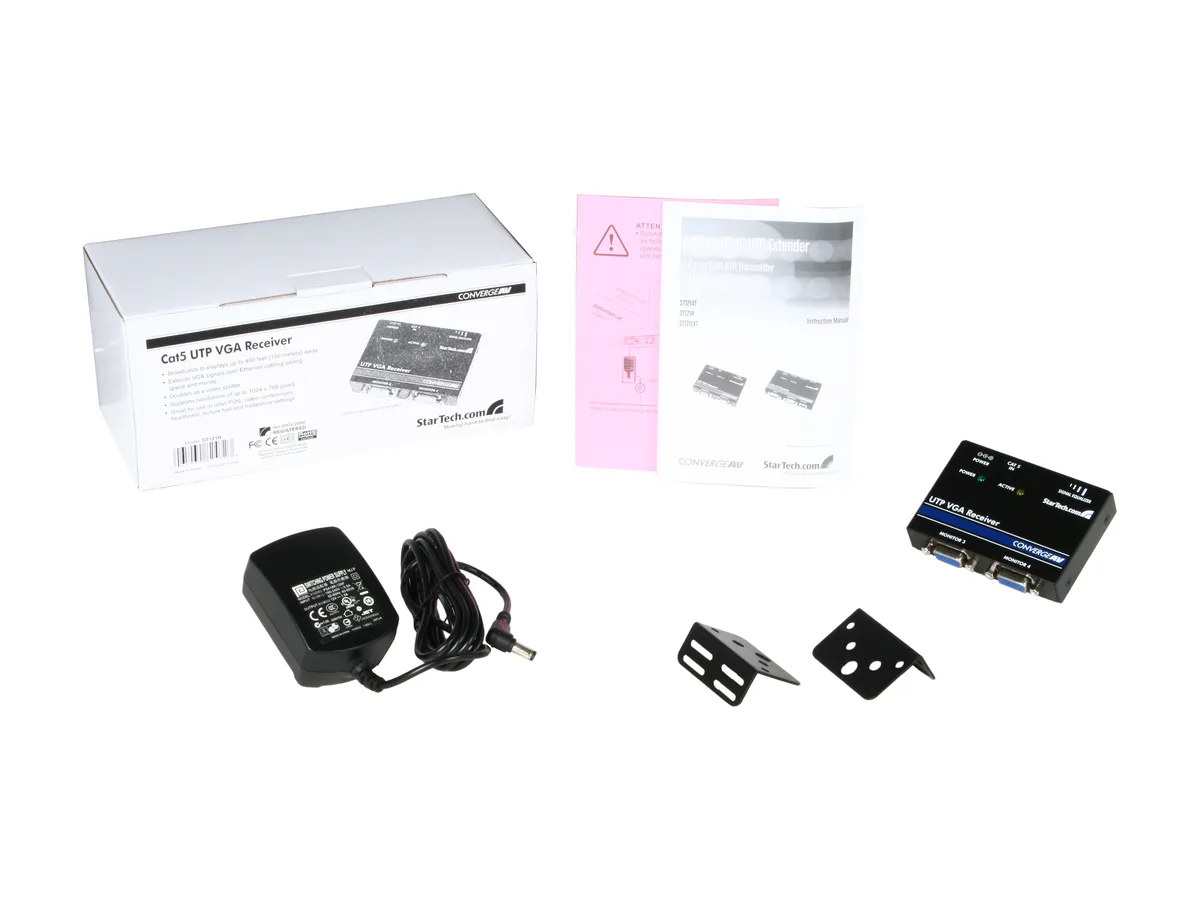

Package Content1 - REMOTE UNIT VGA EXTENDER
1 - 9V AC 500ma ADAPTORS
1 - INSTRUCTION MANUAL
Waga przesyłki0.48 kg
Wymiary opakowania218 × 102 × 94 mm

Pytania dotyczące tego produktu

How far can I run Cat5 cable before the 1024x768 image degrades?

The receiver supports 1024x768 at up to 150 m or 500 ft over Cat5 UTP or better cable.

What resolution drops first when the cable run approaches the maximum distance?

At 150 m the highest supported resolution is 1024x768; higher resolutions require shorter runs such as 1280x1024 at 100 m.

Does the aluminium enclosure stay cool enough for continuous 24-hour operation without a fan?

The passive aluminium housing dissipates heat from the low-power 9 V DC 0.6 A supply, so no active cooling is needed for all-day use.
