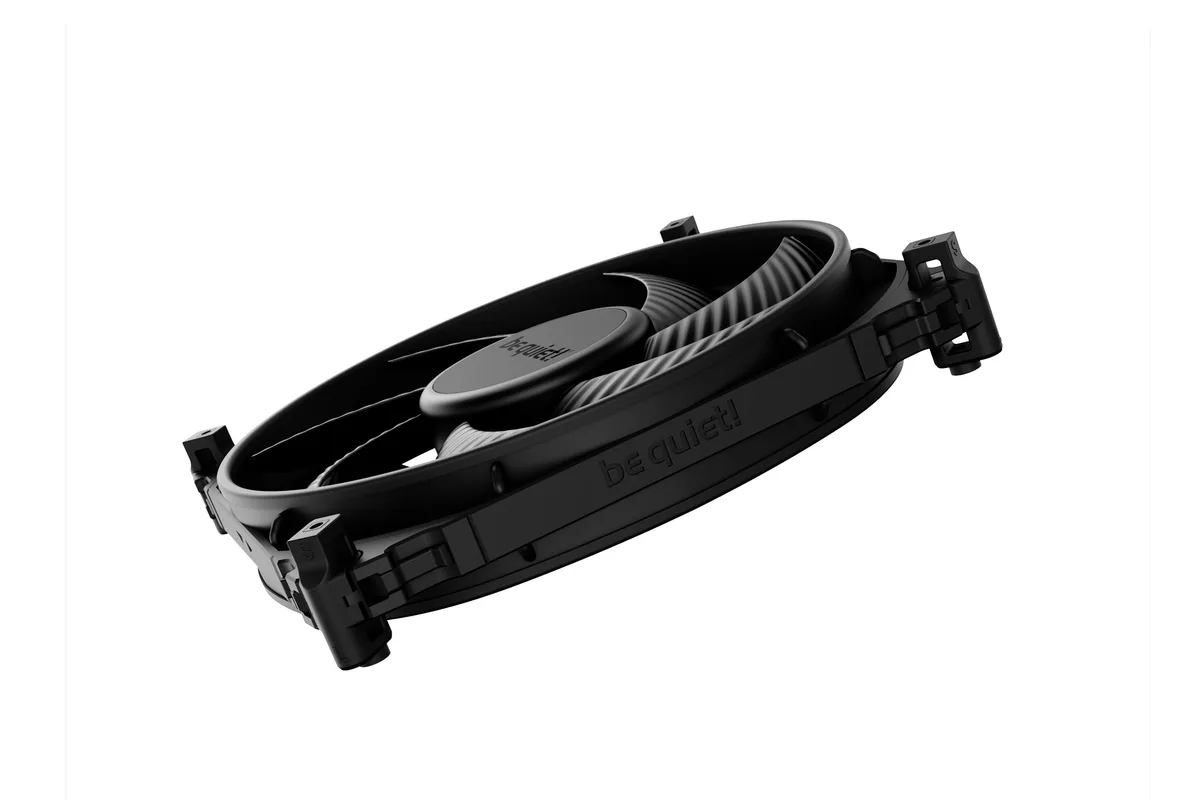

Black 140mm PWM case fan with 25mm frame, all-black finish and anti-vibration push pins

be quiet!

be quiet! BL096 Silent Wings 4 140mm PWM case fan

SKU CH-H6JA-T9FJF MPN BL096

A 140 mm PWM case fan with fluid-dynamic bearing running up to 1600 RPM for 51–87 CFM airflow at 10–15 dBA

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size140mm
  • Fan Thickness25mm

Option 140mm PWM

  • 120mm
  • 120mm high-speed
  • 120mm PWM
  • 120mm PWM high-speed
  • 140mm high-speed
  • 140mm PWM
  • 140mm PWM White

As versões riscadas existem, mas não estão disponíveis aqui.

Color Black

  • Black
  • White

As versões riscadas existem, mas não estão disponíveis aqui.

  • Virtually inaudible at 10 to 15 dBA noise level
  • High airflow of 51 to 87 CFM for cooling performance
  • Fluid-dynamic bearing rated for up to 300000 hours lifespan
  • 6-pole motor reduces vibration and power consumption
  • Anti-vibration push pins and screw mounting options included

140 mm PWM case fan for quiet builds

The be quiet! Silent Wings 4 BL096 is a single 140 mm case fan built for systems that prioritise low noise. It uses a fluid-dynamic bearing and a six-pole motor to keep vibration minimal while delivering 51 to 87 CFM of airflow at speeds below 1600 RPM.

Suited to silent PCs and high-pressure cooling

This fan suits builders who want near-silent operation on radiators or dense heat sinks where static pressure matters. It is not for buyers who need a bundled fan controller, RGB lighting or a multi-fan kit in a single package.

Check mounting and header before ordering

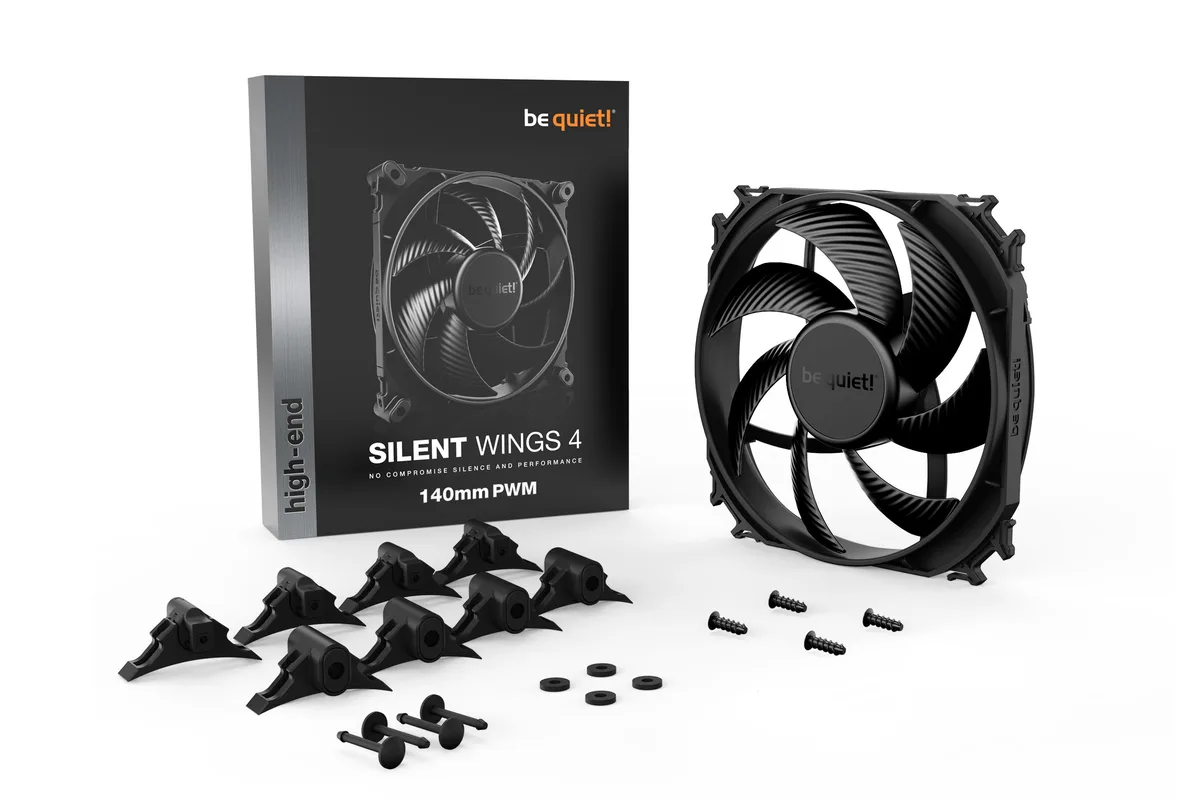

Verify your chassis or cooler has 140 mm mounting points with 25 mm clearance for the frame thickness. Ensure the motherboard or fan hub provides a standard 4-pin PWM header for speed control. The box includes anti-vibration push pins and screws for either mounting method.

Pontos fortes

  • Virtually inaudible at 10 to 15 dBA noise level
  • High airflow of 51 to 87 CFM for cooling performance
  • Fluid-dynamic bearing rated for up to 300000 hours lifespan
  • 6-pole motor reduces vibration and power consumption
  • Anti-vibration push pins and screw mounting options included

Especificações

Brandbe quiet!
SeriesSILENT WINGS 4
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size140mm
Fan Thickness25mm
Bearing TypeFluid Dynamic
RPM<1600 RPM
Air Flow51-87 CFM
Noise Level10 - 15 dBA
Power Connector4 Pin
ColorBlack
Peso de envio0.39 kg
Dimensões da embalagem206 × 159 × 32 mm

Outras versões deste modelo

Mais 2 nesta gama

Mesma família, memória, ventoinha ou frequência diferentes — compare antes de decidir.

Perguntas sobre este artigo

What motherboard header does the 4-pin PWM connector on this fan plug into?

It plugs into any standard 4-pin PWM fan header on the motherboard for automatic speed control.

Will the 140mm frame and 25mm thickness fit the mounting points on my older case?

The fan uses the standard 140mm square frame with 25mm depth, matching the screw-hole spacing used on most cases for years.

How can I confirm the fan is running within its 10 to 15 dBA noise range after installation?

At low PWM duty cycles the fan should be virtually inaudible; use a decibel meter at close range to verify the 10–15 dBA level.
