Silver 2U rackmount server chassis with eight front hot-swap drive bays

BFKK

BFKK 2U Server Chassis 8×3.5″ Hot-Swap 545 mm Depth

SKU CH-2G01-C436Z

Rackmount 2U chassis holds eight hot-swap 3.5" SAS/SATA drives plus a slim ODD and two 2.5" bays, cooled by four 80 mm PWM fans, fits 600 mm cabinets at 545 mm depth.

  • Chassis TypeRackmount
  • Eight hot-swap 3.5″ drive bays for high-density storage
  • Micro-ATX and Mini-ITX motherboard support fits compact builds
  • Four 80 mm PWM fans deliver active cooling
  • 545 mm depth fits standard 600 mm cabinets

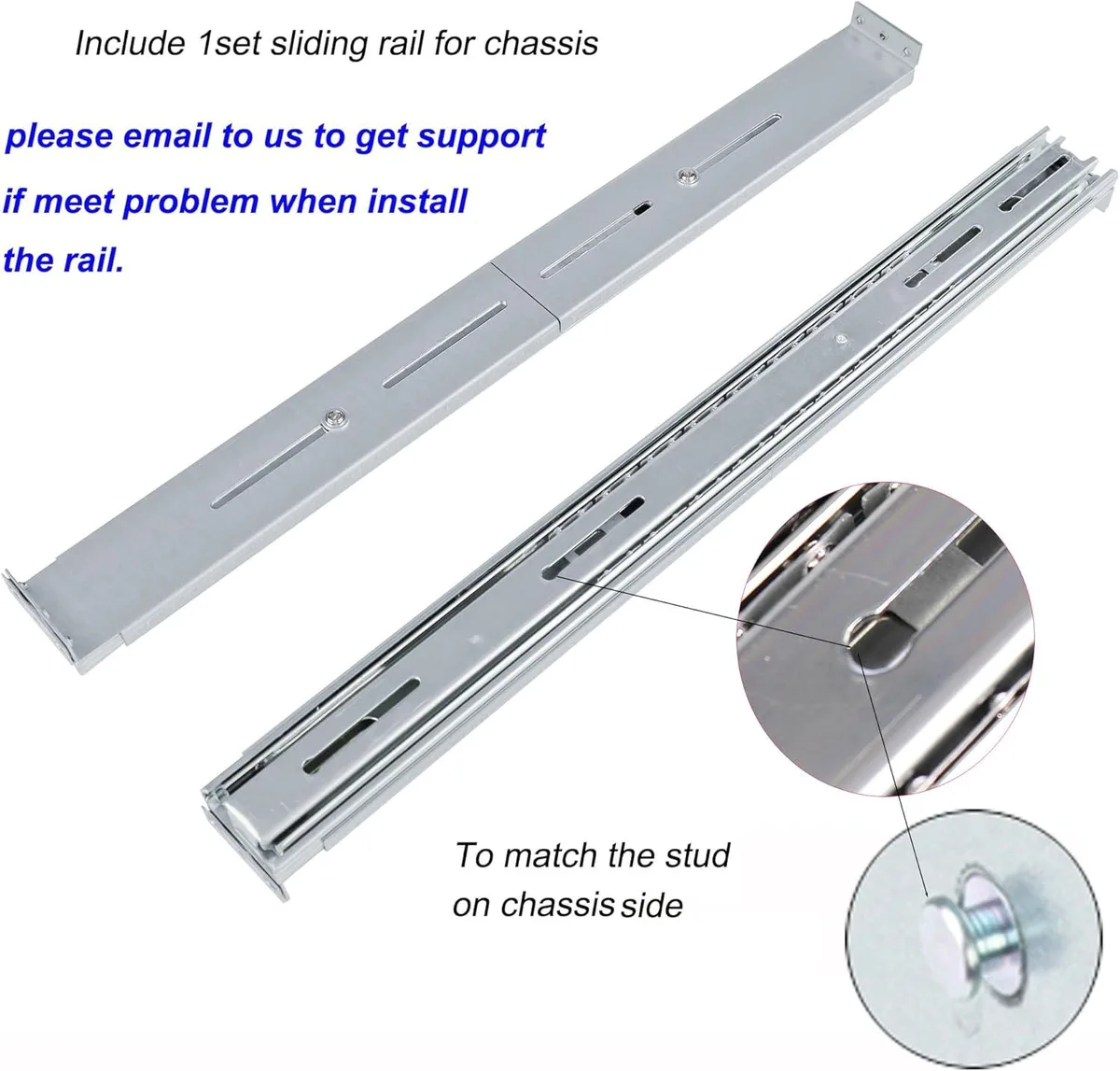

  • Includes sliding rails and Mini SAS to SATA cables

Chassis Capacity and Form Factor

This 2U rackmount chassis fits Micro-ATX 9.6 x 9.6 and mini-ITX 6.7 x 6.7 motherboards. It provides eight hot-swap bays for 2.5 or 3.5 inch SAS and SATA drives. A slim optical drive bay and an additional 2.5 inch bracket are also included.

Motherboard and Power Supply Compatibility

Verify that your motherboard matches the Micro-ATX or mini-ITX form factors listed. The chassis accepts a standard ATX power supply with an 80mm side-mounted fan. Two reversed Mini SAS SFF-8643 to 4x SATA cables are supplied for the backplane connection.

Cooling and Cabinet Fit

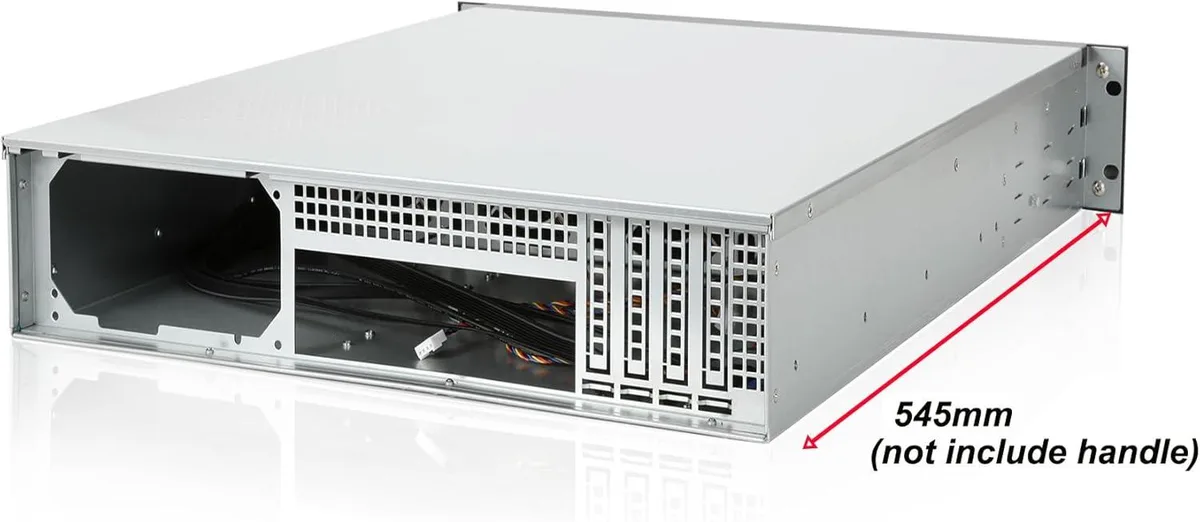

Four 80mm PWM fans provide active airflow through the 545mm deep enclosure. The unit includes sliding rails for installation in a 600mm deep cabinet. Depth measurement excludes the front handle.

Pontos fortes

  • Eight hot-swap 3.5″ drive bays for high-density storage
  • Micro-ATX and Mini-ITX motherboard support fits compact builds
  • Four 80 mm PWM fans deliver active cooling
  • 545 mm depth fits standard 600 mm cabinets
  • Includes sliding rails and Mini SAS to SATA cables

Especificações

Chassis TypeRackmount

Perguntas sobre este artigo

Does the chassis ship with cables and rails, or must I order Mini-SAS-to-SATA leads and sliding rails separately?

The box includes two reversed Mini SAS SFF-8643 to 4×SATA cables and one set of sliding rails, so no separate purchase is needed for those items.

Should I select the 3.5″ or 2.5″ bay configuration for eight hot-swap drives?

Each of the eight front bays accepts both 2.5″ and 3.5″ SAS or SATA drives simultaneously, so you do not choose between them.

Will a 545 mm deep chassis with 80 mm PWM fans fit and cool properly inside a standard 600 mm cabinet?

At 545 mm deep (excluding handles) it leaves clearance in a 600 mm cabinet, and the four 80 mm PWM fans provide active airflow for the installed drives and motherboard.
