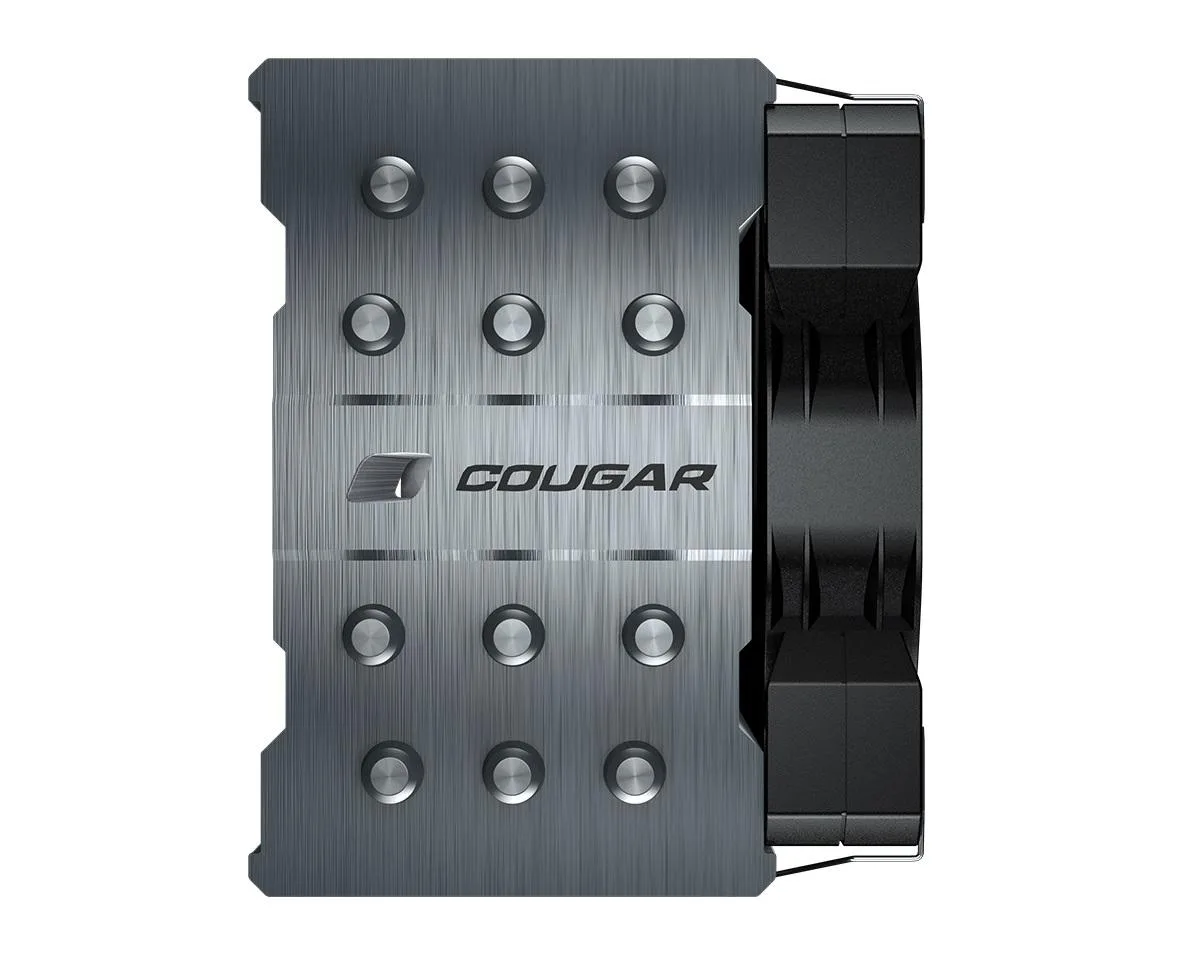

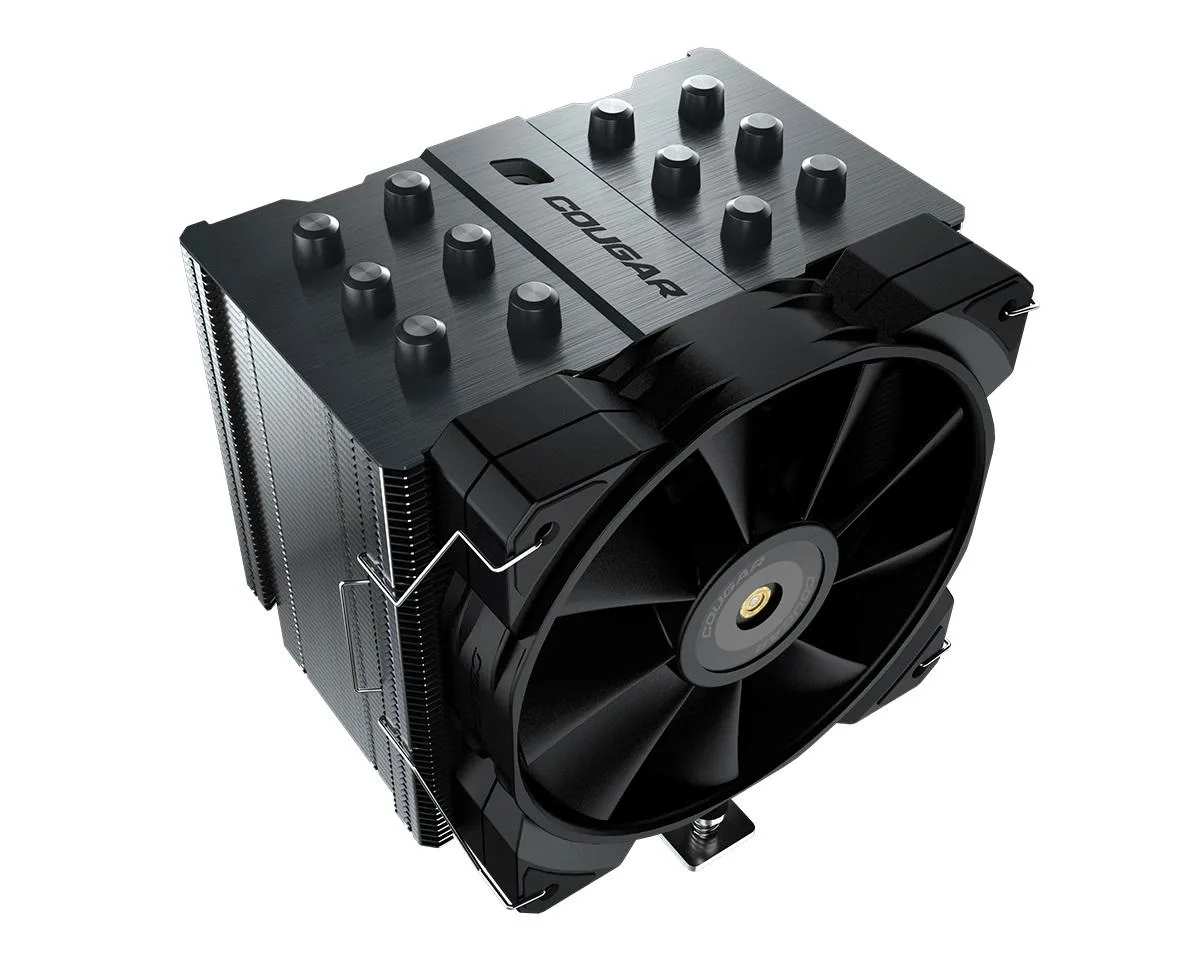

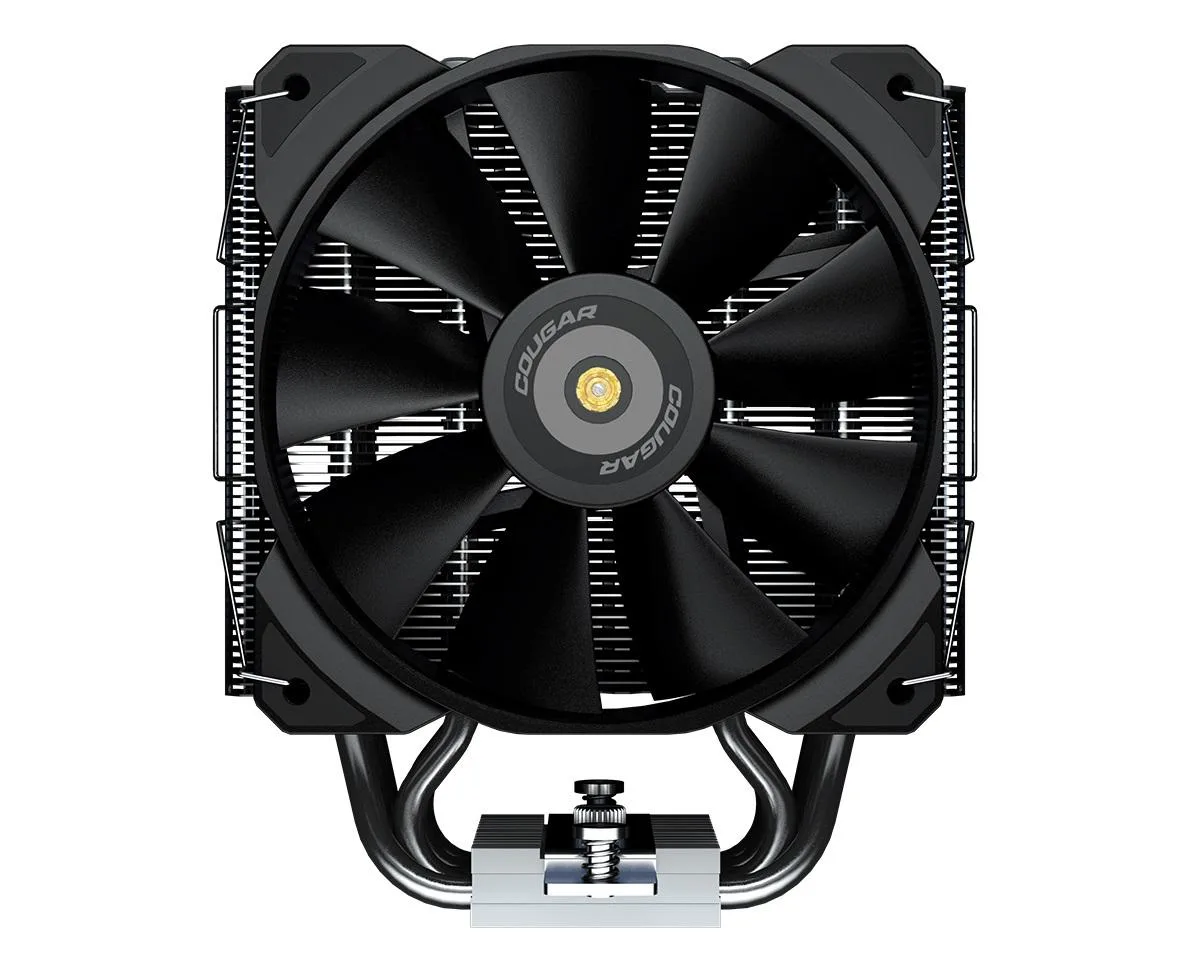

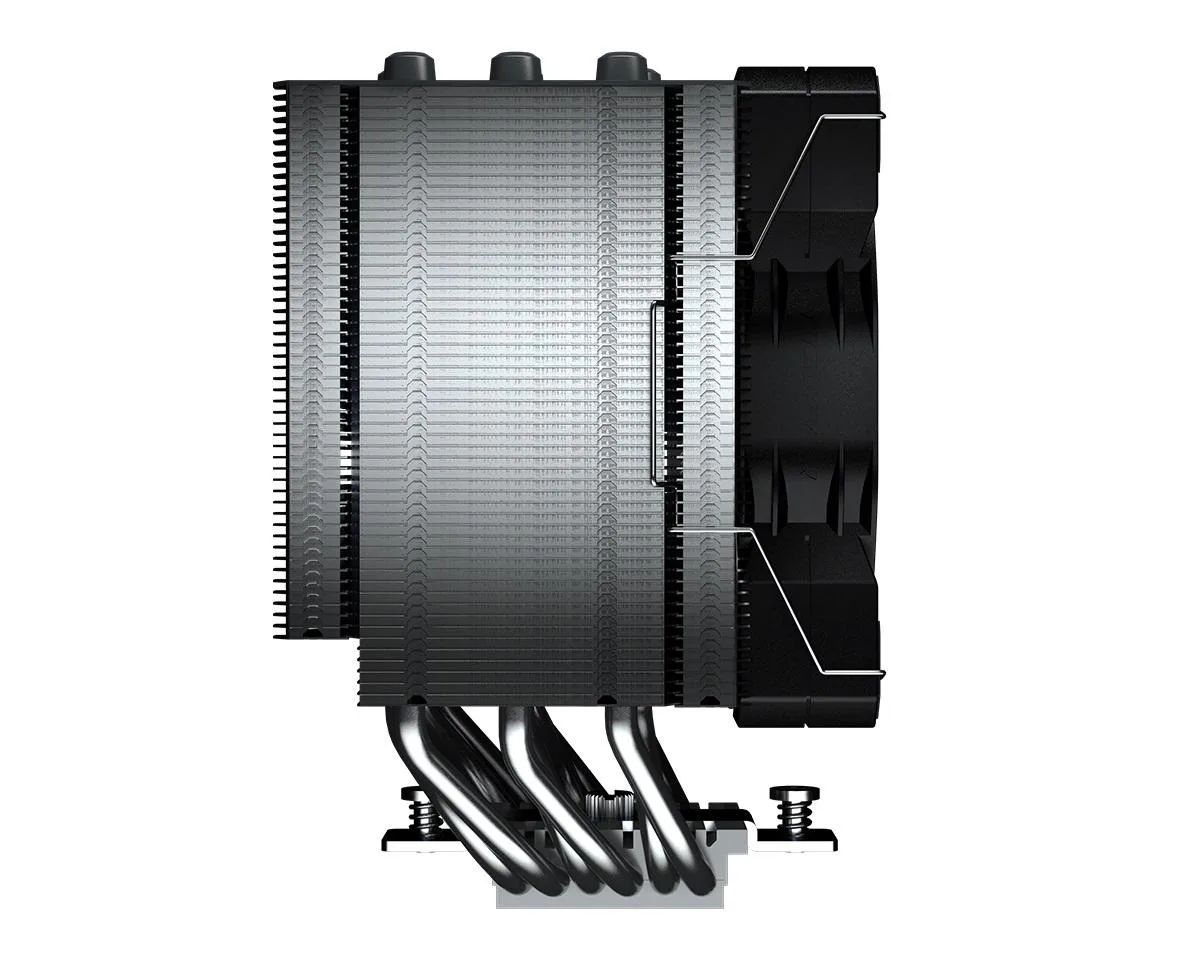

Silver single-tower heatsink with 120 mm fan and decorative pipe caps

COUGAR

COUGAR FORZA 85 CPU cooler 120mm HDB 600-2000 RPM

SKU CH-1RA6-KWNPP MPN FORZA 85

Single-tower air cooler with a 120 mm HDB fan running 600-2000 RPM and six 6 mm heat pipes for Intel LGA 115X/1200/1700/2011/2066 and AMD AM4/FM2/AM3+/AM3/AM2+/AM2 sockets

  • TypeFan & Heatsinks
  • Fan Size120mm
  • CPU Socket CompatibilityIntel Socket LGA 115X / 1366 / 1200 / 1700 / 2011 / 2066 (Co
  • Bearing TypeHDB Hydro Dynamic Bearing
  • RPM600-2000 RPM +/- 200RPM
  • Air Flow82.48 CFM / 143.53 m3/h (+/- 10%)
  • Broad CPU support covers Intel LGA 115X through 2066 and AMD AM4 to AM2
  • Hydro Dynamic Bearing fan runs 600-2000 RPM for quiet or high airflow
  • 48 CFM maximum airflow with 31.68 dB(A) peak noise
  • 90-degree fin flip design improves heat dissipation across 6 heat pipes
  • 160 mm height fits most cases and includes mounting for a second fan

Single-tower air cooler

The COUGAR FORZA 85 is a single-tower CPU air cooler built around a 120 mm fan with a hydro-dynamic bearing. It stands 160 mm tall and weighs 1160 g with the fan fitted. Six 6 mm copper heat pipes use direct-touch technology to draw heat from the processor into the aluminium fin stack.

Builders needing broad socket support

Compatibility covers Intel LGA 115X, 1366, 1200, 1700, 2011 and 2066 plus AMD AM4, FM2, FM1, AM3+, AM3, AM2+ and AM2. The 4-pin PWM connector allows automatic speed control from 600 to 2000 RPM. Buyers whose case cannot clear 160 mm or who want a dual-fan kit in the box should look elsewhere.

120 mm HDB fan at 2000 RPM max

The included MHP 120 fan spins up to 2000 RPM and pushes 82.48 CFM at a maximum of 31.68 dB(A). Fins are bent 90 degrees at both ends to guide airflow through the 85 x 135 mm heatsink face. A second 120 mm fan can be added for push-pull operation.

Pontos fortes

  • Broad CPU support covers Intel LGA 115X through 2066 and AMD AM4 to AM2
  • Hydro Dynamic Bearing fan runs 600-2000 RPM for quiet or high airflow
  • 48 CFM maximum airflow with 31.68 dB(A) peak noise
  • 90-degree fin flip design improves heat dissipation across 6 heat pipes
  • 160 mm height fits most cases and includes mounting for a second fan

Especificações

BrandCOUGAR
ModelFORZA 85
TypeFan & Heatsinks
Fan Size120mm
CPU Socket CompatibilityIntel Socket LGA 115X / 1366 / 1200 / 1700 / 2011 / 2066 (Core i3 / i5 / i7 / i9 CPU)
AMD AM4 / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 CPU
Bearing TypeHDB Hydro Dynamic Bearing
RPM600-2000 RPM +/- 200RPM
Air Flow82.48 CFM / 143.53 m3/h (+/- 10%)
Noise Level31.68 dB(A) (Max.)
Power Connector4 Pin PWM
Fan Mounting Types to HeatsinkVertical
Max CPU Cooler Height160 mm
Fan Dimensions120 x 120 x 25 mm
Heatsink Dimensions85 x 135 x 160mm
WeightHeatsink Weight: 958 g
Weight Incl. Fan: 1160 g
FeaturesElegant Pipe Caps Decoration
Extremely Hyper Fan With 2000 RPM(max)
Designed with a 90-degree flip shape on both ends of the fins on heatsink.
Dual Fan Acceptable, with 1 x MHP 120 high performance fan included.
User-friendly Installation
Heatsink:
CPU touched base: Copper with HDT technology
Heat pipe diameter: 6 mm
Heat pipe number: 6 units
Heat pipe finish: Copper with nickel plated
Craftsmanship: Reflow
Fans:
Fan Model: MHP120
Air Pressure: 4.24 mm H2O +/- 10%
Rated Voltage: 12 VDC
Rated Current: 0.23 A
Power Consumption: 2.76 W +/- 10%
Cable Length: 200 mm
Peso de envio1.62 kg
Dimensões da embalagem189 × 182 × 182 mm

Perguntas sobre este artigo

Will the 160 mm total height of the FORZA 85 fit inside my chassis?

The cooler stands 160 mm tall including the fan, so verify your case specifies at least 160 mm of CPU-cooler clearance before purchasing.

Which mounting bracket do I use for an AMD AM4 socket, and what is the common mistake?

Select the AMD AM4 bracket from the kit, apply thermal paste to the CPU, then secure the heatsink with the spring-loaded screws in a cross pattern — the step often missed is tightening all four screws evenly instead of one at a time.

How do I replace the included 120 mm HDB fan if it fails years later?

Unclip the wire retention brackets holding the MHP 120 fan to the 85 mm wide heatsink, disconnect the 4-pin PWM cable, then snap a standard 120 x 120 x 25 mm replacement fan into the same brackets and reconnect the header.
