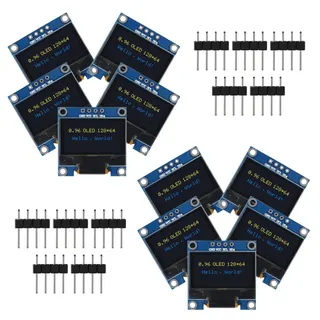

Ten small square OLED modules with blue and yellow pixels on glass, each 27 mm across, four-pin headers ready for I2C connection

KEHIPI

KEHIPI 10 PCS 0.96 inch 128x64 OLED SSD1306 I2C Display Board Blue Yellow development board

SKU CH-XZY9-SDAXR

Pack of ten 0.96 inch 128×64 OLED modules with SSD1306 driver, I2C interface and blue-yellow split display for microcontroller projects

  • Ten boards in one pack for multi-project use
  • 96 inch OLED with 128x64 resolution for sharp graphics
  • SSD1306 driver and I2C interface need only four pins
  • Operates from 3.3V to 5V with 0.04W typical draw
  • Two yellow rows and six blue rows add colour-coded info

10-Pack 0.96 Inch OLED Development Boards

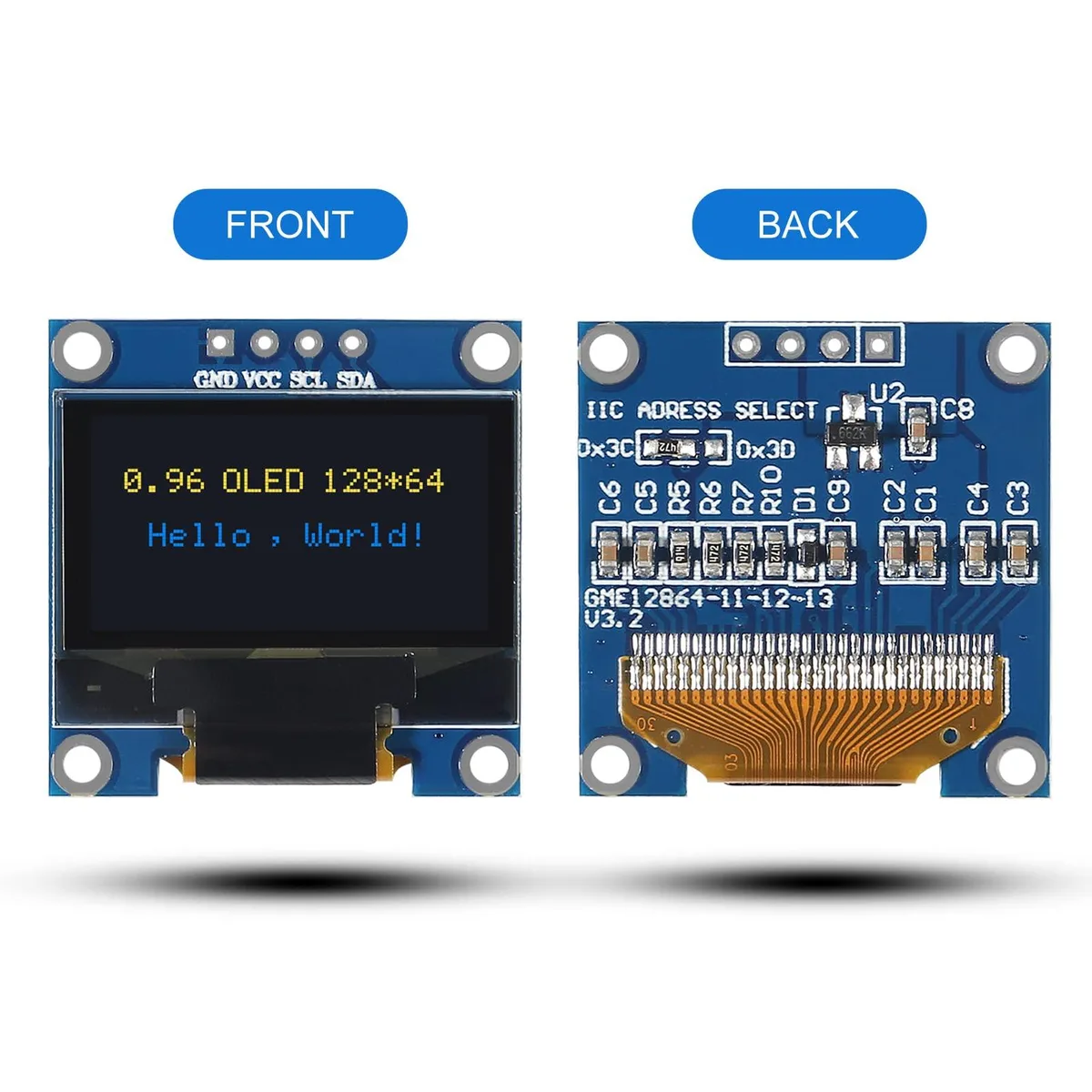

This pack supplies ten 0.96 inch OLED modules with a 128 x 64 pixel array driven by the SSD1306 controller. Each board communicates over a four-pin I2C interface that needs only two I/O lines from the host. The displays operate from 3.3 V to 5 V and show two rows of yellow pixels above six rows of blue pixels. Makers building multiple sensor nodes, wearable prototypes or instrument clusters can populate several boards at once.

Sustained Operation and Thermal Limits

During continuous use the module draws 0.04 W with typical content and 0.08 W when the full 128 x 64 matrix is lit. The self-luminous OLED pixels need no backlight, so power stays low even during long logging sessions. The glass panel is rated for a working range of -30 °C to 70 °C, allowing deployment in outdoor enclosures or heated instruments without active cooling. A viewing angle exceeding 160 ° keeps readings legible from off-axis positions.

Integration Checklist Before Ordering

Verify that your target MCU or single-board computer provides a 3.3 V or 5 V supply rail and two free I2C pins (SDA and SCL) plus common ground. The 27 mm square footprint and 4 mm thickness must fit inside the intended enclosure, and the glass screen needs mechanical protection against impact. Confirm your software stack includes an SSD1306 driver compatible with the 128 x 64 resolution and the yellow-over-blue colour split.

Pontos fortes

  • Ten boards in one pack for multi-project use
  • 96 inch OLED with 128x64 resolution for sharp graphics
  • SSD1306 driver and I2C interface need only four pins
  • Operates from 3.3V to 5V with 0.04W typical draw
  • Two yellow rows and six blue rows add colour-coded info

Especificações

BrandAITRIP

Perguntas sobre este artigo

How much power does each 0.96 inch SSD1306 display draw when the full 128x64 screen is lit?

Each module consumes 0.08 W with every pixel active and only 0.04 W during normal operation, so ten boards stay well below one watt total.

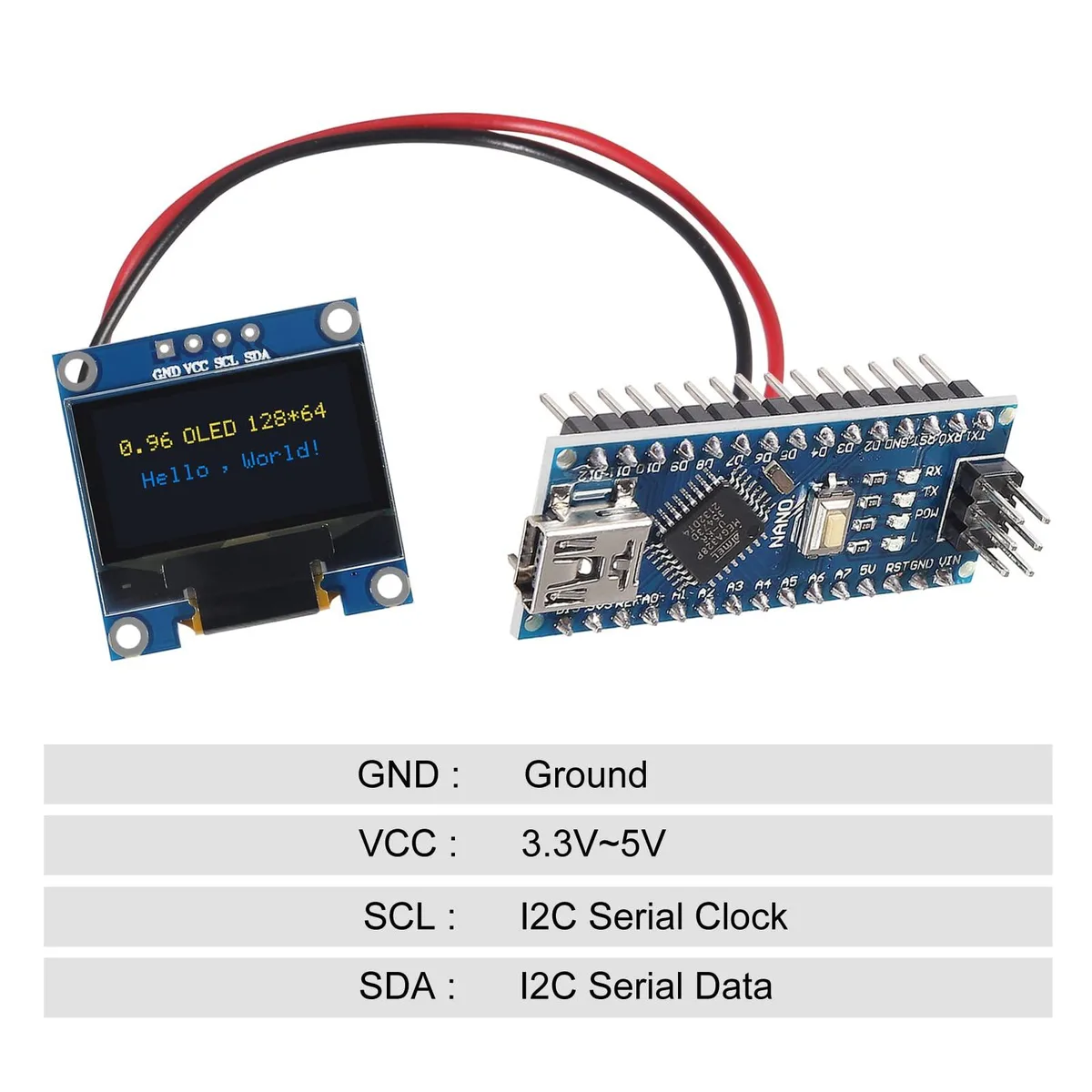

Which pins must my microcontroller provide for the I2C connection on these boards?

You need to supply VCC at 3.3 V to 5 V, ground, plus the SCL clock and SDA data lines — four pins in total per display.

Will the 27 mm module fit alongside a Raspberry Pi HAT that uses the same I2C bus?

Yes, the board measures 27 mm square and uses only the shared I2C bus, so multiple displays can coexist with other I2C devices on the same pins.
