Circular PCB with 24 addressable LEDs and bolt holes for micro:bit

Kitronik Ltd

Kitronik ZIP Halo for BBC micro:bit 24 ZIP LEDs

SKU CH-8Q9G-HB4DS

Add-on board with 24 individually addressable ZIP LEDs that bolts directly onto a BBC micro:bit and includes extension pads

  • TypeEngineering Development Tools
  • 24 individually addressable ZIP LEDs for colourful coding projects
  • Bolts directly onto BBC micro:bit with five secure bolts
  • Built-in blocking diode protects the micro:bit power supply
  • Extension connector pads at .1 pitch for extra LEDs or sensors
  • Compatible with Adafruit NeoPixel and WS2812B driver code

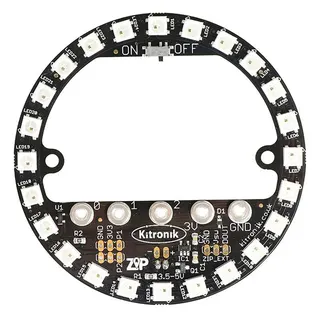

Halo board for BBC micro:bit

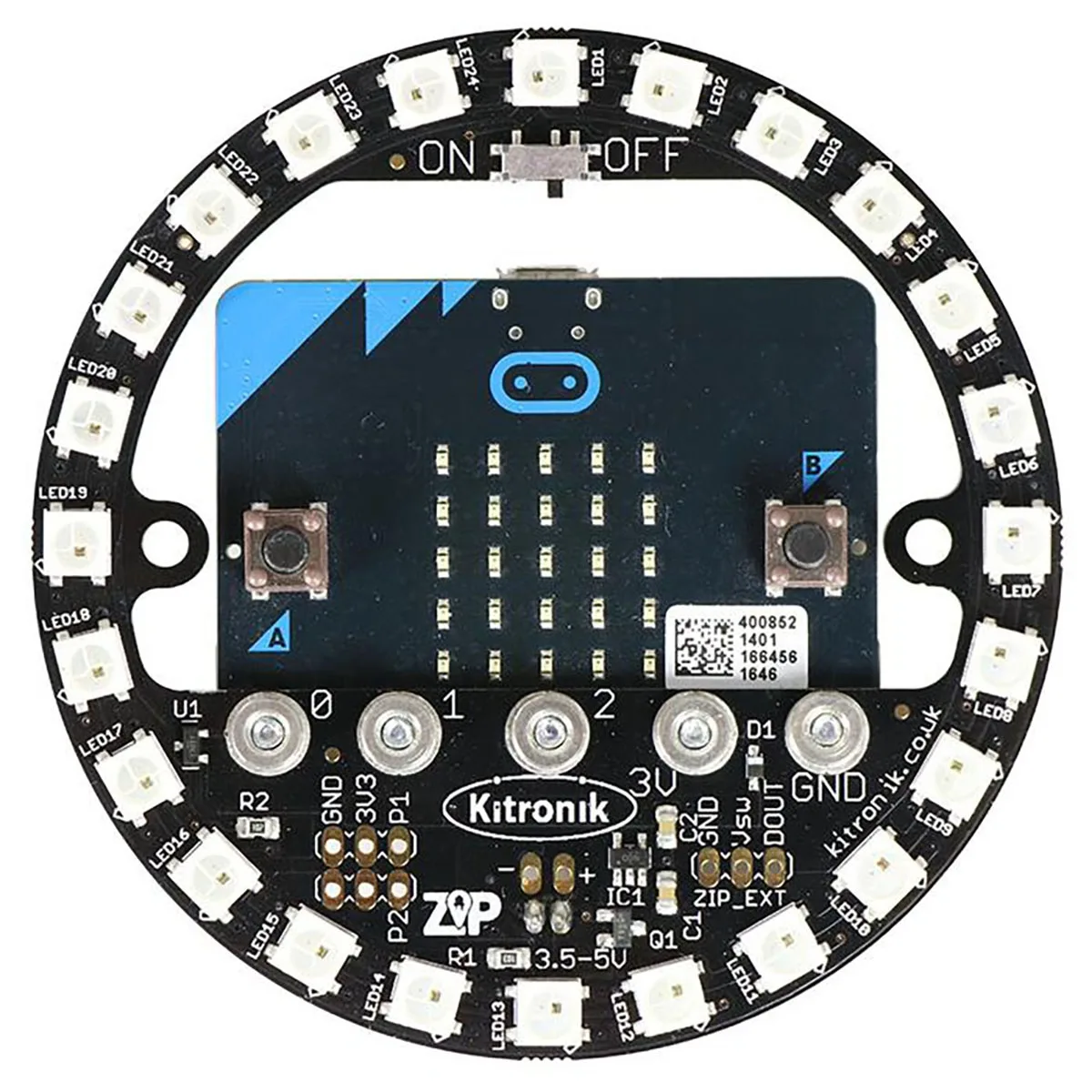

The Kitronik ZIP Halo bolts directly onto a BBC micro:bit using five bolts for a secure fit. It adds 24 individually addressable ZIP LEDs that can each display a full spectrum of colour. Extension connector pads with 0.1 inch pitch allow extra LEDs or low power sensors to be attached. The board suits makers and educators adding visual output to micro:bit projects.

Power input and regulation

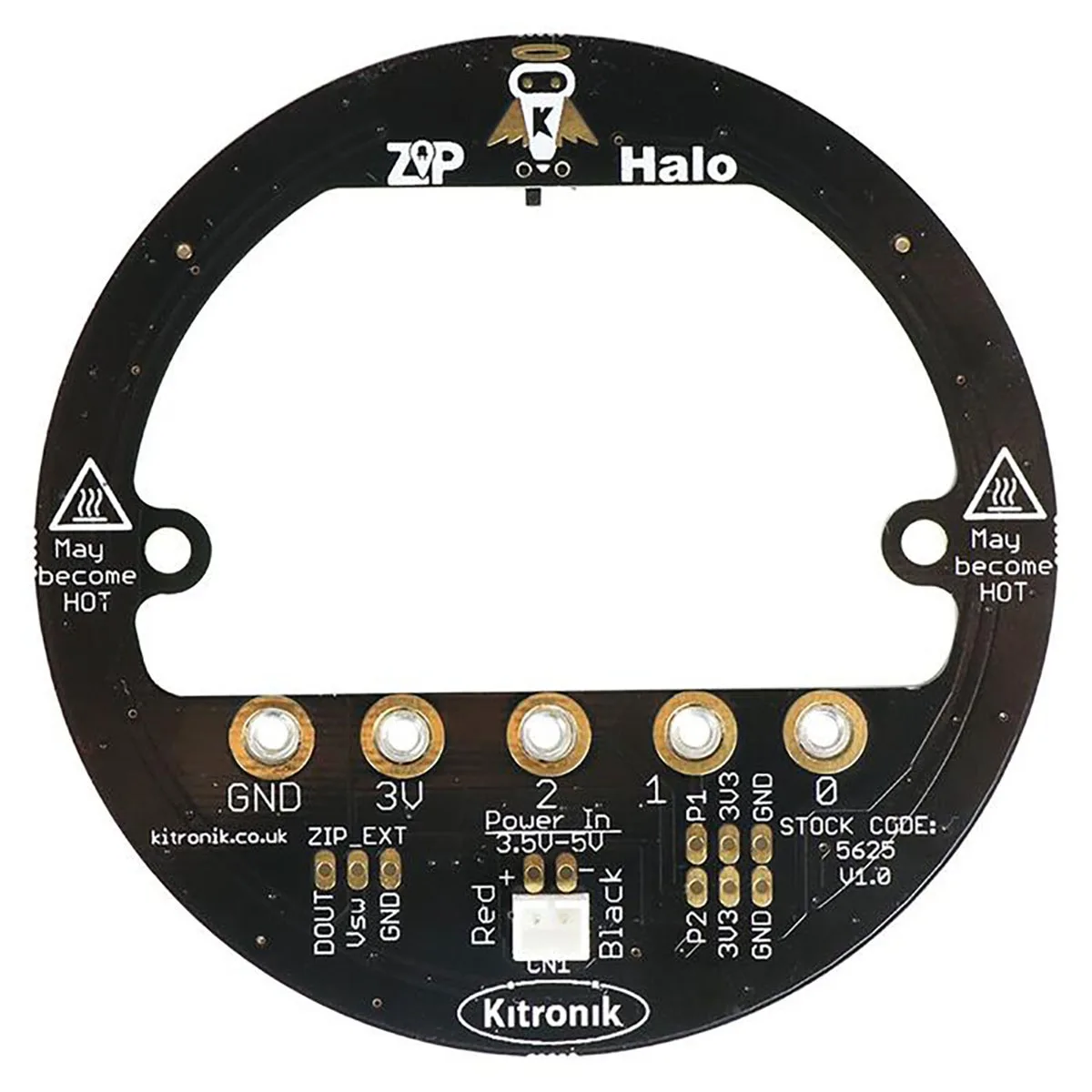

The Halo accepts a supply voltage of 3.5V to 5V and provides a regulated supply to the attached micro:bit. A built in blocking diode protects against reverse polarity. Power can be connected through a JST input using a 3xAAA battery holder or LiPo cell, or soldered directly to the PCB pads. This arrangement keeps wiring simple for portable or desk based experiments.

24 individually addressable ZIP LEDs

The single specification that decides fit is the 24 ZIP LEDs driven by WS2812B compatible protocol. Code written for Adafruit NeoPixel libraries works without modification. Buyers who need more than 24 pixels or a different LED density should look elsewhere. The fixed count and protocol define the visual resolution and software approach for every project.

Pontos fortes

  • 24 individually addressable ZIP LEDs for colourful coding projects
  • Bolts directly onto BBC micro:bit with five secure bolts
  • Built-in blocking diode protects the micro:bit power supply
  • Extension connector pads at .1 pitch for extra LEDs or sensors
  • Compatible with Adafruit NeoPixel and WS2812B driver code

Especificações

BrandKitronik
TypeEngineering Development Tools

Perguntas sobre este artigo

How do I attach the ZIP Halo to the BBC micro:bit and which step is often missed?

Bolt the board onto the micro:bit using the five mounting bolts for a secure fit; the step often missed is connecting power to the JST input or solder pads before expecting the LEDs to light.

What maintenance or replacement will the 24 ZIP LEDs need over time?

The WS2812B-compatible LEDs are surface-mounted and not user-replaceable; if a pixel fails the whole Halo board would need to be swapped rather than individual LED servicing.

What limit appears first when running all 24 LEDs at full brightness for a long period?

The 3.5 V to 5 V supply and on-board regulator set the practical ceiling; sustained maximum output will hit the voltage headroom or thermal limit of the regulator before the LED array itself.
