Netgear Inc.

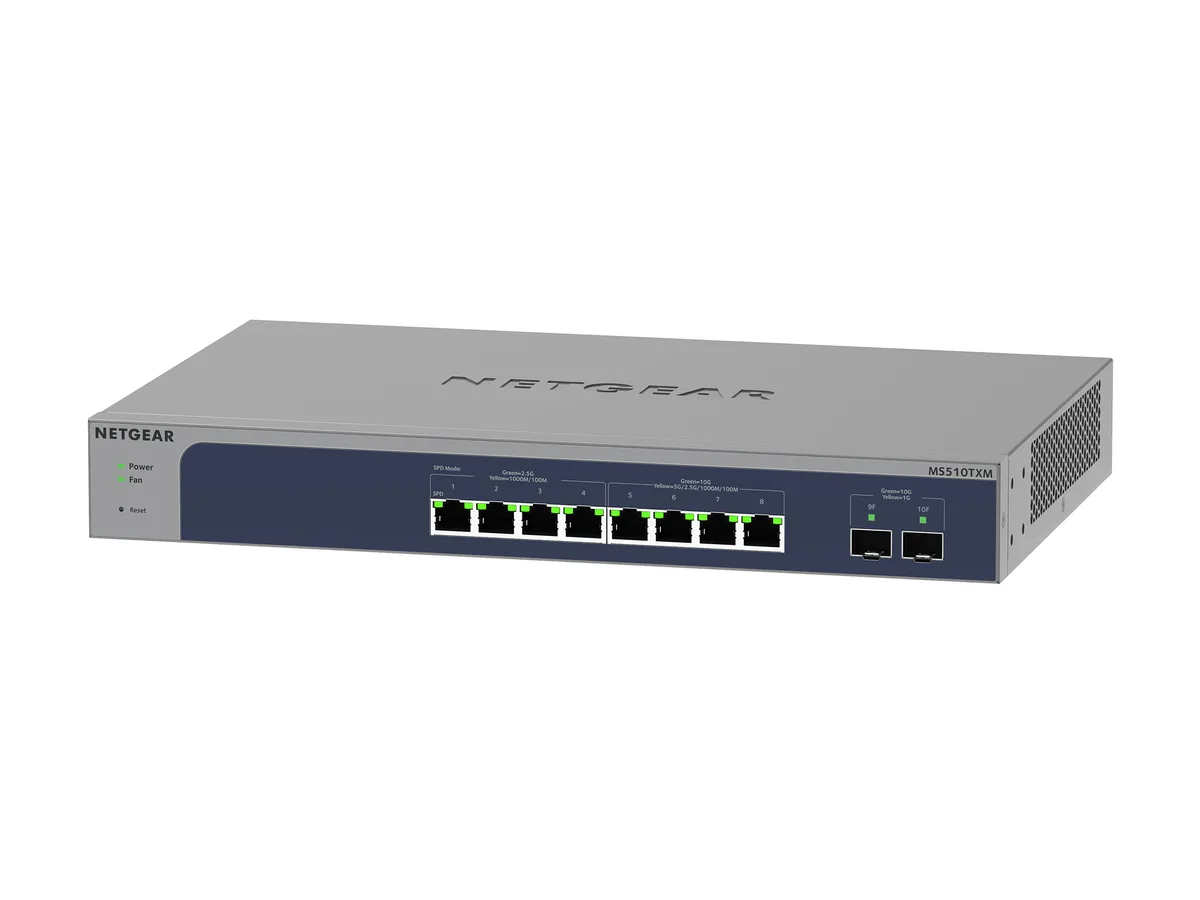

Netgear Inc. MS510TXM-100NAS 8-Port 10G Smart Switch
An 8-port 10G smart switch with four 1G/2.5G ports, four multi-gig/10G ports, two 10G SFP+ uplinks, Layer 4 features and quiet rackmount design
- FormatRackmount
- Network Management TypeSmart
- Primary Ports8 x RJ45 + 2 x SFP+
- Primary Port Speed10 Gbps
- Primary Port Type4 x 1G/2.5G Ethernet RJ-45 Copper ports + 4 x Multi-gigabit/
- MAC Address Table32K
- 8 ports at up to 10 Gbps for high-speed wired connections
- Four 1G/2.5G and four Multi-Gig/10G RJ45 ports for mixed-device flexibility
- 2 SFP+ uplinks at 10 Gbps for fibre or direct-attach links
- Smart managed Layer 4 features including VLAN, QoS, LACP and SNMP
- Whisper-quiet fan design suits noise-sensitive offices and home workspaces
Eight-Port 10G Smart Switch
The Netgear MS510TXM-100NAS is an eight-port Smart Managed Pro switch built for small-to-medium businesses that need multi-gigabit connectivity. It provides four 1G/2.5G RJ45 ports and four multi-gigabit/10G RJ45 ports, plus two 10G SFP+ uplinks. Layer 2+/Lite Layer 3 features include VLAN, QoS, LACP and SNMP support. The fan design targets quiet operation in office or rack environments.
Port Speed Mix
The decisive specification is the split between four 1G/2.5G ports and four multi-gigabit/10G ports on RJ45 copper. This fixed ratio means the switch suits sites where only half the endpoints need 10G today, while the rest run at 2.5G or 1G. Buyers who need eight full 10G copper ports or a higher 10G port count should look elsewhere. The two SFP+ slots add fibre or direct-attach uplink flexibility without changing the copper port balance.
Rack Or Desktop Install
The unit ships with all mounting hardware for 1U rackmount or desktop placement and measures 1.70" x 13.00" x 8.12". Front-panel LEDs show per-port speed, link and activity plus device power, fan and cloud-mode status. Common issues include forgetting to enable the desired management mode (local GUI, Insight cloud or SNMP) before deployment, and overlooking that the switch has no PoE budget for attached access points or cameras.
Pontos fortes
- 8 ports at up to 10 Gbps for high-speed wired connections
- Four 1G/2.5G and four Multi-Gig/10G RJ45 ports for mixed-device flexibility
- 2 SFP+ uplinks at 10 Gbps for fibre or direct-attach links
- Smart managed Layer 4 features including VLAN, QoS, LACP and SNMP
- Whisper-quiet fan design suits noise-sensitive offices and home workspaces
Especificações
| Brand | NETGEAR |
|---|---|
| Model | MS510TXM-100NAS |
| Format | Rackmount |
| Network Management Type | Smart |
| Primary Ports | 8 x RJ45 + 2 x SFP+ |
| Primary Port Speed | 10 Gbps |
| Primary Port Type | 4 x 1G/2.5G Ethernet RJ-45 Copper ports + 4 x Multi-gigabit/10G Ethernet RJ-45 Copper ports |
| MAC Address Table | 32K |
| VLAN Support | 256 VLANs |
| Buffer Memory | 2MB |
| PoE | No |
| Stackable | Yes |
| SNMP | Yes |
| QoS | Yes |
| LACP | Yes |
| Layer | 4 |
| Port Mirroring | Yes |
| LEDs | Front (per device): Power (with Cloud Mode Indicator), Fan, LED Mode Front (per port): Speed/Link/Activity |
| Dimensions | 1.70" x 13.00" x 8.12" |
| Weight | 4.25 lbs. |
| Temperature | Operating Temperature 0° to 50°C (32° to 122°F) Storage Temperature -20° to 70°C (-4° to 158°F) |
| Humidity | 95% maximum relative humidity (RH), non-condensing |
| Peso de envio | 3.18 kg |
| Dimensões da embalagem | 455 × 269 × 91 mm |
