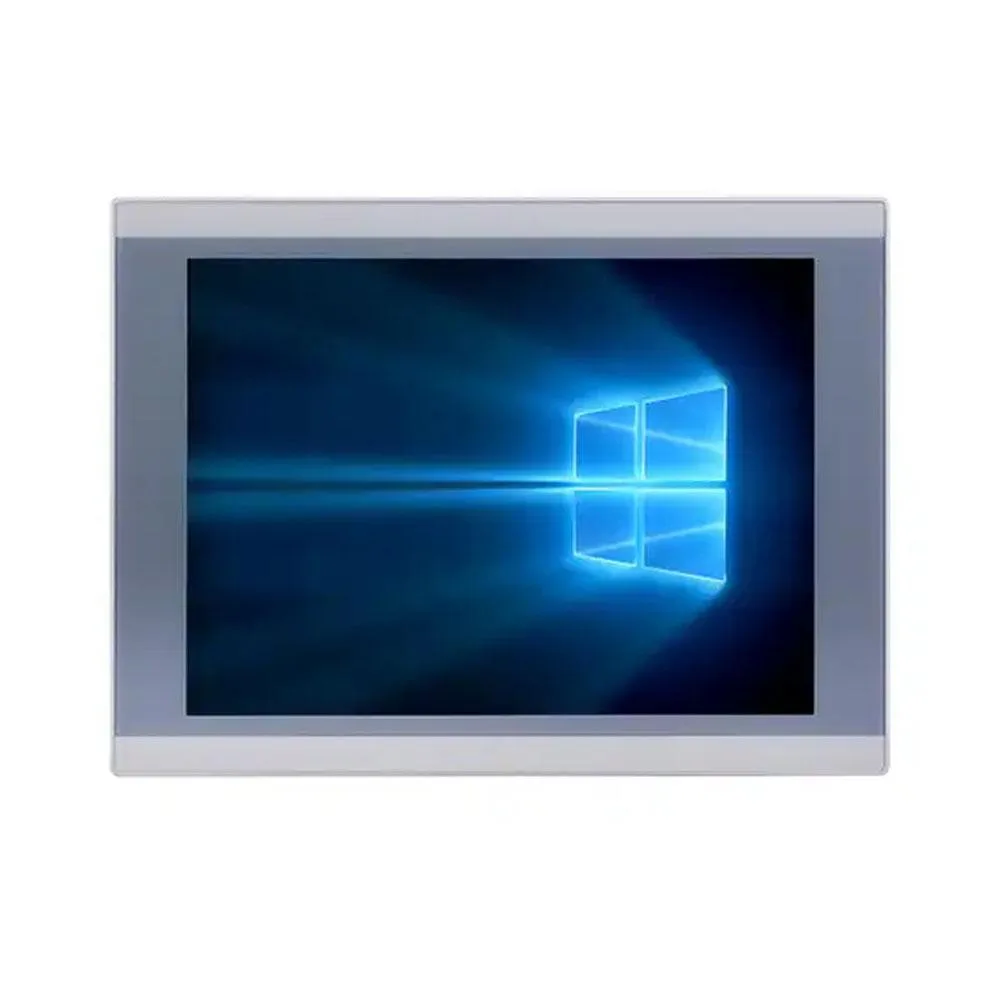

Silver 12.1 inch industrial all-in-one panel PC with IP65 front and projected capacitive touchscreen

partaker

partaker A1-PA-121TPC-CE6B(I78)-32G512G1TB all-in-one PC

SKU CH-M5RA-EXM3F

12.1-inch IP65 industrial touchscreen PC with Intel Core i7-8565U, 32GB DDR4, 512GB SSD and 1TB HDD

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 8th Gen
  • CPU NameIntel Core i7-8565U
  • GPU/VGA TypeIntel UHD Graphics

CPU Type Intel Core i7 8th Gen

CPU Name Intel Core i7-8565U

GPU Intel UHD Graphics

Memory 32GB DDR4

SSD 512GB

  • 256GB
  • 512GB
  • 1TB

HDD 1TB

As versões riscadas existem, mas não estão disponíveis aqui.

  • IP65 front panel resists dust and water jets
  • 10-point capacitive touch handles multi-finger input
  • Intel Core i7-8565U up to 4.60 GHz drives demanding tasks
  • 32 GB DDR4 with 512 GB SSD and 1 TB HDD stores large datasets
  • Fanless aluminium alloy runs silent in 0–50 °C environments

Industrial Panel PC

The Partaker A1-PA-121TPC-CE6B(I78)-32G512G1TB is a 12.1 inch all-in-one computer built for industrial environments. It combines an Intel Core i7-8565U processor with 32GB DDR4 memory, a 512GB SSD and a 1TB HDD. The IP65-rated front panel and 10-point capacitive touchscreen suit factory automation, kiosk or machine-interface deployments. Windows 11 Pro is pre-installed for immediate setup.

Fanless Cooling and Power

An aluminium alloy chassis dissipates heat without fans, delivering silent operation and reduced maintenance. The system runs continuously at 0 to 50 °C with the SSD installed and 0 to 40 °C when the hard drive is active. Power is supplied via a 12V DC input that accepts 100 to 240V AC at 50 to 60Hz. Low acoustic output suits noise-sensitive control rooms.

Upgrade Path and Fit

The board provides two SODIMM slots supporting up to 64GB DDR4-2400 for memory expansion. Storage can be added through an mSATA slot, an M.2 2280 NVME or SATA socket, and a 2.5 inch SATA bay. A Mini PCIe slot with SIM holder allows wireless or 4G modules. The 301 x 229mm cut-out matches standard panel-mount frames, while embedded buckle kits simplify fixed installation.

Pontos fortes

  • IP65 front panel resists dust and water jets
  • 10-point capacitive touch handles multi-finger input
  • Intel Core i7-8565U up to 4.60 GHz drives demanding tasks
  • 32 GB DDR4 with 512 GB SSD and 1 TB HDD stores large datasets
  • Fanless aluminium alloy runs silent in 0–50 °C environments

Especificações

ModelA1-PA-121TPC-CE6B(I78)-32G512G1TB
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 8th Gen
CPU NameIntel Core i7-8565U
GPU/VGA TypeIntel UHD Graphics
Memory Capacity32GB DDR4
Memory Slots (Available/Total)2 total
Maximum Memory Supported64 GB
SSD512GB
HDD1TB
Screen Size12.1"
TouchscreenYes

Outras versões deste modelo

Mais 5 nesta gama

Mesma família, memória, ventoinha ou frequência diferentes — compare antes de decidir.

Perguntas sobre este artigo

How do I mount the A1 panel PC and what step is often missed?

Cut a 301 x 229 mm opening for embedded installation, then secure the unit with the included embedded buckle kits; the step often missed is fitting all buckles before tightening.

Which storage drive will need attention first and what type fits?

The 1 TB 2.5" SATA HDD has moving parts and will likely need replacement before the 512 GB mSATA or M.2 2280 NVME PCIE X4/SATA SSDs; use a 2.5" SATA SSD or HDD as a direct swap.

At what temperature does the system throttle during continuous 7 x 24 operation?

The fanless aluminium alloy chassis is rated for 0–50 °C with SSD and 0–40 °C with HDD; sustained loads above those limits will trigger thermal throttling first.
