Silver 21.5 inch all-in-one panel PC with flat touchscreen and industrial IP65 front

partaker

Partaker A16 21.5" IP65 all-in-one PC, Core i5 6th Gen 2.00GHz, 8GB DDR3, 512GB SSD

SKU CH-C3EA-CSCSE

A 21.5" IP65-rated all-in-one with a 10-point capacitive touchscreen, fanless aluminium cooling, Intel Core i5 6th Gen at 2.00GHz, 8GB DDR3 and 512GB SSD for continuous industrial use

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 6th Gen
  • CPU Name2.00GHz
  • GPU/VGA TypeIntel Iris Graphics 540

GPU Intel Iris Graphics 540

Memory 8GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 512GB

HDD None

  • None
  • 1TB

As versões riscadas existem, mas não estão disponíveis aqui.

  • IP65 front panel resists dust and water ingress
  • 10-point capacitive touchscreen enables precise multi-touch control
  • Fanless aluminium alloy cooling runs silently 24/7
  • Intel Core i5 6th Gen with 8GB DDR3 and 512GB SSD handles industrial workloads
  • Wide 0–50 °C operating range with SSD suits harsh environments

Industrial Panel PC for Harsh Environments

The Partaker A16 is a 21.5 inch all-in-one system with an IP65-rated front panel and 10-point projected capacitive touchscreen. It runs on an Intel Core i5 6th Gen processor at 2.00GHz with Intel Iris Graphics 540, 8GB DDR3L memory and a 512GB mSATA SSD. Fanless aluminium cooling enables silent 24/7 operation in temperatures from 0 to 50°C.

Verify Mounting, Power and Expansion Needs

Confirm the 522 x 315mm panel cut-out matches your enclosure before ordering. The unit requires a 12V DC input from the included 100-240V AC adapter and provides two USB3.0, two USB2.0, HDMI, VGA, LAN, audio in/out and two COM ports. A Mini PCIe slot with SIM holder allows optional WiFi or 4G expansion.

Fanless Build Simplifies Cabinet Integration

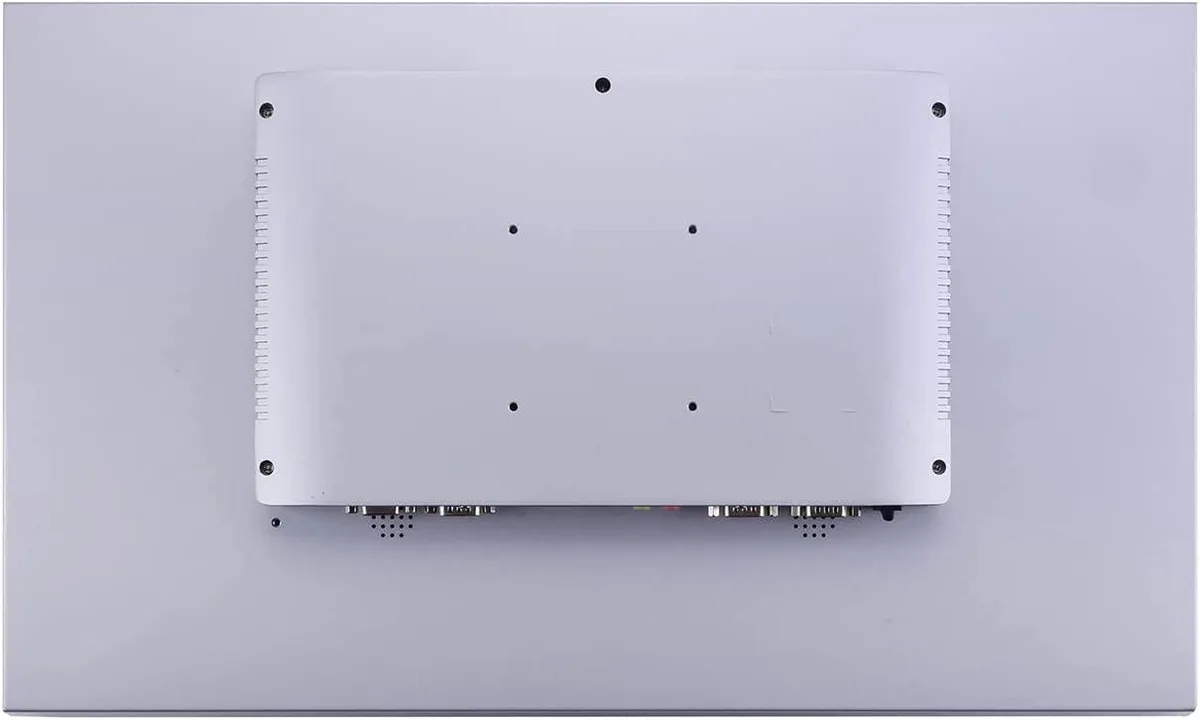

Passive cooling removes the need for filtered airflow, saving space and maintenance in sealed cabinets. The 54.5mm depth and embedded buckle kits support flush mounting, while the 6kg weight suits wall, desktop or cantilever arms. Dual display output via HDMI and VGA frees the built-in 1920 x 1080 screen for operator use while driving a secondary monitor.

Pontos fortes

  • IP65 front panel resists dust and water ingress
  • 10-point capacitive touchscreen enables precise multi-touch control
  • Fanless aluminium alloy cooling runs silently 24/7
  • Intel Core i5 6th Gen with 8GB DDR3 and 512GB SSD handles industrial workloads
  • Wide 0–50 °C operating range with SSD suits harsh environments

Especificações

ModelA16-PA-215TPC-CE6A(I56)-8G512G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 6th Gen
CPU Name2.00GHz
GPU/VGA TypeIntel Iris Graphics 540
Memory Capacity8GB DDR3
SSD512GB
HDDNo
Screen Size21.5"
TouchscreenYes

Outras versões deste modelo

Mais 5 nesta gama

Mesma família, memória, ventoinha ou frequência diferentes — compare antes de decidir.

Perguntas sobre este artigo

What comes in the box with the A16 panel PC, and do I need a separate mounting kit?

The packing list includes the panel PC, 12 V power supply, power cord and embedded buckle kits for panel mounting. No extra mounting hardware is required for standard embedded installation.

Should I choose the Windows 10 Pro or Ubuntu version for an industrial HMI that must boot automatically after a power loss?

Both OS images support the BIOS “auto power on after power failure” setting, so either will restart without user intervention. Pick the OS your SCADA software certifies.

What does the 250 cd/m² brightness mean for a machine mounted near a sunny factory window?

At 250 cd/m² the 21.5″ panel is readable in typical indoor lighting but will appear washed out in direct sunlight; consider a hood or repositioning for high-glare areas.
