Compact 12.1 inch industrial all-in-one with flat IP65 front panel and multi-touch screen

partaker

Partaker A19 12.1" IP65 i7-10510U 16GB 512GB all-in-one PC

SKU CH-QNEK-NG587

12.1" IP65-rated industrial all-in-one with Core i7-10510U, 16GB DDR4, 512GB SSD, Windows 11 Pro, fanless aluminium chassis, 9-36V Phoenix power, dual LAN, dual COM.

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 10th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity16GB DDR4
  • Maximum Memory Supported32 GB

CPU Type Intel Core i7 10th Gen

Memory Capacity 16GB DDR4

SSD 512GB

  • IP65 front panel resists dust and water jets
  • Fanless aluminium chassis runs silently 24/7
  • 1″ multi-touch screen works with gloves
  • Dual Intel LAN plus four USB 3.0 ports
  • Wide 9–36 V DC input suits industrial power

Industrial panel PC

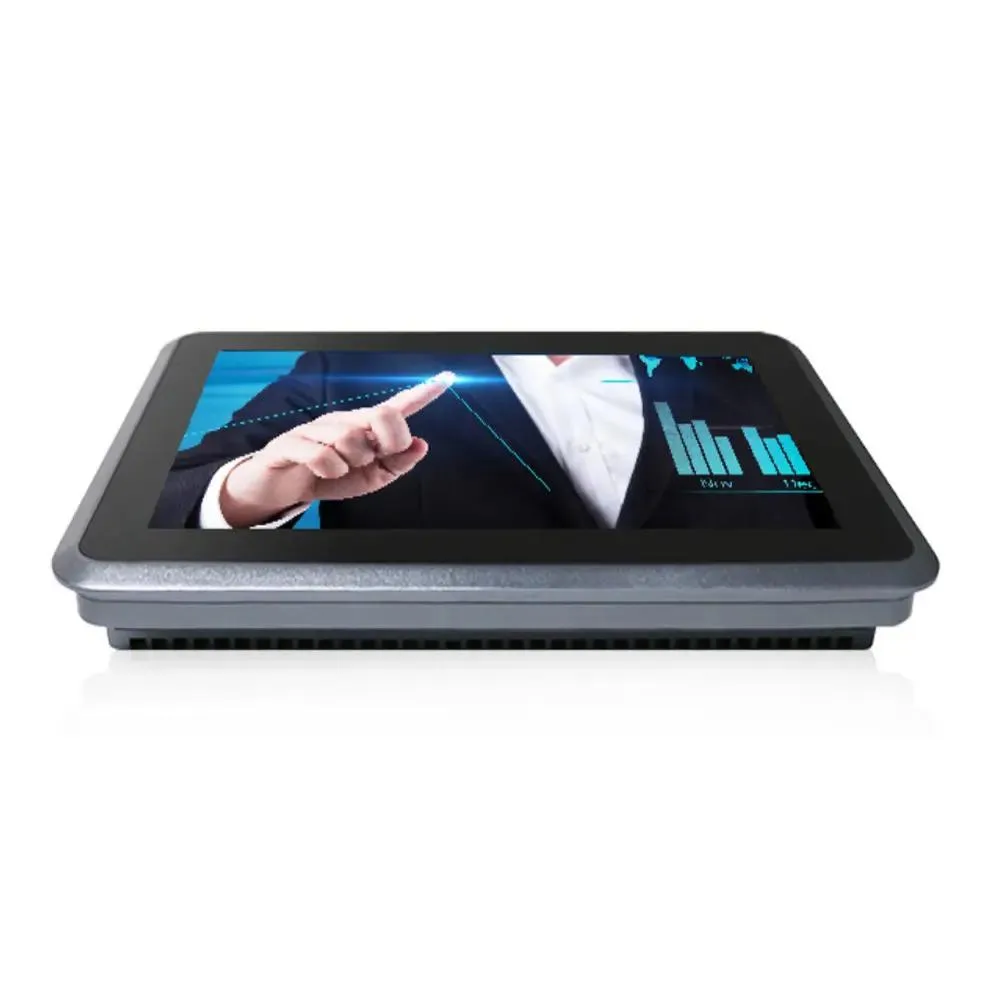

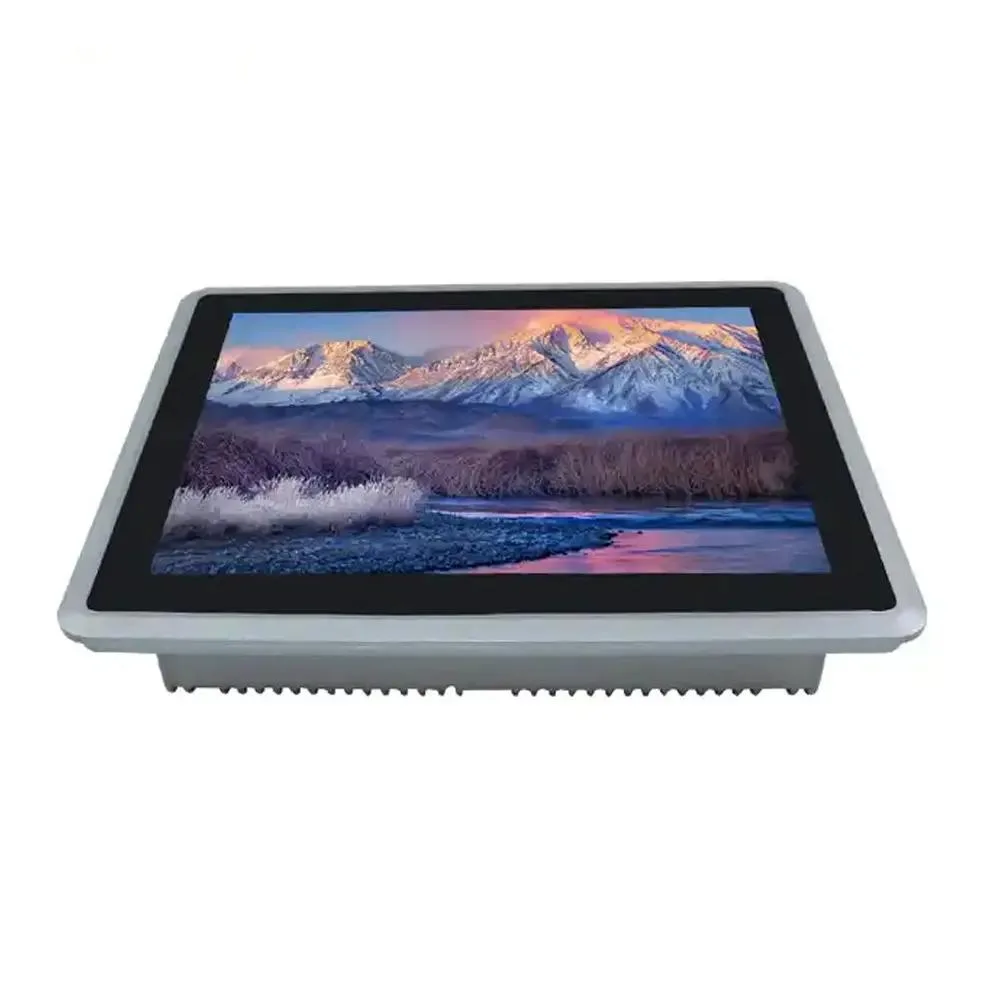

The Partaker A19 is a 12.1-inch all-in-one computer with an IP65-rated front panel and a resistive multi-touch screen. It runs on an Intel Core i7 10510U processor with 16GB of DDR4 memory and a 512GB SATA SSD. Windows 11 Pro comes pre-installed for immediate deployment in industrial environments.

Integration and expansion

The fanless aluminium chassis measures 309.5 by 248 by 60 millimetres and fits a 298.5 by 237 millimetre cut-out for embedded mounting. Two Intel gigabit LAN ports, HDMI, four USB 3.0 ports, two COM ports configurable for RS232, RS422 or RS485, and a 9-36V Phoenix power connector cover factory automation needs. A Mini PCIe slot with a SIM holder allows wireless or 4G expansion, while an internal 2.5-inch SATA bay and M.2 2280 slot support RAID 0 or 1 for storage redundancy.

Thermals and power

Passive cooling eliminates moving parts and audible noise during continuous operation. The unit accepts a wide 9-36V DC input or the included 12V 5A adapter and operates from 0 to 50°C in commercial settings or -20 to 60°C with an industrial SSD. TPM 2.0 provides hardware-based security for sensitive data workloads.

Pontos fortes

  • IP65 front panel resists dust and water jets
  • Fanless aluminium chassis runs silently 24/7
  • 1″ multi-touch screen works with gloves
  • Dual Intel LAN plus four USB 3.0 ports
  • Wide 9–36 V DC input suits industrial power

Especificações

ModelA19-New-I7-10810U-16G512G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 10th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity16GB DDR4
Maximum Memory Supported32 GB
SSD512GB
HDDNo
Screen Size12.1"
TouchscreenYes

Outras versões deste modelo

Mais 5 nesta gama

Mesma família, memória, ventoinha ou frequência diferentes — compare antes de decidir.

Perguntas sobre este artigo

Will the 1024x768 panel brightness of 350 cd/m² be the first limit I hit during 7x24hr operation?

The 350 cd/m² brightness is a fixed panel spec; sustained 7x24hr use is rated for the industrial SSD temperature range of -20°C to 60°C, so thermal limits on the CPU or SSD appear before brightness becomes a constraint.

How hot or loud does the fanless aluminium chassis get when the i7-10510U runs at 4.90 GHz all day?

The fanless aluminium alloy design means zero acoustic noise; the chassis acts as a heatsink and the system is validated for continuous operation up to 60°C ambient with an industrial SSD installed.

What mounting hardware must I already have to install this 309.5 x 248 mm panel PC?

The unit includes embedded and wall-mount kits; you only need to supply a 9-36 V DC source via the 2-pin Phoenix connector or the bundled 12 V 5 A adapter.
