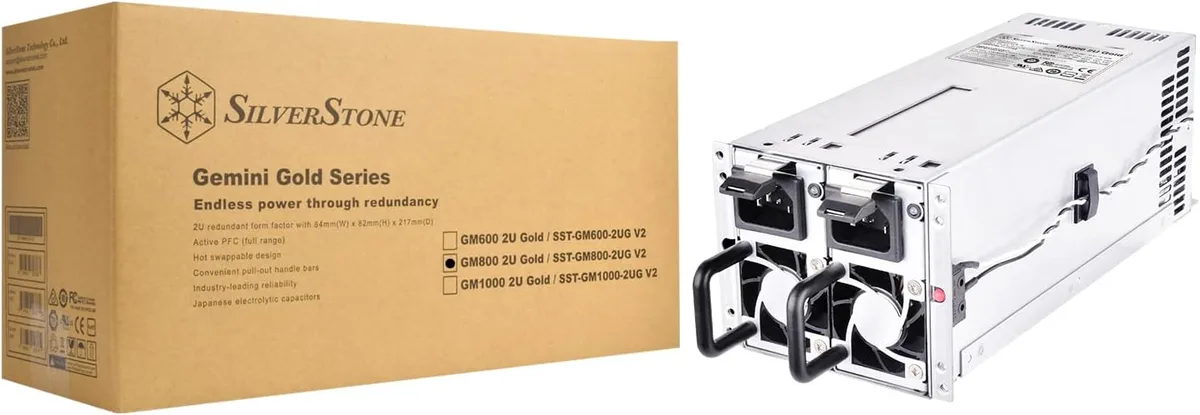

Silverstone GM800-2UG-V2 redundant server PSU, 2U form factor with pull-out handles, matte metal finish

Silverstone

Silverstone GM800-2UG-V2 800W redundant server power supply

SKU CH-HQXX-7CRB4 MPN GM800-2UG-V2

Hot-swap redundant 800W 2U unit with 80 PLUS Gold efficiency and single +12V rail

  • TypeRedundant Power Supply
  • Single/RedundantRedundant
  • Form Factor1+1 2U redundant form factor
  • Maximum Power800W
  • Fans40mm PWM fans
  • Main Connector20+4Pin
  • 800 W redundant design keeps servers running if one module fails
  • 80 PLUS Gold certified efficiency above 87 % cuts power waste and heat
  • Single +12 V rail delivers 66.5 A for stable high-load performance
  • 40 mm PWM fans limit noise to 62.5 dBA maximum
  • Active PFC with power factor above 0.9 reduces harmonic distortion

800W 2U redundant server supply

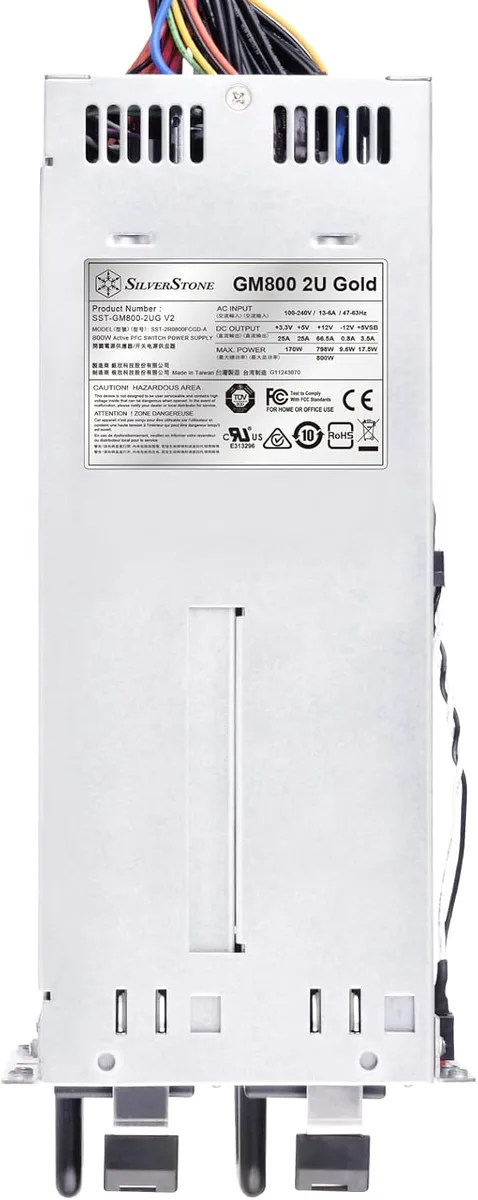

The Silverstone GM800-2UG-V2 is an 800W redundant power supply built to the 2U 1+1 form factor. It delivers a single +12V rail rated at 66.5A and carries 80 PLUS Gold certification with overall efficiency between 87 and 89 percent. Active PFC maintains a power factor above 0.9 at full load across a 90 to 264V input range. All Japanese electrolytic capacitors and a MTBF exceeding 100,000 hours support continuous server operation.

Suited for dual-module chassis needing hot-swap

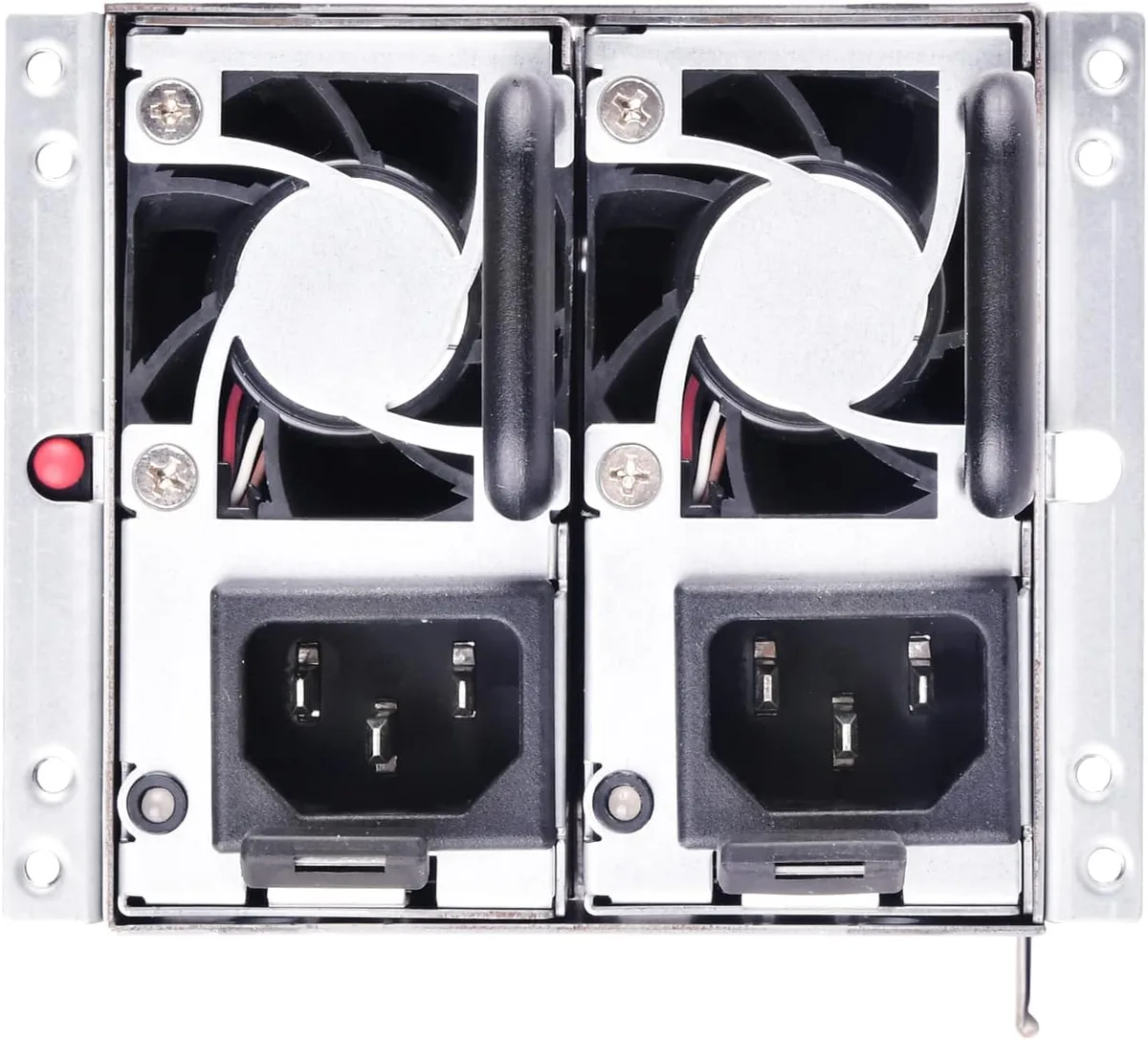

This unit fits 2U rackmount enclosures that accept a 1+1 redundant module measuring 84mm wide by 82mm high by 217mm deep. Four 40mm PWM fans provide cooling at up to 62.5 dBA maximum noise. Builders who require a single non-redundant supply or a different form factor such as ATX or 1U should look at other designs.

Integrates with standard server backplanes via

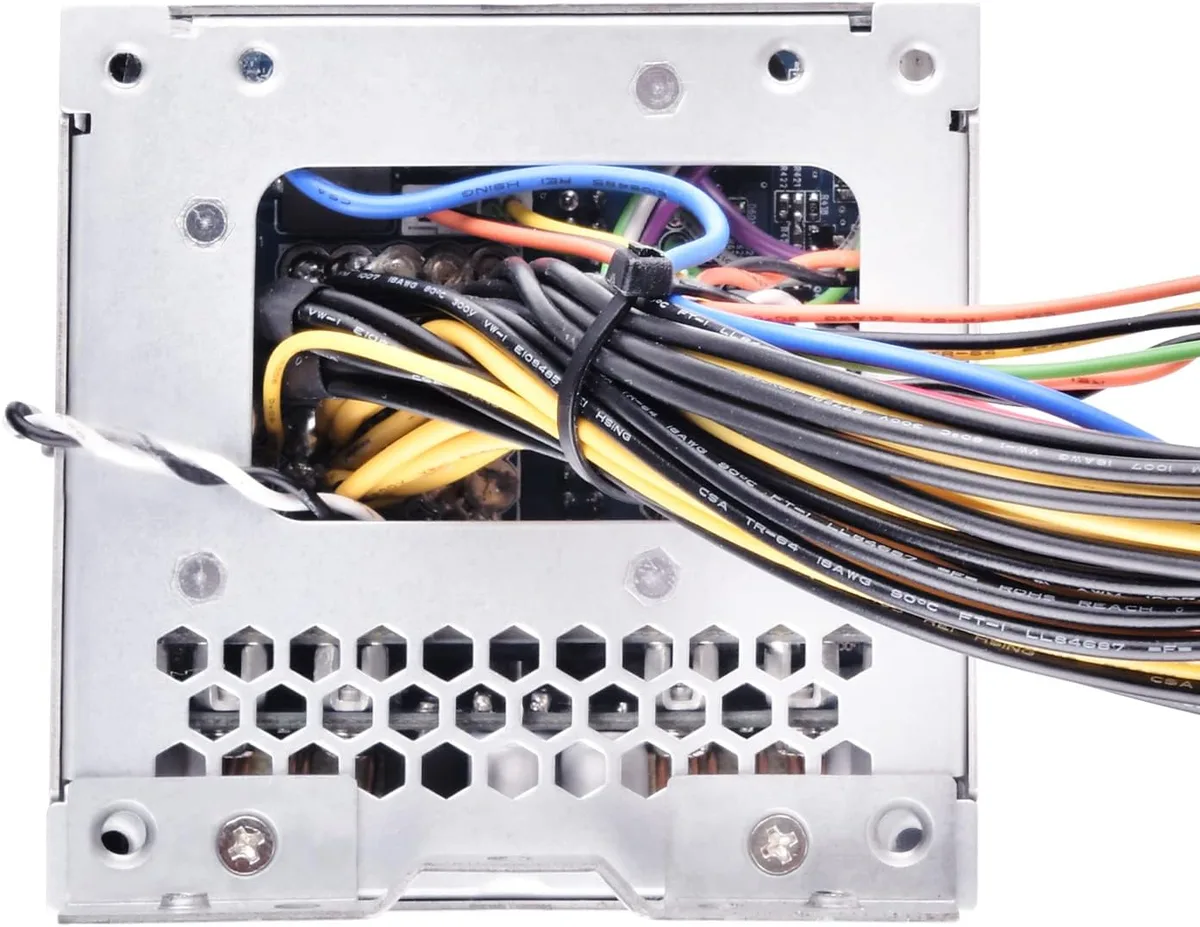

The package includes a 24/20-pin motherboard cable, two CPU 4+4-pin cables, two PCIe 6+2-pin cables, two SATA cables each with three connectors, and peripheral cables covering nine 4-pin and one floppy connector. A 2-pin TTL connector enables module status monitoring. The pull-out handle bars simplify hot-swap replacement without tools.

Pontos fortes

  • 800 W redundant design keeps servers running if one module fails
  • 80 PLUS Gold certified efficiency above 87 % cuts power waste and heat
  • Single +12 V rail delivers 66.5 A for stable high-load performance
  • 40 mm PWM fans limit noise to 62.5 dBA maximum
  • Active PFC with power factor above 0.9 reduces harmonic distortion

Especificações

BrandSilverStone
ModelGM800-2UG-V2
TypeRedundant Power Supply
Single/RedundantRedundant
Form Factor1+1 2U redundant form factor
Maximum Power800W
Fans40mm PWM fans
Main Connector20+4Pin
Output Current25A@+3.3V, 25A@+5V, 66.5A@+12V, 3.5A@+5VSB, 0.8A@-12V
Input Voltage90 - 264 V
Input Frequency Range47 - 63 Hz
+12V RailsSingle
PFCActive PFC (PF>0.9 at full load)
MTBF>100,000 Hours
Energy-Efficient80 PLUS GOLD Certified
Efficiency>=87% & <89% overall efficiency with single modular power supply
PSU Noise Level62.5 dBA maximum
ProtectionOver Current Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Connectors1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connectors
2 x 8 / 6-Pin PCIe connectors
6 x SATA connectors
9 x 4-Pin Peripheral connectors
1 x 4-Pin Floppy connector
1 x 2-Pin TTL connector
1 x 2-Pin PW1 connector
1 x 2-Pin PW2 connector
1 x PM Bus connector
Cable Spec1 x MB 24/20pin cable
2 x CPU 4+4pin cable
2 x PCI-E 6+2pin cable
1 x Cable (3 x Peripheral 4pin connector + 1 x 4pin Floppy connector per cable)
2 x Cable (3 x Peripheral 4pin connector per cable)
2 x SATA Cable (3 connector per cable)
1 x PMBUS cable
1 x 2-pin Total PFD cable
1 x 2-pin PW1 cable
1 x 2-pin PW2 cable
Dimensions102 x 82 x 231 mm (Housing with bracket, without handle)
84 x 82 x 217 mm (Housing without bracket)
78 x 39 x 190 mm (Module only without handle)
Weight6.97 lbs.
TemperatureOperating temperature 0°C ~ 45°C
Peso de envio4.08 kg
Dimensões da embalagem406 × 203 × 152 mm

Perguntas sobre este artigo

Does my chassis support the 1+1 2U redundant form factor measuring 84mm(W) x 82mm(H) x 217mm(D)?

The unit fits a 1+1 2U redundant form factor measuring 84mm(W) x 82mm(H) x 217mm(D), so your chassis must accept those exact dimensions and the pull-out handle bars.

Will the single +12V rail delivering 66.5A@+12V work with my existing EPS and PCIe cables?

Two 8/4-pin EPS connectors and two 8/6-pin PCIe connectors are included, all fed by the single +12V rail rated at 66.5A, so legacy EPS and PCIe devices can draw from the same rail.

How can I confirm the 80 PLUS GOLD and Cybenetics Gold efficiency after installation?

Monitor input versus output power at typical loads; the supply is rated >=87% & <89% overall efficiency with active PFC (PF>.9 at full load), matching both Gold certifications.
