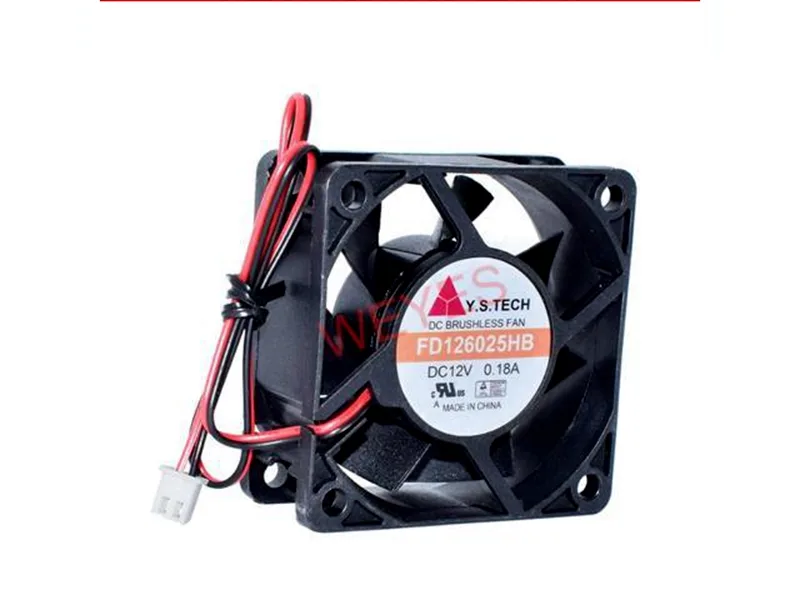

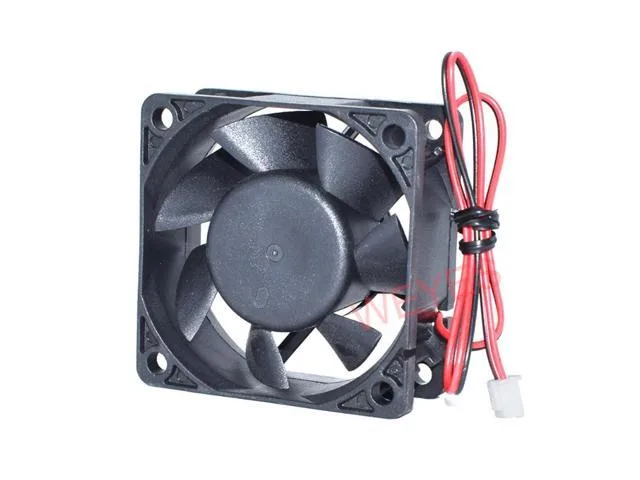

Black 60mm square case fan, 25mm thick, two-wire lead

SXDOOL

SXDOOL FD126025HB 12V 0.18A 60x60x25mm case fan

SKU CH-Q5MG-C80JS MPN FD126025HB

A 60mm case fan with dual-ball bearings, 12V 0.18A draw and a flame-retardant PBT frame rated from -10°C to 70°C

  • TypeServer fan / case fan
  • Fan Size60mm
  • Bearing Type2 Ball
  • Power Connector2 Pin
  • ColorBlack
  • LEDNo
  • Dual-ball bearing extends service life with high-precision rotation
  • 12 V 0.18 A draws only 2.16 W for efficient cooling
  • PBT frame with 30 % glass fibre resists heat to 70 °C
  • 2-pin 2-wire lead fits standard 12 V headers
  • 60 mm square 25 mm thick suits tight server chassis

Compact 60 mm server fan

The SXDOOL FD126025HB is a 12 V DC brushless fan built for tight server and workstation chassis. Its 60 mm square frame and 25 mm depth suit 1U enclosures and dense component layouts where larger fans cannot fit.

2.16 W airflow with two-ball bearings

Rated at 0.18 A and 2.16 W, the fan delivers steady airflow for moderate heat loads while the dual ball bearings sustain continuous operation from -10 °C to 70 °C. It is not intended for high-static-pressure radiators or extreme overclocking scenarios.

PBT frame and 2-pin power lead

The one-piece PBT housing with 30 % glass fibre and VO flame rating resists vibration and heat cycling. A fixed 2-wire red and black lead on a 2-pin connector provides simple voltage control without PWM or speed reporting.

Pontos fortes

  • Dual-ball bearing extends service life with high-precision rotation
  • 12 V 0.18 A draws only 2.16 W for efficient cooling
  • PBT frame with 30 % glass fibre resists heat to 70 °C
  • 2-pin 2-wire lead fits standard 12 V headers
  • 60 mm square 25 mm thick suits tight server chassis

Especificações

BrandY.S.TECH
SeriesFD126025HB
ModelFD126025HB
TypeServer fan / case fan
Fan Size60mm
Bearing Type2 Ball
Power Connector2 Pin
ColorBlack
LEDNo
Dimensions60mm x 60mm x 25mm

Perguntas sobre este artigo

Will the 60mm frame and 2-pin connector fit my older motherboard header?

The fan measures 60 by 60 by 25mm and uses a standard 2-pin connector with red and black wires, matching legacy 12V headers.

How can I confirm the FD126025HB is spinning correctly once installed?

At 12V and 0.18A the fan draws 2.16W; listen for smooth rotation and verify airflow direction is counterclockwise when viewed from the blade side.

Does the package include mounting screws or a PWM adapter cable?

The box contains only the FD126025HB fan with its 2-wire lead; mounting screws and any 4-pin adapter must be sourced separately.
