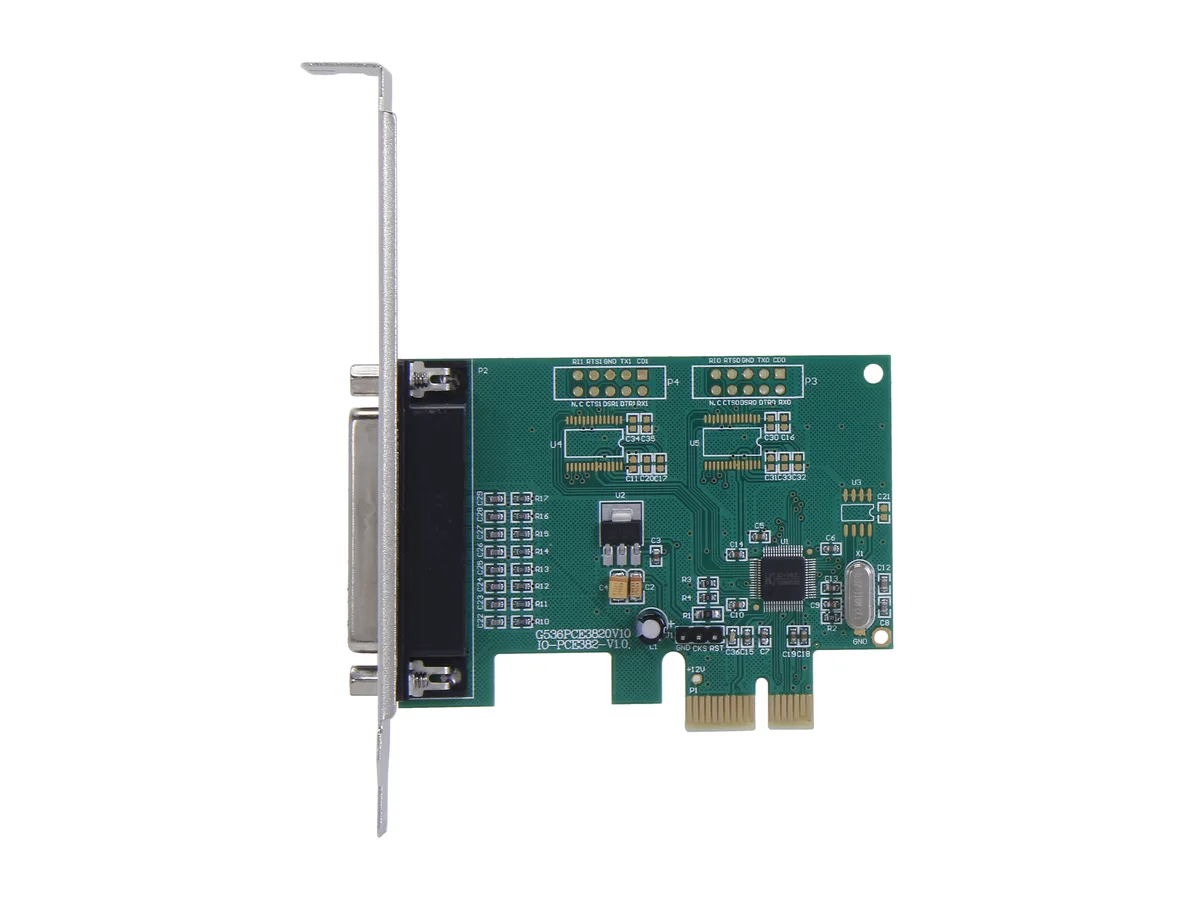

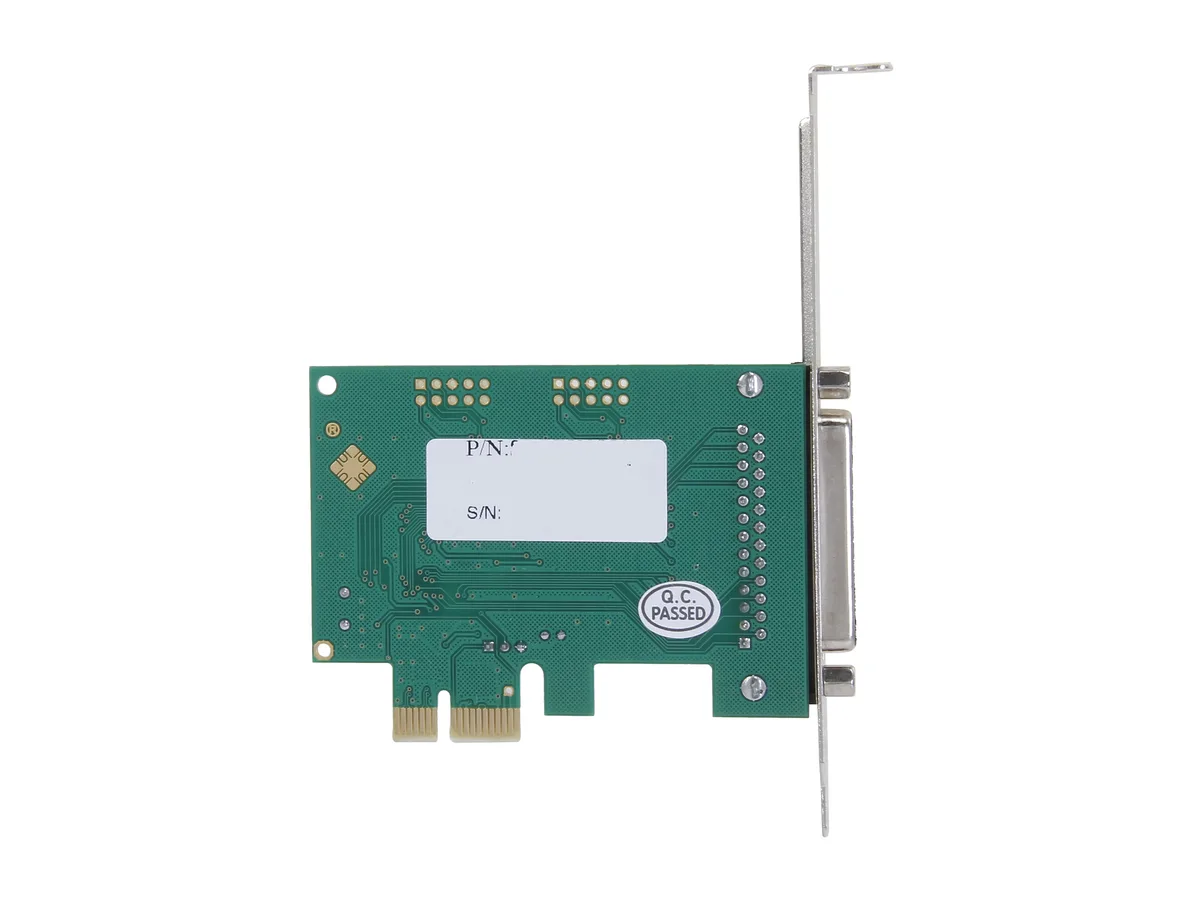

Green PCIe x1 card with silver DB25 parallel port and two metal brackets

Syba

Syba SI-PEX10010 1 Port Parallel PCIe 1.0 x1 Expansion Card

SKU CH-DA28-VAF0Z MPN SI-PEX10010

Adds a DB25 parallel port via PCIe 1.0 x1 with WCH382L chipset and includes both brackets

  • TypePCI Express to Parallel Port
  • External Ports1 x Parallel Port
  • Operating Systems SupportedWindows 7 Windows Vista Windows XP Server 2012 Server 2008 S
  • FeaturesFully Compliant with PCI Express Base Specification, Revisio
  • Package Contents1-port Parallel PCI-e Controller Card Driver CD User Manual
  • Adds a legacy parallel port for printers and industrial gear
  • WCH382L chipset drives the connection
  • PCIe 1.0 x1 slot fits x1, x4, x8 or x16 sockets

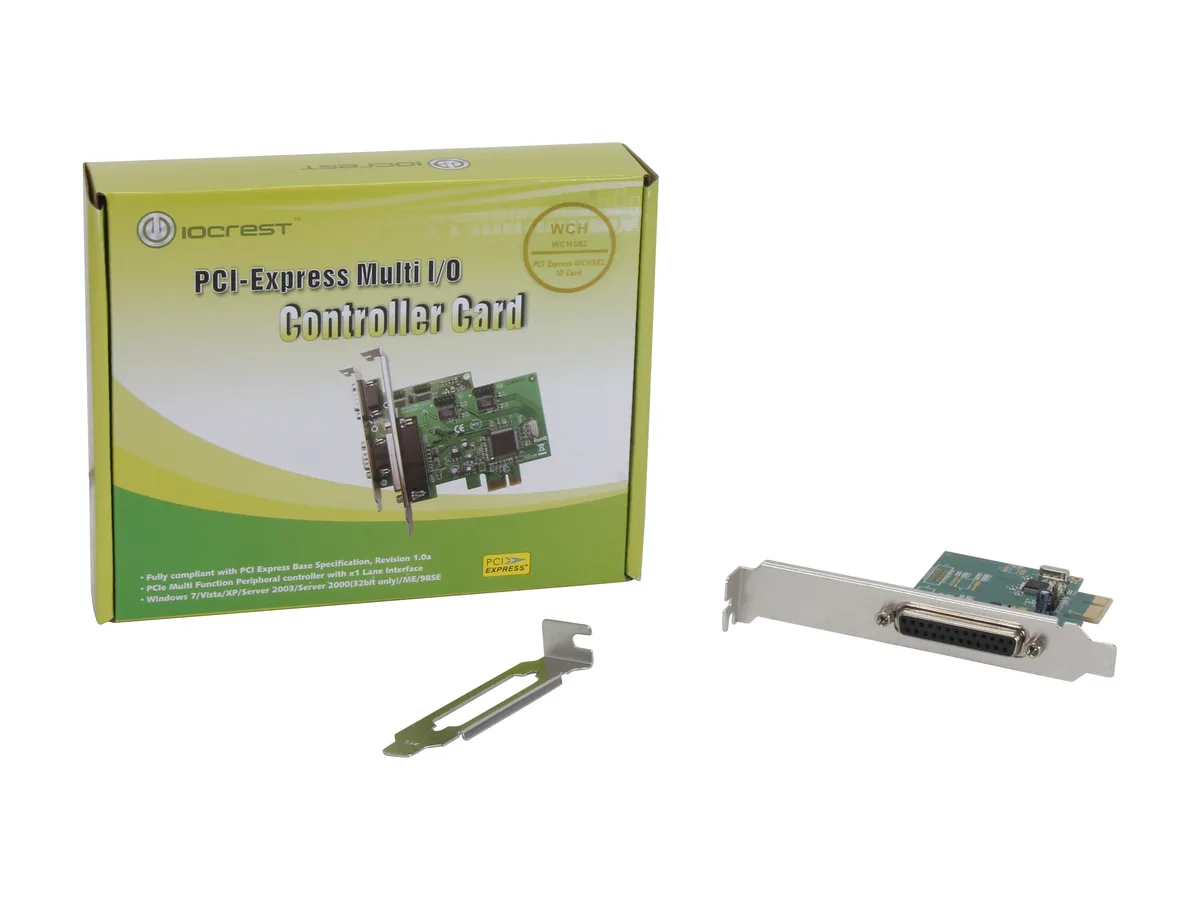

  • Includes both standard and low-profile brackets
  • IEEE 1284 multi-mode up to 1.5 Mbps data rate

Legacy Parallel Connectivity

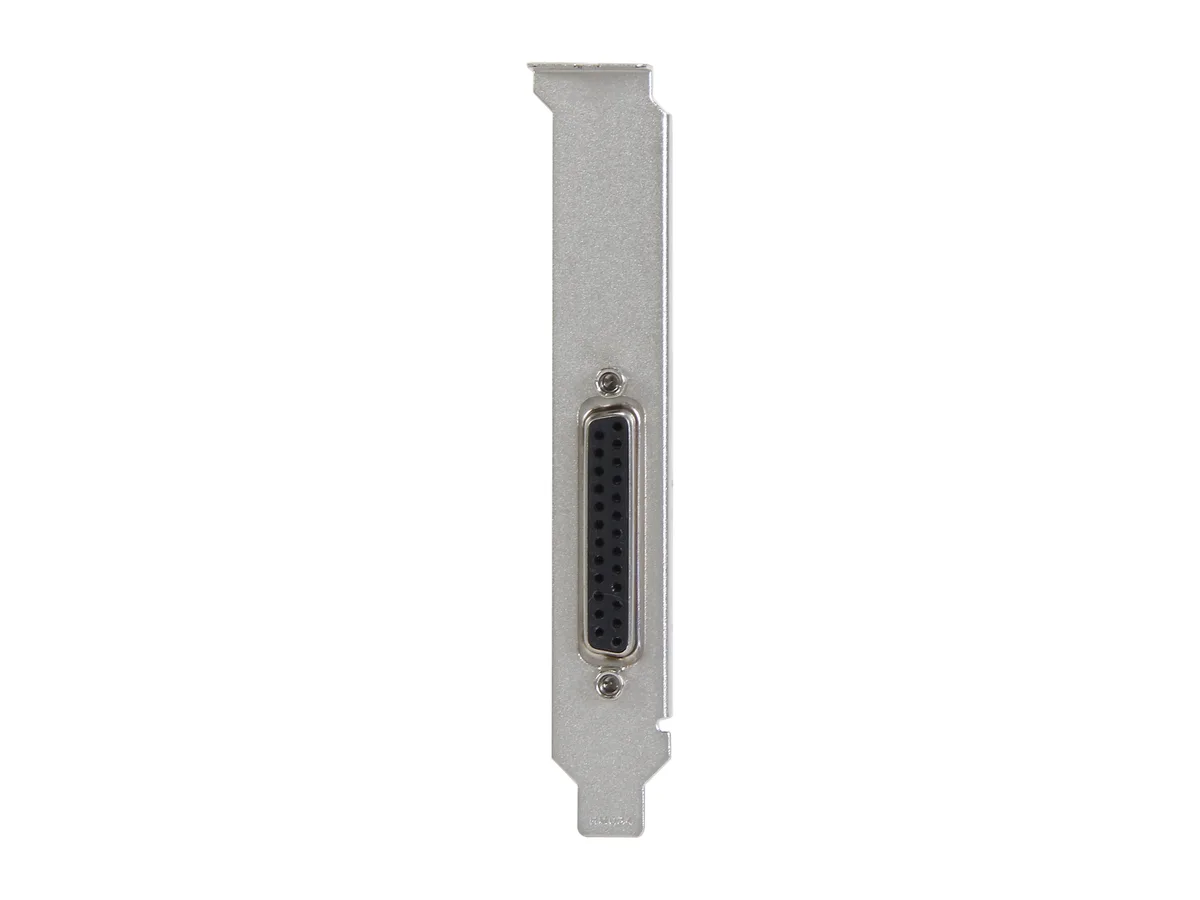

The Syba SI-PEX10010 adds a single DB25 parallel port to any desktop or server with a free PCI Express x1, x4, x8 or x16 slot. It targets users who must keep older printers, industrial controllers or legacy test equipment running on modern hardware. Both a standard-height and a low-profile bracket are included for flexible installation.

IEEE 1284 Multi-Mode Support

The WCH382L chipset implements SPP, PS/2, EPP and ECP modes for broad peripheral compatibility. Bidirectional data transfer reaches up to 1.5 Mbps, matching the throughput requirements of typical parallel printers and automation devices.

PCIe 1.0a x1 Power Management

The card conforms to the PCI Express 1.0a specification using a single lane and a 100-MHz differential reference clock. It supports D1, D2, D3hot and D3cold power states, so the adapter draws minimal power during long idle periods while remaining ready for continuous print queues or industrial polling cycles.

Pontos fortes

  • Adds a legacy parallel port for printers and industrial gear
  • WCH382L chipset drives the connection
  • PCIe 1.0 x1 slot fits x1, x4, x8 or x16 sockets
  • Includes both standard and low-profile brackets
  • IEEE 1284 multi-mode up to 1.5 Mbps data rate

Especificações

BrandSYBA
ModelSI-PEX10010
TypePCI Express to Parallel Port
External Ports1 x Parallel Port
Operating Systems SupportedWindows 7
Windows Vista
Windows XP
Server 2012
Server 2008
Server 2003
Server 2000(32bit only)
Windows ME
Windows 98SE
Windows 98
Linux Kernel 2.4 & 2.6
Mac 10.4 & above
FeaturesFully Compliant with PCI Express Base Specification, Revision 1.0a
PCIe Multi Function Peripheral Controller with x1 Lane Interface
Supports D1, D2, D3hot and D3cold
Utilizes 100-MHz Differential PCI Express Common Reference Clock
Supports PCIe Power Management
Supports SPP, Nibble, Byte, PS/2, EPP, ECP, and other IEEE1284 parallel / printer port work
Supports Bi-directional Data Transfer
Supports up to 1M Bytes/sec Transfer Rate
Notes:
Does not support Remap on I/O Address & IRQ
Package Contents1-port Parallel PCI-e Controller Card
Driver CD
User Manual
Low Profile Bracke
Peso de envio0.12 kg
Dimensões da embalagem168 × 137 × 41 mm

Perguntas sobre este artigo

What does the 1.5 Mbps parallel-port rating mean when the card is installed in a real machine?

The WCH382L chipset drives the DB25 port at up to 1.5 Mbps in ECP or EPP mode, so a legacy printer or industrial device can transfer data at the full IEEE1284 speed the peripheral supports.

What does the PCIe 1.0a x1 interface cap in practice?

The card uses a single PCI Express 1.0a lane, which provides more than enough bandwidth for the parallel port's 1 MB/s maximum transfer rate.

What does the card physically need to fit or mount in a case?

It fits any x1, x4, x8 or x16 PCI Express slot and includes both a standard-height and a low-profile bracket for full-size or slim chassis.
